LaTeX is a powerful typesetting system widely used in academia and scientific publishing for its ability to produce high-quality documents with complex mathematical notation. One of the most useful features of LaTeX is its capability to create matrices, which are essential in various fields such as linear algebra, physics, and engineering. In this post, we will delve into the intricacies of creating and formatting Matrix In Latex, exploring different types of matrices and their applications.
Understanding Matrices in LaTeX
Matrices are rectangular arrays of numbers, symbols, or expressions arranged in rows and columns. In LaTeX, matrices can be created using the amsmath package, which provides a variety of environments for different types of matrices. The basic syntax for creating a matrix involves using the matrix environment, which is part of the amsmath package.
Basic Matrix Environment
The matrix environment is the simplest way to create a matrix in LaTeX. It allows you to specify the elements of the matrix row by row. Here is an example of how to create a basic 2x2 matrix:
documentclass{article}
usepackage{amsmath}
egin{document}
[
egin{matrix}
a & b \
c & d
end{matrix}
]
end{document}
This code will produce a 2x2 matrix with elements a, b, c, and d. The matrix environment does not include any brackets or delimiters around the matrix.
Different Types of Matrix Environments
LaTeX provides several environments for creating matrices with different delimiters. These environments include bmatrix, pmatrix, Bmatrix, vmatrix, and Vmatrix. Each of these environments adds specific delimiters to the matrix.
Bmatrix Environment
The bmatrix environment is used to create a matrix with square brackets. This is useful for representing matrices in linear algebra. Here is an example:
documentclass{article}
usepackage{amsmath}
egin{document}
[
egin{bmatrix}
a & b \
c & d
end{bmatrix}
]
end{document}
This code will produce a 2x2 matrix with square brackets around it.
Pmatrix Environment
The pmatrix environment is used to create a matrix with parentheses. This is often used in probability and statistics. Here is an example:
documentclass{article}
usepackage{amsmath}
egin{document}
[
egin{pmatrix}
a & b \
c & d
end{pmatrix}
]
end{document>
This code will produce a 2x2 matrix with parentheses around it.
Bmatrix Environment
The Bmatrix environment is used to create a matrix with curly braces. This is useful for representing sets or groups in mathematics. Here is an example:
documentclass{article}
usepackage{amsmath}
egin{document}
[
egin{Bmatrix}
a & b \
c & d
end{Bmatrix}
]
end{document>
This code will produce a 2x2 matrix with curly braces around it.
Vmatrix and Vmatrix Environments
The vmatrix and Vmatrix environments are used to create matrices with single and double vertical bars, respectively. These are often used in the context of determinants. Here are examples of both:
documentclass{article}
usepackage{amsmath}
egin{document}
[
egin{vmatrix}
a & b \
c & d
end{vmatrix}
]
[
egin{Vmatrix}
a & b \
c & d
end{Vmatrix}
]
end{document}
These codes will produce 2x2 matrices with single and double vertical bars, respectively.
Creating Larger Matrices
LaTeX allows you to create matrices of any size by simply adding more rows and columns. Here is an example of a 3x3 matrix using the bmatrix environment:
documentclass{article}
usepackage{amsmath}
egin{document}
[
egin{bmatrix}
a & b & c \
d & e & f \
g & h & i
end{bmatrix}
]
end{document}
This code will produce a 3x3 matrix with square brackets around it.
Aligning Matrix Elements

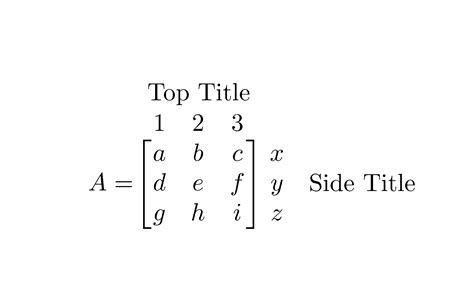

Sometimes, you may want to align the elements of a matrix at specific points, such as the decimal point in a set of numbers. The array environment provides more control over the alignment of matrix elements. Here is an example:
documentclass{article}
usepackage{amsmath}
egin{document}
[
egin{array}{ccc}
a & b & c \
d & e & f \
g & h & i
end{array}
]
end{document>
This code will produce a 3x3 matrix with elements aligned at the center. You can adjust the alignment by changing the column specifiers in the array environment.
Matrix Operations in LaTeX
LaTeX also supports various matrix operations, such as addition, subtraction, and multiplication. These operations can be represented using standard mathematical notation. Here is an example of matrix addition:
documentclass{article}
usepackage{amsmath}
egin{document}
[
egin{pmatrix}
a & b \
c & d
end{pmatrix}
+
egin{pmatrix}
e & f \
g & h
end{pmatrix}
=
egin{pmatrix}
a+e & b+f \
c+g & d+h
end{pmatrix}
]
end{document>
This code will produce an equation representing the addition of two 2x2 matrices.
Applications of Matrices in LaTeX
Matrices have a wide range of applications in various fields. Some of the most common applications include:
- Linear Algebra: Matrices are fundamental in linear algebra, where they are used to represent linear transformations and solve systems of linear equations.
- Physics: In physics, matrices are used to represent tensors, which are essential in the study of relativity and quantum mechanics.
- Engineering: Matrices are used in engineering to model and analyze systems, such as electrical circuits and structural analysis.
- Computer Science: In computer science, matrices are used in graphics, data analysis, and machine learning.
By mastering the creation and manipulation of matrices in LaTeX, you can effectively communicate complex mathematical concepts in your documents.
đź’ˇ Note: Ensure that you have the amsmath package included in your LaTeX document to use the matrix environments discussed in this post.
In addition to the basic matrix environments, LaTeX provides several other tools for working with matrices. For example, you can use the array environment to create custom matrices with specific alignment and formatting options. You can also use the cases environment to create piecewise matrices, which are useful in optimization problems.
Another important aspect of working with matrices in LaTeX is the ability to label and reference them within your document. This can be done using the label and ref commands, which allow you to create cross-references to specific matrices. Here is an example:
documentclass{article}
usepackage{amsmath}
egin{document}
egin{equation}
label{eq:matrix}
egin{pmatrix}
a & b \
c & d
end{pmatrix}
end{equation}
As shown in equation
ef{eq:matrix}, the matrix represents a linear transformation.
end{document}
This code will produce a labeled matrix that can be referenced elsewhere in the document.

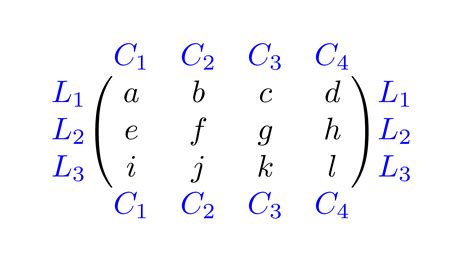

Finally, it's worth noting that LaTeX provides a wide range of customization options for matrices. You can adjust the spacing, font size, and other formatting options to suit your specific needs. For example, you can use the array environment to create matrices with custom column widths and alignments. You can also use the resizebox command from the graphicx package to scale matrices to a specific size.
By leveraging these tools and techniques, you can create professional-looking documents with complex mathematical notation, including matrices. Whether you're working in academia, engineering, or any other field that requires precise mathematical communication, LaTeX provides the tools you need to create high-quality documents.
In summary, LaTeX is a powerful tool for creating and formatting matrices, with a wide range of environments and customization options. By mastering the creation and manipulation of matrices in LaTeX, you can effectively communicate complex mathematical concepts in your documents. Whether you’re working in linear algebra, physics, engineering, or any other field, LaTeX provides the tools you need to create professional-looking documents with precise mathematical notation.
