Mass spectroscopy is a powerful analytical technique used to identify the amount and type of chemicals present in a sample by measuring the mass-to-charge ratio and abundance of gas-phase ions. This method is widely used in various fields, including chemistry, biology, environmental science, and forensics. Understanding the different Mass Spectroscopy Types is crucial for selecting the appropriate technique for specific analytical needs.
Introduction to Mass Spectroscopy

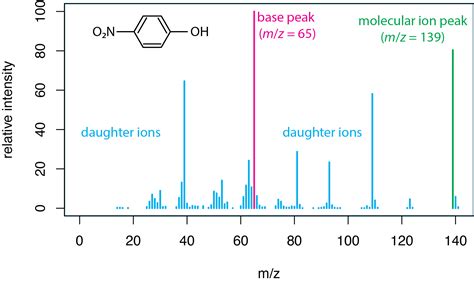

Mass spectroscopy involves ionizing chemical compounds to generate charged molecules or molecule fragments and measuring their mass-to-charge ratios. The results are typically presented as a mass spectrum, a plot of ion signal as a function of the mass-to-charge ratio. This spectrum is unique to each compound, making it a valuable tool for identification and quantification.
Basic Principles of Mass Spectroscopy
The basic principles of mass spectroscopy include:
- Ionization: The sample is ionized to produce charged particles.
- Acceleration: The ions are accelerated by an electric field.
- Deflection: The ions are deflected by a magnetic field based on their mass-to-charge ratio.
- Detection: The deflected ions are detected, and the data is recorded as a mass spectrum.

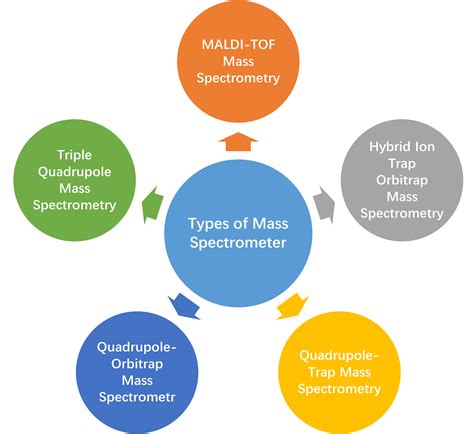

Types of Mass Spectrometers
There are several Mass Spectroscopy Types, each with its unique features and applications. The choice of mass spectrometer depends on the specific requirements of the analysis, such as the type of sample, the desired sensitivity, and the need for high-resolution data.
Time-of-Flight Mass Spectrometry (TOF-MS)
Time-of-Flight Mass Spectrometry (TOF-MS) measures the time it takes for ions to travel a fixed distance in a flight tube. Ions with a higher mass-to-charge ratio take longer to reach the detector, allowing for the separation and identification of different ions.
TOF-MS is known for its high sensitivity and resolution, making it suitable for analyzing complex mixtures and large biomolecules. It is often used in proteomics, metabolomics, and environmental analysis.
Quadrupole Mass Spectrometry (QMS)
Quadrupole Mass Spectrometry (QMS) uses electric fields to filter ions based on their mass-to-charge ratio. The quadrupole consists of four parallel rods, and by applying specific voltages, only ions with a particular mass-to-charge ratio can pass through and reach the detector.
QMS is widely used in gas chromatography-mass spectrometry (GC-MS) and liquid chromatography-mass spectrometry (LC-MS) for its robustness, reliability, and ease of use. It is commonly employed in environmental monitoring, pharmaceutical analysis, and food safety.
Ion Trap Mass Spectrometry (IT-MS)
Ion Trap Mass Spectrometry (IT-MS) uses electric and magnetic fields to trap ions in a small volume. The trapped ions are then selectively ejected based on their mass-to-charge ratio and detected. IT-MS can perform multiple stages of mass spectrometry (MSn), allowing for detailed structural analysis of complex molecules.
IT-MS is particularly useful in proteomics and metabolomics, where detailed structural information is required. It is also used in forensic analysis and drug discovery.
Fourier Transform Ion Cyclotron Resonance Mass Spectrometry (FT-ICR MS)
Fourier Transform Ion Cyclotron Resonance Mass Spectrometry (FT-ICR MS) is a high-resolution technique that measures the cyclotron motion of ions in a magnetic field. The ions are excited to a larger cyclotron radius and detected as an image current, which is then Fourier-transformed to produce a mass spectrum.
FT-ICR MS offers extremely high mass accuracy and resolution, making it ideal for analyzing complex mixtures and large biomolecules. It is commonly used in proteomics, metabolomics, and petroleum analysis.
Orbitrap Mass Spectrometry
Orbitrap Mass Spectrometry is a high-resolution technique that uses an electrostatic field to trap ions in an orbital path around a central electrode. The ions oscillate at a frequency proportional to their mass-to-charge ratio, and the resulting image current is detected and Fourier-transformed to produce a mass spectrum.
Orbitrap mass spectrometers are known for their high resolution and mass accuracy, making them suitable for proteomics, metabolomics, and environmental analysis. They are often used in combination with liquid chromatography (LC) for comprehensive analysis of complex samples.
Inductively Coupled Plasma Mass Spectrometry (ICP-MS)
Inductively Coupled Plasma Mass Spectrometry (ICP-MS) is used for elemental analysis. The sample is ionized in an inductively coupled plasma, and the ions are then separated and detected based on their mass-to-charge ratio. ICP-MS is highly sensitive and can detect trace elements at very low concentrations.
ICP-MS is widely used in environmental monitoring, geochemistry, and materials science. It is particularly useful for analyzing metals and metalloids in various matrices, including water, soil, and biological samples.
Matrix-Assisted Laser Desorption/Ionization Mass Spectrometry (MALDI-MS)
Matrix-Assisted Laser Desorption/Ionization Mass Spectrometry (MALDI-MS) is a soft ionization technique used for analyzing large biomolecules, such as proteins and polysaccharides. The sample is mixed with a matrix material and irradiated with a laser, causing the matrix to absorb energy and ionize the sample molecules.
MALDI-MS is commonly used in proteomics and polymer analysis. It is particularly useful for analyzing large molecules that are difficult to ionize using other techniques. It is often combined with time-of-flight mass spectrometry (TOF-MS) for high-resolution analysis.

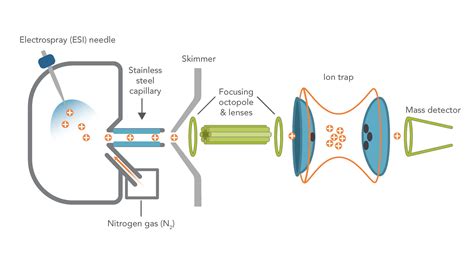

Electrospray Ionization Mass Spectrometry (ESI-MS)
Electrospray Ionization Mass Spectrometry (ESI-MS) is a soft ionization technique used for analyzing polar and non-volatile compounds. The sample is sprayed through a capillary at high voltage, forming charged droplets that evaporate to produce ions. ESI-MS is particularly useful for analyzing biomolecules, such as proteins and peptides.
ESI-MS is widely used in proteomics, metabolomics, and pharmaceutical analysis. It is often combined with liquid chromatography (LC) for comprehensive analysis of complex samples.
Applications of Mass Spectroscopy
Mass spectroscopy has a wide range of applications across various fields. Some of the key applications include:

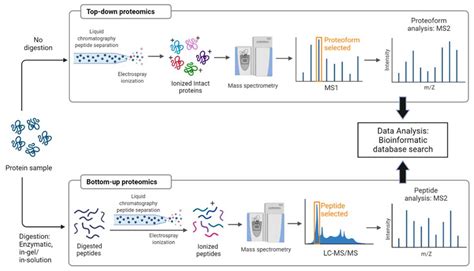

- Proteomics: Identifying and quantifying proteins in biological samples.
- Metabolomics: Analyzing small molecules and metabolites in biological samples.
- Environmental Analysis: Monitoring pollutants and contaminants in air, water, and soil.
- Forensics: Identifying drugs, toxins, and other substances in forensic samples.
- Pharmaceutical Analysis: Developing and testing new drugs and pharmaceutical compounds.
- Food Safety: Detecting contaminants and adulterants in food products.
Comparison of Mass Spectroscopy Types
Choosing the right Mass Spectroscopy Types depends on the specific requirements of the analysis. Here is a comparison of some common mass spectrometry techniques:
| Technique | Ionization Method | Resolution | Sensitivity | Applications |
|---|---|---|---|---|
| TOF-MS | Various (e.g., MALDI, ESI) | High | High | Proteomics, Metabolomics, Environmental Analysis |
| QMS | Electron Impact (EI), Chemical Ionization (CI) | Moderate | Moderate | GC-MS, LC-MS, Environmental Monitoring |
| IT-MS | Various (e.g., ESI, MALDI) | High | High | Proteomics, Metabolomics, Forensics |
| FT-ICR MS | Various (e.g., ESI, MALDI) | Very High | High | Proteomics, Metabolomics, Petroleum Analysis |
| Orbitrap MS | Various (e.g., ESI, MALDI) | Very High | High | Proteomics, Metabolomics, Environmental Analysis |
| ICP-MS | Inductively Coupled Plasma | High | Very High | Environmental Monitoring, Geochemistry, Materials Science |
| MALDI-MS | Matrix-Assisted Laser Desorption/Ionization | High | Moderate | Proteomics, Polymer Analysis |
| ESI-MS | Electrospray Ionization | Moderate | High | Proteomics, Metabolomics, Pharmaceutical Analysis |
đź“ť Note: The choice of mass spectrometry technique depends on the specific requirements of the analysis, including the type of sample, the desired sensitivity, and the need for high-resolution data.
Mass spectroscopy is a versatile and powerful analytical technique with a wide range of applications. Understanding the different Mass Spectroscopy Types and their unique features is essential for selecting the appropriate technique for specific analytical needs. Whether used in proteomics, metabolomics, environmental analysis, or forensics, mass spectroscopy provides valuable insights into the composition and structure of chemical compounds.
By leveraging the strengths of different mass spectrometry techniques, researchers and analysts can achieve high-resolution, high-sensitivity analysis of complex samples. The continuous advancements in mass spectrometry technology promise to further enhance its capabilities, making it an indispensable tool in various scientific and industrial applications.
