When it comes to maintaining and diagnosing your vehicle, having the right tools is essential. One of the most crucial tools for any car enthusiast or professional mechanic is a Manifold Gauge Set. This versatile tool is designed to measure the pressure in your vehicle's air conditioning system, ensuring it operates efficiently and effectively. Whether you're a DIY enthusiast or a seasoned professional, understanding how to use a Manifold Gauge Set can save you time, money, and headaches.
Understanding the Manifold Gauge Set
A Manifold Gauge Set is a comprehensive tool that includes multiple gauges and hoses designed to connect to your vehicle's air conditioning system. The primary components of a Manifold Gauge Set include:
- High-pressure gauge
- Low-pressure gauge
- Vacuum gauge
- Hoses and connectors
- Service ports

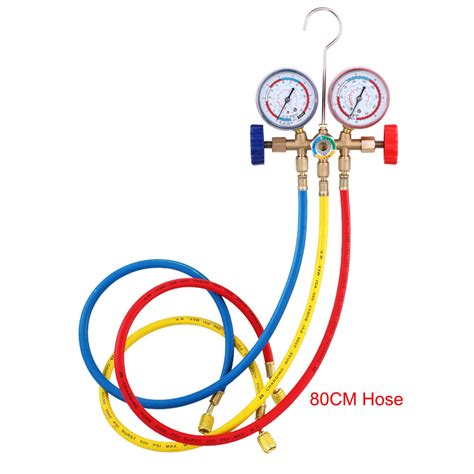

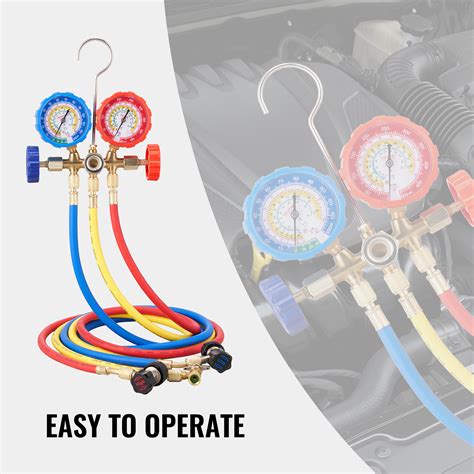

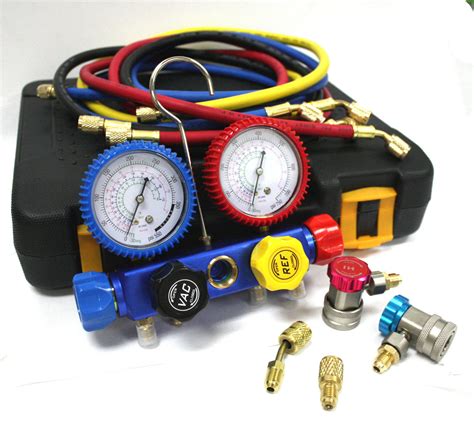

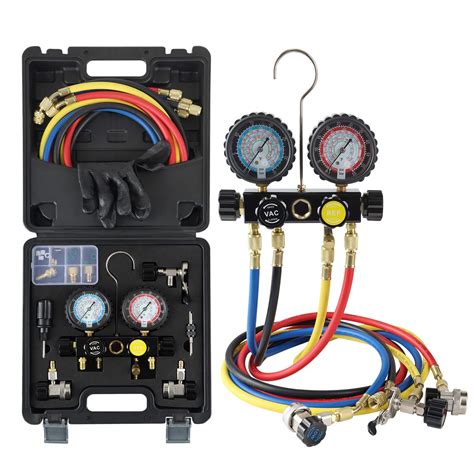

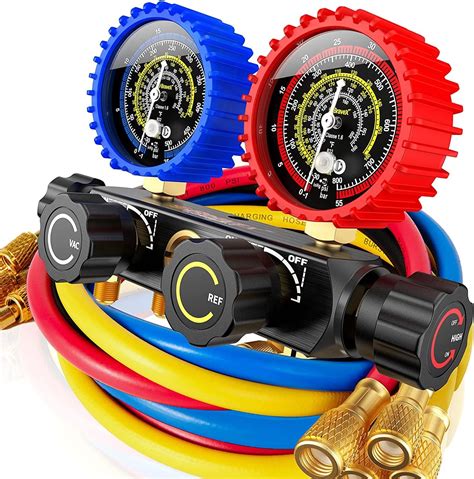

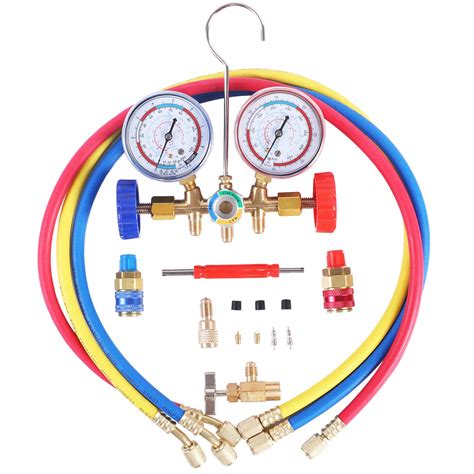

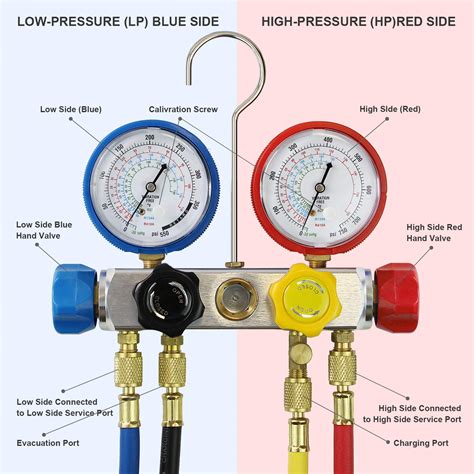

The high-pressure gauge measures the pressure on the high side of the system, typically between the compressor and the condenser. The low-pressure gauge measures the pressure on the low side, usually between the evaporator and the compressor. The vacuum gauge is used to evacuate the system of air and moisture before recharging it with refrigerant.
Importance of a Manifold Gauge Set
Using a Manifold Gauge Set is crucial for several reasons:
- Diagnosing Issues: It helps identify leaks, blockages, and other problems in the air conditioning system.
- Maintenance: Regular checks with a Manifold Gauge Set can prevent major issues and extend the lifespan of your air conditioning system.
- Efficiency: Ensuring the correct pressure levels can improve the overall efficiency of your vehicle's air conditioning system.
- Safety: Proper use of a Manifold Gauge Set can prevent accidents and ensure the safe operation of your vehicle.
How to Use a Manifold Gauge Set
Using a Manifold Gauge Set involves several steps. Here’s a detailed guide to help you through the process:
Preparation
Before you begin, make sure you have the following:
- Manifold Gauge Set
- Refrigerant (ensure you use the correct type for your vehicle)
- Safety glasses
- Gloves
- Proper ventilation
Ensure your vehicle is parked on a level surface and the engine is turned off. Allow the air conditioning system to stabilize for at least 10 minutes before starting the diagnosis.
Connecting the Gauges
Connect the high-pressure hose to the high-side service port and the low-pressure hose to the low-side service port on your vehicle. These ports are usually located near the compressor. Make sure the connections are secure to prevent leaks.
Reading the Gauges
Turn on the engine and set the air conditioning to the maximum setting. Observe the readings on the high-pressure and low-pressure gauges. Normal operating pressures can vary depending on the ambient temperature and the type of refrigerant used. Refer to your vehicle's manual for the specific pressure ranges.
Here is a general guide to interpreting the readings:
| Pressure | Interpretation |
|---|---|
| High Pressure | If the high-pressure reading is too high, it may indicate a blockage or a faulty compressor. If it's too low, it could suggest a leak or insufficient refrigerant. |
| Low Pressure | If the low-pressure reading is too high, it may indicate a blockage or a faulty expansion valve. If it's too low, it could suggest a leak or insufficient refrigerant. |
Evacuating the System
If you need to recharge the system, you must first evacuate it to remove any air and moisture. Connect the vacuum gauge to the low-pressure side and use a vacuum pump to evacuate the system. This process can take several minutes. Once the system is evacuated, close the valves and disconnect the vacuum pump.
Recharging the System
Connect the refrigerant canister to the low-pressure side and slowly open the valve to release the refrigerant into the system. Monitor the gauges to ensure the pressures are within the correct range. Once the system is recharged, close the valves and disconnect the hoses.
🔧 Note: Always follow the manufacturer's instructions for recharging the system and ensure you use the correct type of refrigerant for your vehicle.
Common Issues and Troubleshooting
Even with regular maintenance, issues can arise with your vehicle's air conditioning system. Here are some common problems and how to troubleshoot them using a Manifold Gauge Set:
Low Refrigerant Levels
If the low-pressure gauge reads lower than expected, it may indicate a refrigerant leak. Check all connections and hoses for signs of leakage. Use a UV dye and a UV light to help locate the leak.
High Pressure
If the high-pressure gauge reads higher than expected, it may indicate a blockage in the system. Check the condenser and expansion valve for any obstructions. Ensure the compressor is functioning correctly.
No Cooling
If the air conditioning system is not cooling, check the gauges to ensure the pressures are within the correct range. If the pressures are normal, the issue may be with the compressor or the expansion valve.
Maintaining Your Manifold Gauge Set
To ensure the longevity and accuracy of your Manifold Gauge Set, follow these maintenance tips:
- Store Properly: Keep the Manifold Gauge Set in a cool, dry place away from direct sunlight and extreme temperatures.
- Clean Regularly: Clean the hoses and connectors after each use to prevent contamination.
- Inspect for Damage: Regularly inspect the hoses and connectors for any signs of wear or damage.
- Calibrate: Periodically calibrate the gauges to ensure accurate readings.
By following these maintenance tips, you can extend the life of your Manifold Gauge Set and ensure it continues to provide accurate readings.
Using a Manifold Gauge Set is an essential skill for anyone who wants to maintain their vehicle’s air conditioning system. By understanding how to use this tool and interpreting the readings, you can diagnose and fix issues quickly and efficiently. Regular maintenance and proper use of a Manifold Gauge Set can save you time, money, and ensure your vehicle’s air conditioning system operates at its best.
