Understanding the dimensions of the M10 bolt is crucial for various engineering and construction projects. The M10 bolt, which stands for a metric bolt with a diameter of 10 millimeters, is widely used in mechanical assemblies due to its strength and versatility. However, many projects require measurements in inches rather than millimeters. Converting the M10 bolt size to inches is a common task that ensures compatibility and accuracy in international projects. This post will guide you through the conversion process, the importance of accurate measurements, and practical applications of the M10 bolt in various industries.
Understanding the M10 Bolt

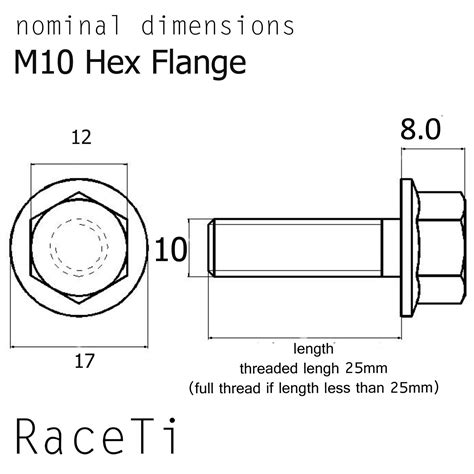

The M10 bolt is a metric bolt with a nominal diameter of 10 millimeters. This size is part of the ISO metric screw thread standard, which is widely adopted globally. The M10 bolt is commonly used in construction, automotive, and machinery applications due to its robust design and reliability. The metric system, which includes the M10 bolt, is preferred in many countries for its precision and ease of use.
Converting M10 In Inches
To convert the M10 bolt size from millimeters to inches, you need to understand the conversion factor between the two units. One millimeter is equal to 0.0393701 inches. Therefore, to convert 10 millimeters to inches, you multiply 10 by 0.0393701.
Here is the calculation:
10 mm * 0.0393701 inches/mm = 0.393701 inches
So, the M10 bolt size in inches is approximately 0.3937 inches. This conversion is essential for projects that require measurements in the imperial system, ensuring that all components fit together correctly.
Importance of Accurate Measurements
Accurate measurements are crucial in engineering and construction projects. Even a small error in measurement can lead to significant issues, such as misaligned parts, structural failures, and safety hazards. When working with bolts, precise measurements ensure that the threads align correctly, providing a secure and reliable connection. This is particularly important in industries where safety and performance are paramount, such as aerospace, automotive, and heavy machinery.
For example, in the automotive industry, bolts are used to secure critical components like engine parts, suspension systems, and brake assemblies. Any inaccuracies in bolt size can compromise the performance and safety of the vehicle. Similarly, in construction, bolts are used to secure structural elements, and incorrect measurements can lead to structural instability and potential collapse.
Practical Applications of the M10 Bolt
The M10 bolt is used in a wide range of applications across various industries. Its versatility and strength make it a popular choice for many mechanical assemblies. Here are some practical applications of the M10 bolt:
- Automotive Industry: M10 bolts are used to secure engine components, suspension systems, and brake assemblies. Their strength and reliability ensure the safety and performance of vehicles.
- Construction: In construction, M10 bolts are used to secure structural elements, such as beams, columns, and trusses. They provide a strong and durable connection, ensuring the stability of the structure.
- Machinery: M10 bolts are commonly used in machinery to secure moving parts, such as gears, shafts, and bearings. Their precise threading ensures a secure fit, reducing the risk of mechanical failure.
- Aerospace: In the aerospace industry, M10 bolts are used to secure critical components, such as engine parts and structural elements. Their reliability and precision are essential for the safety and performance of aircraft.
Common Sizes and Thread Pitches

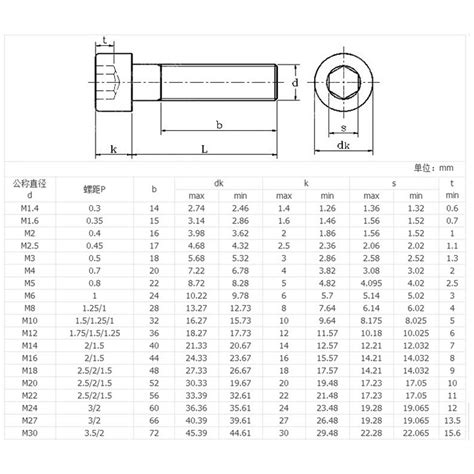

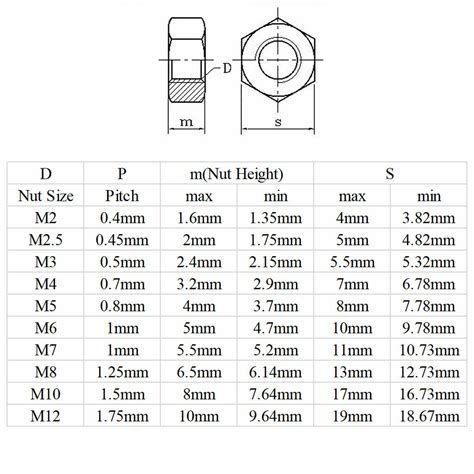

In addition to the M10 bolt, there are other common sizes and thread pitches that are frequently used in various applications. Understanding these sizes and their corresponding thread pitches is essential for selecting the right bolt for a specific project. Here is a table of common metric bolt sizes and their thread pitches:
| Bolt Size (mm) | Thread Pitch (mm) |
|---|---|
| M6 | 1.0 |
| M8 | 1.25 |
| M10 | 1.5 |
| M12 | 1.75 |
| M14 | 2.0 |
Each bolt size has a specific thread pitch that determines the distance between the threads. The thread pitch is crucial for ensuring a secure fit and proper alignment of the bolt and nut. For example, the M10 bolt has a thread pitch of 1.5 mm, which means there are 1.5 millimeters between each thread.
🔍 Note: Always refer to the specific project requirements and standards when selecting bolt sizes and thread pitches. Different applications may have unique requirements that necessitate specific bolt sizes and thread pitches.
Conclusion
Understanding the M10 bolt size in inches is essential for ensuring accurate measurements and compatibility in various engineering and construction projects. The M10 bolt, with a nominal diameter of 10 millimeters, is widely used in industries such as automotive, construction, machinery, and aerospace due to its strength and reliability. Converting the M10 bolt size to inches, which is approximately 0.3937 inches, allows for seamless integration into projects that require imperial measurements. Accurate measurements are crucial for the safety and performance of mechanical assemblies, and the M10 bolt’s precise threading ensures a secure and reliable connection. By understanding the practical applications and common sizes of the M10 bolt, engineers and constructors can select the right bolt for their projects, ensuring optimal performance and safety.
