Lung Volumes Chart

Understanding lung volumes and capacities is crucial for healthcare professionals, respiratory therapists, and anyone interested in respiratory health. A Lung Volumes Chart is a visual representation that helps illustrate the different components of lung volumes and capacities, making it easier to comprehend and apply this knowledge in clinical settings. This post will delve into the intricacies of lung volumes, their measurements, and the significance of a Lung Volumes Chart in respiratory assessments.

Understanding Lung Volumes

Lung volumes refer to the different measurements of air within the lungs at various stages of respiration. These volumes are essential for assessing respiratory function and diagnosing respiratory disorders. The primary lung volumes include:

• Tidal Volume (TV)
• Inspiratory Reserve Volume (IRV)
• Expiratory Reserve Volume (ERV)
• Residual Volume (RV)

Tidal Volume (TV)

Tidal Volume is the amount of air inhaled or exhaled during a normal breath. It is typically around 500 milliliters (mL) in an average adult. This volume is crucial for maintaining normal gas exchange in the lungs.

Inspiratory Reserve Volume (IRV)

The Inspiratory Reserve Volume is the additional volume of air that can be inhaled forcefully after a normal inhalation. It is the extra air that can be taken in beyond the tidal volume. This volume is important for assessing the lung’s capacity to expand further during deep breathing.

Expiratory Reserve Volume (ERV)

The Expiratory Reserve Volume is the additional volume of air that can be exhaled forcefully after a normal exhalation. It represents the extra air that can be expelled beyond the tidal volume. This volume is useful in evaluating the lung’s ability to empty completely.

Residual Volume (RV)

Residual Volume is the volume of air remaining in the lungs after a maximal exhalation. This volume is essential for keeping the alveoli open and preventing lung collapse. It is typically measured using specialized techniques such as helium dilution or body plethysmography.

Lung Capacities

Lung capacities are combinations of two or more lung volumes. They provide a more comprehensive view of respiratory function. The primary lung capacities include:

• Inspiratory Capacity (IC)
• Functional Residual Capacity (FRC)
• Vital Capacity (VC)
• Total Lung Capacity (TLC)

Inspiratory Capacity (IC)

Inspiratory Capacity is the total volume of air that can be inhaled after a normal exhalation. It is the sum of the Tidal Volume and the Inspiratory Reserve Volume. This capacity is important for assessing the lung’s ability to take in air during deep breathing.

Functional Residual Capacity (FRC)

Functional Residual Capacity is the volume of air remaining in the lungs after a normal exhalation. It is the sum of the Expiratory Reserve Volume and the Residual Volume. This capacity is crucial for maintaining oxygenation and preventing lung collapse.

Vital Capacity (VC)

Vital Capacity is the maximum volume of air that can be exhaled after a maximal inhalation. It is the sum of the Tidal Volume, Inspiratory Reserve Volume, and Expiratory Reserve Volume. This capacity is a key indicator of lung function and is often used in diagnostic tests.

Total Lung Capacity (TLC)

Total Lung Capacity is the total volume of air in the lungs after a maximal inhalation. It is the sum of the Vital Capacity and the Residual Volume. This capacity represents the maximum volume the lungs can hold and is essential for assessing overall lung function.

The Significance of a Lung Volumes Chart

A Lung Volumes Chart is a valuable tool for visualizing and understanding the different components of lung volumes and capacities. It provides a clear and concise representation of how these volumes interact and contribute to overall respiratory function. By using a Lung Volumes Chart, healthcare professionals can:

• Easily explain lung volumes and capacities to patients and students.
• Assess respiratory function and diagnose respiratory disorders.
• Monitor changes in lung volumes over time and evaluate the effectiveness of treatments.

Measuring Lung Volumes

Measuring lung volumes involves various techniques and equipment. Some of the common methods include:

• Spirometry: A test that measures the volume and flow of air during forced inhalation and exhalation.
• Helium Dilution: A method that uses helium gas to measure the Functional Residual Capacity and Residual Volume.
• Body Plethysmography: A technique that measures lung volumes by assessing the pressure changes in a sealed chamber.

Interpreting Lung Volumes

Interpreting lung volumes requires an understanding of normal values and the ability to recognize deviations from these norms. Normal lung volumes can vary based on factors such as age, gender, height, and weight. Healthcare professionals use reference values to compare measured lung volumes and identify any abnormalities. Some common interpretations include:

• Reduced lung volumes may indicate restrictive lung diseases, such as pulmonary fibrosis or interstitial lung disease.
• Increased lung volumes may suggest obstructive lung diseases, such as chronic obstructive pulmonary disease (COPD) or asthma.
• Abnormal lung volumes can also be indicative of neuromuscular disorders, chest wall disorders, or other respiratory conditions.

Clinical Applications of Lung Volumes

The measurement and interpretation of lung volumes have numerous clinical applications. Some of the key areas where lung volumes are crucial include:

• Diagnosis and Management of Respiratory Diseases: Lung volumes help in diagnosing conditions like COPD, asthma, pulmonary fibrosis, and other respiratory disorders. They also aid in monitoring the progression of these diseases and evaluating the effectiveness of treatments.
• Preoperative Assessment: Measuring lung volumes is essential for assessing a patient’s respiratory status before surgery. This helps in predicting postoperative complications and planning appropriate interventions.
• Exercise Physiology: Lung volumes are important in understanding how the respiratory system responds to physical activity. This information is useful for athletes, fitness enthusiasts, and individuals with respiratory limitations.
• Occupational Health: In occupational settings, lung volumes are used to assess the impact of environmental exposures on respiratory health. This helps in implementing safety measures and protecting workers from respiratory hazards.

Common Lung Volumes Chart

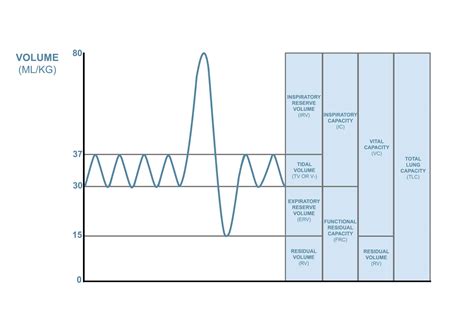

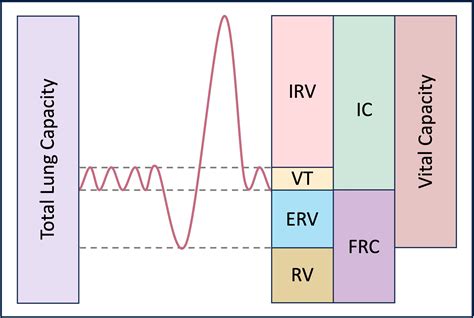

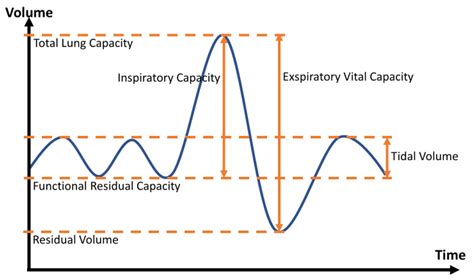

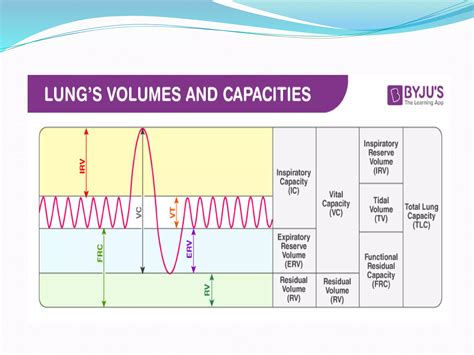

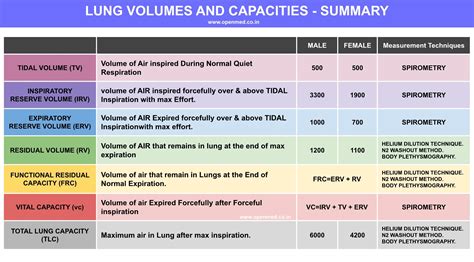

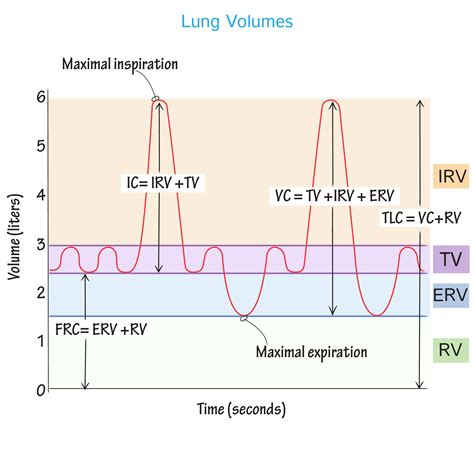

Below is a table representing a typical Lung Volumes Chart. This chart illustrates the different components of lung volumes and capacities, providing a visual aid for understanding respiratory function.

📝 Note: The normal values provided in the table are approximate and can vary based on individual factors such as age, gender, height, and weight. Healthcare professionals should use reference values specific to the patient's demographics for accurate interpretation.

Conclusion

Understanding lung volumes and capacities is fundamental for assessing respiratory health and diagnosing respiratory disorders. A Lung Volumes Chart serves as a valuable tool for visualizing and comprehending these components, aiding healthcare professionals in their clinical practice. By measuring and interpreting lung volumes accurately, healthcare providers can enhance patient care, monitor respiratory function, and develop effective treatment plans. The knowledge of lung volumes and capacities, along with the use of a Lung Volumes Chart, is essential for maintaining optimal respiratory health and improving the quality of life for individuals with respiratory conditions.
