Lr Circuit Current

Understanding the behavior of an LR circuit, which consists of an inductor (L) and a resistor (R) in series, is fundamental in electronics. The LR circuit current dynamics are crucial for designing and analyzing various electronic systems, from simple filters to complex power supplies. This post delves into the principles governing the LR circuit current, its mathematical representation, and practical applications.

Table of Contents

Understanding LR Circuits

An LR circuit is a basic electrical circuit that includes an inductor and a resistor connected in series. The inductor stores energy in a magnetic field, while the resistor dissipates energy as heat. When a voltage is applied to an LR circuit, the LR circuit current does not immediately reach its maximum value due to the inductor's opposition to changes in current. This opposition is known as inductance.

Mathematical Representation of LR Circuit Current

The behavior of the LR circuit current can be described using differential equations. When a voltage source V is applied to an LR circuit, the voltage across the inductor (VL) and the resistor (VR) can be expressed as:

V = VL + VR

Using Ohm's law and the inductor's voltage equation, we get:

V = L * (di/dt) + i * R

Where:

V is the applied voltage
L is the inductance
R is the resistance
i is the current
di/dt is the rate of change of current

Rearranging the equation, we obtain a first-order differential equation:

L * (di/dt) + i * R = V

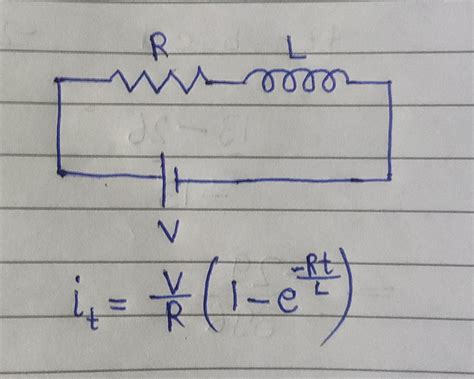

Solving this differential equation gives us the expression for the LR circuit current as a function of time:

i(t) = (V/R) * (1 - e^(-Rt/L))

This equation shows that the current in an LR circuit increases exponentially from zero to a maximum value of V/R, with a time constant τ = L/R.

Time Constant in LR Circuits

The time constant τ is a critical parameter in LR circuits. It determines how quickly the LR circuit current reaches its steady-state value. The time constant is defined as:

τ = L/R

After one time constant (τ), the current reaches approximately 63.2% of its final value. After five time constants, the current is effectively at its steady-state value, having reached about 99.3% of V/R.

Here is a table illustrating the percentage of the final current reached at different multiples of the time constant:

Time (multiples of τ)	Percentage of Final Current
1	63.2%
2	86.5%
3	95.0%
4	98.2%
5	99.3%

This exponential rise in current is a characteristic feature of LR circuit current behavior.

Practical Applications of LR Circuits

LR circuits have numerous practical applications in electronics. Some of the key areas where LR circuits are used include:

Filters: LR circuits are used in low-pass filters to allow low-frequency signals to pass while attenuating high-frequency signals. The inductor acts as a barrier to high-frequency currents, while the resistor provides a path for low-frequency currents.
Power Supplies: In switched-mode power supplies, LR circuits are used to smooth out the ripple current, providing a stable DC output. The inductor stores energy during the on-time of the switch and releases it during the off-time, reducing voltage fluctuations.
Oscillators: LR circuits are fundamental components in oscillators, where they generate sinusoidal waveforms. The inductor and resistor together determine the frequency and amplitude of the oscillations.
Motor Control: In motor control circuits, LR circuits are used to manage the current flow to the motor, ensuring smooth operation and preventing sudden surges that could damage the motor.

These applications highlight the versatility and importance of understanding the LR circuit current dynamics.

Analyzing LR Circuit Current with Examples

To better understand the behavior of the LR circuit current, let's consider a few examples.

Example 1: Step Response of an LR Circuit

Consider an LR circuit with L = 1 H and R = 10 Ω. If a step voltage of 10 V is applied, the LR circuit current can be calculated using the equation:

i(t) = (V/R) * (1 - e^(-Rt/L))

Substituting the values, we get:

i(t) = (10/10) * (1 - e^(-10t/1))

i(t) = 1 * (1 - e^(-10t))

This equation shows that the current will rise exponentially from 0 to 1 A with a time constant τ = L/R = 1/10 = 0.1 seconds.

💡 Note: The time constant in this example is 0.1 seconds, meaning the current will reach approximately 63.2% of its final value after 0.1 seconds.

Example 2: Transient Response in an LR Circuit

Consider an LR circuit with L = 2 H and R = 20 Ω. If a step voltage of 20 V is applied, the LR circuit current can be calculated as:

i(t) = (V/R) * (1 - e^(-Rt/L))

Substituting the values, we get:

i(t) = (20/20) * (1 - e^(-20t/2))

i(t) = 1 * (1 - e^(-10t))

This equation shows that the current will rise exponentially from 0 to 1 A with a time constant τ = L/R = 2/20 = 0.1 seconds.

💡 Note: The time constant in this example is also 0.1 seconds, indicating that the current will reach approximately 63.2% of its final value after 0.1 seconds.

Visualizing LR Circuit Current

Visualizing the LR circuit current behavior can provide deeper insights into its dynamics. Below is an image that illustrates the exponential rise of current in an LR circuit over time.

This graph shows how the current increases exponentially from zero to its maximum value, reaching approximately 63.2% of the final value after one time constant.

Understanding the LR circuit current behavior is essential for designing and analyzing various electronic systems. By grasping the mathematical representation and practical applications of LR circuits, engineers can optimize their designs for better performance and efficiency.

In summary, the LR circuit current dynamics are governed by the interplay between inductance and resistance. The time constant τ = L/R plays a crucial role in determining how quickly the current reaches its steady-state value. Practical applications of LR circuits range from filters and power supplies to oscillators and motor control systems. By analyzing examples and visualizing the current behavior, we gain a comprehensive understanding of LR circuits and their importance in electronics.
