Light Dependent Reaction Diagram

Photosynthesis is a fundamental process that sustains life on Earth. It is through this process that plants, algae, and certain bacteria convert light energy into chemical energy, which is then used to fuel the growth and development of these organisms. The process of photosynthesis can be broadly divided into two main stages: the light-dependent reactions and the light-independent reactions. This blog post will delve into the intricacies of the light-dependent reactions, providing a detailed explanation and a comprehensive Light Dependent Reaction Diagram to aid understanding.

Table of Contents

Understanding the Light-Dependent Reactions

The light-dependent reactions, also known as the light reactions, occur in the thylakoid membranes of the chloroplasts. These reactions are crucial because they capture light energy and convert it into chemical energy in the form of ATP (adenosine triphosphate) and NADPH (nicotinamide adenine dinucleotide phosphate). The process involves several key components and steps, which we will explore in detail.

Key Components of the Light-Dependent Reactions

The light-dependent reactions involve several essential components, including:

Chlorophyll and other pigments: These molecules absorb light energy, primarily in the blue and red spectra.
Photosystems: There are two main photosystems, Photosystem I (PSI) and Photosystem II (PSII), which work together to capture light energy and initiate electron transport.
Electron transport chain: This chain facilitates the movement of electrons from one molecule to another, releasing energy that is used to produce ATP.
ATP synthase: This enzyme complex uses the energy from the proton gradient to synthesize ATP from ADP (adenosine diphosphate) and inorganic phosphate.

Steps of the Light-Dependent Reactions

The light-dependent reactions can be broken down into several key steps:

Light Absorption: Chlorophyll and other pigments absorb light energy, exciting electrons to a higher energy state.
Electron Transport: The excited electrons are passed along a series of electron carriers, releasing energy that is used to pump protons across the thylakoid membrane.
ATP Synthesis: The proton gradient created by the electron transport chain drives ATP synthase to produce ATP.
NADPH Production: Electrons from the electron transport chain are used to reduce NADP+ to NADPH.

Photosystem II (PSII)

Photosystem II is the first photosystem to capture light energy. It contains a reaction center called P680, which absorbs light at a wavelength of 680 nanometers. When P680 absorbs a photon of light, it becomes excited and transfers an electron to a primary electron acceptor. This electron is then passed along the electron transport chain, ultimately leading to the production of ATP and NADPH.

During this process, water molecules are split (photolysis), releasing oxygen as a byproduct. This process is crucial because it provides the electrons needed to replace those lost by P680 and also generates the oxygen that is essential for aerobic respiration.

Photosystem I (PSI)

Photosystem I captures light energy at a wavelength of 700 nanometers and contains a reaction center called P700. When P700 absorbs a photon of light, it becomes excited and transfers an electron to a primary electron acceptor. This electron is then passed along the electron transport chain, ultimately leading to the reduction of NADP+ to NADPH.

Photosystem I works in conjunction with Photosystem II to ensure a continuous flow of electrons through the electron transport chain. The electrons lost by P700 are replaced by those from Photosystem II, creating a cyclic flow of electrons that drives the production of ATP and NADPH.

Electron Transport Chain

The electron transport chain is a series of electron carriers that facilitate the movement of electrons from one molecule to another. As electrons move through the chain, they release energy that is used to pump protons across the thylakoid membrane, creating a proton gradient. This gradient drives the synthesis of ATP by ATP synthase.

The electron transport chain includes several key components, including:

Plastoquinone (PQ): Accepts electrons from Photosystem II and transfers them to the cytochrome b6f complex.
Cytochrome b6f complex: Facilitates the transfer of electrons from plastoquinone to plastocyanin and pumps protons across the thylakoid membrane.
Plastocyanin (PC): Transfers electrons from the cytochrome b6f complex to Photosystem I.
Ferredoxin (Fd): Accepts electrons from Photosystem I and transfers them to NADP+ reductase.
NADP+ reductase: Uses electrons from ferredoxin to reduce NADP+ to NADPH.

ATP Synthesis

ATP synthase is an enzyme complex that uses the energy from the proton gradient to synthesize ATP from ADP and inorganic phosphate. The proton gradient is created by the pumping of protons across the thylakoid membrane during the electron transport chain. As protons flow back through ATP synthase, they drive the synthesis of ATP, which is used as an energy source in the light-independent reactions.

NADPH Production

NADPH is produced when electrons from the electron transport chain reduce NADP+ to NADPH. This process occurs at the end of the electron transport chain, where electrons from ferredoxin are used by NADP+ reductase to reduce NADP+ to NADPH. NADPH is a crucial reducing agent that is used in the light-independent reactions to convert carbon dioxide into glucose.

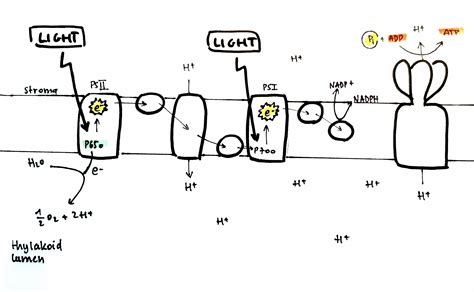

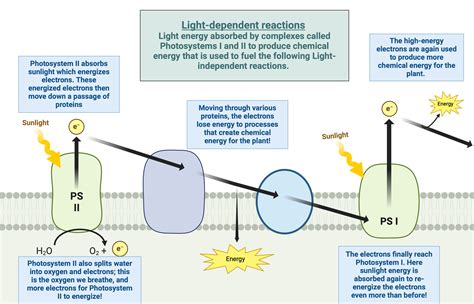

Light Dependent Reaction Diagram

To better understand the light-dependent reactions, it is helpful to visualize the process through a Light Dependent Reaction Diagram. The diagram below illustrates the key components and steps involved in the light-dependent reactions:

Component/Step	Description
Light Absorption	Chlorophyll and other pigments absorb light energy, exciting electrons.
Photosystem II	Captures light energy and initiates electron transport, splitting water and releasing oxygen.
Electron Transport Chain	Facilitates the movement of electrons, releasing energy to pump protons and create a proton gradient.
ATP Synthesis	ATP synthase uses the proton gradient to synthesize ATP from ADP and inorganic phosphate.
Photosystem I	Captures light energy and reduces NADP+ to NADPH.
NADPH Production	Electrons from the electron transport chain reduce NADP+ to NADPH.

📝 Note: The Light Dependent Reaction Diagram provides a visual representation of the complex processes involved in the light-dependent reactions. It is essential to understand each component and step to fully grasp the mechanisms of photosynthesis.

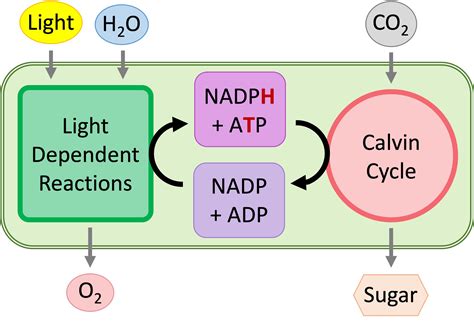

Photosynthesis is a complex process that involves the conversion of light energy into chemical energy. The light-dependent reactions play a crucial role in this process by capturing light energy and converting it into ATP and NADPH. These energy-rich molecules are then used in the light-independent reactions to convert carbon dioxide into glucose, which is essential for the growth and development of plants and other photosynthetic organisms.

By understanding the intricacies of the light-dependent reactions, we gain a deeper appreciation for the fundamental processes that sustain life on Earth. The Light Dependent Reaction Diagram serves as a valuable tool for visualizing and comprehending these complex mechanisms, highlighting the importance of each component and step in the overall process of photosynthesis.

In summary, the light-dependent reactions are a vital part of photosynthesis, involving the capture of light energy and its conversion into chemical energy. Through the coordinated efforts of chlorophyll, photosystems, the electron transport chain, ATP synthase, and other key components, plants and other photosynthetic organisms are able to produce the energy-rich molecules needed to fuel their growth and development. The Light Dependent Reaction Diagram provides a clear and concise overview of these processes, making it an invaluable resource for students and researchers alike.
