Light bulbs are ubiquitous in our daily lives, illuminating our homes, offices, and public spaces. Understanding the light bulb components that make up these essential devices can provide valuable insights into their functionality, efficiency, and longevity. This post delves into the various parts of a light bulb, their roles, and how they contribute to the overall performance of the bulb.
Understanding the Basic Structure of a Light Bulb
A typical light bulb consists of several key light bulb components. These components work together to convert electrical energy into light. The basic structure includes:
- The base: This is the part that screws into the socket, providing the electrical connection.
- The glass envelope: This is the outer casing that protects the internal components and allows light to pass through.
- The filament: This is the part that heats up and emits light when an electric current passes through it.
- The support wires: These hold the filament in place.
- The inert gas: This fills the envelope to prevent the filament from oxidizing.
The Role of the Base
The base of a light bulb is crucial for its functionality. It provides the electrical connection between the bulb and the socket. The most common types of bases are:
- E26/E27 (Edison Screw): This is the standard base for most household light bulbs in North America.
- E12 (Candelabra): Often used in decorative fixtures and nightlights.
- GU10: A bi-pin base commonly used in halogen and LED spotlights.
The base not only ensures a secure fit but also determines the type of bulb that can be used in a specific fixture. For example, an E26 base is typically used in standard household lamps, while an E12 base is more common in decorative lighting.
The Glass Envelope
The glass envelope, or bulb, is the transparent or translucent outer casing that protects the internal light bulb components. It allows light to escape while shielding the filament from external elements. The envelope is usually made of glass, but some modern bulbs use plastic or other materials.

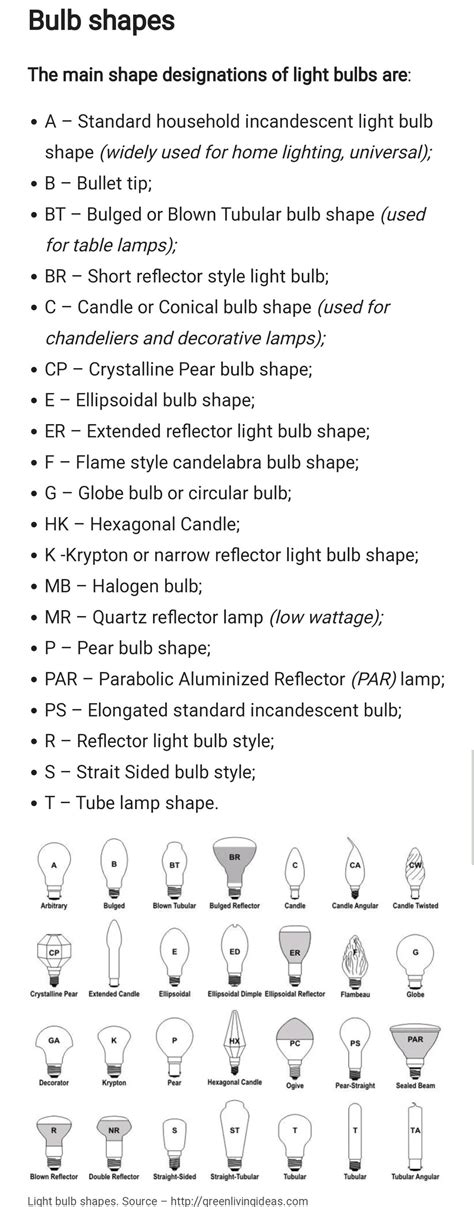

The shape and size of the envelope can vary depending on the type of bulb. For instance, incandescent bulbs often have a pear-shaped envelope, while fluorescent tubes have a long, cylindrical shape. The envelope also plays a role in heat dissipation, helping to prolong the life of the bulb.

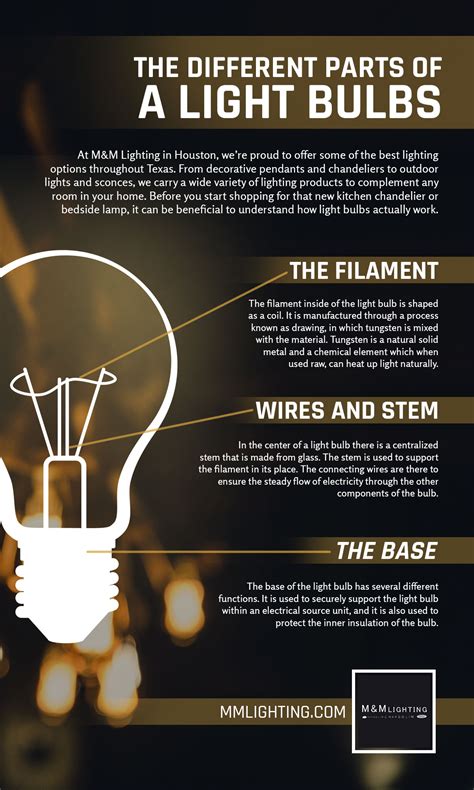

The Filament
The filament is the heart of an incandescent light bulb. It is a thin wire, usually made of tungsten, that heats up and emits light when an electric current passes through it. The filament is supported by wires that keep it centered within the envelope.
When the bulb is turned on, the electrical current heats the filament to a high temperature, causing it to glow and produce light. However, this process also generates a significant amount of heat, which can shorten the lifespan of the bulb. Modern bulbs, such as LEDs and CFLs, use different mechanisms to produce light, reducing heat generation and increasing efficiency.
Support Wires and Inert Gas
The support wires hold the filament in place, ensuring it remains centered within the envelope. This is crucial for the bulb's performance, as a misaligned filament can cause uneven heating and reduce the bulb's lifespan.
The inert gas inside the envelope, such as argon or nitrogen, helps to prevent the filament from oxidizing. Oxidation can cause the filament to degrade more quickly, reducing the bulb's lifespan. The inert gas also helps to dissipate heat, further prolonging the life of the bulb.
Types of Light Bulbs and Their Components
Different types of light bulbs have varying light bulb components and mechanisms for producing light. Here are some of the most common types:

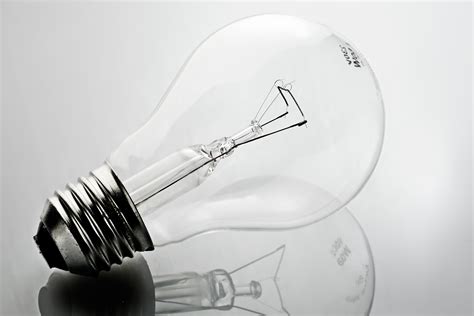

Incandescent Bulbs
Incandescent bulbs are the traditional type of light bulb, using a filament to produce light. They are simple in design and relatively inexpensive but are less energy-efficient compared to modern alternatives. The main light bulb components include:
- The base
- The glass envelope
- The filament
- The support wires
- The inert gas

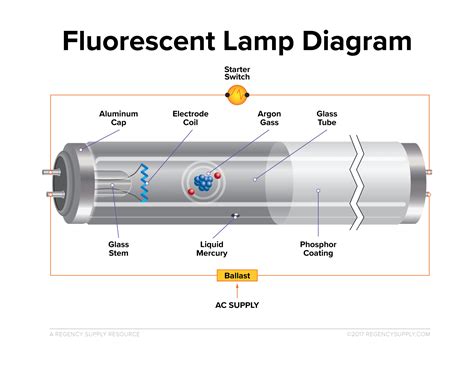

Fluorescent Bulbs
Fluorescent bulbs use a different mechanism to produce light. They contain a gas that emits ultraviolet (UV) light when an electric current passes through it. This UV light then excites a phosphor coating on the inside of the bulb, causing it to emit visible light. The main light bulb components include:
- The base
- The glass tube
- The electrodes
- The phosphor coating
- The inert gas
Fluorescent bulbs are more energy-efficient than incandescent bulbs and have a longer lifespan. However, they contain mercury, which can be harmful if the bulb breaks.

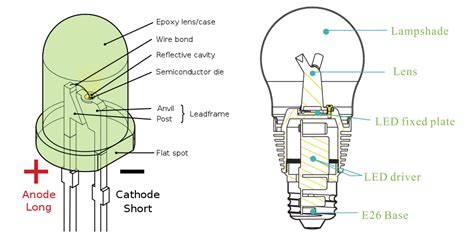

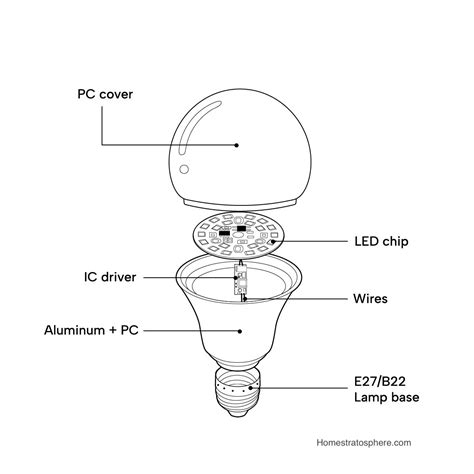

LED Bulbs
LED (Light Emitting Diode) bulbs are the most energy-efficient and longest-lasting type of light bulb. They use a semiconductor to produce light when an electric current passes through it. The main light bulb components include:
- The base
- The heat sink
- The LED chips
- The driver circuit
- The lens or diffuser
LED bulbs are highly efficient, producing more light per watt of electricity than other types of bulbs. They also have a much longer lifespan, often lasting tens of thousands of hours. Additionally, LED bulbs do not contain any harmful substances like mercury.
Comparing Light Bulb Components
To better understand the differences between various types of light bulbs, let's compare their light bulb components and performance characteristics:
| Component | Incandescent | Fluorescent | LED |
|---|---|---|---|
| Base | E26/E27, E12, etc. | Bi-pin, screw-in, etc. | E26/E27, E12, GU10, etc. |
| Light-Producing Mechanism | Filament | Gas and phosphor | Semiconductor |
| Efficiency | Low | Medium | High |
| Lifespan | Short (750-2,000 hours) | Medium (8,000-15,000 hours) | Long (25,000-50,000 hours) |
| Environmental Impact | Low | Medium (contains mercury) | Low (no harmful substances) |
As shown in the table, LED bulbs offer the best combination of efficiency, lifespan, and environmental impact. However, the choice of bulb ultimately depends on the specific needs and preferences of the user.
đź’ˇ Note: When replacing light bulbs, always ensure that the new bulb is compatible with the existing fixture. Using the wrong type of bulb can lead to poor performance, reduced lifespan, and even safety hazards.
Understanding the light bulb components** and their roles is essential for making informed decisions about lighting. Whether you are choosing a new bulb for your home or office, or simply curious about how light bulbs work, knowing the basics can help you make the best choice.
From the simple filament of an incandescent bulb to the advanced semiconductor technology of LEDs, each type of bulb has its unique set of components and advantages. By comparing these components and their performance characteristics, you can select the right bulb for your needs, ensuring optimal lighting and energy efficiency.
