Understanding the structure and properties of molecules is fundamental in chemistry, and one of the most effective tools for this purpose is the Lewis Dot structure. The Lewis Dot structure, also known as the Lewis Dot diagram or electron dot structure, is a graphical representation of the valence electrons in an atom or molecule. This method helps visualize the bonding between atoms and the distribution of electrons. One classic example that illustrates the power of Lewis Dot structures is the molecule PH3, or phosphine.
What is a Lewis Dot Structure?
A Lewis Dot structure is a diagram that shows the bonding between atoms of a molecule and the lone pairs of electrons that may exist in the molecule. It was developed by Gilbert N. Lewis and is widely used in chemistry to predict the molecular geometry, polarity, and reactivity of compounds. The structure consists of the chemical symbols of the atoms, with dots representing the valence electrons.
Lewis Dot Structure of PH3
The Lewis Dot structure of PH3 (phosphine) provides a clear picture of how phosphorus and hydrogen atoms bond to form this molecule. Phosphine is a colorless, flammable gas with a garlic-like odor. It is commonly used in the semiconductor industry and as a precursor to other phosphorus compounds.
To draw the Lewis Dot structure of PH3, follow these steps:
- Identify the central atom: In PH3, phosphorus (P) is the central atom.
- Determine the total number of valence electrons: Phosphorus has 5 valence electrons, and each hydrogen atom has 1 valence electron. Therefore, the total number of valence electrons is 5 (from P) + 3 × 1 (from H) = 8.
- Place the valence electrons around the central atom: Start by placing one electron pair between the phosphorus atom and each hydrogen atom to form single bonds. This uses 6 of the 8 valence electrons.
- Distribute the remaining electrons: The remaining 2 electrons are placed as a lone pair on the phosphorus atom.

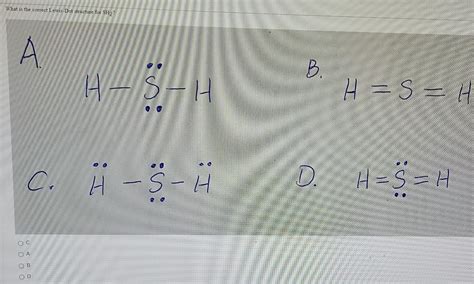

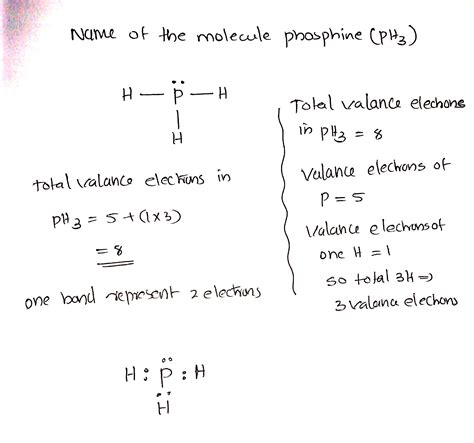

Here is the Lewis Dot structure of PH3:
Electron Geometry and Molecular Geometry of PH3
The Lewis Dot structure of PH3 helps in determining the electron geometry and molecular geometry of the molecule. The electron geometry refers to the arrangement of electron pairs (both bonding and non-bonding) around the central atom, while the molecular geometry refers to the arrangement of atoms in the molecule.
For PH3, the electron geometry is tetrahedral because there are four electron pairs around the phosphorus atom (three bonding pairs and one lone pair). However, the molecular geometry is trigonal pyramidal because the lone pair does not contribute to the shape of the molecule.
Properties of PH3
Understanding the Lewis Dot structure of PH3 also helps in predicting its properties. Some key properties of PH3 include:
- Polarity: PH3 is a polar molecule due to the presence of the lone pair on the phosphorus atom, which creates an uneven distribution of electrons.
- Bond Angles: The bond angles in PH3 are slightly less than the ideal tetrahedral angle of 109.5° due to the repulsion between the lone pair and the bonding pairs. The actual bond angles are approximately 93.5°.
- Reactivity: PH3 is a reducing agent and can react with oxidizing agents to form phosphorus oxides.
Applications of Lewis Dot Structures
Lewis Dot structures are not just limited to PH3; they are used extensively in chemistry to understand a wide range of molecules. Some common applications include:
- Predicting Molecular Geometry: Lewis Dot structures help in predicting the shape of molecules, which is crucial for understanding their properties and reactivity.
- Determining Polarity: By visualizing the distribution of electrons, Lewis Dot structures can help determine whether a molecule is polar or non-polar.
- Understanding Chemical Bonding: Lewis Dot structures provide insights into the types of bonds (single, double, triple) and the presence of lone pairs in molecules.
Common Mistakes in Drawing Lewis Dot Structures
While drawing Lewis Dot structures is a straightforward process, there are some common mistakes that students often make. Here are a few to avoid:
- Incorrect Valence Electrons: Ensure you correctly count the valence electrons for each atom.
- Improper Bonding: Make sure to form the correct number of bonds between atoms.
- Ignoring Lone Pairs: Do not forget to include lone pairs on atoms that have them.
📝 Note: Always double-check the total number of valence electrons and the formal charges on each atom to ensure the Lewis Dot structure is correct.
Examples of Lewis Dot Structures
To further illustrate the concept, let’s look at a few more examples of Lewis Dot structures:
Water (H2O)
Water is a simple molecule with two hydrogen atoms bonded to one oxygen atom. The Lewis Dot structure of H2O shows two lone pairs on the oxygen atom and two single bonds between oxygen and hydrogen.
Carbon Dioxide (CO2)
Carbon dioxide has a linear structure with two double bonds between the carbon atom and each oxygen atom. The Lewis Dot structure of CO2 shows no lone pairs on the carbon atom.
Ammonia (NH3)
Ammonia is similar to PH3 in that it has a trigonal pyramidal shape. The Lewis Dot structure of NH3 shows three single bonds between nitrogen and hydrogen atoms and one lone pair on the nitrogen atom.
Lewis Dot Structures and Formal Charge
Formal charge is a concept used to determine the most stable Lewis Dot structure for a molecule. It is calculated using the formula:
Formal Charge = (Number of Valence Electrons in Free Atom) - (Number of Lone Pair Electrons + 1⁄2 Number of Bonding Electrons)
For example, in the Lewis Dot structure of PH3, the formal charge on the phosphorus atom is zero, indicating a stable structure. The formal charges on the hydrogen atoms are also zero.
Lewis Dot Structures and Resonance
Some molecules have multiple valid Lewis Dot structures, a phenomenon known as resonance. Resonance structures are different Lewis Dot structures of the same molecule that differ only in the position of electrons. The actual structure of the molecule is a resonance hybrid of these structures.
For example, the ozone molecule (O3) has two resonance structures:
In both structures, the oxygen atoms are bonded with single and double bonds, and the actual structure is a hybrid of these two.
Lewis Dot Structures and Exceptions
While Lewis Dot structures are generally reliable, there are some exceptions and limitations. For example, molecules with expanded octets, such as sulfur hexafluoride (SF6), do not follow the octet rule. In SF6, the sulfur atom has more than eight valence electrons.
Another exception is molecules with incomplete octets, such as boron trifluoride (BF3). In BF3, the boron atom has only six valence electrons, which is less than the octet.
Here is a table summarizing some common exceptions to the octet rule:
| Molecule | Central Atom | Number of Valence Electrons |
|---|---|---|
| SF6 | Sulfur (S) | 12 |
| BF3 | Boron (B) | 6 |
| NO | Nitrogen (N) | 7 |
📝 Note: Understanding these exceptions is crucial for accurately drawing Lewis Dot structures for a wide range of molecules.
Lewis Dot Structures and Molecular Orbital Theory
Lewis Dot structures provide a simple and effective way to visualize molecular bonding, but they have limitations. Molecular Orbital Theory (MOT) offers a more detailed and accurate description of molecular bonding. MOT considers the overlap of atomic orbitals to form molecular orbitals, which can be bonding, antibonding, or non-bonding.
For example, in the Lewis Dot structure of PH3, the bonding is described as single bonds between phosphorus and hydrogen atoms. However, MOT provides a more detailed picture of the molecular orbitals involved in the bonding.
While Lewis Dot structures are useful for understanding basic bonding and molecular geometry, MOT is essential for a deeper understanding of molecular properties and reactivity.
In summary, Lewis Dot structures are a fundamental tool in chemistry for visualizing molecular bonding and predicting molecular properties. The Lewis Dot structure of PH3 illustrates the power of this method in understanding the structure and properties of molecules. By mastering Lewis Dot structures, students can gain a solid foundation in chemistry and apply this knowledge to more complex molecular systems.
