Lewis Diagram Practice

Mastering the art of drawing Lewis diagrams is a fundamental skill in chemistry, essential for understanding molecular structures and bonding. Whether you're a student preparing for exams or a professional looking to refresh your knowledge, engaging in Lewis Diagram Practice can significantly enhance your comprehension of chemical bonding. This post will guide you through the basics of Lewis diagrams, provide step-by-step instructions for drawing them, and offer tips for effective practice.

Table of Contents

Understanding Lewis Diagrams

Lewis diagrams, also known as Lewis structures or electron dot diagrams, are graphical representations of the valence electrons in atoms and molecules. They help visualize how atoms bond to form molecules and predict the molecular geometry. The key components of a Lewis diagram include:

Valence Electrons: The electrons in the outermost shell of an atom.
Bonds: Lines representing shared pairs of electrons between atoms.
Lone Pairs: Pairs of electrons that are not involved in bonding.

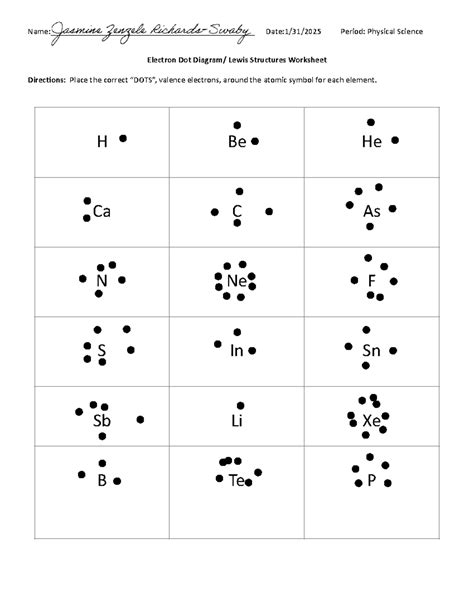

To draw a Lewis diagram, you need to know the number of valence electrons for each element involved. The periodic table provides this information, with elements in the same group having the same number of valence electrons.

Steps to Draw a Lewis Diagram

Drawing a Lewis diagram involves several systematic steps. Here’s a detailed guide to help you through the process:

Step 1: Determine the Total Number of Valence Electrons

First, identify the number of valence electrons for each atom in the molecule. Add these together to get the total number of valence electrons available for bonding.

Step 2: Choose the Central Atom

Select the least electronegative atom as the central atom. This is usually the atom with the highest atomic number or the one that can form the most bonds. For example, in CO2, carbon (C) is the central atom.

Step 3: Connect the Atoms with Single Bonds

Draw single bonds between the central atom and the surrounding atoms. Each single bond represents two shared electrons.

Step 4: Distribute the Remaining Electrons

Place the remaining valence electrons around the atoms to complete their octets (or duets for hydrogen). Start with the surrounding atoms and then move to the central atom.

Step 5: Form Multiple Bonds if Necessary

If the central atom does not have an octet, form multiple bonds by moving lone pairs from the surrounding atoms to create double or triple bonds.

Step 6: Check for Formal Charges

Calculate the formal charge on each atom to ensure the structure is stable. The formal charge is determined by the formula:

Formal Charge = (Number of Valence Electrons in Free Atom) - (Number of Lone Pair Electrons + ½ Number of Bonding Electrons)

Adjust the structure if necessary to minimize formal charges.

💡 Note: Remember that hydrogen can only form one bond and has a duet, while other atoms typically aim for an octet.

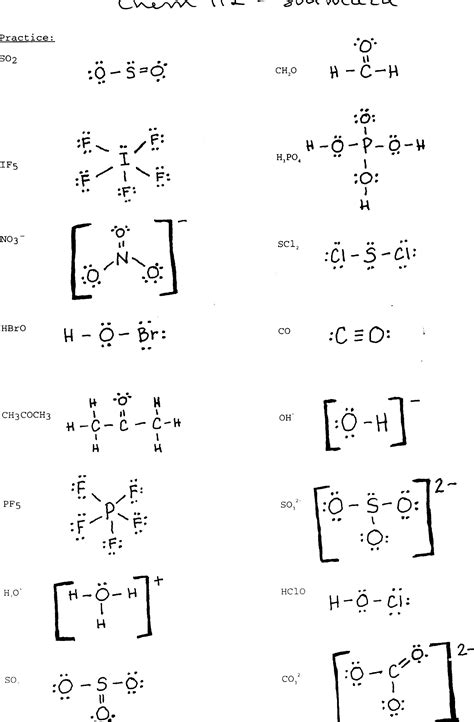

Lewis Diagram Practice Examples

Let’s go through a few examples to solidify your understanding of Lewis Diagram Practice.

Example 1: Water (H2O)

1. Total Valence Electrons: Oxygen (O) has 6 valence electrons, and each hydrogen (H) has 1, so the total is 6 + 2(1) = 8.

2. Central Atom: Oxygen is the central atom.

3. Single Bonds: Draw single bonds between oxygen and each hydrogen.

4. Remaining Electrons: Place the remaining 4 electrons as lone pairs on oxygen.

5. Multiple Bonds: Not needed in this case.

6. Formal Charges: All atoms have a formal charge of 0.

Example 2: Carbon Dioxide (CO2)

1. Total Valence Electrons: Carbon (C) has 4 valence electrons, and each oxygen (O) has 6, so the total is 4 + 2(6) = 16.

2. Central Atom: Carbon is the central atom.

3. Single Bonds: Draw single bonds between carbon and each oxygen.

4. Remaining Electrons: Place the remaining 12 electrons as lone pairs on the oxygens.

5. Multiple Bonds: Move two lone pairs from each oxygen to form double bonds with carbon.

6. Formal Charges: All atoms have a formal charge of 0.

Example 3: Ammonia (NH3)

1. Total Valence Electrons: Nitrogen (N) has 5 valence electrons, and each hydrogen (H) has 1, so the total is 5 + 3(1) = 8.

2. Central Atom: Nitrogen is the central atom.

3. Single Bonds: Draw single bonds between nitrogen and each hydrogen.

4. Remaining Electrons: Place the remaining 2 electrons as a lone pair on nitrogen.

5. Multiple Bonds: Not needed in this case.

6. Formal Charges: All atoms have a formal charge of 0.

Tips for Effective Lewis Diagram Practice

Practicing Lewis Diagram Practice regularly can significantly improve your skills. Here are some tips to make your practice sessions more effective:

Start Simple: Begin with simple molecules like H2O, NH3, and CH4 before moving on to more complex structures.
Use Models: Physical models or online simulators can help visualize the 3D structure of molecules.
Check Your Work: Always verify your diagrams by checking the formal charges and ensuring all atoms have the correct number of valence electrons.
Practice Regularly: Consistency is key. Set aside time each day to practice drawing Lewis diagrams.
Learn from Mistakes: If you make a mistake, understand why it happened and learn from it. This will help you avoid similar errors in the future.

Common Mistakes to Avoid

While practicing Lewis Diagram Practice, it’s essential to be aware of common mistakes that can lead to incorrect diagrams. Here are some pitfalls to avoid:

Incorrect Valence Electrons: Double-check the number of valence electrons for each atom.
Improper Bonding: Ensure that bonds are formed correctly and that the central atom has the appropriate number of bonds.
Ignoring Formal Charges: Always calculate formal charges to ensure the stability of the molecule.
Overlooking Lone Pairs: Make sure to account for all lone pairs of electrons.

💡 Note: Remember that practice makes perfect. The more you draw Lewis diagrams, the more comfortable you will become with the process.

Advanced Lewis Diagram Practice

Once you are comfortable with the basics, you can move on to more advanced topics in Lewis Diagram Practice. This includes drawing diagrams for molecules with resonance structures, expanded octets, and polyatomic ions.

Resonance Structures

Some molecules cannot be accurately represented by a single Lewis diagram. In such cases, resonance structures are used to show the delocalization of electrons. For example, the carbonate ion (CO3^2-) has three resonance structures:

Structure 1	Structure 2	Structure 3
O=C-O^- \| O	O-C=O \| O^-	O^--C=O \| O

Structure 1

Structure 2

Structure 3

O=C-O^-

O-C=O

O^-

O^--C=O

Each structure contributes to the overall stability of the molecule.

Expanded Octets

Some atoms, particularly those in the third period and beyond, can have more than eight valence electrons. These are known as expanded octets. For example, sulfur in sulfur hexafluoride (SF6) has 12 valence electrons:

S-F

F-S-F

Polyatomic Ions

Polyatomic ions are groups of atoms that carry a net charge. Drawing Lewis diagrams for these ions involves the same steps as for neutral molecules, but you need to account for the additional or missing electrons. For example, the nitrate ion (NO3^-) has a total of 24 valence electrons (5 from nitrogen, 6 from each oxygen, and 1 extra electron for the negative charge).

O=N-O^-

💡 Note: Advanced topics require a deeper understanding of chemical bonding and electron distribution.

Mastering Lewis Diagram Practice is a crucial step in understanding chemical bonding and molecular structures. By following the steps outlined in this post and practicing regularly, you can develop a strong foundation in this essential skill. Whether you’re a student or a professional, the ability to draw accurate Lewis diagrams will serve you well in your chemical endeavors.
