Latex 是 什麼

LaTeX 是 什麼? LaTeX, pronounced "lay-teck" or "lah-teck," is a high-quality typesetting system; it includes features designed for the production of technical and scientific documentation. LaTeX is particularly popular among academics, researchers, and professionals who need to create documents with complex mathematical formulas, equations, and scientific notation. It is widely used for writing books, articles, theses, and other scholarly works. LaTeX is based on the TeX typesetting system, created by Donald Knuth, and it extends TeX with additional features and a more user-friendly interface.

What is LaTeX?

LaTeX is a powerful tool for creating beautifully formatted documents. It is particularly well-suited for documents that contain a lot of mathematical content, such as research papers, theses, and technical reports. Unlike word processors like Microsoft Word or Google Docs, LaTeX focuses on the content rather than the presentation. This means that users write the document in plain text, marking up the structure and formatting with special commands. LaTeX then takes care of the layout, ensuring that the final document is professionally typeset.

Why Use LaTeX?

There are several reasons why LaTeX is a preferred choice for many professionals and academics:

• High-Quality Typesetting: LaTeX produces documents with a high level of typographic quality, making it ideal for academic and technical writing.
• Mathematical Formulas: LaTeX excels at typesetting complex mathematical formulas and equations, which are often difficult to format in other word processors.
• Consistency: LaTeX ensures consistency in formatting throughout the document, which is crucial for long documents like theses and books.
• Customization: LaTeX is highly customizable, allowing users to create their own styles and templates.
• Version Control: Since LaTeX documents are plain text files, they can be easily version-controlled using systems like Git.

Getting Started with LaTeX

To get started with LaTeX, you need to install a LaTeX distribution and a text editor. Here are the steps to set up your LaTeX environment:

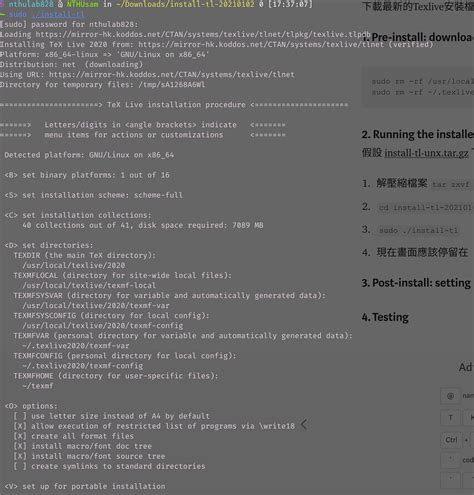

Installing a LaTeX Distribution

There are several LaTeX distributions available, but the most popular ones are:

• TeX Live: A comprehensive TeX system for Unix, Windows, and Mac OS X.
• MiKTeX: A TeX system for Windows, but also available for Mac OS X and Linux.

You can download and install these distributions from their respective websites. Once installed, you will have access to the LaTeX compiler and other necessary tools.

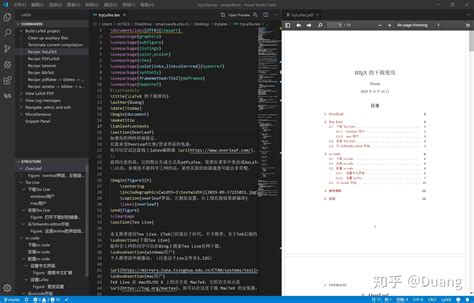

Choosing a Text Editor

While you can write LaTeX code in any text editor, using a dedicated LaTeX editor can enhance your productivity. Some popular LaTeX editors include:

• TeXShop: A free, open-source LaTeX editor for Mac OS X.
• TeXworks: A simple and easy-to-use LaTeX editor that comes with TeX Live and MiKTeX.
• Overleaf: An online LaTeX editor that allows you to collaborate with others in real-time.

Writing Your First LaTeX Document

Here is a simple example of a LaTeX document:

documentclass{article}
egin{document}
	itle{My First LaTeX Document}
author{Your Name}
date{	oday}
maketitle

section{Introduction}
This is the introduction section.

section{Mathematics}
Here is an example of a mathematical formula:
[ E = mc^2 ]

end{document}

To compile this document, save it with a .tex extension (e.g., mydocument.tex) and run it through a LaTeX compiler. The resulting PDF will contain your formatted document.

💡 Note: Make sure to save your LaTeX files with a .tex extension to ensure they are recognized by the compiler.

Advanced Features of LaTeX

LaTeX offers a wide range of advanced features that make it a powerful tool for document creation. Some of these features include:

Mathematical Typesetting

LaTeX is renowned for its ability to typeset complex mathematical formulas. Here are some examples of mathematical notation in LaTeX:

Bibliographies and Citations

LaTeX makes it easy to manage bibliographies and citations. You can use the BibTeX system to create a bibliography file (.bib) and cite references in your document. Here is an example:

documentclass{article}
egin{document}
This is a citation cite{example}.

ibliographystyle{plain}
ibliography{references}
end{document}

In your references.bib file, you can add entries like this:

@article{example,
  author = {John Doe},
  title = {An Example Article},
  journal = {Journal of Examples},
  year = {2023},
  volume = {1},
  pages = {1-10}
}

Tables and Figures

LaTeX provides robust support for creating tables and figures. Here is an example of a table:

egin{table}[h]
centering
egin{tabular}{|c|c|c|}
hline
Header 1 & Header 2 & Header 3
hline
Row 1, Col 1 & Row 1, Col 2 & Row 1, Col 3
Row 2, Col 1 & Row 2, Col 2 & Row 2, Col 3
hline
end{tabular}
caption{An example table}
label{tab:example}
end{table}

And here is an example of including a figure:

egin{figure}[h]
centering
includegraphics[width=0.5	extwidth]{example-image}
caption{An example figure}
label{fig:example}
end{figure}

Common LaTeX Packages

LaTeX packages are collections of commands and environments that extend the functionality of LaTeX. Some commonly used packages include:

amsmath

The amsmath package provides enhanced mathematical typesetting capabilities. It is particularly useful for creating complex equations and matrices.

graphicx

The graphicx package allows you to include graphics in your LaTeX documents. It supports various image formats and provides options for scaling and positioning images.

hyperref

The hyperref package adds hyperlink support to your documents, making it easy to create clickable links to sections, figures, and external URLs.

geometry

The geometry package allows you to customize the page layout, including margins, paper size, and orientation.

Tips for Writing in LaTeX

Writing in LaTeX can be a bit different from using traditional word processors. Here are some tips to help you get started:

• Learn the Basics: Familiarize yourself with the basic syntax and commands of LaTeX. There are many online tutorials and resources available to help you learn.
• Use a Good Editor: Choose a text editor that supports LaTeX and provides features like syntax highlighting and auto-completion.
• Keep It Simple: Start with simple documents and gradually add more complex features as you become more comfortable with LaTeX.
• Use Templates: There are many LaTeX templates available online that you can use as a starting point for your documents.
• Check Your Work: Always compile your document to check for errors and ensure that the formatting is correct.

💡 Note: LaTeX can be a bit tricky to learn at first, but with practice, you will become more proficient and appreciate its powerful features.

LaTeX 是 什麼? LaTeX is a versatile and powerful tool for creating high-quality documents, especially those with complex mathematical content. Whether you are a student, researcher, or professional, LaTeX can help you produce beautifully formatted documents with ease. By understanding the basics of LaTeX and exploring its advanced features, you can unlock its full potential and create documents that stand out.
