Lan Vs Wan Port

Understanding the differences between a Local Area Network (LAN) and a Wide Area Network (WAN) is crucial for anyone involved in network administration or IT infrastructure. One of the key distinctions lies in the Lan Vs Wan Port configurations and their respective roles in network communication. This blog post delves into the intricacies of LAN and WAN ports, their functionalities, and how they contribute to the overall network architecture.

Table of Contents

Understanding LAN Ports

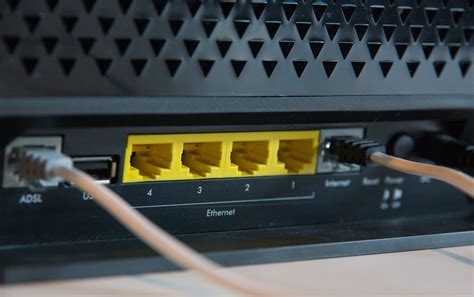

A LAN port is a physical interface on a network device, such as a router or switch, that allows devices within a local area network to communicate with each other. LAN ports are typically used for connecting devices within a confined geographical area, such as an office, home, or campus. These ports operate at high speeds and are designed for efficient data transfer within a limited range.

LAN ports are commonly found on:

Routers
Switches
Network Interface Cards (NICs)
Hubs

LAN ports use Ethernet cables, such as Cat5, Cat5e, Cat6, and Cat6a, to connect devices. The most common types of LAN ports are:

RJ-45 ports
Fiber optic ports

RJ-45 ports are the standard for copper Ethernet cables, while fiber optic ports are used for high-speed data transmission over longer distances.

Understanding WAN Ports

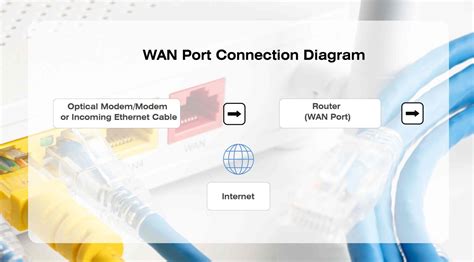

A WAN port, on the other hand, is used to connect a local area network to a wide area network, such as the internet. WAN ports are essential for extending the reach of a LAN beyond its physical boundaries, enabling communication with remote networks and the internet. These ports are designed to handle data transmission over longer distances and often involve more complex configurations.

WAN ports are commonly found on:

Routers
Modems
Firewalls

WAN ports use various types of connections, including:

DSL
Cable
Fiber optic
T1/T3 lines

Each type of connection has its own set of advantages and limitations, depending on the speed, reliability, and cost requirements of the network.

Key Differences Between LAN and WAN Ports

The primary differences between LAN and WAN ports lie in their functionality, speed, and the type of network they connect. Here is a detailed comparison:

Aspect	LAN Port	WAN Port
Purpose	Connects devices within a local area network	Connects a local area network to a wide area network
Speed	Typically faster, up to 10 Gbps	Varies, often slower than LAN ports
Distance	Short distances, within a building or campus	Long distances, across cities or countries
Connections	Ethernet cables (Cat5, Cat6)	DSL, Cable, Fiber optic, T1/T3 lines
Devices	Routers, Switches, NICs, Hubs	Routers, Modems, Firewalls

These differences highlight the specialized roles of LAN and WAN ports in network infrastructure. Understanding these distinctions is essential for configuring and managing networks effectively.

Configuring LAN and WAN Ports

Configuring LAN and WAN ports involves setting up the appropriate hardware and software settings to ensure seamless communication within and beyond the local network. Here are the steps for configuring each type of port:

Configuring LAN Ports

To configure a LAN port, follow these steps:

Connect the Ethernet cable to the LAN port on the router or switch.
Connect the other end of the cable to the device you want to connect to the network (e.g., computer, printer).
Access the router or switch configuration interface through a web browser or command-line interface (CLI).
Navigate to the LAN settings section.
Configure the IP address, subnet mask, and other network settings as required.
Save the settings and reboot the device if necessary.

🔍 Note: Ensure that the IP addresses assigned to devices on the LAN do not conflict with each other.

Configuring WAN Ports

To configure a WAN port, follow these steps:

Connect the WAN cable to the WAN port on the router or modem.
Connect the other end of the cable to the internet service provider's (ISP) network.
Access the router or modem configuration interface through a web browser or CLI.
Navigate to the WAN settings section.
Configure the connection type (e.g., PPPoE, DHCP, Static IP) and enter the necessary credentials provided by the ISP.
Save the settings and reboot the device if necessary.

🔍 Note: Ensure that the WAN port is configured with the correct connection type and credentials to establish a stable internet connection.

Troubleshooting LAN and WAN Port Issues

Troubleshooting LAN and WAN port issues involves identifying and resolving problems that affect network connectivity. Here are some common issues and their solutions:

Common LAN Port Issues

LAN port issues can include:

No connectivity
Slow data transfer
Intermittent connectivity

To troubleshoot LAN port issues:

Check the physical connections to ensure the cables are securely connected.
Verify the IP address configuration on the devices.
Test the cable with a different device or port to rule out cable issues.
Update the firmware on the router or switch.
Check for any network conflicts or interference.

Common WAN Port Issues

WAN port issues can include:

No internet access
Slow internet speed
Frequent disconnections

To troubleshoot WAN port issues:

Check the physical connections to ensure the cables are securely connected.
Verify the WAN port settings and credentials.
Test the connection with a different device or port to rule out hardware issues.
Contact the ISP to check for any service outages or issues.
Update the firmware on the router or modem.

By following these troubleshooting steps, you can identify and resolve most LAN and WAN port issues, ensuring smooth network operation.

Best Practices for Managing LAN and WAN Ports

Managing LAN and WAN ports effectively is crucial for maintaining network performance and security. Here are some best practices to follow:

Regularly update the firmware on routers, switches, and modems to ensure optimal performance and security.
Use strong, unique passwords for accessing the configuration interfaces of network devices.
Implement network segmentation to isolate different parts of the network and enhance security.
Monitor network traffic to detect and address any anomalies or potential security threats.
Backup configuration settings regularly to ensure quick recovery in case of failures or misconfigurations.

By adhering to these best practices, you can ensure that your LAN and WAN ports are managed efficiently, providing a reliable and secure network environment.

In conclusion, understanding the differences between LAN and WAN ports is essential for anyone involved in network administration. By configuring and managing these ports effectively, you can ensure seamless communication within and beyond the local network. Whether you are setting up a small home network or a large enterprise infrastructure, knowing the intricacies of Lan Vs Wan Port configurations will help you build a robust and efficient network.
