Laminar Flow Reynolds Number

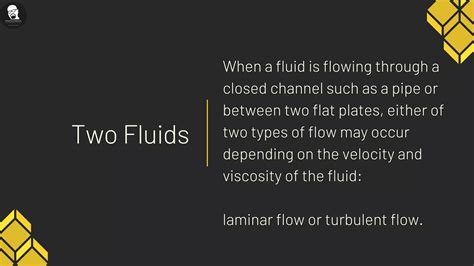

Understanding the dynamics of fluid flow is crucial in various fields, from aerodynamics to plumbing. One of the fundamental concepts in fluid dynamics is the Laminar Flow Reynolds Number. This dimensionless quantity helps engineers and scientists determine whether a fluid flow will be laminar (smooth and orderly) or turbulent (chaotic and irregular). By grasping the significance of the Laminar Flow Reynolds Number, we can better design systems that optimize efficiency and performance.

Table of Contents

What is the Reynolds Number?

The Reynolds Number (Re) is a critical parameter in fluid mechanics that predicts flow patterns in different scenarios. It is named after Osborne Reynolds, a British engineer and physicist who pioneered the study of fluid dynamics. The Reynolds Number is defined as the ratio of inertial forces to viscous forces within a fluid. Mathematically, it is expressed as:

Re = ρvd / μ

Where:

ρ is the density of the fluid (kg/m³)
v is the velocity of the fluid (m/s)
d is the characteristic linear dimension (m)
μ is the dynamic viscosity of the fluid (Pa·s)

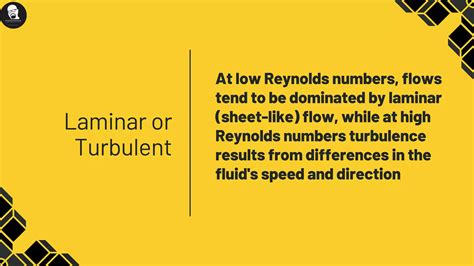

The Laminar Flow Reynolds Number specifically refers to the range of Reynolds Numbers where the flow is laminar. Typically, this occurs when Re is less than approximately 2300 for flow in a pipe. However, this value can vary depending on the specific conditions and geometry of the flow.

Importance of the Laminar Flow Reynolds Number

The Laminar Flow Reynolds Number is essential for several reasons:

Efficiency in Fluid Systems: Laminar flow is more efficient than turbulent flow because it experiences less friction and energy loss. Understanding the Laminar Flow Reynolds Number helps in designing systems that operate within this efficient range.
Heat Transfer: Laminar flow is often used in heat exchangers and cooling systems because it provides a more predictable and controlled heat transfer process.
Mixing and Chemical Reactions: In chemical engineering, laminar flow is crucial for processes that require precise mixing and controlled reactions.
Medical Applications: In medical devices such as catheters and stents, laminar flow ensures that blood flow is smooth and uninterrupted, reducing the risk of clots and other complications.

Factors Affecting the Reynolds Number

Several factors influence the Reynolds Number and, consequently, the nature of the fluid flow:

Fluid Density (ρ): Higher density fluids tend to have higher Reynolds Numbers, making them more likely to transition to turbulent flow.
Fluid Velocity (v): Increasing the velocity of the fluid increases the Reynolds Number, which can lead to turbulent flow.
Characteristic Dimension (d): Larger dimensions, such as the diameter of a pipe, increase the Reynolds Number, promoting turbulent flow.
Dynamic Viscosity (μ): Higher viscosity fluids have lower Reynolds Numbers, making them more likely to maintain laminar flow.

Calculating the Reynolds Number

To calculate the Reynolds Number, you need to know the values of the density, velocity, characteristic dimension, and dynamic viscosity of the fluid. Here is a step-by-step guide:

Determine the density (ρ) of the fluid. This can often be found in reference tables or calculated based on temperature and pressure conditions.
Measure the velocity (v) of the fluid. This can be done using various instruments such as flow meters or anemometers.
Identify the characteristic dimension (d). For flow in a pipe, this is typically the diameter of the pipe.
Find the dynamic viscosity (μ) of the fluid. This can also be found in reference tables or calculated based on temperature.
Plug these values into the Reynolds Number formula:

Re = ρvd / μ

For example, if you have water flowing through a pipe with a diameter of 0.05 meters at a velocity of 0.1 m/s, and the density and dynamic viscosity of water are 1000 kg/m³ and 0.001 Pa·s respectively, the Reynolds Number would be:

Re = (1000 kg/m³ * 0.1 m/s * 0.05 m) / 0.001 Pa·s = 5000

In this case, the flow would be turbulent since the Reynolds Number exceeds 2300.

💡 Note: The transition from laminar to turbulent flow is not always abrupt and can occur over a range of Reynolds Numbers. For pipes, this transition typically occurs between 2100 and 4000.

Applications of the Laminar Flow Reynolds Number

The Laminar Flow Reynolds Number has wide-ranging applications across various industries:

Aerodynamics: In aircraft design, maintaining laminar flow over the wings and fuselage reduces drag and improves fuel efficiency.
Hydraulics: In plumbing and piping systems, understanding the Laminar Flow Reynolds Number helps in designing systems that minimize pressure drops and energy losses.
Chemical Engineering: In processes involving fluid mixing and reactions, laminar flow ensures precise control over the mixing process.
Biomedical Engineering: In medical devices, laminar flow is crucial for ensuring smooth and uninterrupted fluid flow, which is essential for the proper functioning of devices like catheters and stents.

Experimental Determination of the Reynolds Number

In addition to theoretical calculations, the Reynolds Number can be determined experimentally. This involves measuring the flow characteristics directly and using them to calculate the Reynolds Number. Here are the steps:

Set up an experimental apparatus, such as a flow loop with a pipe and a flow meter.
Measure the velocity of the fluid using a flow meter or anemometer.
Determine the density and dynamic viscosity of the fluid based on temperature and pressure conditions.
Calculate the Reynolds Number using the measured and determined values.

Experimental determination is particularly useful when the flow conditions are complex or when the theoretical values are not readily available.

💡 Note: Experimental methods can provide more accurate results in real-world scenarios where theoretical assumptions may not hold.

Visualizing Flow Patterns

Visualizing flow patterns is essential for understanding the transition from laminar to turbulent flow. One common method is the use of dye injection or smoke trails. By injecting a dye or smoke into the fluid, the flow patterns can be observed directly. For example, in a pipe flow, a straight, smooth line of dye indicates laminar flow, while a chaotic, swirling pattern indicates turbulent flow.

Another method is the use of computational fluid dynamics (CFD) simulations. CFD software can model fluid flow and visualize the flow patterns, providing insights into the transition from laminar to turbulent flow. This is particularly useful in complex geometries where experimental methods may be difficult to implement.

Transition from Laminar to Turbulent Flow

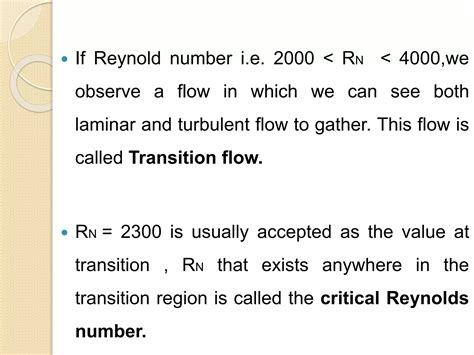

The transition from laminar to turbulent flow is a complex process that depends on various factors. As the Reynolds Number increases, the flow becomes more unstable, and small disturbances can grow into larger turbulent eddies. This transition is not abrupt but occurs over a range of Reynolds Numbers. For pipe flow, this transition typically occurs between 2100 and 4000.

Several factors can influence the transition:

Surface Roughness: Rough surfaces can promote turbulence by creating disturbances in the flow.
Flow Disturbances: External disturbances, such as vibrations or sudden changes in flow direction, can trigger the transition to turbulent flow.
Geometry: The shape and dimensions of the flow channel can affect the transition. For example, sharp bends or sudden expansions can promote turbulence.

Controlling Flow Patterns

Controlling flow patterns is crucial in many applications. Here are some methods to control and maintain laminar flow:

Reducing Velocity: Lowering the velocity of the fluid can reduce the Reynolds Number, promoting laminar flow.
Increasing Viscosity: Using a more viscous fluid can increase the dynamic viscosity, reducing the Reynolds Number and promoting laminar flow.
Smoothing Surfaces: Ensuring that the flow surfaces are smooth can reduce disturbances and promote laminar flow.
Using Flow Straighteners: Flow straighteners can be used to eliminate swirls and other disturbances, promoting laminar flow.

Case Studies

To illustrate the practical applications of the Laminar Flow Reynolds Number, let’s consider a few case studies:

Aerodynamic Design: In the design of aircraft wings, engineers aim to maintain laminar flow over the wing surface to reduce drag. By carefully shaping the wing and controlling the flow velocity, they can ensure that the Reynolds Number remains within the laminar range.
Plumbing Systems: In plumbing systems, maintaining laminar flow can reduce pressure drops and energy losses. By selecting appropriate pipe diameters and flow rates, engineers can ensure that the Reynolds Number remains below the critical value for laminar flow.
Chemical Reactors: In chemical reactors, laminar flow is often desired for precise mixing and controlled reactions. By adjusting the flow rate and viscosity of the reactants, engineers can maintain laminar flow and optimize the reaction process.

These case studies highlight the importance of understanding and controlling the Laminar Flow Reynolds Number in various applications.

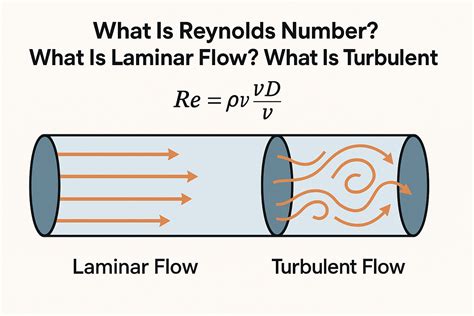

This image illustrates the transition from laminar to turbulent flow as the Reynolds Number increases. The smooth, parallel lines in the laminar region contrast with the chaotic, swirling patterns in the turbulent region.

Understanding the Laminar Flow Reynolds Number is essential for designing efficient and effective fluid systems. By controlling the flow patterns and maintaining laminar flow where necessary, engineers can optimize performance and reduce energy losses. Whether in aerodynamics, plumbing, chemical engineering, or biomedical applications, the Laminar Flow Reynolds Number plays a crucial role in ensuring smooth and efficient fluid flow.
