Lac Operon Diagram

Understanding the Lac Operon is fundamental to grasping the principles of gene regulation in prokaryotes. The Lac Operon is a classic example of how bacteria can control the expression of genes in response to environmental changes. This regulatory system allows bacteria, such as E. coli, to efficiently metabolize lactose when it is available in their environment. The Lac Operon Diagram is a visual representation of this genetic regulatory mechanism, illustrating the key components and their interactions.

Table of Contents

What is the Lac Operon?

The Lac Operon is a set of genes in E. coli that are involved in the metabolism of lactose. It consists of three main structural genes (lacZ, lacY, and lacA) and regulatory elements (promoter, operator, and regulator gene). The Lac Operon Diagram typically shows these components and their interactions, providing a clear visual aid for understanding gene regulation.

Components of the Lac Operon

The Lac Operon includes several key components that work together to regulate gene expression:

Regulator Gene (lacI): This gene encodes the lac repressor protein, which binds to the operator region and prevents transcription of the lac operon genes.
Promoter (P): This is the site where RNA polymerase binds to initiate transcription. The promoter is located upstream of the structural genes.
Operator (O): This is the region where the lac repressor binds to block transcription. It is located between the promoter and the structural genes.
Structural Genes (lacZ, lacY, lacA): These genes encode enzymes necessary for lactose metabolism. LacZ encodes beta-galactosidase, which breaks down lactose into glucose and galactose. LacY encodes permease, which transports lactose into the cell. LacA encodes thiogalactoside transacetylase, which has a less clear role in lactose metabolism.

How the Lac Operon Works

The Lac Operon Diagram illustrates the regulatory mechanism of the Lac Operon, which involves the following steps:

Absence of Lactose: When lactose is absent, the lac repressor protein, encoded by the lacI gene, binds to the operator region. This prevents RNA polymerase from binding to the promoter and initiating transcription of the structural genes. As a result, the enzymes necessary for lactose metabolism are not produced.
Presence of Lactose: When lactose is present, it is converted to allolactose, which acts as an inducer. Allolactose binds to the lac repressor, causing a conformational change that reduces its affinity for the operator. This allows RNA polymerase to bind to the promoter and initiate transcription of the lacZ, lacY, and lacA genes.
Transcription and Translation: The structural genes are transcribed into mRNA, which is then translated into the enzymes necessary for lactose metabolism. These enzymes allow the bacterium to transport lactose into the cell and break it down into glucose and galactose.

📝 Note: The Lac Operon is a classic example of negative regulation, where the repressor protein actively inhibits gene expression until an inducer is present.

Regulatory Mechanisms of the Lac Operon

The Lac Operon is regulated by several mechanisms that ensure efficient gene expression in response to environmental conditions. These mechanisms include:

Induction: The presence of lactose induces the expression of the lac operon genes. Allolactose, a byproduct of lactose metabolism, acts as an inducer by binding to the lac repressor and preventing it from binding to the operator.
Repression: In the absence of lactose, the lac repressor binds to the operator and prevents transcription of the lac operon genes. This ensures that the enzymes necessary for lactose metabolism are not produced when lactose is not available.
Catabolite Repression: The Lac Operon is also subject to catabolite repression, where the presence of glucose inhibits the expression of the lac operon genes. This ensures that glucose is preferentially used as an energy source before lactose. Catabolite repression is mediated by cyclic AMP (cAMP) and the cAMP receptor protein (CRP), which bind to the promoter region and enhance transcription in the absence of glucose.

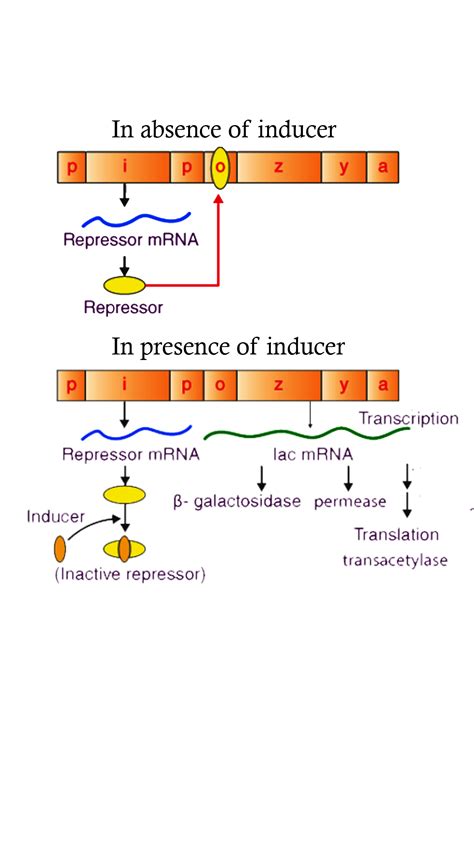

Lac Operon Diagram: Visual Representation

The Lac Operon Diagram is a visual tool that helps in understanding the regulatory mechanisms of the Lac Operon. It typically includes the following elements:

Regulator Gene (lacI): Shown as a gene encoding the lac repressor protein.
Promoter (P): Depicted as the site where RNA polymerase binds to initiate transcription.
Operator (O): Illustrated as the region where the lac repressor binds to block transcription.
Structural Genes (lacZ, lacY, lacA): Represented as genes encoding enzymes for lactose metabolism.
Inducer (Allolactose): Shown as a molecule that binds to the lac repressor and prevents it from binding to the operator.
RNA Polymerase: Depicted as the enzyme that initiates transcription of the lac operon genes.

📝 Note: The Lac Operon Diagram is a valuable educational tool for students and researchers studying gene regulation in prokaryotes.

Applications of the Lac Operon

The Lac Operon has several applications in biotechnology and molecular biology. Some of the key applications include:

Gene Expression Studies: The Lac Operon is often used as a model system to study gene regulation and expression in prokaryotes. Researchers can manipulate the components of the Lac Operon to understand the mechanisms of gene regulation.
Biotechnology: The Lac Operon is used in the production of recombinant proteins. By placing a gene of interest under the control of the lac promoter, researchers can induce its expression in the presence of lactose or its analogs, such as IPTG (isopropyl β-D-1-thiogalactopyranoside).
Genetic Engineering: The Lac Operon is used in genetic engineering to control the expression of genes in genetically modified organisms. By incorporating the lac operon components into the genome of an organism, researchers can regulate the expression of specific genes.

Experimental Techniques Involving the Lac Operon

Several experimental techniques are used to study the Lac Operon and its regulatory mechanisms. These techniques include:

Gel Electrophoresis: This technique is used to analyze the DNA and proteins involved in the Lac Operon. Researchers can separate and visualize the components of the Lac Operon using gel electrophoresis.
Western Blotting: This technique is used to detect and quantify the lac repressor protein. Researchers can use Western blotting to study the binding of the lac repressor to the operator region.
RT-PCR: Reverse transcription-polymerase chain reaction (RT-PCR) is used to quantify the mRNA levels of the lac operon genes. This technique allows researchers to study the transcription of the lac operon genes in response to different environmental conditions.
Chromatin Immunoprecipitation (ChIP): This technique is used to study the binding of proteins to DNA. Researchers can use ChIP to study the binding of the lac repressor to the operator region and the binding of RNA polymerase to the promoter region.

Lac Operon and Gene Regulation in Prokaryotes

The Lac Operon is a classic example of gene regulation in prokaryotes. It illustrates how bacteria can efficiently respond to environmental changes by controlling the expression of specific genes. The Lac Operon Diagram provides a visual representation of the regulatory mechanisms involved in the Lac Operon, making it easier to understand the complex interactions between the components.

The Lac Operon is regulated by several mechanisms, including induction, repression, and catabolite repression. These mechanisms ensure that the enzymes necessary for lactose metabolism are produced only when lactose is available and glucose is not present. The Lac Operon is also subject to catabolite repression, which ensures that glucose is preferentially used as an energy source before lactose.

The Lac Operon has several applications in biotechnology and molecular biology. It is used as a model system to study gene regulation and expression in prokaryotes. The Lac Operon is also used in the production of recombinant proteins and in genetic engineering to control the expression of genes in genetically modified organisms.

The Lac Operon is a classic example of how bacteria can efficiently respond to environmental changes by controlling the expression of specific genes. The Lac Operon Diagram provides a visual representation of the regulatory mechanisms involved in the Lac Operon, making it easier to understand the complex interactions between the components. The Lac Operon is regulated by several mechanisms, including induction, repression, and catabolite repression, which ensure that the enzymes necessary for lactose metabolism are produced only when lactose is available and glucose is not present. The Lac Operon has several applications in biotechnology and molecular biology, including the production of recombinant proteins and genetic engineering. The Lac Operon Diagram is a valuable educational tool for students and researchers studying gene regulation in prokaryotes.

📝 Note: The Lac Operon is a fundamental concept in molecular biology and biotechnology, providing insights into gene regulation and expression in prokaryotes.

Lac Operon Diagram: Detailed Explanation

The Lac Operon Diagram is a detailed visual representation of the Lac Operon and its regulatory mechanisms. It includes the following components:

Regulator Gene (lacI): Shown as a gene encoding the lac repressor protein, which binds to the operator region and prevents transcription of the lac operon genes.
Promoter (P): Depicted as the site where RNA polymerase binds to initiate transcription. The promoter is located upstream of the structural genes.
Operator (O): Illustrated as the region where the lac repressor binds to block transcription. The operator is located between the promoter and the structural genes.
Structural Genes (lacZ, lacY, lacA): Represented as genes encoding enzymes for lactose metabolism. LacZ encodes beta-galactosidase, lacY encodes permease, and lacA encodes thiogalactoside transacetylase.
Inducer (Allolactose): Shown as a molecule that binds to the lac repressor and prevents it from binding to the operator. This allows RNA polymerase to bind to the promoter and initiate transcription.
RNA Polymerase: Depicted as the enzyme that initiates transcription of the lac operon genes. RNA polymerase binds to the promoter and transcribes the structural genes into mRNA.

The Lac Operon Diagram provides a clear visual representation of the regulatory mechanisms involved in the Lac Operon. It illustrates how the lac repressor binds to the operator region and prevents transcription of the lac operon genes in the absence of lactose. When lactose is present, it is converted to allolactose, which binds to the lac repressor and prevents it from binding to the operator. This allows RNA polymerase to bind to the promoter and initiate transcription of the lac operon genes.

The Lac Operon Diagram also shows the role of catabolite repression in the regulation of the Lac Operon. In the presence of glucose, catabolite repression inhibits the expression of the lac operon genes. This ensures that glucose is preferentially used as an energy source before lactose. Catabolite repression is mediated by cyclic AMP (cAMP) and the cAMP receptor protein (CRP), which bind to the promoter region and enhance transcription in the absence of glucose.

The Lac Operon Diagram is a valuable educational tool for students and researchers studying gene regulation in prokaryotes. It provides a clear visual representation of the regulatory mechanisms involved in the Lac Operon, making it easier to understand the complex interactions between the components. The Lac Operon Diagram is also used in biotechnology and molecular biology to study gene regulation and expression in prokaryotes.

The Lac Operon Diagram includes the following components:

Component	Description
Regulator Gene (lacI)	Encodes the lac repressor protein, which binds to the operator region and prevents transcription of the lac operon genes.
Promoter (P)	The site where RNA polymerase binds to initiate transcription. Located upstream of the structural genes.
Operator (O)	The region where the lac repressor binds to block transcription. Located between the promoter and the structural genes.
Structural Genes (lacZ, lacY, lacA)	Encode enzymes for lactose metabolism. LacZ encodes beta-galactosidase, lacY encodes permease, and lacA encodes thiogalactoside transacetylase.
Inducer (Allolactose)	A molecule that binds to the lac repressor and prevents it from binding to the operator. Allows RNA polymerase to bind to the promoter and initiate transcription.
RNA Polymerase	The enzyme that initiates transcription of the lac operon genes. Binds to the promoter and transcribes the structural genes into mRNA.

The Lac Operon Diagram provides a detailed visual representation of the regulatory mechanisms involved in the Lac Operon. It illustrates how the lac repressor binds to the operator region and prevents transcription of the lac operon genes in the absence of lactose. When lactose is present, it is converted to allolactose, which binds to the lac repressor and prevents it from binding to the operator. This allows RNA polymerase to bind to the promoter and initiate transcription of the lac operon genes. The Lac Operon Diagram also shows the role of catabolite repression in the regulation of the Lac Operon, ensuring that glucose is preferentially used as an energy source before lactose.

The Lac Operon Diagram includes the following components: the regulator gene (lacI), promoter (P), operator (O), structural genes (lacZ, lacY, lacA), inducer (allolactose), and RNA polymerase. The Lac Operon Diagram provides a detailed visual representation of the regulatory mechanisms involved in the Lac Operon, illustrating how the lac repressor binds to the operator region and prevents transcription of the lac operon genes in the absence of lactose. When lactose is present, it is converted to allolactose, which binds to the lac repressor and prevents it from binding to the operator. This allows RNA polymerase to bind to the promoter and initiate transcription of the lac operon genes. The Lac Operon Diagram also shows the role of catabolite repression in the regulation of the Lac Operon, ensuring that glucose is preferentially used as an energy source before lactose.
