Kube Prometheus Stack

Monitoring and managing Kubernetes clusters can be a complex task, but with the right tools, it becomes much more manageable. One of the most powerful and widely used solutions for monitoring Kubernetes clusters is the Kube Prometheus Stack. This stack provides a comprehensive set of tools for monitoring, alerting, and visualizing the performance and health of your Kubernetes environment. In this post, we will delve into the components of the Kube Prometheus Stack, how to set it up, and best practices for using it effectively.

Understanding the Kube Prometheus Stack

The Kube Prometheus Stack is a collection of open-source tools designed to work together seamlessly to provide monitoring and alerting for Kubernetes clusters. The stack includes several key components:

• Prometheus: A powerful monitoring and alerting toolkit that collects metrics from configured targets at given intervals.
• Grafana: A visualization tool that allows you to create, explore, and share dashboards to monitor the performance and health of your systems.
• Alertmanager: Handles alerts sent by client applications such as the Prometheus server. It takes care of deduplicating, grouping, and routing them to the correct receiver.
• Node Exporter: Exposes hardware and OS metrics exported by *nix kernels.
• Kube-state-metrics: Generates metrics about the state of Kubernetes objects.
• Prometheus Adapter: Exposes Prometheus metrics in a format suitable for use by the Kubernetes Horizontal Pod Autoscaler.

Setting Up the Kube Prometheus Stack

Setting up the Kube Prometheus Stack involves several steps. Below is a detailed guide to help you get started:

Prerequisites

Before you begin, ensure you have the following:

• A running Kubernetes cluster.
• kubectl configured to interact with your cluster.
• Helm installed on your local machine.

Installing the Kube Prometheus Stack

The easiest way to install the Kube Prometheus Stack is using Helm. Follow these steps:

1. Add the Prometheus Community Helm repository:

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo update

2. Create a namespace for the Kube Prometheus Stack:

kubectl create namespace monitoring

3. Install the Kube Prometheus Stack using Helm:

helm install kube-prometheus-stack prometheus-community/kube-prometheus-stack --namespace monitoring

This command will install all the components of the Kube Prometheus Stack in the monitoring namespace.

Verifying the Installation

After the installation is complete, you can verify that all components are running correctly:

kubectl get pods --namespace monitoring

You should see a list of pods for Prometheus, Grafana, Alertmanager, and other components. Ensure that all pods are in the "Running" state.

Accessing Grafana

To access Grafana, you need to port-forward the Grafana service to your local machine:

kubectl port-forward svc/kube-prometheus-stack-grafana 3000:80 --namespace monitoring

Open your browser and navigate to http://localhost:3000. The default credentials are:

• Username: admin
• Password: prom-operator

You can change the password after logging in.

🔒 Note: Ensure that you secure your Grafana instance with proper authentication and authorization mechanisms, especially if it is exposed to the internet.

Configuring Alerts with Alertmanager

Alertmanager is a crucial component of the Kube Prometheus Stack that handles alerts sent by Prometheus. It allows you to define alerting rules and configure how alerts are routed and notified.

Defining Alerting Rules

Alerting rules are defined in Prometheus configuration files. Here is an example of an alerting rule:

groups:
- name: example
  rules:
  - alert: HighCPUUsage
    expr: node_load1 > 0.8
    for: 5m
    labels:
      severity: critical
    annotations:
      summary: "High CPU usage on {{ $labels.instance }}"
      description: "CPU usage is above 80% for more than 5 minutes."

This rule triggers an alert if the CPU usage exceeds 80% for more than 5 minutes.

Configuring Alertmanager

Alertmanager configuration is defined in a YAML file. Here is an example configuration:

global:
  smtp_smarthost: 'smtp.example.com:587'
  smtp_from: 'alertmanager@example.com'
  smtp_auth_username: 'username'
  smtp_auth_password: 'password'

route:
  receiver: 'team-X'

receivers:
- name: 'team-X'
  email_configs:
  - to: 'team-X+alerts@example.com'

This configuration sends email alerts to the team-X email address when an alert is triggered.

📢 Note: Ensure that your Alertmanager configuration is secure and that sensitive information, such as SMTP credentials, is properly protected.

Visualizing Metrics with Grafana

Grafana is a powerful visualization tool that allows you to create dashboards to monitor the performance and health of your Kubernetes cluster. The Kube Prometheus Stack comes with pre-configured dashboards that you can use out of the box.

Importing Pre-Configured Dashboards

To import pre-configured dashboards, follow these steps:

1. Log in to Grafana.
2. Click on the "+" icon on the left sidebar and select "Import".
3. Enter the dashboard ID or upload the JSON file for the dashboard you want to import.
4. Click "Import" to add the dashboard to your Grafana instance.

Some useful dashboard IDs for Kubernetes monitoring include:

Creating Custom Dashboards

You can also create custom dashboards tailored to your specific needs. To create a custom dashboard:

1. Log in to Grafana.
2. Click on the "+" icon on the left sidebar and select "Dashboard".
3. Click on "Add new panel" to add a new panel to your dashboard.
4. Configure the panel with the desired metrics and visualization options.
5. Save the dashboard by clicking on the "Save" icon at the top.

Grafana supports a wide range of visualization options, including graphs, gauges, tables, and more. You can customize each panel to display the metrics that are most relevant to your monitoring needs.

Best Practices for Using the Kube Prometheus Stack

To get the most out of the Kube Prometheus Stack, follow these best practices:

• Regularly Review Alerts: Ensure that your alerting rules are up-to-date and relevant to your monitoring needs. Regularly review and update your alerting rules to avoid alert fatigue.
• Use Annotations and Labels: Annotations and labels in Prometheus allow you to add context to your metrics and alerts. Use them to provide additional information that can help in troubleshooting and incident response.
• Monitor Key Metrics: Focus on monitoring key metrics that are critical to the performance and health of your Kubernetes cluster. Some important metrics to monitor include CPU usage, memory usage, disk I/O, network traffic, and pod status.
• Secure Your Monitoring Stack: Ensure that your monitoring stack is secure. Use proper authentication and authorization mechanisms to protect access to your monitoring tools. Regularly update your tools to patch any security vulnerabilities.
• Use Pre-Configured Dashboards: Take advantage of pre-configured dashboards provided by the Kube Prometheus Stack. These dashboards are designed by experts and cover a wide range of monitoring scenarios.

By following these best practices, you can effectively monitor and manage your Kubernetes cluster using the Kube Prometheus Stack.

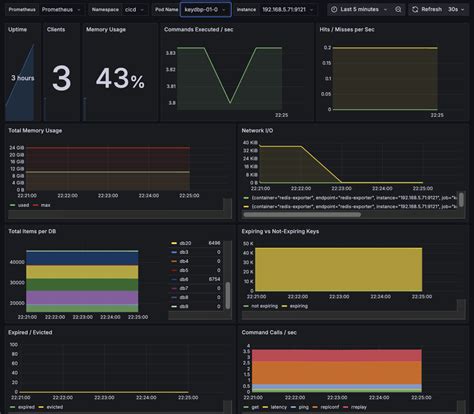

This image shows a sample dashboard from the Kube Prometheus Stack, providing a comprehensive view of the cluster's performance and health.

In summary, the Kube Prometheus Stack is a powerful and comprehensive solution for monitoring Kubernetes clusters. It provides a set of tools that work together seamlessly to collect, visualize, and alert on metrics from your Kubernetes environment. By following the steps outlined in this post and adhering to best practices, you can effectively monitor and manage your Kubernetes cluster, ensuring its performance and reliability.
