Knock Sensor Purpose

In the realm of automotive technology, the knock sensor plays a crucial role in ensuring the optimal performance and longevity of an engine. Understanding the knock sensor purpose is essential for anyone interested in automotive mechanics or engine performance. This sensor is a vital component in modern engines, particularly those equipped with electronic fuel injection and engine control units (ECUs).

Table of Contents

What is a Knock Sensor?

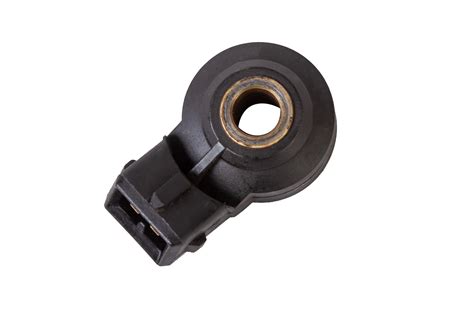

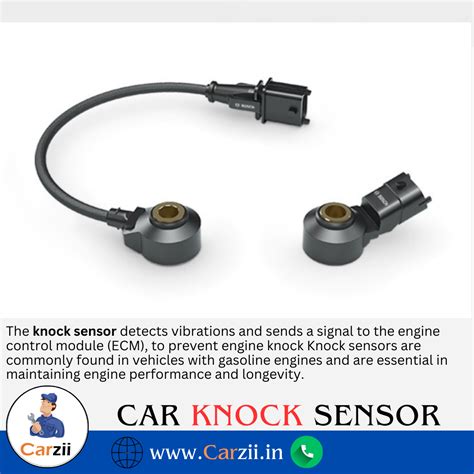

A knock sensor, also known as a detonation sensor, is an electronic device designed to detect abnormal combustion events within the engine. These events, often referred to as engine knock or pinging, occur when the air-fuel mixture in the cylinder detonates spontaneously rather than burning smoothly. This uncontrolled combustion can cause significant damage to the engine over time.

Understanding Engine Knock

Engine knock happens when the air-fuel mixture in the cylinder ignites prematurely, creating shock waves that collide with the normal combustion process. This results in a distinctive metallic pinging or knocking sound. Several factors can contribute to engine knock, including:

Low-octane fuel
Incorrect ignition timing
Overheating
Carbon buildup in the engine

While occasional engine knock may not cause immediate damage, prolonged knocking can lead to severe engine issues, such as piston damage, rod bearing failure, and even catastrophic engine failure.

The Role of a Knock Sensor

The primary knock sensor purpose is to monitor the engine for signs of detonation and relay this information to the engine control unit (ECU). The ECU then adjusts the ignition timing and fuel mixture to prevent further knocking. This dynamic adjustment helps maintain optimal engine performance and reduces the risk of damage.

Knock sensors are typically mounted on the engine block or cylinder head, where they can detect the vibrations caused by engine knock. These sensors convert the mechanical vibrations into electrical signals, which are then analyzed by the ECU. Based on this data, the ECU can make real-time adjustments to the engine's operating parameters.

Types of Knock Sensors

There are two main types of knock sensors used in modern vehicles:

Piezoelectric Knock Sensors: These sensors use a piezoelectric crystal that generates an electrical charge in response to mechanical stress. When the sensor detects vibrations from engine knock, the crystal produces a voltage signal that is sent to the ECU.
Accelerometer-Based Knock Sensors: These sensors use a small mass attached to a spring, which moves in response to vibrations. The movement is converted into an electrical signal that is sent to the ECU.

Both types of sensors are effective in detecting engine knock, but piezoelectric sensors are more commonly used due to their simplicity and reliability.

How Knock Sensors Work

The operation of a knock sensor can be broken down into several key steps:

Detection: The knock sensor detects vibrations caused by engine knock.
Signal Conversion: The sensor converts these vibrations into an electrical signal.
Signal Transmission: The electrical signal is sent to the engine control unit (ECU).
Data Analysis: The ECU analyzes the signal to determine if engine knock is present.
Adjustment: If engine knock is detected, the ECU adjusts the ignition timing and fuel mixture to prevent further knocking.

This continuous monitoring and adjustment process ensures that the engine operates smoothly and efficiently, minimizing the risk of damage from engine knock.

🔧 Note: Regular maintenance and inspection of the knock sensor are essential to ensure its proper functioning. A faulty knock sensor can lead to inaccurate readings and potential engine damage.

Symptoms of a Faulty Knock Sensor

Identifying a faulty knock sensor is crucial for maintaining engine health. Some common symptoms of a malfunctioning knock sensor include:

Engine misfires
Reduced engine performance
Poor fuel economy
Check engine light illuminated
Rough idling
Difficulty starting the engine

If you experience any of these symptoms, it is important to have your vehicle inspected by a professional mechanic. They can diagnose the issue and replace the knock sensor if necessary.

Diagnosing Knock Sensor Issues

Diagnosing knock sensor issues typically involves the following steps:

Visual Inspection: Check the knock sensor for any visible signs of damage, such as cracks or corrosion.
Electrical Testing: Use a multimeter to test the electrical continuity of the sensor. A faulty sensor may show no continuity or inconsistent readings.
Scan Tool Diagnosis: Connect a scan tool to the vehicle's onboard diagnostics (OBD-II) port to retrieve any error codes related to the knock sensor.
Road Test: Perform a road test to observe the engine's performance and listen for any signs of engine knock.

If the knock sensor is found to be faulty, it should be replaced promptly to prevent further engine damage.

🔧 Note: Always follow the manufacturer's guidelines when replacing a knock sensor. Ensure that the new sensor is compatible with your vehicle's make and model.

Replacing a Knock Sensor

Replacing a knock sensor is a relatively straightforward process that can be done with basic automotive tools. Here are the steps to replace a knock sensor:

Locate the Knock Sensor: The knock sensor is typically located on the engine block or cylinder head. Consult your vehicle's repair manual for the exact location.
Disconnect the Battery: Disconnect the negative terminal of the battery to prevent any electrical shorts.
Remove the Old Sensor: Use a socket wrench to remove the mounting bolt and disconnect the electrical connector from the old sensor.
Install the New Sensor: Connect the electrical connector to the new sensor and secure it in place with the mounting bolt. Tighten the bolt to the manufacturer's specified torque.
Reconnect the Battery: Reconnect the negative terminal of the battery.
Test the Engine: Start the engine and perform a road test to ensure that the new knock sensor is functioning properly.

If you are not comfortable performing this task yourself, it is recommended to seek the assistance of a professional mechanic.

Maintaining Engine Health

In addition to monitoring and replacing the knock sensor, there are several other steps you can take to maintain engine health and prevent engine knock:

Use high-quality, high-octane fuel
Regularly change the engine oil and filters
Inspect and replace spark plugs as needed
Ensure proper engine cooling
Avoid aggressive driving habits

By following these maintenance tips, you can extend the life of your engine and minimize the risk of engine knock.

Regular maintenance and timely replacement of the knock sensor are essential for ensuring the optimal performance and longevity of your engine. Understanding the knock sensor purpose and its role in engine management can help you make informed decisions about your vehicle's maintenance and repair needs.

In summary, the knock sensor is a critical component in modern engines, playing a vital role in detecting and preventing engine knock. By monitoring the engine for abnormal combustion events and relaying this information to the ECU, the knock sensor helps maintain optimal engine performance and reduces the risk of damage. Regular inspection and maintenance of the knock sensor, along with other engine components, are essential for ensuring the health and longevity of your vehicle’s engine.
