Electrical circuits are the backbone of modern technology, powering everything from simple household appliances to complex industrial machinery. Understanding the fundamental principles that govern these circuits is crucial for anyone involved in electronics, electrical engineering, or related fields. One of the most essential principles is Kirchhoff's Junction Rule, which provides a foundational understanding of how electrical currents behave at junctions in a circuit.
Understanding Kirchhoff's Junction Rule

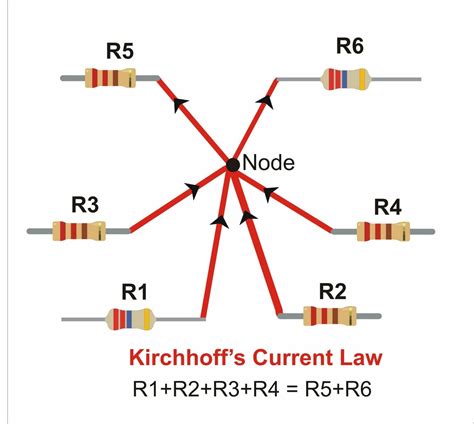

Kirchhoff's Junction Rule, also known as Kirchhoff's Current Law (KCL), states that the sum of currents entering a junction (or node) in a circuit is equal to the sum of currents leaving that junction. This principle is derived from the conservation of electric charge, which means that charge cannot be created or destroyed within a circuit.

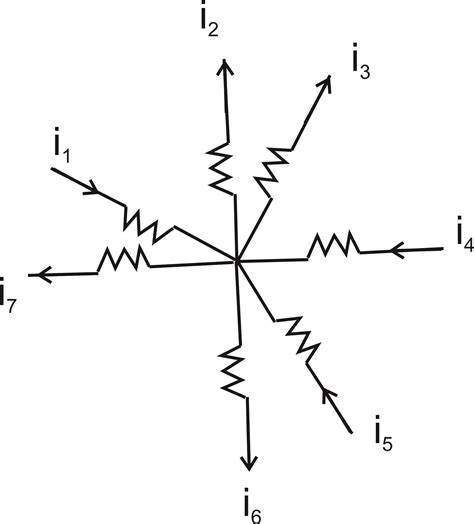

To put it simply, if you have a junction where multiple wires meet, the total current flowing into the junction must equal the total current flowing out of it. This rule is fundamental for analyzing and designing electrical circuits, as it helps ensure that the circuit operates correctly and efficiently.
The Importance of Kirchhoff's Junction Rule
Kirchhoff's Junction Rule is vital for several reasons:
- Circuit Analysis: It allows engineers to analyze complex circuits by breaking them down into simpler components and understanding the flow of current at each junction.
- Design Verification: By applying Kirchhoff's Junction Rule, designers can verify that their circuits are correctly designed and that there are no errors in the current flow.
- Troubleshooting: When a circuit malfunctions, Kirchhoff's Junction Rule can help identify where the problem lies by analyzing the current flow at different junctions.
- Educational Tool: It serves as a fundamental concept in electrical engineering education, helping students understand the basics of circuit analysis and design.
Applying Kirchhoff's Junction Rule
To apply Kirchhoff's Junction Rule effectively, follow these steps:
- Identify the Junction: Locate the junction or node in the circuit where you need to apply the rule.
- Determine Current Directions: Assign directions to the currents entering and leaving the junction. It's common to use arrows to indicate the direction of current flow.
- Apply the Rule: Write down the equation representing Kirchhoff's Junction Rule for the identified junction. The sum of currents entering the junction should equal the sum of currents leaving it.
- Solve for Unknowns: Use the equation to solve for any unknown currents in the circuit.
💡 Note: Remember that the direction of current flow is arbitrary. If you assign a direction and the result is negative, it simply means the current flows in the opposite direction.
Example of Kirchhoff's Junction Rule in Action

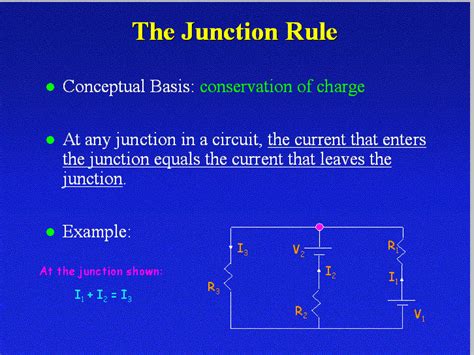

Let's consider a simple circuit with three branches meeting at a junction. The currents in the branches are labeled as I1, I2, and I3. Assume I1 and I2 are entering the junction, and I3 is leaving it.
According to Kirchhoff's Junction Rule:
| Current Entering | Current Leaving |
|---|---|
| I1 + I2 | I3 |
The equation representing Kirchhoff's Junction Rule for this junction is:
I1 + I2 = I3
If you know the values of I1 and I2, you can solve for I3. For example, if I1 is 2 amperes and I2 is 3 amperes, then I3 would be 5 amperes.
Advanced Applications of Kirchhoff's Junction Rule
While Kirchhoff's Junction Rule is straightforward in simple circuits, it becomes more complex in larger, more intricate circuits. However, the principle remains the same. Here are some advanced applications:
- Multi-Junction Circuits: In circuits with multiple junctions, apply Kirchhoff's Junction Rule to each junction individually. This helps in analyzing the entire circuit step by step.
- Complex Networks: For complex networks with numerous branches and junctions, use Kirchhoff's Junction Rule in conjunction with other circuit analysis techniques, such as Kirchhoff's Voltage Law (KVL), to solve for unknown currents and voltages.
- Transient Analysis: In dynamic circuits where currents and voltages change over time, Kirchhoff's Junction Rule can be applied to transient analysis to understand how the circuit behaves during changes.
Common Mistakes to Avoid
When applying Kirchhoff's Junction Rule, it's essential to avoid common mistakes that can lead to incorrect results:
- Incorrect Current Directions: Ensure that you correctly assign the directions of currents entering and leaving the junction. Incorrect directions can lead to errors in your calculations.
- Ignoring Sign Conventions: Pay attention to the sign conventions for currents. Currents entering a junction are typically considered positive, while currents leaving are considered negative.
- Overlooking Parallel Branches: In circuits with parallel branches, make sure to account for all branches when applying Kirchhoff's Junction Rule. Overlooking a branch can result in incorrect calculations.
💡 Note: Double-check your current directions and sign conventions to ensure accurate results.
Practical Tips for Using Kirchhoff's Junction Rule
Here are some practical tips to help you effectively use Kirchhoff's Junction Rule:
- Draw Clear Diagrams: Use clear and accurate circuit diagrams to visualize the junctions and current directions. This helps in applying the rule correctly.
- Label Currents: Label all currents in the circuit with appropriate symbols (e.g., I1, I2, I3) to keep track of them easily.
- Use Symmetry: In symmetrical circuits, take advantage of symmetry to simplify the application of Kirchhoff's Junction Rule.
- Practice Regularly: Regular practice with different types of circuits will enhance your understanding and application of Kirchhoff's Junction Rule.
By following these tips, you can become proficient in using Kirchhoff's Junction Rule to analyze and design electrical circuits effectively.
Conclusion
Kirchhoff’s Junction Rule is a cornerstone of electrical circuit analysis, providing a straightforward method to understand the flow of current at junctions. By mastering this rule, you can analyze complex circuits, design efficient electrical systems, and troubleshoot problems effectively. Whether you are a student, engineer, or hobbyist, understanding and applying Kirchhoff’s Junction Rule is essential for success in the field of electronics and electrical engineering.
