Jumper Cables Connection Order

Jump starting a car is a common task that many drivers will encounter at some point. Whether you've left your lights on overnight or your battery has simply reached the end of its lifespan, knowing how to properly use jumper cables can save you time and hassle. One of the most crucial aspects of jump-starting a car is understanding the correct Jumper Cables Connection Order. This guide will walk you through the process step-by-step, ensuring you can safely and effectively jump-start your vehicle.

Table of Contents

Understanding Jumper Cables

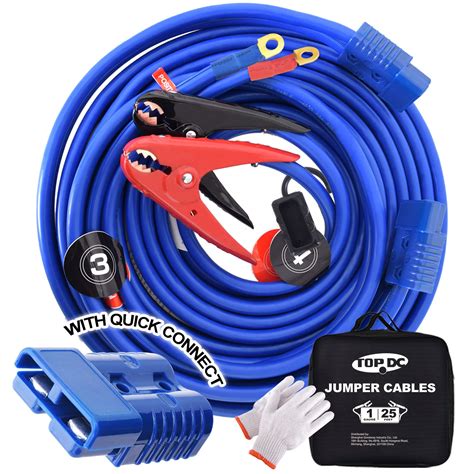

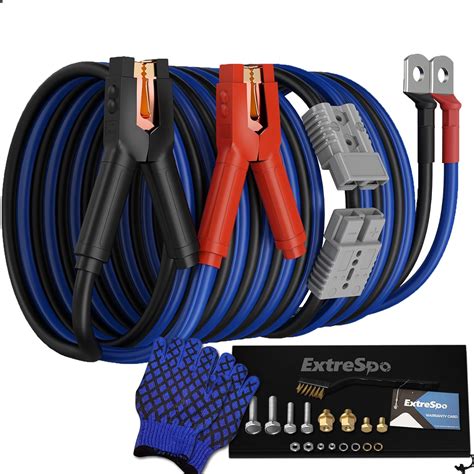

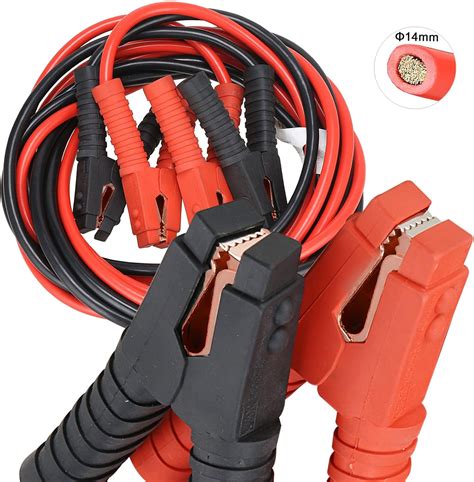

Before diving into the Jumper Cables Connection Order, it’s essential to understand what jumper cables are and how they work. Jumper cables are a set of two insulated wires with clamps at each end. These cables are used to connect the dead battery of one vehicle to the live battery of another, allowing the live battery to provide the necessary power to start the dead vehicle.

Safety First

Safety should always be your top priority when handling jumper cables. Here are some key safety tips to keep in mind:

Ensure both vehicles are turned off before connecting the jumper cables.
Wear protective gloves and eyewear to avoid any potential hazards.
Make sure the vehicles are not touching each other to prevent any electrical shorts.
Never lean over the battery while connecting or disconnecting the cables.

The Correct Jumper Cables Connection Order

Following the correct Jumper Cables Connection Order is crucial to avoid damaging your vehicle’s electrical system. Here is the step-by-step process:

Step 1: Position the Vehicles

Park the vehicle with the good battery close to the vehicle with the dead battery. Ensure that the vehicles are not touching and that both are in park or neutral with the parking brakes engaged.

Step 2: Identify the Battery Terminals

Locate the battery terminals on both vehicles. The positive terminal is usually marked with a “+” sign and is often red. The negative terminal is marked with a “-” sign and is usually black.

Step 3: Connect the Positive Clamp

Attach one end of the red jumper cable to the positive terminal of the dead battery. Ensure the clamp is securely fastened.

Step 4: Connect the Other Positive Clamp

Attach the other end of the red jumper cable to the positive terminal of the good battery. Again, make sure the clamp is securely fastened.

Step 5: Connect the Negative Clamp

Attach one end of the black jumper cable to the negative terminal of the good battery. Ensure the clamp is securely fastened.

Step 6: Ground the Other Negative Clamp

Attach the other end of the black jumper cable to an unpainted metal surface on the vehicle with the dead battery. This is often a bolt or bracket on the engine block. This step is crucial as it helps to ground the connection and prevent sparks near the battery.

🔧 Note: Never connect the negative clamp to the negative terminal of the dead battery, as this can cause a spark and potentially damage the battery or the vehicle's electrical system.

Starting the Vehicles

Once the jumper cables are correctly connected, follow these steps to start the vehicles:

Step 1: Start the Vehicle with the Good Battery

Start the vehicle with the good battery and let it run for a few minutes. This allows the good battery to charge the dead battery.

Step 2: Attempt to Start the Vehicle with the Dead Battery

Try to start the vehicle with the dead battery. If it starts, let it run for a few minutes to allow the alternator to charge the battery.

Step 3: Remove the Jumper Cables

Once the vehicle with the dead battery is running, carefully remove the jumper cables in the reverse order of connection:

Remove the black clamp from the unpainted metal surface on the vehicle with the dead battery.
Remove the black clamp from the negative terminal of the good battery.
Remove the red clamp from the positive terminal of the good battery.
Remove the red clamp from the positive terminal of the dead battery.

🔧 Note: Ensure that the clamps do not touch each other or any metal parts of the vehicles while removing them.

Troubleshooting Common Issues

If the vehicle with the dead battery does not start, there may be other issues at play. Here are some common troubleshooting steps:

Check the Battery Connections

Ensure that all battery connections are clean and tight. Corrosion or loose connections can prevent the battery from charging properly.

Inspect the Battery

Check the battery for any signs of damage or leaks. If the battery is old or damaged, it may need to be replaced.

Test the Alternator

If the vehicle starts but dies shortly after, the alternator may not be functioning correctly. Have the alternator tested by a professional.

Maintaining Your Battery

Regular maintenance can help extend the life of your battery and prevent unexpected failures. Here are some tips for maintaining your battery:

Keep the Battery Clean

Regularly clean the battery terminals to remove any corrosion. Use a mixture of baking soda and water to clean the terminals, then rinse with water and dry thoroughly.

Check the Battery Fluid Level

If your battery has removable caps, check the fluid level regularly. Add distilled water if necessary to keep the fluid level above the plates.

Avoid Short Trips

Short trips can prevent the battery from fully charging. Try to take longer trips occasionally to allow the alternator to fully charge the battery.

Turn Off Accessories

When the engine is not running, turn off all accessories to prevent draining the battery. This includes lights, radio, and other electrical components.

Conclusion

Understanding the correct Jumper Cables Connection Order is essential for safely and effectively jump-starting your vehicle. By following the steps outlined in this guide, you can ensure that your vehicle starts without damaging the electrical system. Regular maintenance and troubleshooting can also help prevent battery issues and extend the life of your battery. Always prioritize safety when handling jumper cables and batteries, and seek professional help if you encounter any issues beyond your expertise.
