Is Graphite Conductive

Graphite is a fascinating material with a wide range of applications, from pencils to advanced technologies. One of the most intriguing questions about graphite is whether it is conductive. This question is not only relevant for educational purposes but also for practical applications in various industries. Understanding the conductivity of graphite can help in making informed decisions about its use in electronics, batteries, and other technological advancements.

Table of Contents

What is Graphite?

Graphite is an allotrope of carbon, meaning it is one of the several forms in which carbon can exist. It is composed of layers of carbon atoms arranged in a hexagonal lattice. These layers are held together by weak van der Waals forces, which allow them to slide over each other easily. This unique structure gives graphite its distinctive properties, including its conductivity.

Is Graphite Conductive?

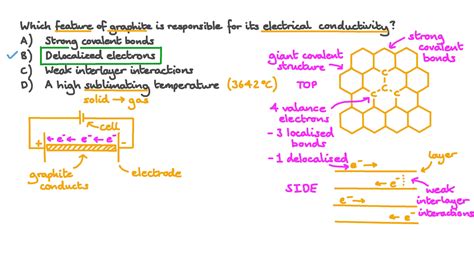

Yes, graphite is conductive. The conductivity of graphite is primarily due to its unique structure. Each layer of graphite consists of carbon atoms arranged in a hexagonal pattern, and within each layer, the carbon atoms are tightly bonded. These strong covalent bonds allow electrons to move freely within the layers, making graphite a good conductor of electricity. However, the conductivity is anisotropic, meaning it varies depending on the direction. Graphite conducts electricity well along the layers but poorly perpendicular to them.

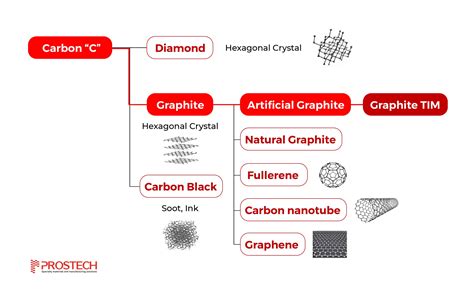

Types of Graphite

Graphite comes in several forms, each with its own properties and applications. The main types of graphite include:

Natural Graphite: Found in nature, natural graphite is mined from the earth and is used in various applications, including pencils and batteries.
Synthetic Graphite: Produced through chemical processes, synthetic graphite is often used in high-performance applications such as nuclear reactors and lithium-ion batteries.
Graphene: A single layer of graphite, graphene is the thinnest and strongest material known to man. It has exceptional electrical conductivity and is used in advanced electronics and materials science.

Applications of Graphite

Graphite’s conductivity and other unique properties make it valuable in a wide range of applications. Some of the most notable uses include:

Electronics: Graphite is used in the production of electrodes, which are essential components in batteries and other electronic devices.
Batteries: Graphite is a key material in lithium-ion batteries, where it serves as the anode material. Its conductivity and stability make it ideal for this application.
Nuclear Reactors: Graphite is used as a neutron moderator in nuclear reactors due to its ability to slow down neutrons without absorbing them.
Pencils: One of the most familiar uses of graphite is in pencils, where it provides the dark, smudge-resistant lines that artists and writers rely on.
Lubricants: Graphite’s layered structure makes it an effective lubricant, reducing friction in mechanical systems.

Graphite vs. Diamond: Conductivity Comparison

Both graphite and diamond are allotropes of carbon, but they have vastly different properties. One of the most striking differences is their conductivity. While graphite is conductive due to its layered structure, diamond is an insulator. This is because diamond has a tetrahedral structure where each carbon atom is bonded to four other carbon atoms, forming a three-dimensional network. This structure does not allow for the free movement of electrons, making diamond a poor conductor of electricity.

Factors Affecting Graphite’s Conductivity

Several factors can influence the conductivity of graphite. Understanding these factors is crucial for optimizing its use in various applications.

Purity: The presence of impurities can significantly affect graphite’s conductivity. High-purity graphite generally has better conductivity.
Temperature: The conductivity of graphite can change with temperature. As the temperature increases, the conductivity of graphite tends to decrease.
Pressure: Applying pressure to graphite can alter its structure and, consequently, its conductivity. High pressure can cause the layers to realign, affecting electron movement.
Orientation: Due to its anisotropic nature, the conductivity of graphite varies depending on the direction of electron flow. Conductivity is highest along the layers and lowest perpendicular to them.

Measuring Graphite’s Conductivity

Measuring the conductivity of graphite involves several methods, each with its own advantages and limitations. Some common techniques include:

Four-Probe Method: This method involves placing four probes on the graphite sample and measuring the voltage drop across two of the probes while passing a current through the other two. This technique provides accurate measurements of conductivity.
Van der Pauw Method: This method is used for measuring the resistivity of thin films and can be adapted for graphite samples. It involves passing a current through the sample and measuring the voltage drop at different points.
Hall Effect Measurement: This technique measures the Hall voltage generated when a magnetic field is applied perpendicular to the current flow. It provides information about the carrier concentration and mobility in graphite.

📝 Note: When measuring the conductivity of graphite, it is important to consider the sample's orientation and purity to obtain accurate results.

Graphite in Batteries

One of the most significant applications of graphite is in batteries, particularly lithium-ion batteries. Graphite serves as the anode material in these batteries, providing a stable and conductive surface for lithium ions to intercalate and de-intercalate during charging and discharging cycles. The conductivity of graphite is crucial for the efficient operation of these batteries, as it allows for the smooth flow of electrons.

Graphite in Electronics

Graphite’s conductivity makes it an ideal material for various electronic components. It is used in the production of electrodes, which are essential for the functioning of capacitors, batteries, and other electronic devices. Graphite electrodes are valued for their stability, conductivity, and resistance to corrosion.

Graphite in Nuclear Reactors

In nuclear reactors, graphite is used as a neutron moderator. Its ability to slow down neutrons without absorbing them makes it an effective material for controlling the nuclear reaction. Graphite’s conductivity also plays a role in dissipating heat generated during the reaction, ensuring the safe and efficient operation of the reactor.

Graphite in Lubricants

Graphite’s layered structure makes it an excellent lubricant. The layers can slide over each other easily, reducing friction in mechanical systems. This property is particularly useful in high-temperature and high-pressure environments where traditional lubricants may fail. Graphite lubricants are used in various industries, including automotive, aerospace, and manufacturing.

Graphite in Pencils

One of the most familiar uses of graphite is in pencils. Graphite provides the dark, smudge-resistant lines that artists and writers rely on. The conductivity of graphite is not a primary factor in this application, but it does contribute to the material’s overall properties, making it suitable for writing and drawing.

Future of Graphite

The future of graphite looks promising, with ongoing research and development exploring new applications and improving existing ones. As technology advances, the demand for high-performance materials like graphite is expected to grow. Innovations in graphite production and processing techniques will likely lead to even more efficient and effective uses of this versatile material.

Graphite’s conductivity is a key factor in its wide range of applications, from electronics and batteries to nuclear reactors and lubricants. Understanding the properties and behavior of graphite is essential for optimizing its use in these and other industries. As research continues, the potential for graphite to revolutionize various fields remains vast and exciting.
