Glass is a ubiquitous material in our daily lives, used in everything from windows and mirrors to smartphone screens and laboratory equipment. One of the most common questions about glass is whether it is conductive. The answer to this question is not straightforward, as it depends on the type of glass and its specific properties. This blog post will delve into the conductivity of glass, exploring different types of glass and their conductive properties, as well as the factors that influence conductivity.
Understanding Conductivity
Before diving into the specifics of glass, it’s essential to understand what conductivity means. Conductivity refers to the ability of a material to conduct electricity. Materials can be classified into three main categories based on their conductivity:
- Conductors: Materials that allow electricity to flow easily, such as metals like copper and aluminum.
- Insulators: Materials that do not allow electricity to flow, such as rubber and glass.
- Semiconductors: Materials that have conductivity between conductors and insulators, such as silicon and germanium.
Is Glass Conductive?
In its pure form, glass is generally considered an insulator. This means that it does not conduct electricity well. However, the conductivity of glass can be influenced by various factors, including its composition and the presence of impurities. For example, glass that contains certain metals or other conductive materials may exhibit different conductive properties.
Types of Glass and Their Conductive Properties
There are several types of glass, each with unique properties that can affect its conductivity. Some of the most common types include:
Soda-Lime Glass
Soda-lime glass is the most common type of glass, used in windows, bottles, and jars. It is primarily composed of silica (SiO2), sodium oxide (Na2O), and calcium oxide (CaO). This type of glass is an excellent insulator and does not conduct electricity well. Its conductivity is typically very low, making it suitable for applications where electrical insulation is required.
Borosilicate Glass
Borosilicate glass, also known as Pyrex, is a type of glass that contains boron trioxide (B2O3) in addition to silica. This glass is known for its high resistance to thermal shock and chemical corrosion. Like soda-lime glass, borosilicate glass is also an insulator and does not conduct electricity well. Its conductivity is similarly low, making it ideal for laboratory equipment and cookware.
Lead Glass
Lead glass, also known as crystal glass, contains lead oxide (PbO) in addition to silica. This type of glass is known for its high refractive index, which gives it a sparkling appearance. Lead glass is also an insulator, but its conductivity can be slightly higher than that of soda-lime or borosilicate glass due to the presence of lead. However, it is still not considered a conductive material.
Conductive Glass

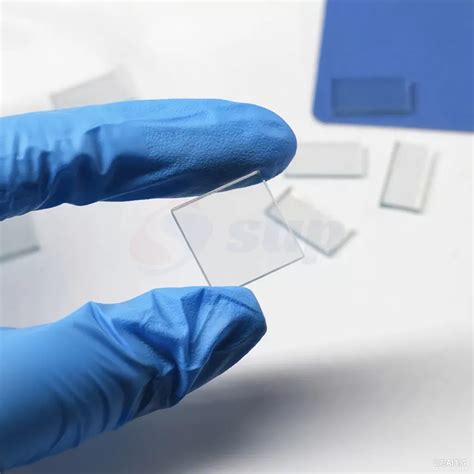

Conductive glass is a specialized type of glass that has been designed to conduct electricity. This type of glass is typically made by coating a thin layer of a conductive material, such as indium tin oxide (ITO) or fluorine-doped tin oxide (FTO), onto a glass substrate. Conductive glass is used in applications such as touchscreens, solar cells, and electrochromic windows. The conductivity of conductive glass can be tailored to meet specific requirements by adjusting the thickness and composition of the conductive coating.
Factors Affecting the Conductivity of Glass
Several factors can influence the conductivity of glass, including its composition, temperature, and the presence of impurities. Understanding these factors can help in designing glass materials with specific conductive properties.
Composition
The composition of glass plays a crucial role in determining its conductivity. As mentioned earlier, the addition of certain metals or other conductive materials can enhance the conductivity of glass. For example, the presence of lead in lead glass can slightly increase its conductivity compared to other types of glass.
Temperature
Temperature can also affect the conductivity of glass. In general, the conductivity of glass increases with temperature. This is because higher temperatures provide more energy to the electrons, allowing them to move more freely through the material. However, the increase in conductivity with temperature is typically small for most types of glass.
Impurities
The presence of impurities can significantly affect the conductivity of glass. Impurities can introduce additional charge carriers into the material, increasing its conductivity. For example, the addition of sodium ions in soda-lime glass can enhance its conductivity compared to pure silica glass.
Applications of Conductive Glass
Conductive glass has a wide range of applications in various industries. Some of the most common applications include:
Touchscreens
Conductive glass is widely used in touchscreens for smartphones, tablets, and other electronic devices. The conductive coating on the glass allows it to detect touch inputs, enabling users to interact with the device.
Solar Cells
Conductive glass is used in solar cells to collect and transmit electrical energy generated by the photovoltaic effect. The conductive coating on the glass allows it to conduct electricity efficiently, improving the overall performance of the solar cell.
Electrochromic Windows
Electrochromic windows use conductive glass to change their tint in response to an electrical signal. This allows the windows to control the amount of light and heat entering a building, improving energy efficiency and comfort.
Heated Windows
Conductive glass is used in heated windows to prevent fogging and ice buildup. The conductive coating on the glass generates heat when an electrical current is applied, keeping the window clear and safe.
Testing the Conductivity of Glass
To determine whether a particular type of glass is conductive, it is necessary to conduct a conductivity test. There are several methods for testing the conductivity of glass, including:
Four-Point Probe Method
The four-point probe method is a common technique for measuring the conductivity of materials. This method involves placing four probes in a straight line on the surface of the glass and passing a current through the outer two probes while measuring the voltage drop across the inner two probes. The conductivity of the glass can be calculated using Ohm’s law.
Impedance Spectroscopy
Impedance spectroscopy is another method for measuring the conductivity of materials. This technique involves applying an alternating current (AC) to the glass and measuring the resulting voltage and phase shift. The conductivity of the glass can be determined from the impedance data.
Hall Effect Measurement
The Hall effect measurement is a technique for determining the conductivity and carrier concentration of materials. This method involves applying a magnetic field to the glass and measuring the resulting Hall voltage. The conductivity of the glass can be calculated from the Hall voltage data.
💡 Note: When conducting conductivity tests, it is important to ensure that the glass sample is clean and free of contaminants, as impurities can affect the accuracy of the measurements.
Conductive Glass vs. Conductive Coatings
It is essential to distinguish between conductive glass and conductive coatings. Conductive glass refers to glass that has been designed to conduct electricity, typically by incorporating conductive materials into the glass matrix. In contrast, conductive coatings refer to thin layers of conductive materials applied to the surface of glass. Conductive coatings are more common in practical applications due to their ease of fabrication and versatility.
Future Trends in Conductive Glass
The field of conductive glass is continually evolving, with new materials and technologies being developed to enhance its properties and expand its applications. Some of the future trends in conductive glass include:
Transparent Conductive Oxides
Transparent conductive oxides (TCOs) are materials that combine high electrical conductivity with optical transparency. Examples of TCOs include indium tin oxide (ITO) and fluorine-doped tin oxide (FTO). Research is ongoing to develop new TCOs with improved properties, such as higher conductivity and better stability.
Graphene-Based Conductive Glass
Graphene is a two-dimensional material with exceptional electrical, mechanical, and thermal properties. Graphene-based conductive glass is being developed as an alternative to traditional conductive coatings. Graphene’s high conductivity and transparency make it an attractive material for applications such as touchscreens and solar cells.
Flexible Conductive Glass
Flexible conductive glass is a type of conductive glass that can bend and conform to different shapes. This type of glass is being developed for applications in flexible electronics, wearable devices, and curved displays. Flexible conductive glass typically consists of a thin, flexible substrate coated with a conductive material.
Conclusion
In summary, the conductivity of glass is a complex topic that depends on various factors, including its composition, temperature, and the presence of impurities. While pure glass is generally an insulator, specialized types of glass, such as conductive glass, can be designed to conduct electricity. Conductive glass has a wide range of applications, from touchscreens and solar cells to electrochromic windows and heated windows. Understanding the properties and applications of conductive glass is essential for developing new technologies and improving existing ones. As research continues, we can expect to see further advancements in conductive glass, leading to new and innovative applications in various industries.
