Iron Carbon Phase Diagram

The study of materials science and metallurgy often revolves around understanding the behavior of different elements and their alloys under various conditions. One of the most fundamental tools in this field is the Iron Carbon Phase Diagram. This diagram is a graphical representation that illustrates the phases of iron-carbon alloys at different temperatures and carbon concentrations. It is essential for understanding the heat treatment processes and the resulting microstructures of steel and cast iron.

Table of Contents

The Basics of the Iron Carbon Phase Diagram

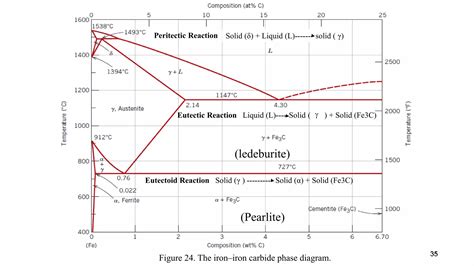

The Iron Carbon Phase Diagram is a phase diagram that shows the phases of iron-carbon alloys at different temperatures and carbon concentrations. It is a crucial tool for metallurgists and materials scientists as it helps in understanding the transformations that occur during the heating and cooling of steel and cast iron. The diagram typically covers a range of carbon concentrations from pure iron (0% carbon) to about 6.67% carbon, which is the eutectic composition for the iron-carbon system.

The diagram is divided into several regions, each representing a different phase or combination of phases. The primary phases in the iron-carbon system are:

Ferrite (α-Fe): A body-centered cubic (BCC) structure of iron with a low solubility of carbon (up to 0.022% at 727°C).
Austenite (γ-Fe): A face-centered cubic (FCC) structure of iron with a higher solubility of carbon (up to 2.11% at 1148°C).
Cementite (Fe3C): An intermetallic compound of iron and carbon with an orthorhombic crystal structure.
Pearlite: A lamellar structure consisting of alternating layers of ferrite and cementite.
Martensite: A metastable phase formed by the rapid cooling of austenite, resulting in a body-centered tetragonal (BCT) structure.

Key Features of the Iron Carbon Phase Diagram

The Iron Carbon Phase Diagram includes several key features that are essential for understanding the phase transformations in iron-carbon alloys. These features include:

Eutectoid Reaction: This occurs at 727°C and 0.77% carbon, where austenite decomposes into pearlite (a mixture of ferrite and cementite).
Eutectic Reaction: This occurs at 1148°C and 4.3% carbon, where liquid iron-carbon alloy decomposes into austenite and cementite.
Peritectic Reaction: This occurs at 1495°C and 0.16% carbon, where delta ferrite (a high-temperature BCC phase) reacts with liquid to form austenite.
Critical Temperatures: These are the temperatures at which phase transformations occur, such as the A1, A2, A3, and A4 temperatures.

The Iron Carbon Phase Diagram is divided into several regions, each representing a different phase or combination of phases. The primary phases in the iron-carbon system are:

Phase	Structure	Carbon Solubility
Ferrite (α-Fe)	Body-centered cubic (BCC)	Up to 0.022% at 727°C
Austenite (γ-Fe)	Face-centered cubic (FCC)	Up to 2.11% at 1148°C
Cementite (Fe3C)	Orthorhombic	6.67% carbon
Pearlite	Lamellar structure	0.77% carbon
Martensite	Body-centered tetragonal (BCT)	Up to 2.11% carbon

Applications of the Iron Carbon Phase Diagram

The Iron Carbon Phase Diagram is widely used in various applications, including:

Heat Treatment: Understanding the phase transformations that occur during heating and cooling allows metallurgists to design heat treatment processes that achieve desired mechanical properties.
Alloy Design: The diagram helps in designing new alloys with specific properties by controlling the carbon content and heat treatment processes.
Failure Analysis: By analyzing the microstructure of failed components, engineers can use the Iron Carbon Phase Diagram to determine the cause of failure and design improvements.
Quality Control: The diagram is used to ensure that the heat treatment processes are performed correctly and that the resulting microstructures meet the required specifications.

One of the most important applications of the Iron Carbon Phase Diagram is in the heat treatment of steel. By controlling the heating and cooling rates, metallurgists can achieve different microstructures and mechanical properties. For example, rapid cooling (quenching) of austenite can produce martensite, which is a hard and brittle phase. Slow cooling, on the other hand, can produce pearlite, which is a softer and more ductile phase.

Another important application is in the design of new alloys. By understanding the phase transformations that occur at different carbon concentrations and temperatures, metallurgists can design alloys with specific properties. For example, by adding alloying elements such as chromium, nickel, or molybdenum, the phase diagram can be modified to achieve desired properties.

In failure analysis, the Iron Carbon Phase Diagram is used to determine the cause of failure in steel components. By analyzing the microstructure of the failed component, engineers can use the diagram to identify the phases present and the conditions under which they formed. This information can then be used to design improvements and prevent future failures.

Finally, the Iron Carbon Phase Diagram is used in quality control to ensure that the heat treatment processes are performed correctly and that the resulting microstructures meet the required specifications. By monitoring the temperature and cooling rates during heat treatment, metallurgists can ensure that the desired phases are formed and that the mechanical properties are achieved.

📝 Note: The Iron Carbon Phase Diagram is a powerful tool for understanding the behavior of iron-carbon alloys, but it is important to remember that it is a simplified representation of a complex system. Real-world alloys may contain additional elements and impurities that can affect the phase transformations and mechanical properties.

Interpreting the Iron Carbon Phase Diagram

Interpreting the Iron Carbon Phase Diagram involves understanding the different regions and lines on the diagram. The diagram is divided into several regions, each representing a different phase or combination of phases. The lines on the diagram represent the boundaries between these regions and indicate the temperatures at which phase transformations occur.

The Iron Carbon Phase Diagram is divided into several regions, each representing a different phase or combination of phases. The primary phases in the iron-carbon system are:

Ferrite (α-Fe): A body-centered cubic (BCC) structure of iron with a low solubility of carbon (up to 0.022% at 727°C).
Austenite (γ-Fe): A face-centered cubic (FCC) structure of iron with a higher solubility of carbon (up to 2.11% at 1148°C).
Cementite (Fe3C): An intermetallic compound of iron and carbon with an orthorhombic crystal structure.
Pearlite: A lamellar structure consisting of alternating layers of ferrite and cementite.
Martensite: A metastable phase formed by the rapid cooling of austenite, resulting in a body-centered tetragonal (BCT) structure.

The lines on the diagram represent the boundaries between these regions and indicate the temperatures at which phase transformations occur. For example, the A1 line represents the boundary between austenite and pearlite, and the A3 line represents the boundary between austenite and ferrite. The A4 line represents the boundary between delta ferrite and austenite.

The Iron Carbon Phase Diagram also includes several key features that are essential for understanding the phase transformations in iron-carbon alloys. These features include:

Eutectoid Reaction: This occurs at 727°C and 0.77% carbon, where austenite decomposes into pearlite (a mixture of ferrite and cementite).
Eutectic Reaction: This occurs at 1148°C and 4.3% carbon, where liquid iron-carbon alloy decomposes into austenite and cementite.
Peritectic Reaction: This occurs at 1495°C and 0.16% carbon, where delta ferrite (a high-temperature BCC phase) reacts with liquid to form austenite.
Critical Temperatures: These are the temperatures at which phase transformations occur, such as the A1, A2, A3, and A4 temperatures.

By understanding these features and the different regions on the diagram, metallurgists can interpret the Iron Carbon Phase Diagram to design heat treatment processes and achieve desired mechanical properties.

Heat Treatment Processes

Heat treatment processes are used to alter the microstructure and mechanical properties of steel and cast iron. The Iron Carbon Phase Diagram is a crucial tool for designing these processes, as it helps metallurgists understand the phase transformations that occur during heating and cooling. Some of the most common heat treatment processes include:

Annealing: This process involves heating the alloy to a high temperature and then slowly cooling it to room temperature. The goal is to soften the material and relieve internal stresses. Annealing can produce a variety of microstructures, depending on the cooling rate and the carbon content of the alloy.
Normalizing: This process involves heating the alloy to a high temperature and then cooling it in still air. The goal is to refine the grain structure and improve the mechanical properties. Normalizing typically produces a pearlitic microstructure.
Quenching: This process involves heating the alloy to a high temperature and then rapidly cooling it in a quenching medium, such as water or oil. The goal is to produce a hard and brittle microstructure, such as martensite. Quenching can be followed by tempering to improve the toughness of the material.
Tempering: This process involves heating the quenched alloy to a temperature below the eutectoid temperature and then cooling it to room temperature. The goal is to improve the toughness of the material by transforming some of the martensite into tempered martensite or bainite.

By understanding the Iron Carbon Phase Diagram, metallurgists can design heat treatment processes that achieve desired mechanical properties. For example, by controlling the heating and cooling rates, metallurgists can produce a variety of microstructures, such as pearlite, bainite, or martensite. These microstructures can then be tailored to achieve specific mechanical properties, such as hardness, strength, or toughness.

In addition to designing heat treatment processes, the Iron Carbon Phase Diagram can also be used to troubleshoot problems that occur during heat treatment. For example, if a component fails to meet the required mechanical properties, metallurgists can use the diagram to identify the cause of the problem and make adjustments to the heat treatment process.

📝 Note: The Iron Carbon Phase Diagram is a powerful tool for designing heat treatment processes, but it is important to remember that real-world alloys may contain additional elements and impurities that can affect the phase transformations and mechanical properties. It is also important to consider the cooling rates and the size and shape of the component when designing heat treatment processes.

Microstructures and Mechanical Properties

The microstructure of an iron-carbon alloy is determined by its composition and heat treatment history. The Iron Carbon Phase Diagram helps metallurgists understand the relationship between microstructure and mechanical properties. Some of the most common microstructures in iron-carbon alloys include:

Ferrite: A soft and ductile phase with a body-centered cubic (BCC) structure. Ferrite has low strength but good ductility and toughness.
Austenite: A face-centered cubic (FCC) structure with high solubility for carbon. Austenite is stable at high temperatures and can be transformed into other phases during cooling.
Cementite: An intermetallic compound of iron and carbon with an orthorhombic crystal structure. Cementite is hard and brittle and is often found in combination with ferrite in pearlite.
Pearlite: A lamellar structure consisting of alternating layers of ferrite and cementite. Pearlite has good strength and ductility and is often found in normalized or annealed steels.
Martensite: A metastable phase formed by the rapid cooling of austenite. Martensite has a body-centered tetragonal (BCT) structure and is hard and brittle. It can be tempered to improve toughness.
Bainite: A microstructure that forms during the isothermal decomposition of austenite. Bainite has good strength and toughness and is often found in tempered steels.

The mechanical properties of an iron-carbon alloy are determined by its microstructure. For example, ferrite is soft and ductile, while martensite is hard and brittle. By controlling the microstructure through heat treatment, metallurgists can achieve desired mechanical properties. The Iron Carbon Phase Diagram is a crucial tool for understanding the relationship between microstructure and mechanical properties.

For example, by quenching austenite to form martensite, metallurgists can achieve high hardness and strength. However, martensite is also brittle, so it may be necessary to temper the material to improve toughness. By understanding the Iron Carbon Phase Diagram, metallurgists can design heat treatment processes that achieve a balance of strength, toughness, and ductility.

📝 Note: The Iron Carbon Phase Diagram is a powerful tool for understanding the relationship between microstructure and mechanical properties, but it is important to remember that real-world alloys may contain additional elements and impurities that can affect the phase transformations and mechanical properties. It is also important to consider the cooling rates and the size and shape of the component when designing heat treatment processes.

Advanced Topics in the Iron Carbon Phase Diagram

While the basic Iron Carbon Phase Diagram provides a foundation for understanding the phase transformations in iron-carbon alloys, there are several advanced topics that can further enhance our understanding. These topics include the effects of alloying elements, the kinetics of phase transformations, and the use of computational tools.

Alloying elements can significantly affect the phase transformations and mechanical properties of iron-carbon alloys. For example, elements such as chromium, nickel, and molybdenum can stabilize austenite, while elements such as silicon and manganese can stabilize ferrite. By understanding the effects of alloying elements, metallurgists can design alloys with specific properties.

The kinetics of phase transformations refers to the rate at which phase transformations occur. The Iron Carbon Phase Diagram provides information about the equilibrium phases, but it does not provide information about the kinetics of phase transformations. Understanding the kinetics of phase transformations is important for designing heat treatment processes that achieve desired mechanical properties.

Computational tools, such as thermodynamic databases and phase field simulations, can be used to model the phase transformations and mechanical properties of iron-carbon alloys. These tools can provide insights into the effects of alloying elements, the kinetics of phase transformations, and the microstructure of the alloy. By using computational tools, metallurgists can design alloys and heat treatment processes with greater precision and efficiency.

In addition to these advanced topics, there are several other factors that can affect the phase transformations and mechanical properties of iron-carbon alloys. These factors include the cooling rates, the size and shape of the component, and the presence of impurities. By understanding these factors, metallurgists can design alloys and heat treatment processes that achieve desired mechanical properties.

📝 Note: The Iron Carbon Phase Diagram is a powerful tool for understanding the phase transformations in iron-carbon alloys, but it is important to remember that real-world alloys may contain additional elements and impurities that can affect the phase transformations and mechanical properties. It is also important to consider the cooling rates and the size and shape of the component when designing heat treatment processes.

In conclusion, the Iron Carbon Phase Diagram is an essential tool for understanding the behavior of iron-carbon alloys. It provides a graphical representation of the phases that occur at different temperatures and carbon concentrations, and it helps metallurgists design heat treatment processes that achieve desired mechanical properties. By understanding the Iron Carbon Phase Diagram, metallurgists can design alloys with specific properties, troubleshoot problems that occur during heat treatment, and achieve a balance of strength, toughness, and ductility. The diagram is a fundamental tool in the field of materials science and metallurgy, and it continues to be an important resource for researchers and engineers alike.
