Iris Diaphragm Microscope Function

Microscopes have revolutionized the way we observe and understand the microscopic world. Among the various types of microscopes, the iris diaphragm microscope stands out due to its unique iris diaphragm microscope function. This function allows for precise control over the amount of light that reaches the specimen, enhancing the clarity and detail of the observed image. In this post, we will delve into the intricacies of the iris diaphragm microscope, its functions, and how it enhances the overall microscopy experience.

Table of Contents

Understanding the Iris Diaphragm Microscope

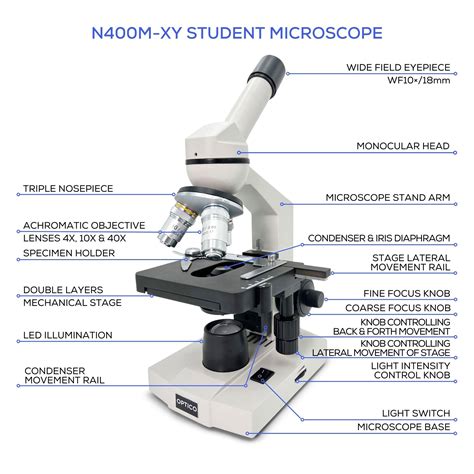

The iris diaphragm microscope is a type of optical microscope equipped with an iris diaphragm, a mechanical device that can adjust the size of the aperture through which light passes. This feature is crucial for controlling the illumination of the specimen, thereby improving the quality of the image. The iris diaphragm is typically located below the stage and above the light source, allowing users to fine-tune the light intensity and distribution.

The Importance of the Iris Diaphragm Microscope Function

The iris diaphragm microscope function is essential for several reasons:

Enhanced Contrast: By adjusting the iris diaphragm, users can control the contrast of the specimen. A smaller aperture increases contrast by reducing the amount of stray light, making fine details more visible.
Improved Resolution: Proper use of the iris diaphragm can enhance the resolution of the microscope, allowing for clearer and more detailed observations.
Reduced Glare: Adjusting the diaphragm can minimize glare, which can interfere with the clarity of the image.
Versatility: The iris diaphragm allows for flexibility in observing different types of specimens, from transparent to opaque, by adjusting the light intensity accordingly.

How the Iris Diaphragm Works

The iris diaphragm consists of several overlapping blades that can be adjusted to open or close the aperture. When the blades are fully open, the aperture is at its maximum size, allowing the most light to pass through. Conversely, when the blades are closed, the aperture is minimized, reducing the amount of light. This mechanism is controlled by a lever or knob, making it easy to adjust the light intensity during observation.

Here is a simple breakdown of how the iris diaphragm works:

Opening the Diaphragm: When the diaphragm is fully open, it allows maximum light to pass through, which is useful for observing specimens that require high illumination.
Closing the Diaphragm: When the diaphragm is partially or fully closed, it reduces the amount of light, which is beneficial for observing specimens that require lower illumination to enhance contrast and detail.

By understanding and utilizing this function, users can optimize their observations and achieve better results.

Steps to Adjust the Iris Diaphragm

Adjusting the iris diaphragm is a straightforward process. Here are the steps to follow:

Prepare the Specimen: Place the specimen on the stage and secure it with the stage clips.
Focus the Microscope: Use the coarse and fine adjustment knobs to focus the microscope on the specimen.
Adjust the Iris Diaphragm: Locate the iris diaphragm lever or knob, usually found near the base of the microscope. Adjust the diaphragm to control the amount of light passing through the specimen.
Observe the Specimen: Look through the eyepiece and observe the specimen. Adjust the diaphragm as needed to achieve the desired level of illumination and contrast.

🔍 Note: It is important to start with the diaphragm partially closed and gradually open it until the desired contrast and detail are achieved. This approach helps in avoiding excessive light, which can wash out the specimen.

Applications of the Iris Diaphragm Microscope

The iris diaphragm microscope is widely used in various fields, including biology, medicine, and materials science. Its ability to control light intensity makes it an invaluable tool for detailed observations. Some of the key applications include:

Biological Research: Scientists use iris diaphragm microscopes to study cellular structures, tissues, and microorganisms. The ability to adjust the light intensity helps in observing fine details and enhancing contrast.
Medical Diagnostics: In medical laboratories, iris diaphragm microscopes are used for diagnosing diseases by examining blood samples, tissue sections, and other biological specimens.
Materials Science: Researchers in materials science use these microscopes to study the microstructure of materials, such as metals, ceramics, and polymers. The iris diaphragm function helps in observing defects, grain boundaries, and other microstructural features.

Comparing Iris Diaphragm Microscopes with Other Types

While the iris diaphragm microscope offers unique advantages, it is essential to compare it with other types of microscopes to understand its strengths and limitations. Here is a comparison with some common types of microscopes:

Type of Microscope	Key Features	Advantages	Limitations
Iris Diaphragm Microscope	Adjustable iris diaphragm for light control	Enhanced contrast and resolution, versatility in observing different specimens	Requires manual adjustment, may not be suitable for very high magnification
Compound Microscope	Multiple lenses for high magnification	High magnification and resolution, suitable for detailed observations	Limited depth of field, requires careful focusing
Stereo Microscope	Two separate optical paths for 3D viewing	Provides depth perception, suitable for observing larger specimens	Lower magnification compared to compound microscopes, less suitable for detailed cellular observations
Phase Contrast Microscope	Uses phase contrast to enhance contrast	Excellent for observing transparent specimens, enhances contrast without staining	More complex and expensive, requires specialized training

Each type of microscope has its unique advantages and limitations, making them suitable for different applications. The choice of microscope depends on the specific requirements of the observation task.

Maintaining the Iris Diaphragm Microscope

Proper maintenance of the iris diaphragm microscope is crucial for ensuring its longevity and optimal performance. Here are some tips for maintaining the microscope:

Cleaning: Regularly clean the lenses and other optical components using a soft, lint-free cloth and appropriate cleaning solutions. Avoid using harsh chemicals that can damage the optics.
Storage: Store the microscope in a clean, dry place away from direct sunlight and extreme temperatures. Use a dust cover to protect it from dust and debris.
Handling: Handle the microscope with care, avoiding rough handling or dropping. Always use both hands when carrying the microscope to ensure stability.
Calibration: Periodically calibrate the microscope to ensure accurate measurements and observations. Follow the manufacturer's guidelines for calibration procedures.

🛠️ Note: Regular maintenance not only extends the lifespan of the microscope but also ensures that it performs optimally, providing clear and detailed observations.

In conclusion, the iris diaphragm microscope is a powerful tool that enhances the observation of microscopic specimens through its unique iris diaphragm microscope function. By controlling the amount of light that reaches the specimen, users can achieve better contrast, resolution, and overall image quality. Whether in biological research, medical diagnostics, or materials science, the iris diaphragm microscope plays a crucial role in advancing our understanding of the microscopic world. Its versatility and ease of use make it an essential instrument in various scientific and educational settings.
