Electrical systems are the backbone of modern infrastructure, powering everything from homes and offices to industrial facilities. Ensuring the safety and reliability of these systems is paramount, and one crucial aspect of this maintenance is the Insulation Resistance Test. This test is essential for identifying potential faults in electrical insulation, which can lead to short circuits, equipment damage, and even fires. Understanding the importance, methods, and best practices of the Insulation Resistance Test can help maintain the integrity of electrical systems and prevent costly downtime.
Understanding Insulation Resistance
Insulation resistance refers to the ability of an insulating material to resist the flow of electric current. In electrical systems, insulation is used to separate conductive parts and prevent short circuits. Over time, insulation can degrade due to factors such as heat, moisture, and mechanical stress, leading to a decrease in its resistance. The Insulation Resistance Test measures this resistance to ensure that it remains within acceptable limits.
Importance of Insulation Resistance Test
The Insulation Resistance Test is a critical component of preventive maintenance for electrical systems. Here are some key reasons why this test is important:
- Safety: Degraded insulation can lead to electrical faults, which can cause shocks, fires, and other hazards. Regular testing helps identify and address these issues before they become dangerous.
- Reliability: Electrical systems that are well-maintained are less likely to fail unexpectedly, ensuring continuous operation and minimizing downtime.
- Cost Savings: Preventive maintenance, including the Insulation Resistance Test, can help avoid costly repairs and replacements by identifying issues early.
- Compliance: Many industries have regulations and standards that require regular testing of electrical insulation to ensure safety and compliance.
How to Perform an Insulation Resistance Test
Performing an Insulation Resistance Test involves several steps. Here is a detailed guide to help you understand the process:
Preparation
Before conducting the test, ensure that the following preparations are made:
- Turn off the power to the electrical system being tested.
- Use appropriate personal protective equipment (PPE), including insulated gloves and safety glasses.
- Ensure that the test equipment is calibrated and in good working condition.
Equipment Needed
The primary equipment required for an Insulation Resistance Test includes:

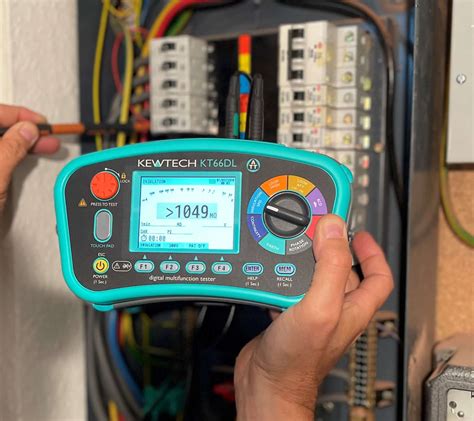

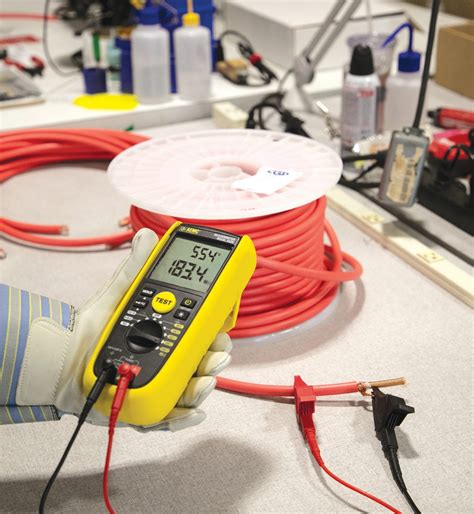

- Insulation resistance tester (megger)
- Test leads and probes
- Safety equipment (gloves, glasses, etc.)
Testing Procedure
The testing procedure typically involves the following steps:

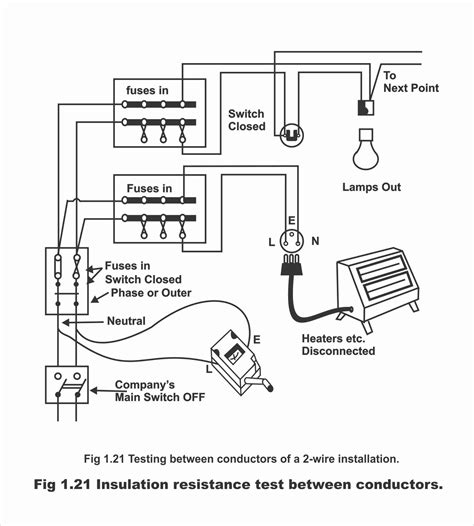

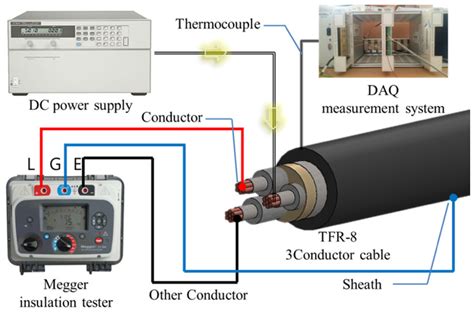

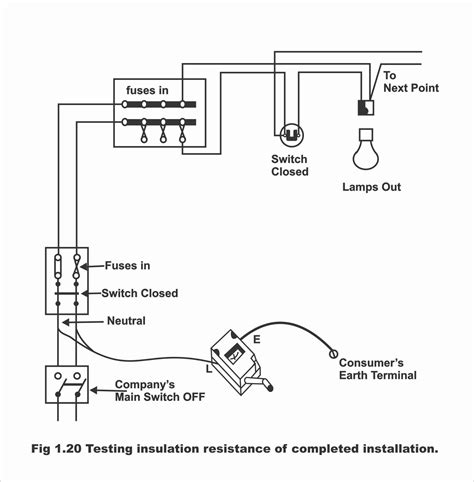

- Connect the Test Leads: Connect one test lead to the live conductor and the other to the ground or neutral conductor.
- Set the Test Voltage: Select the appropriate test voltage based on the system's voltage rating. Common test voltages include 500V, 1000V, and 2500V.
- Apply the Test Voltage: Apply the test voltage to the insulation and measure the resistance.
- Record the Results: Note the resistance value and compare it to the acceptable limits specified by the manufacturer or industry standards.
- Repeat the Test: If necessary, repeat the test on different parts of the system to ensure comprehensive coverage.
π Note: Always follow the manufacturer's instructions for the specific insulation resistance tester being used. Different models may have slight variations in the testing procedure.
Interpreting Insulation Resistance Test Results
Interpreting the results of an Insulation Resistance Test involves comparing the measured resistance to the acceptable limits. Here are some guidelines for interpreting the results:
- Acceptable Resistance: If the measured resistance is within the acceptable range, the insulation is considered to be in good condition.
- Low Resistance: If the measured resistance is below the acceptable limit, it indicates that the insulation may be degraded and needs to be inspected further.
- High Resistance: If the measured resistance is significantly higher than expected, it may indicate a problem with the test equipment or the testing procedure.
Here is a table that outlines the typical acceptable resistance values for different voltage levels:
| Voltage Level | Acceptable Resistance (MΞ©) |
|---|---|
| 240V | 1 |
| 415V | 1 |
| 690V | 2 |
| 11kV | 100 |
| 33kV | 1000 |
π Note: These values are general guidelines and may vary based on specific equipment and industry standards. Always refer to the manufacturer's specifications for accurate limits.
Common Issues and Troubleshooting
During an Insulation Resistance Test, several issues may arise. Here are some common problems and troubleshooting tips:
- Low Resistance Readings: If the resistance reading is lower than expected, check for moisture, contamination, or physical damage to the insulation.
- High Resistance Readings: If the resistance reading is higher than expected, verify the test equipment and connections. Ensure that the test leads are properly connected and that the test voltage is correct.
- Fluctuating Readings: If the resistance readings are fluctuating, it may indicate a problem with the test equipment or environmental factors such as temperature or humidity.
β οΈ Note: Always ensure that the test equipment is calibrated and in good working condition before performing the test. Regular calibration helps maintain the accuracy of the results.
Best Practices for Insulation Resistance Testing
To ensure accurate and reliable results from an Insulation Resistance Test, follow these best practices:
- Regular Testing: Conduct regular Insulation Resistance Tests as part of a preventive maintenance program. The frequency of testing should be based on the equipment's age, usage, and environmental conditions.
- Proper Equipment: Use high-quality, calibrated test equipment to ensure accurate measurements.
- Safety Precautions: Always follow safety protocols, including the use of PPE and proper grounding techniques.
- Documentation: Keep detailed records of test results, including dates, equipment tested, and any issues identified. This documentation is essential for tracking the condition of the insulation over time.
By adhering to these best practices, you can ensure that your electrical systems remain safe and reliable, minimizing the risk of failures and downtime.
In conclusion, the Insulation Resistance Test is a vital component of electrical system maintenance. It helps identify potential faults in insulation, ensuring the safety and reliability of electrical systems. By understanding the importance, methods, and best practices of the Insulation Resistance Test, you can maintain the integrity of your electrical infrastructure and prevent costly downtime. Regular testing, proper equipment, and adherence to safety protocols are key to successful insulation resistance testing. Keeping detailed records and interpreting results accurately will help you make informed decisions about the maintenance and repair of your electrical systems.
