Insulation R Rating Chart

Understanding the importance of insulation in building construction and home improvement is crucial for maintaining energy efficiency and comfort. One of the key metrics used to evaluate the effectiveness of insulation is the R-value. The Insulation R Rating Chart is a valuable tool that helps homeowners, builders, and contractors make informed decisions about the type and amount of insulation needed for different parts of a building. This guide will delve into the details of the Insulation R Rating Chart, explaining what R-values are, how to interpret them, and how to use this information to enhance the thermal performance of your home.

Table of Contents

What is an R-Value?

The R-value is a measure of thermal resistance, indicating how well a material can resist heat flow. The higher the R-value, the better the insulation’s ability to prevent heat transfer. This is particularly important in both hot and cold climates, as it helps maintain indoor temperatures and reduces the need for heating and cooling, thereby saving energy and lowering utility bills.

Understanding the Insulation R Rating Chart

The Insulation R Rating Chart provides a comprehensive overview of the R-values for various types of insulation materials. This chart is essential for determining the appropriate insulation for different parts of a building, such as walls, attics, floors, and ceilings. By referring to the Insulation R Rating Chart, you can ensure that your insulation meets the recommended standards for your specific climate and building type.

Types of Insulation and Their R-Values

There are several types of insulation materials, each with its own R-value. Understanding the differences between these materials can help you choose the best option for your needs. Here are some common types of insulation and their typical R-values:

Fiberglass Batt Insulation: This is one of the most common types of insulation, available in rolls or batts. It has an R-value ranging from R-2.9 to R-3.8 per inch of thickness.
Cellulose Insulation: Made from recycled paper products, cellulose insulation has an R-value of about R-3.2 to R-3.8 per inch. It is often blown into attics and walls.
Spray Foam Insulation: This type of insulation is applied as a liquid that expands to fill cavities. It has a higher R-value, typically around R-3.6 to R-6.2 per inch, depending on whether it is open-cell or closed-cell foam.
Rigid Foam Board Insulation: This insulation comes in panels and has an R-value ranging from R-4 to R-6.5 per inch. It is often used in walls, roofs, and foundations.
Reflective Insulation: This type of insulation reflects radiant heat and has an R-value that varies depending on the specific product and installation method. It is often used in hot climates.

Interpreting the Insulation R Rating Chart

The Insulation R Rating Chart typically lists the R-values for different insulation materials and their thicknesses. To use the chart effectively, follow these steps:

Identify the Part of the Building: Determine whether you are insulating walls, attics, floors, or ceilings. Each part of the building has different insulation requirements.
Check the Recommended R-Value: Refer to local building codes or energy efficiency guidelines to find the recommended R-value for your specific climate and building type.
Select the Appropriate Material: Use the Insulation R Rating Chart to find the insulation material that meets the recommended R-value for the thickness you need.
Calculate the Required Thickness: Determine the thickness of insulation required to achieve the desired R-value. For example, if you need an R-value of R-30 for your attic and you are using fiberglass batt insulation with an R-value of R-3.8 per inch, you would need approximately 8 inches of insulation.

📝 Note: Always consult local building codes and energy efficiency guidelines to ensure compliance with regulations and to maximize energy savings.

Using the Insulation R Rating Chart for Different Building Parts

Different parts of a building have different insulation needs. Here’s how to use the Insulation R Rating Chart for various building components:

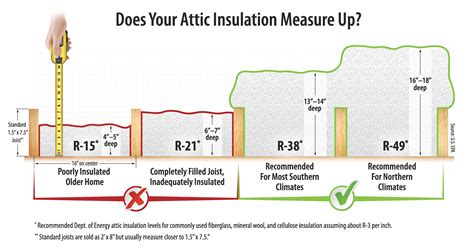

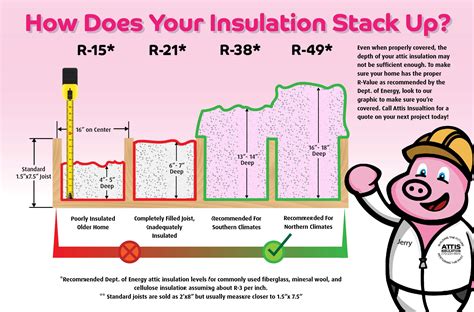

Attics

Attics are a critical area for insulation, as they can account for a significant amount of heat loss in the winter and heat gain in the summer. The recommended R-value for attics varies by climate zone but generally ranges from R-30 to R-60. Use the Insulation R Rating Chart to select the appropriate type and thickness of insulation to achieve the desired R-value.

Walls

Wall insulation is essential for maintaining indoor comfort and reducing energy costs. The recommended R-value for walls typically ranges from R-13 to R-21, depending on the climate. Use the Insulation R Rating Chart to choose the right insulation material and thickness for your walls.

Floors

Floors, especially those over unheated spaces like garages or crawl spaces, require insulation to prevent heat loss. The recommended R-value for floors usually ranges from R-19 to R-30. Refer to the Insulation R Rating Chart to select the appropriate insulation for your floor.

Ceilings

Ceilings, particularly those between conditioned and unconditioned spaces, need proper insulation to maintain energy efficiency. The recommended R-value for ceilings can vary but often ranges from R-30 to R-38. Use the Insulation R Rating Chart to determine the best insulation for your ceiling.

Example of an Insulation R Rating Chart

Below is an example of an Insulation R Rating Chart that shows the R-values for different types of insulation materials and their thicknesses. This chart can be used as a reference to select the appropriate insulation for your building needs.

Insulation Type	R-Value per Inch	Typical Thickness (inches)	Total R-Value
Fiberglass Batt	R-2.9 to R-3.8	3.5 to 11	R-10 to R-42
Cellulose	R-3.2 to R-3.8	3.5 to 12	R-11 to R-46
Spray Foam (Open-Cell)	R-3.6	3 to 10	R-11 to R-36
Spray Foam (Closed-Cell)	R-6.2	2 to 6	R-12 to R-37
Rigid Foam Board	R-4 to R-6.5	1 to 4	R-4 to R-26
Reflective Insulation	Varies	Varies	Varies

Factors Affecting Insulation Performance

While the Insulation R Rating Chart provides valuable information, it’s important to consider other factors that can affect insulation performance. These factors include:

Installation Quality: Proper installation is crucial for achieving the rated R-value. Gaps, compression, and moisture can significantly reduce the effectiveness of insulation.
Moisture and Air Infiltration: Moisture and air leaks can compromise the performance of insulation. Ensure that your building is properly sealed and that insulation is protected from moisture.
Climate and Location: The climate and location of your building can impact the type and amount of insulation needed. Refer to local building codes and energy efficiency guidelines for specific recommendations.
Building Design: The design of your building, including the type of construction and the presence of thermal bridges, can affect insulation performance. Consider these factors when selecting and installing insulation.

📝 Note: Always ensure proper installation and sealing to maximize the performance of your insulation. Consult with a professional if needed.

Benefits of Proper Insulation

Proper insulation, guided by the Insulation R Rating Chart, offers numerous benefits, including:

Energy Efficiency: Effective insulation reduces heat transfer, lowering the need for heating and cooling and thereby saving energy.
Cost Savings: By reducing energy consumption, proper insulation can lead to significant savings on utility bills.
Comfort: Insulation helps maintain consistent indoor temperatures, enhancing comfort and reducing drafts.
Environmental Impact: Lower energy consumption means a reduced carbon footprint, contributing to a more sustainable environment.
Noise Reduction: Insulation can also help reduce noise pollution, creating a quieter and more peaceful indoor environment.

📝 Note: Proper insulation not only saves energy and money but also improves the overall comfort and sustainability of your home.

Common Mistakes to Avoid

When using the Insulation R Rating Chart and installing insulation, it’s important to avoid common mistakes that can compromise performance. Some of these mistakes include:

Inadequate Insulation: Failing to meet the recommended R-value for your climate and building type can lead to energy inefficiency and discomfort.
Poor Installation: Improper installation, such as leaving gaps or compressing insulation, can significantly reduce its effectiveness.
Ignoring Air Sealing: Air leaks can undermine the performance of insulation. Ensure that your building is properly sealed to maximize insulation benefits.
Not Considering Moisture: Moisture can degrade insulation over time. Use moisture-resistant materials and ensure proper ventilation to protect your insulation.
Overlooking Thermal Bridges: Thermal bridges, such as metal studs or concrete slabs, can bypass insulation and reduce its effectiveness. Design your building to minimize thermal bridges.

📝 Note: Avoiding these common mistakes can help you achieve the best possible performance from your insulation.

In summary, the Insulation R Rating Chart is an essential tool for selecting the right insulation for your building needs. By understanding R-values, interpreting the chart, and considering factors that affect insulation performance, you can enhance the energy efficiency, comfort, and sustainability of your home. Proper insulation not only saves energy and money but also contributes to a more comfortable and environmentally friendly living space. Whether you are a homeowner, builder, or contractor, using the Insulation R Rating Chart can help you make informed decisions about insulation and achieve optimal results.
