Installing Kitchen Range Hood

Installing a kitchen range hood is a crucial step in ensuring a safe and efficient cooking environment. A range hood helps to remove smoke, steam, and odors generated during cooking, improving air quality and preventing the buildup of grease and moisture. Whether you're a seasoned DIY enthusiast or a beginner, this guide will walk you through the process of installing a kitchen range hood, from selecting the right model to finalizing the installation.

Table of Contents

Choosing the Right Range Hood

Before diving into the installation process, it's essential to select a range hood that suits your kitchen's needs. Consider the following factors:

Size and Capacity: Measure the width of your cooktop to ensure the range hood covers it adequately. The hood should be at least as wide as the cooktop, but wider is better for optimal ventilation.
Ventilation Type: Decide between ducted (vented) and ductless (recirculating) range hoods. Ducted hoods vent air outside, while ductless hoods filter and recirculate air back into the kitchen.
CFM Rating: Cubic Feet per Minute (CFM) indicates the hood's airflow capacity. Higher CFM ratings mean better ventilation. For gas cooktops, aim for at least 100 CFM per 10,000 BTU of the cooktop's output.
Noise Level: Check the Sones rating, which measures the hood's noise level. Lower Sones ratings indicate quieter operation.
Features: Consider additional features like variable fan speeds, delayed shut-off, and automatic lighting.

Gathering the Necessary Tools and Materials

To ensure a smooth installation process, gather the following tools and materials:

Range hood of your choice
Ductwork (if installing a ducted range hood)
Drywall saw or reciprocating saw
Drill and driver bits
Screwdriver
Tape measure
Pencil
Level
Stud finder
Duct tape
Safety glasses
Work gloves

Preparing for Installation

Before you begin installing the kitchen range hood, take the following preparatory steps:

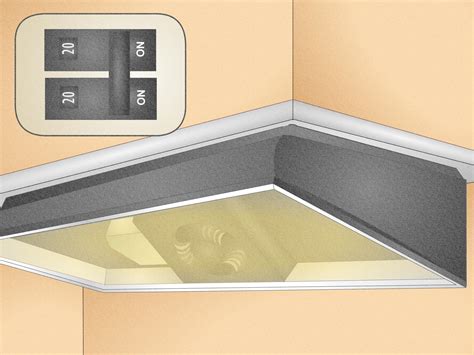

Turn off the power to the kitchen at the circuit breaker to ensure safety during installation.
Clear the area around the cooktop to provide ample workspace.
Measure and mark the desired location for the range hood on the wall or cabinet above the cooktop. The bottom of the hood should be 24 to 30 inches above the cooktop surface.
Use a stud finder to locate the wall studs and mark their positions. This will help you secure the range hood properly.

Installing the Range Hood

Follow these detailed steps to install your kitchen range hood:

Mounting the Range Hood

If you're installing a ducted range hood, follow these steps:

Cut an opening in the wall or cabinet for the ductwork using a drywall saw or reciprocating saw. The opening should be the same size as the duct collar on the range hood.
Insert the duct collar through the opening and secure it to the wall or cabinet using screws.
Attach the range hood to the mounting brackets, ensuring it is level and properly aligned with the duct collar.
Secure the range hood to the wall or cabinet using screws and anchors, if necessary.

For a ductless range hood, follow these steps:

Mount the range hood to the wall or cabinet using the provided hardware, ensuring it is level and properly aligned.
Secure the range hood to the wall or cabinet using screws and anchors, if necessary.

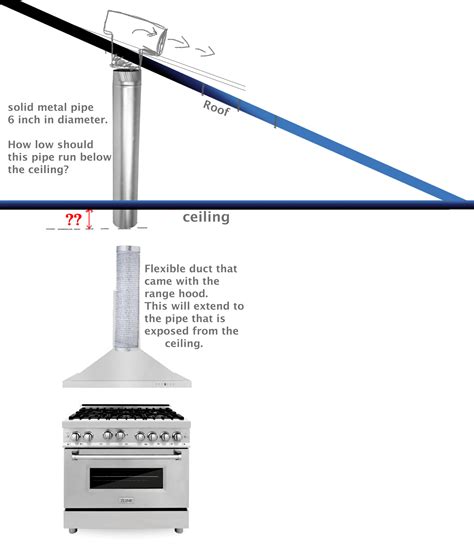

Connecting the Ductwork

If you're installing a ducted range hood, connect the ductwork to the range hood and vent it outside:

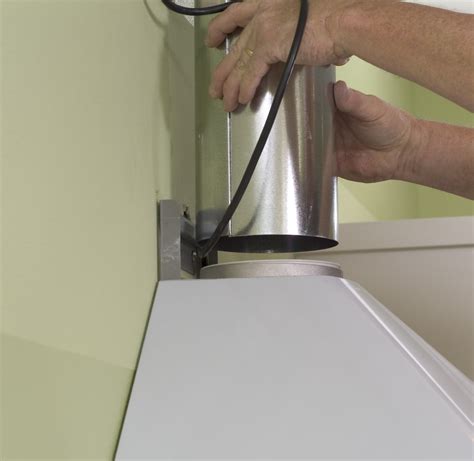

Attach the ductwork to the duct collar on the range hood using duct tape or metal clamps.
Run the ductwork through the wall or cabinet and out through an exterior wall or roof. Ensure the ductwork is properly sealed and supported.
Install a wall cap or roof cap on the exterior end of the ductwork to prevent debris and pests from entering.

💡 Note: Ensure the ductwork has a slight upward slope to prevent moisture buildup and facilitate proper ventilation.

Wiring the Range Hood

Connect the range hood to the electrical supply:

Run an electrical cable from the circuit breaker to the location of the range hood.
Strip the ends of the cable and connect them to the range hood's wiring harness, following the manufacturer's instructions.
Secure the wiring harness to the range hood using the provided clips or ties.
Turn on the power at the circuit breaker and test the range hood to ensure it is functioning properly.

⚠️ Note: If you're not comfortable working with electrical wiring, hire a licensed electrician to handle this step.

Finalizing the Installation

Complete the installation by:

Installing any necessary trim or molding around the range hood to create a finished look.
Cleaning up the work area and disposing of any debris or packaging materials.
Testing the range hood to ensure it is functioning properly and providing adequate ventilation.

Maintaining Your Kitchen Range Hood

To keep your kitchen range hood functioning efficiently, follow these maintenance tips:

Clean the range hood filters regularly to remove grease and debris. Most filters can be washed in warm, soapy water and allowed to air dry.
Wipe down the exterior of the range hood with a mild detergent and warm water to remove any grease or dirt buildup.
Inspect the ductwork periodically to ensure it is free of obstructions and properly sealed.
Test the range hood's fan and lighting regularly to ensure they are functioning properly.

By following these maintenance tips, you can extend the lifespan of your kitchen range hood and ensure it continues to provide adequate ventilation for your cooking needs.

Installing a kitchen range hood is a rewarding DIY project that can significantly improve your kitchen’s air quality and overall cooking experience. By carefully selecting the right range hood, gathering the necessary tools and materials, and following the detailed installation steps, you can successfully install a kitchen range hood that meets your specific needs. Regular maintenance will ensure your range hood continues to function efficiently for years to come.
