In the realm of modern technology, the Inertial Measurement Unit (IMU) has become an indispensable component in various applications, from consumer electronics to aerospace engineering. Understanding the Inertial Measurement Unit meaning is crucial for appreciating its significance and functionality. An IMU is a device that measures and reports a body's specific force, angular rate, and sometimes the orientation of the body, using a combination of accelerometers, gyroscopes, and sometimes magnetometers.
Understanding the Basics of an IMU

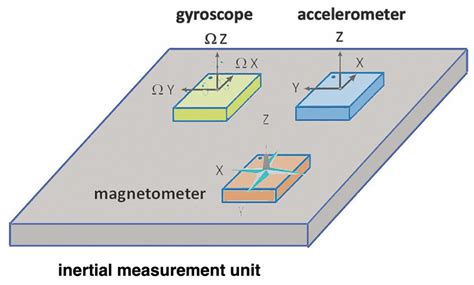

An IMU typically consists of three main types of sensors:
- Accelerometers: These sensors measure linear acceleration in one, two, or three axes. They detect changes in velocity and can be used to determine the orientation of an object relative to the Earth's surface.
- Gyroscopes: These sensors measure angular velocity, which is the rate of rotation around an axis. They are essential for detecting changes in orientation and maintaining stability.

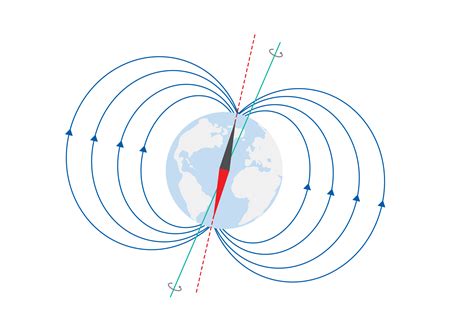

- Magnetometers: These sensors measure the strength and direction of magnetic fields. They are often used in conjunction with accelerometers and gyroscopes to provide a more accurate determination of orientation, especially in applications where magnetic north is relevant.
Together, these sensors provide a comprehensive set of data that can be used to determine the position, velocity, and orientation of an object in three-dimensional space.
Applications of IMUs
The versatility of IMUs makes them suitable for a wide range of applications. Some of the most common uses include:
- Consumer Electronics: IMUs are found in smartphones, tablets, and wearable devices. They enable features like screen rotation, motion sensing, and step counting.
- Aerospace and Defense: In aircraft and spacecraft, IMUs are used for navigation, stabilization, and control systems. They provide critical data for maintaining the vehicle's orientation and trajectory.
- Automotive: IMUs are used in advanced driver-assistance systems (ADAS) and autonomous vehicles. They help in detecting vehicle motion, stability control, and collision avoidance.
- Robotics: In robotics, IMUs are essential for maintaining balance, navigation, and precise movement. They enable robots to interact with their environment more effectively.
- Gaming: IMUs are used in gaming controllers and virtual reality (VR) headsets to track motion and provide an immersive gaming experience.
How IMUs Work
An IMU works by continuously measuring the forces and rotations acting on it. The data from the accelerometers, gyroscopes, and magnetometers are processed using algorithms to determine the object's orientation, velocity, and position. This process involves several steps:
- Data Collection: The sensors collect raw data on acceleration, angular velocity, and magnetic fields.
- Data Fusion: The raw data is combined using algorithms like the Kalman filter or complementary filter to produce a more accurate and stable estimate of the object's orientation and motion.
- Orientation Calculation: The fused data is used to calculate the object's orientation in three-dimensional space, often represented as Euler angles or quaternions.
- Position and Velocity Estimation: By integrating the acceleration data over time, the IMU can estimate the object's velocity and position.
This continuous process allows the IMU to provide real-time data on the object's motion and orientation, making it invaluable in dynamic environments.
Types of IMUs
IMUs come in various types, each designed for specific applications and performance requirements. Some of the most common types include:

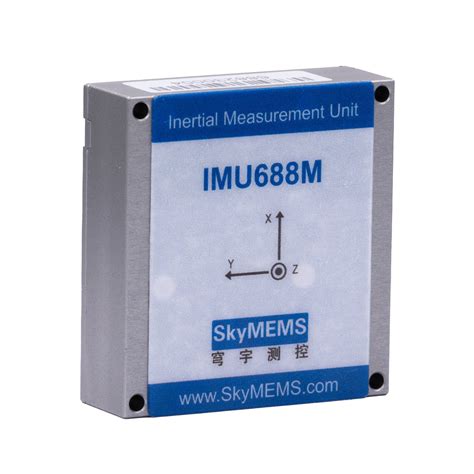

- MEMS IMUs: Microelectromechanical systems (MEMS) IMUs are small, low-cost devices commonly used in consumer electronics. They are compact and energy-efficient but may have lower accuracy compared to other types.
- Fiber Optic Gyroscopes (FOGs): FOGs use the interference of light to measure angular velocity. They are highly accurate and stable, making them suitable for aerospace and defense applications.
- Ring Laser Gyroscopes (RLGs): RLGs use laser beams to measure angular velocity. They are extremely accurate and reliable, often used in high-precision navigation systems.
- Tunable Laser Gyroscopes (TLGs): TLGs use tunable lasers to measure angular velocity. They offer high accuracy and stability, making them suitable for demanding applications.
Each type of IMU has its own advantages and limitations, and the choice of IMU depends on the specific requirements of the application.
Calibration and Compensation
To ensure accurate and reliable performance, IMUs require regular calibration and compensation. Calibration involves adjusting the sensor readings to account for biases, scale factors, and misalignments. Compensation techniques are used to correct for environmental factors such as temperature and magnetic interference.
Calibration and compensation are crucial steps in maintaining the accuracy of an IMU. They help to minimize errors and ensure that the data provided by the IMU is reliable and precise.
🔧 Note: Regular calibration and compensation are essential for maintaining the accuracy of an IMU. It is recommended to follow the manufacturer's guidelines for calibration procedures and use appropriate compensation techniques to account for environmental factors.
Challenges and Limitations
While IMUs offer numerous benefits, they also face several challenges and limitations. Some of the key challenges include:
- Drift: Over time, the integration of acceleration data can lead to drift, where the estimated position and velocity deviate from the actual values. This is a common issue in IMUs and requires periodic recalibration or the use of additional sensors for correction.
- Noise: IMUs are susceptible to noise, which can affect the accuracy of the measurements. Noise can be caused by various factors, including environmental interference and sensor limitations.
- Environmental Factors: Temperature, humidity, and magnetic interference can affect the performance of IMUs. Compensation techniques are often used to mitigate these effects, but they may not always be sufficient.
- Cost: High-precision IMUs can be expensive, especially those used in aerospace and defense applications. The cost can be a limiting factor for some applications, particularly in consumer electronics.
Addressing these challenges requires a combination of advanced algorithms, calibration techniques, and environmental compensation methods. Ongoing research and development are focused on improving the accuracy, reliability, and cost-effectiveness of IMUs.
Future Trends in IMU Technology
The field of IMU technology is continually evolving, driven by advancements in sensor technology, data processing algorithms, and application requirements. Some of the future trends in IMU technology include:
- Miniaturization: The trend towards smaller, more compact IMUs is driven by the demand for portable and wearable devices. Advances in MEMS technology are enabling the development of even smaller and more efficient IMUs.

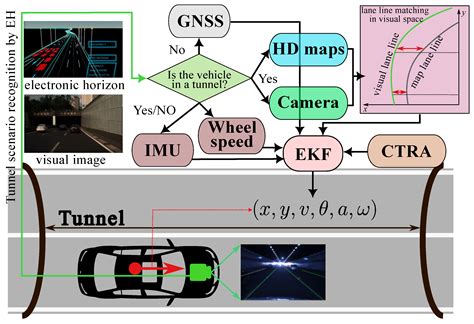

- Integration with Other Sensors: IMUs are increasingly being integrated with other sensors, such as GPS, cameras, and LiDAR, to provide more comprehensive and accurate data. This integration enhances the capabilities of IMUs in various applications, from autonomous vehicles to robotics.
- Advanced Algorithms: The development of advanced algorithms, such as machine learning and artificial intelligence, is improving the accuracy and reliability of IMUs. These algorithms can help to compensate for drift, noise, and environmental factors, providing more precise measurements.
- Energy Efficiency: As the demand for portable and wearable devices grows, there is a increasing focus on developing energy-efficient IMUs. Advances in sensor technology and data processing algorithms are enabling the creation of IMUs that consume less power while maintaining high performance.
These trends are shaping the future of IMU technology, making it more versatile, accurate, and efficient. As the demand for IMUs continues to grow, ongoing research and development will drive further innovations in this field.
In conclusion, the Inertial Measurement Unit meaning encompasses a wide range of applications and technologies that are essential for modern devices and systems. From consumer electronics to aerospace engineering, IMUs play a crucial role in measuring and reporting the motion and orientation of objects. Understanding the basics of IMUs, their applications, and the challenges they face is essential for appreciating their significance and potential. As technology continues to advance, IMUs will remain a vital component in various industries, driving innovation and enhancing performance.
