Understanding the concept of impedance is crucial for anyone working in electronics, electrical engineering, or related fields. Impedance is a fundamental concept that describes the opposition to the flow of alternating current (AC) in a circuit. It is a complex quantity that combines both resistance and reactance, making it essential for analyzing and designing AC circuits. This post will delve into the intricacies of impedance, explaining what it is, how it is measured, and its practical applications.

What Is Impedance?

Impedance, often denoted by the symbol Z, is a measure of the opposition that a circuit presents to a current when a voltage is applied. Unlike resistance, which is a measure of opposition to direct current (DC), impedance takes into account both the resistive and reactive components of a circuit. The reactive component arises from the presence of inductors and capacitors, which store and release energy in the form of magnetic and electric fields, respectively.

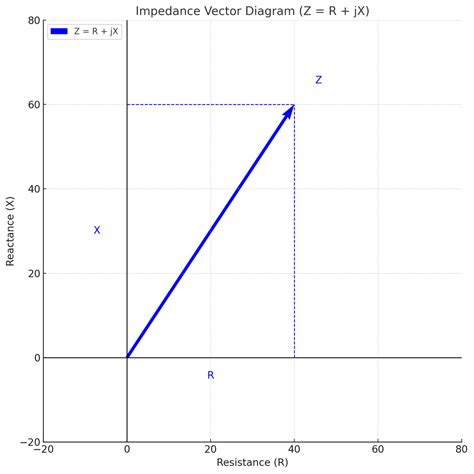

Impedance is a complex number, typically expressed in the form Z = R + jX, where:

• R is the resistive component, measured in ohms (Ω).
• X is the reactive component, also measured in ohms (Ω). The imaginary unit j (or i in some contexts) indicates that the reactive component is out of phase with the resistive component.

The reactive component can be further broken down into inductive reactance (XL) and capacitive reactance (XC). Inductive reactance occurs in inductors and is proportional to the frequency of the AC signal, while capacitive reactance occurs in capacitors and is inversely proportional to the frequency.

Impedance in AC Circuits

In AC circuits, the behavior of components like resistors, inductors, and capacitors is significantly different from their behavior in DC circuits. Understanding impedance is key to analyzing these circuits. Here are some fundamental concepts:

• Resistors: The impedance of a resistor is purely resistive, meaning Z = R. There is no reactive component.
• Inductors: The impedance of an inductor is given by Z = jXL, where XL = 2πfL. Here, f is the frequency of the AC signal, and L is the inductance.
• Capacitors: The impedance of a capacitor is given by Z = -jXC, where XC = 1/(2πfC). Here, C is the capacitance.

When these components are combined in a circuit, the total impedance can be calculated using the principles of series and parallel combinations. For example, in a series circuit, the total impedance is the sum of the individual impedances:

Ztotal = Z1 + Z2 + Z3 + ...

In a parallel circuit, the total impedance is given by the reciprocal of the sum of the reciprocals of the individual impedances:

1/Ztotal = 1/Z1 + 1/Z2 + 1/Z3 + ...

Measuring Impedance

Measuring impedance in a circuit involves using specialized equipment designed to handle AC signals. The most common tools for this purpose are:

• Impedance Analyzers: These are sophisticated instruments that can measure the impedance of a circuit over a range of frequencies. They provide detailed information about both the resistive and reactive components.
• LCR Meters: These meters are used to measure inductance (L), capacitance (C), and resistance (R) in a circuit. They can also calculate the impedance based on these measurements.
• Oscilloscopes: While not specifically designed for impedance measurement, oscilloscopes can be used to observe the voltage and current waveforms in a circuit, from which impedance can be inferred.

When using these tools, it is important to ensure that the circuit is properly calibrated and that the measurements are taken under controlled conditions to minimize errors.

Practical Applications of Impedance

Impedance has numerous practical applications in various fields of electronics and electrical engineering. Some of the key areas where impedance plays a crucial role include:

• Audio Systems: In audio circuits, impedance matching is essential for ensuring that the maximum power is transferred from the amplifier to the speakers. This involves matching the output impedance of the amplifier to the input impedance of the speakers.
• RF and Microwave Circuits: In radio frequency (RF) and microwave circuits, impedance matching is critical for minimizing reflections and maximizing power transfer. This is particularly important in antennas and transmission lines.
• Filter Design: Impedance is a key factor in the design of filters, which are used to select or reject specific frequency components in a signal. Filters can be designed to have specific impedance characteristics to achieve the desired frequency response.
• Power Systems: In power systems, impedance is used to analyze the stability and performance of the system. It helps in understanding the behavior of the system under different loading conditions and in designing protective devices.

Impedance Matching

Impedance matching is the process of designing a circuit so that the impedance of the source matches the impedance of the load. This ensures maximum power transfer and minimizes reflections, which can cause signal distortion and loss of power. Impedance matching is particularly important in high-frequency circuits, where even small mismatches can have significant effects.

There are several techniques for impedance matching, including:

• L-Matching Networks: These networks use inductors and capacitors to transform the impedance of the load to match the source impedance. They are commonly used in RF and microwave circuits.
• Pi-Matching Networks: These networks use a combination of series and shunt elements to achieve impedance matching. They are often used in audio and power circuits.
• T-Matching Networks: These networks use a T-shaped configuration of inductors and capacitors to match impedances. They are useful in applications where space is limited.

When designing impedance matching networks, it is important to consider the frequency range of operation, the power levels involved, and the physical constraints of the circuit.

💡 Note: Impedance matching is not just about maximizing power transfer; it also helps in reducing signal reflections, which can cause standing waves and other unwanted effects.

Impedance in Complex Circuits

In complex circuits, impedance analysis can become quite involved. These circuits often include multiple components connected in series, parallel, or a combination of both. To analyze such circuits, it is essential to understand how to combine impedances in different configurations.

For series combinations, the total impedance is simply the sum of the individual impedances:

Ztotal = Z1 + Z2 + Z3 + ...

For parallel combinations, the total impedance is given by:

1/Ztotal = 1/Z1 + 1/Z2 + 1/Z3 + ...

In more complex configurations, such as those involving bridges or networks, the analysis can be more challenging. In such cases, techniques like Kirchhoff's laws, nodal analysis, and mesh analysis can be used to solve for the impedances.

Here is an example of a simple series-parallel circuit and its impedance calculation:

If these components are connected in series, the total impedance is:

Ztotal = 10 + j5 - j3 = 10 + j2 Ω

If the inductor and capacitor are in parallel, their combined impedance is:

1/Zparallel = 1/(j5) + 1/(-j3) = -j(1/5 + 1/3) = -j(8/15)

Zparallel = -j(15/8) Ω

Then, the total impedance with the resistor in series is:

Ztotal = 10 + (-j(15/8)) = 10 - j(15/8) Ω

Understanding how to combine impedances in different configurations is crucial for analyzing and designing complex circuits.

💡 Note: When dealing with complex circuits, it is often helpful to use circuit simulation software to verify the calculations and analyze the behavior of the circuit under different conditions.

Impedance and Frequency Response

Impedance is a frequency-dependent quantity, meaning that it changes with the frequency of the AC signal. This frequency dependence is particularly important in circuits that operate over a range of frequencies, such as filters and communication systems. Understanding how impedance varies with frequency is essential for designing circuits with specific frequency responses.

For example, in a series RC circuit, the impedance is given by:

Z = R + 1/(jωC)

where ω = 2πf is the angular frequency.

As the frequency increases, the capacitive reactance (1/(jωC)) decreases, making the impedance more resistive. Conversely, as the frequency decreases, the capacitive reactance increases, making the impedance more reactive.

Similarly, in a series RL circuit, the impedance is given by:

Z = R + jωL

As the frequency increases, the inductive reactance (jωL) increases, making the impedance more reactive. Conversely, as the frequency decreases, the inductive reactance decreases, making the impedance more resistive.

These frequency-dependent behaviors are crucial for designing filters and other frequency-selective circuits. By carefully choosing the values of resistors, inductors, and capacitors, it is possible to create circuits with specific frequency responses, such as low-pass, high-pass, band-pass, and band-stop filters.

Here is an example of how impedance varies with frequency in a simple RC circuit:

In this example, the resistor has a value of 10 Ω, and the capacitor has a value of 1 μF. As the frequency increases, the capacitive reactance decreases, making the impedance more resistive.

Understanding the frequency dependence of impedance is essential for designing circuits with specific frequency responses and for analyzing the behavior of circuits under different operating conditions.

💡 Note: The frequency dependence of impedance is a key factor in the design of filters and other frequency-selective circuits. By carefully choosing the values of components, it is possible to achieve the desired frequency response.

Impedance in Transmission Lines

In transmission lines, impedance plays a crucial role in determining the behavior of the signal as it travels from the source to the load. Transmission lines are used to transmit signals over long distances, and their impedance characteristics are critical for ensuring efficient power transfer and minimizing signal distortion.

The characteristic impedance of a transmission line is given by:

Z0 = √(L/C)

where L is the inductance per unit length and C is the capacitance per unit length of the transmission line.

To ensure maximum power transfer and minimize reflections, the characteristic impedance of the transmission line should be matched to the impedance of the source and the load. This is known as impedance matching.

There are several techniques for impedance matching in transmission lines, including:

• Quarter-Wave Transformers: These are sections of transmission line that are a quarter-wavelength long at the operating frequency. They can be used to transform the impedance of the load to match the source impedance.
• Stub Matching: This involves adding a short or open-circuited section of transmission line (known as a stub) to the main line to achieve impedance matching. The length and position of the stub are carefully chosen to cancel out the reflections.
• Lumped Element Matching: This involves using discrete inductors and capacitors to achieve impedance matching. This technique is often used in high-frequency circuits where the physical size of the components is small compared to the wavelength.

Impedance matching in transmission lines is particularly important in high-frequency applications, such as RF and microwave circuits, where even small mismatches can have significant effects on the performance of the system.

Here is an example of how impedance matching can be achieved using a quarter-wave transformer:

In this example, the quarter-wave transformer has an impedance of 70.7 Ω, which matches the source and load impedances to ensure maximum power transfer and minimize reflections.

Understanding impedance in transmission lines is essential for designing efficient and reliable communication systems, as well as for analyzing the behavior of signals as they travel over long distances.

💡 Note: Impedance matching in transmission lines is crucial for ensuring efficient power transfer and minimizing signal distortion. Proper impedance matching can significantly improve the performance of communication systems.

Impedance is a fundamental concept in electronics and electrical engineering, with wide-ranging applications in various fields. Understanding impedance what is, how it is measured, and its practical applications is essential for anyone working in these areas. By mastering the principles of impedance, engineers and technicians can design and analyze circuits with greater precision and efficiency, leading to improved performance and reliability in electronic systems.
