In the realm of industrial machinery and heavy-duty equipment, the efficiency and longevity of hydraulic systems are paramount. One critical component that ensures these systems operate smoothly is the hydraulic oil cooler. This device plays a pivotal role in maintaining optimal operating temperatures, thereby preventing overheating and ensuring the reliability of hydraulic machinery.
Understanding Hydraulic Oil Coolers
A hydraulic oil cooler is a heat exchanger designed to dissipate heat generated by hydraulic systems. Hydraulic fluids, when subjected to continuous operation, can reach high temperatures, which can degrade the fluid's properties and reduce the efficiency of the system. The primary function of a hydraulic oil cooler is to remove this excess heat, ensuring that the hydraulic fluid remains within its optimal temperature range.
Types of Hydraulic Oil Coolers
There are several types of hydraulic oil coolers, each suited to different applications and environments. The most common types include:

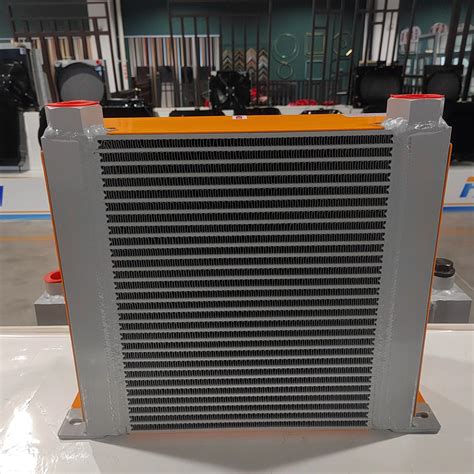

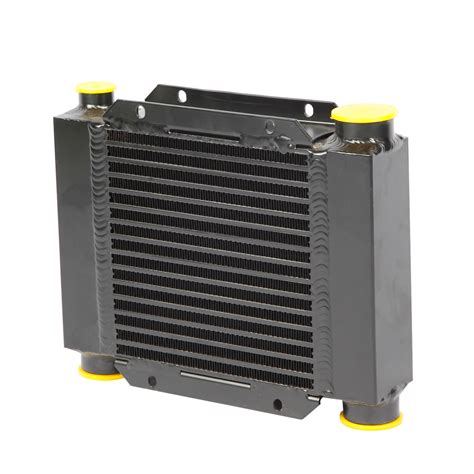

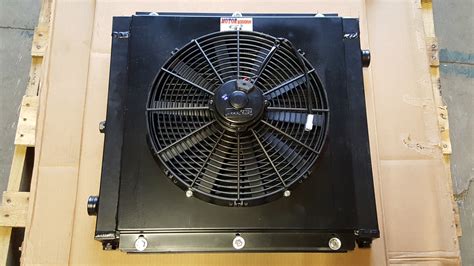

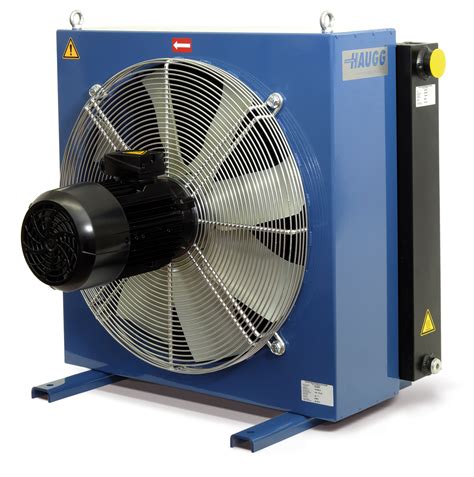

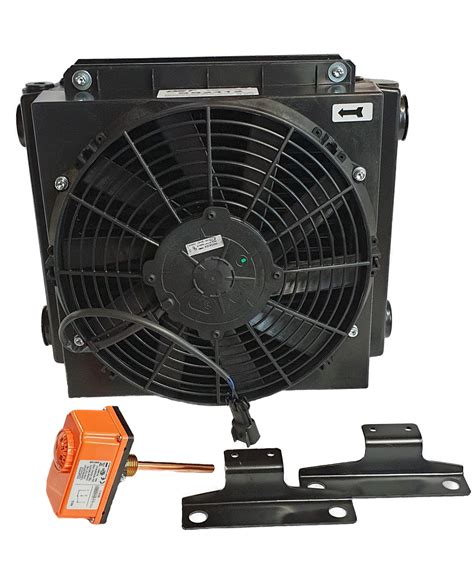

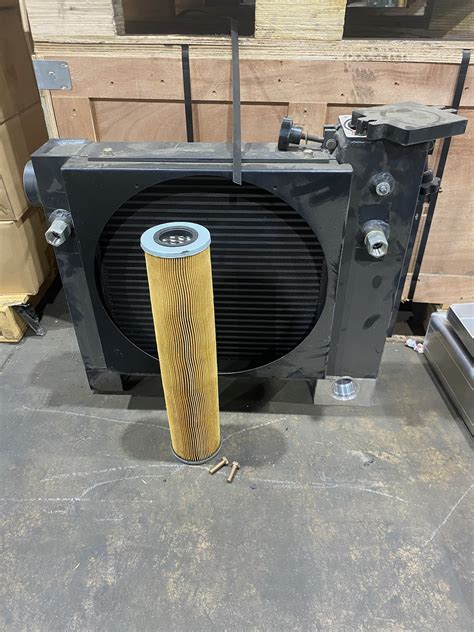

- Air-Cooled Hydraulic Oil Coolers: These coolers use ambient air to dissipate heat. They are typically more compact and easier to install but may be less efficient in high-temperature environments.

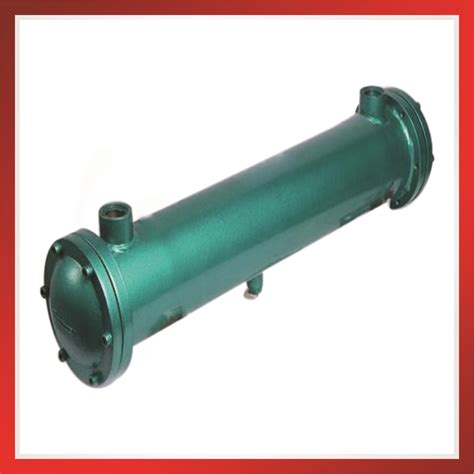

- Water-Cooled Hydraulic Oil Coolers: These coolers use water as the cooling medium. They are generally more efficient than air-cooled coolers but require a water supply and proper disposal of the used water.
- Oil-to-Oil Hydraulic Oil Coolers: These coolers use a secondary oil loop to dissipate heat. They are often used in applications where water is not available or where contamination is a concern.
How Hydraulic Oil Coolers Work
The operation of a hydraulic oil cooler involves several key components and processes. Here’s a breakdown of how these coolers function:
- Heat Exchange: The hydraulic fluid flows through a series of tubes or plates within the cooler. As it passes through, heat is transferred from the fluid to the cooling medium (air, water, or another oil).
- Cooling Medium: The cooling medium absorbs the heat from the hydraulic fluid and dissipates it into the environment. In air-cooled systems, fans or natural convection are used to enhance heat dissipation. In water-cooled systems, the water carries the heat away and is then cooled through a separate process.
- Temperature Control: Many hydraulic oil coolers are equipped with thermostats or temperature sensors that regulate the flow of the cooling medium. This ensures that the hydraulic fluid is maintained within its optimal temperature range.
Benefits of Using Hydraulic Oil Coolers
Incorporating a hydraulic oil cooler into your hydraulic system offers numerous benefits:
- Extended Equipment Lifespan: By maintaining optimal operating temperatures, hydraulic oil coolers reduce wear and tear on hydraulic components, extending their lifespan.
- Improved Efficiency: Cool hydraulic fluid operates more efficiently, reducing energy consumption and enhancing the overall performance of the hydraulic system.
- Reduced Maintenance Costs: Lower operating temperatures mean less frequent fluid changes and fewer repairs, resulting in significant cost savings.
- Enhanced Reliability: Consistent temperature control ensures that the hydraulic system operates reliably, minimizing downtime and increasing productivity.
Selecting the Right Hydraulic Oil Cooler
Choosing the right hydraulic oil cooler for your application involves considering several factors:
- Cooling Capacity: Determine the amount of heat that needs to be dissipated. This will depend on the size and type of your hydraulic system, as well as the operating conditions.
- Cooling Medium: Decide whether an air-cooled, water-cooled, or oil-to-oil cooler is most suitable for your environment and application.
- Space Constraints: Consider the available space for installation. Air-cooled coolers are generally more compact, while water-cooled coolers may require additional plumbing.
- Maintenance Requirements: Evaluate the maintenance needs of different types of coolers. Air-cooled coolers typically require less maintenance, while water-cooled coolers may need regular cleaning and water treatment.
🔍 Note: Always consult with a hydraulic system specialist to ensure you select the most appropriate hydraulic oil cooler for your specific needs.
Installation and Maintenance of Hydraulic Oil Coolers
Proper installation and regular maintenance are crucial for the effective operation of a hydraulic oil cooler. Here are some key steps to follow:
- Installation:
- Choose a location that allows for adequate airflow and easy access for maintenance.
- Ensure proper alignment and secure mounting of the cooler to prevent vibration and leaks.
- Connect the hydraulic fluid lines and cooling medium supply lines according to the manufacturer’s instructions.
- Maintenance:
- Regularly inspect the cooler for signs of wear, leaks, or blockages.
- Clean or replace air filters in air-cooled systems to maintain optimal airflow.
- Flush and treat water-cooled systems to prevent scale buildup and corrosion.
- Monitor the temperature of the hydraulic fluid and adjust the cooler settings as needed.
🛠️ Note: Always refer to the manufacturer’s guidelines for specific installation and maintenance procedures.
Common Issues and Troubleshooting
Even with proper installation and maintenance, issues can arise with hydraulic oil coolers. Here are some common problems and their potential solutions:
| Issue | Potential Cause | Solution |
|---|---|---|
| Inadequate Cooling | Clogged filters, low airflow, or insufficient cooling medium flow | Clean or replace filters, ensure proper airflow, and check cooling medium supply |
| Leaks | Damaged seals, loose connections, or cracked components | Inspect and replace damaged seals, tighten connections, and repair or replace cracked components |
| Overheating | Excessive load, insufficient cooling capacity, or malfunctioning thermostat | Reduce load, upgrade to a higher-capacity cooler, or replace the thermostat |
Case Studies: Hydraulic Oil Coolers in Action
To illustrate the practical benefits of hydraulic oil coolers, let’s look at a couple of real-world examples:
Case Study 1: Construction Equipment
A construction company operating heavy machinery in a hot climate experienced frequent hydraulic system failures due to overheating. By installing air-cooled hydraulic oil coolers on their excavators and bulldozers, the company was able to maintain optimal operating temperatures, reducing downtime by 30% and extending the lifespan of their equipment.
Case Study 2: Industrial Manufacturing
An industrial manufacturing plant with a large hydraulic press system struggled with inconsistent performance and high maintenance costs. After upgrading to a water-cooled hydraulic oil cooler, the plant saw a significant improvement in system efficiency and reliability. The cooler’s ability to maintain consistent temperatures resulted in a 25% reduction in energy consumption and a 40% decrease in maintenance costs.
These case studies highlight the transformative impact that hydraulic oil coolers can have on various industries, enhancing both performance and cost-effectiveness.
In conclusion, the hydraulic oil cooler is an indispensable component in modern hydraulic systems. By effectively managing heat dissipation, these coolers ensure that hydraulic machinery operates efficiently, reliably, and with extended lifespan. Whether in construction, manufacturing, or any other industry, investing in a high-quality hydraulic oil cooler can yield significant benefits, making it a worthwhile consideration for any operation that relies on hydraulic systems.
