The HVAC refrigeration cycle is a fundamental process that underpins the operation of heating, ventilation, and air conditioning systems. Understanding this cycle is crucial for anyone involved in HVAC maintenance, installation, or design. This process involves the transfer of heat from one area to another, utilizing a refrigerant to absorb and release heat efficiently. By delving into the components and stages of the HVAC refrigeration cycle, we can gain a comprehensive understanding of how these systems work and how to optimize their performance.
Understanding the HVAC Refrigeration Cycle

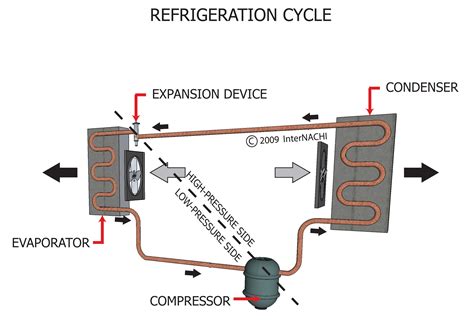

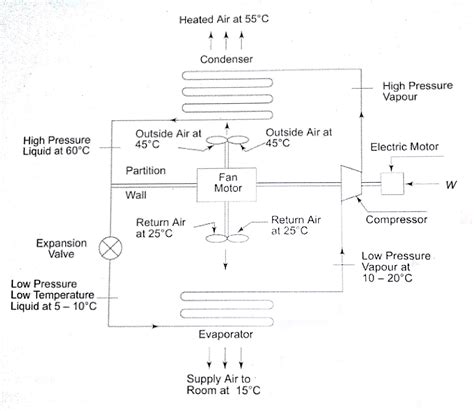

The HVAC refrigeration cycle is a continuous process that involves four main stages: compression, condensation, expansion, and evaporation. Each stage plays a critical role in transferring heat from the indoor environment to the outdoor environment, thereby cooling the indoor space. Let's break down each stage in detail.
Compression
The compression stage is where the cycle begins. The refrigerant, which is in a gaseous state, is drawn into the compressor. The compressor increases the pressure and temperature of the refrigerant, preparing it for the next stage. This high-pressure, high-temperature gas is then pushed towards the condenser.
Condensation
In the condensation stage, the high-pressure, high-temperature refrigerant gas enters the condenser. The condenser is typically located outside the building and is designed to dissipate heat. As the refrigerant flows through the condenser coils, it releases heat to the surrounding environment, causing it to condense into a high-pressure liquid. This liquid refrigerant is then ready to move to the next stage of the cycle.
Expansion
The expansion stage involves the refrigerant passing through an expansion valve or capillary tube. This component reduces the pressure of the refrigerant, causing it to expand and cool rapidly. The refrigerant exits the expansion valve as a low-pressure, low-temperature liquid-vapor mixture, ready to absorb heat in the next stage.
Evaporation
In the evaporation stage, the low-pressure, low-temperature refrigerant enters the evaporator coil, which is typically located inside the building. As warm air from the indoor environment blows over the evaporator coil, the refrigerant absorbs heat from the air, causing it to evaporate and turn back into a low-pressure gas. This process cools the air, which is then circulated back into the indoor space. The refrigerant, now in a gaseous state, is drawn back into the compressor, and the cycle repeats.
Components of the HVAC Refrigeration Cycle
The HVAC refrigeration cycle relies on several key components to function effectively. Each component plays a specific role in the cycle, and understanding their functions is essential for maintaining and troubleshooting HVAC systems.
Compressor
The compressor is the heart of the HVAC refrigeration cycle. It is responsible for compressing the refrigerant gas, increasing its pressure and temperature. There are different types of compressors, including reciprocating, scroll, and rotary compressors, each with its own advantages and applications.
Condenser
The condenser is where the refrigerant releases heat to the surrounding environment. It is typically located outside the building and consists of coils that facilitate heat exchange. The condenser can be air-cooled or water-cooled, depending on the specific design of the HVAC system.
Expansion Valve
The expansion valve or capillary tube is a critical component that regulates the flow of refrigerant into the evaporator. By reducing the pressure of the refrigerant, it allows the refrigerant to expand and cool rapidly, preparing it to absorb heat in the evaporator.
Evaporator
The evaporator is where the refrigerant absorbs heat from the indoor air, cooling it in the process. It consists of coils that facilitate heat exchange between the refrigerant and the air. The cooled air is then circulated back into the indoor space, providing the desired cooling effect.
Types of Refrigerants Used in HVAC Systems
The choice of refrigerant is crucial for the efficiency and environmental impact of an HVAC system. Over the years, various refrigerants have been used, each with its own advantages and disadvantages. Some of the most common refrigerants include:
- R-22: A widely used refrigerant in older HVAC systems, but it is being phased out due to its ozone-depleting properties.
- R-410A: A more environmentally friendly alternative to R-22, commonly used in modern HVAC systems.
- R-134a: Often used in automotive air conditioning systems and some residential HVAC systems.
- R-32: A newer refrigerant that is gaining popularity due to its lower global warming potential and higher efficiency.
When selecting a refrigerant, it is important to consider factors such as environmental impact, efficiency, and compatibility with the existing HVAC system.
Maintenance and Troubleshooting of the HVAC Refrigeration Cycle
Regular maintenance is essential for ensuring the efficient operation of the HVAC refrigeration cycle. Proper maintenance can extend the lifespan of the system, reduce energy consumption, and prevent costly repairs. Here are some key maintenance tasks and troubleshooting tips:
Maintenance Tasks
- Clean or Replace Air Filters: Dirty air filters can restrict airflow and reduce the efficiency of the HVAC system. Regularly cleaning or replacing air filters can improve performance and indoor air quality.
- Check Refrigerant Levels: Low refrigerant levels can indicate a leak in the system. Regularly checking refrigerant levels and addressing any leaks promptly can prevent system failure.
- Inspect and Clean Coils: Dirty coils can reduce the efficiency of heat exchange. Regularly inspecting and cleaning the condenser and evaporator coils can improve system performance.
- Lubricate Moving Parts: Proper lubrication of moving parts, such as the compressor and fan motors, can reduce wear and tear and extend the lifespan of the system.
- Check Electrical Components: Inspecting electrical components, such as wires, connections, and capacitors, can prevent electrical failures and ensure safe operation.
Troubleshooting Tips
- System Not Cooling: If the system is not cooling, check the refrigerant levels, inspect the compressor, and ensure proper airflow through the evaporator coil.
- Unusual Noises: Unusual noises, such as grinding or squealing, can indicate problems with the compressor, fan motors, or other moving parts. Inspect these components and address any issues promptly.
- Leaks: Leaks in the refrigerant lines can cause low refrigerant levels and reduce system efficiency. Use a leak detector to identify and repair any leaks.
- Thermostat Issues: If the thermostat is not functioning properly, the system may not respond to temperature changes. Check the thermostat settings and ensure proper calibration.
🔧 Note: Always follow safety guidelines when performing maintenance or troubleshooting tasks. Ensure the system is turned off and allow it to cool down before handling any components.
Energy Efficiency and the HVAC Refrigeration Cycle
Energy efficiency is a critical consideration for HVAC systems. Improving the efficiency of the HVAC refrigeration cycle can reduce energy consumption, lower operating costs, and minimize environmental impact. Here are some strategies to enhance energy efficiency:
Regular Maintenance
Regular maintenance, as discussed earlier, is essential for maintaining the efficiency of the HVAC system. Cleaning coils, replacing air filters, and checking refrigerant levels can all contribute to improved performance and energy savings.
Proper Sizing
Ensuring that the HVAC system is properly sized for the space it serves is crucial for energy efficiency. An oversized system can lead to short cycling, where the system turns on and off frequently, reducing efficiency and increasing wear and tear. A properly sized system will operate more efficiently and provide consistent comfort.
Insulation and Sealing
Proper insulation and sealing of the building envelope can reduce heat gain and loss, making the HVAC system more efficient. Insulating ducts, sealing air leaks, and using energy-efficient windows can all contribute to improved performance.
Smart Thermostats
Smart thermostats can optimize the operation of the HVAC system by adjusting temperature settings based on occupancy and preferences. These devices can learn user patterns, adjust settings automatically, and provide energy-saving recommendations, leading to significant energy savings.
Energy-Efficient Components
Using energy-efficient components, such as high-efficiency compressors, variable-speed motors, and advanced refrigerant technologies, can improve the overall efficiency of the HVAC system. These components are designed to reduce energy consumption and enhance performance.
Environmental Impact of the HVAC Refrigeration Cycle
The HVAC refrigeration cycle has significant environmental implications, particularly in terms of energy consumption and refrigerant emissions. Understanding these impacts is essential for developing sustainable HVAC solutions.
Energy Consumption
HVAC systems are significant consumers of energy, accounting for a large portion of a building's energy usage. Reducing energy consumption through improved efficiency and sustainable practices can help mitigate the environmental impact of HVAC systems.
Refrigerant Emissions
Refrigerants used in HVAC systems can have a significant impact on the environment, particularly in terms of ozone depletion and global warming. Choosing environmentally friendly refrigerants and ensuring proper handling and disposal can help minimize these impacts.
Sustainable Practices
Adopting sustainable practices, such as using renewable energy sources, implementing energy-efficient technologies, and promoting proper maintenance, can help reduce the environmental impact of HVAC systems. These practices can contribute to a more sustainable future and help protect the environment for future generations.
In conclusion, the HVAC refrigeration cycle is a complex process that involves the transfer of heat through a series of stages and components. Understanding this cycle is essential for maintaining and optimizing HVAC systems, ensuring energy efficiency, and minimizing environmental impact. By following proper maintenance practices, using energy-efficient components, and adopting sustainable strategies, we can enhance the performance of HVAC systems and contribute to a more sustainable future.
