How Is Rubber Manufactured

Rubber is a versatile material that has become indispensable in various industries, from automotive to healthcare. Understanding how is rubber manufactured involves delving into the processes that transform raw materials into the final product. This blog post will guide you through the manufacturing process of rubber, highlighting key steps and considerations.

Table of Contents

What is Rubber?

Rubber is a polymer that can be derived from natural sources or synthesized in laboratories. Natural rubber is obtained from the latex of certain plants, primarily the rubber tree (Hevea brasiliensis). Synthetic rubber, on the other hand, is produced through chemical processes using petroleum by-products.

Natural Rubber Production

Natural rubber production begins with the extraction of latex from rubber trees. This process involves several steps:

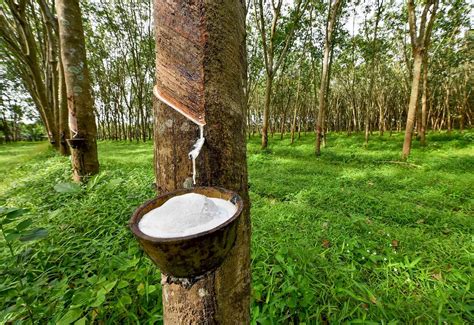

Tapping: Workers make incisions in the bark of the rubber tree to collect the latex sap.
Coagulation: The latex is then coagulated using acids or enzymes to form a solid rubber mass.
Processing: The coagulated rubber is processed to remove impurities and water, resulting in a dry rubber sheet.

Synthetic Rubber Production

Synthetic rubber is manufactured through a series of chemical reactions. The process typically involves the following steps:

Polymerization: Monomers, such as styrene and butadiene, are polymerized to form long-chain polymers.
Vulcanization: The polymer is then vulcanized by adding sulfur or other curing agents to improve its strength and elasticity.
Compounding: Various additives, such as fillers, plasticizers, and antioxidants, are mixed with the polymer to enhance its properties.

Key Steps in Rubber Manufacturing

Regardless of whether the rubber is natural or synthetic, the manufacturing process involves several key steps. These steps ensure that the final product meets the required specifications and performance standards.

Mixing

The first step in rubber manufacturing is mixing. This involves combining the raw rubber with various additives to achieve the desired properties. The mixing process can be done using internal mixers or open mills. The additives used in this step include:

Fillers: Such as carbon black or silica, which enhance the strength and durability of the rubber.
Plasticizers: Which improve the flexibility and processability of the rubber.
Antioxidants: Which protect the rubber from degradation due to heat, light, and oxygen.

Molding

After mixing, the rubber compound is molded into the desired shape. There are several molding techniques used in rubber manufacturing, including:

Compression Molding: Where the rubber compound is placed in a mold and compressed under high pressure and heat.

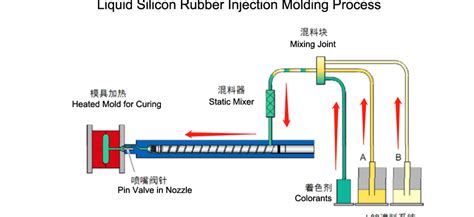

Injection Molding: Where the rubber compound is injected into a mold under high pressure.
Extrusion: Where the rubber compound is forced through a die to create continuous shapes, such as tubes or hoses.

Vulcanization

Vulcanization is a critical step in how is rubber manufactured. This process involves heating the rubber compound with sulfur or other curing agents to form cross-links between the polymer chains. Vulcanization improves the rubber’s strength, elasticity, and resistance to heat and chemicals. The vulcanization process can be carried out using various methods, including:

Hot Air Vulcanization: Where the rubber is heated in a hot air oven.
Autoclave Vulcanization: Where the rubber is heated in a pressurized autoclave.
Microwave Vulcanization: Where the rubber is heated using microwave energy.

Finishing

The final step in rubber manufacturing is finishing. This involves trimming, polishing, and inspecting the molded rubber parts to ensure they meet the required specifications. Finishing may also include additional processes, such as:

Surface Treatment: To improve adhesion or resistance to environmental factors.
Assembly: Where multiple rubber parts are assembled into a final product.
Packaging: To protect the rubber parts during storage and transportation.

Types of Rubber and Their Applications

Different types of rubber are used in various applications due to their unique properties. Some of the most common types of rubber and their applications include:

Type of Rubber	Properties	Applications
Natural Rubber	High elasticity, good abrasion resistance	Tires, conveyor belts, hoses
Styrene-Butadiene Rubber (SBR)	Good abrasion resistance, low cost	Tires, footwear, gaskets
Butyl Rubber	Excellent air retention, good chemical resistance	Inner tubes, seals, gaskets
Nitrile Rubber	Good oil resistance, high strength	O-rings, seals, hoses
Silicone Rubber	High temperature resistance, good electrical insulation	Gaskets, seals, medical devices

📝 Note: The properties and applications of rubber can vary based on the specific formulation and additives used during manufacturing.

Environmental Considerations

Rubber manufacturing has significant environmental impacts, particularly in terms of energy consumption and waste generation. To mitigate these impacts, manufacturers are adopting sustainable practices, such as:

Recycling: Reusing rubber waste in new products to reduce landfill waste.
Energy Efficiency: Implementing energy-efficient processes and equipment to reduce carbon emissions.
Sustainable Sourcing: Sourcing raw materials from sustainable and ethical suppliers.

Additionally, advancements in technology are leading to the development of more eco-friendly rubber alternatives, such as bio-based and biodegradable rubbers.

Rubber manufacturing is a complex process that involves several steps, from the extraction of raw materials to the final finishing of the product. Understanding how is rubber manufactured provides insights into the versatility and importance of this material in various industries. By adopting sustainable practices and innovative technologies, the rubber industry can continue to meet the growing demand for rubber products while minimizing its environmental impact.
