How Do Wells Work

Water is an essential resource for human life, and understanding how it is accessed and utilized is crucial. One of the most fundamental methods of accessing groundwater is through wells. Wells have been used for centuries to provide water for drinking, irrigation, and other purposes. This post will delve into the intricacies of how do wells work, exploring the different types of wells, their components, and the processes involved in their construction and maintenance.

Table of Contents

Understanding Wells: An Overview

Wells are vertical shafts dug or drilled into the ground to access water from underground aquifers. These aquifers are layers of porous rock, sand, or gravel that hold water. The water in these aquifers is replenished through natural processes such as rainfall and snowmelt, making wells a sustainable source of water in many regions.

Types of Wells

There are several types of wells, each designed for specific purposes and conditions. The most common types include:

Dug Wells: These are shallow wells dug by hand or with machinery. They are typically lined with materials like concrete or brick to prevent collapse.
Driven Wells: These wells are created by driving a small-diameter pipe into the ground. They are usually shallow and are suitable for areas with high water tables.
Drilled Wells: These are the most common type of well, created by drilling a hole into the ground using specialized equipment. They can reach depths of hundreds of feet and are suitable for areas with deep water tables.
Artesian Wells: These wells tap into confined aquifers where the water is under pressure. The water can rise to the surface naturally without the need for a pump.

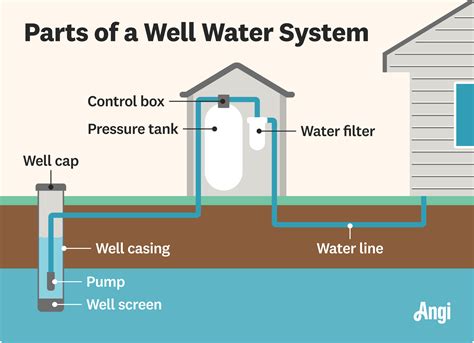

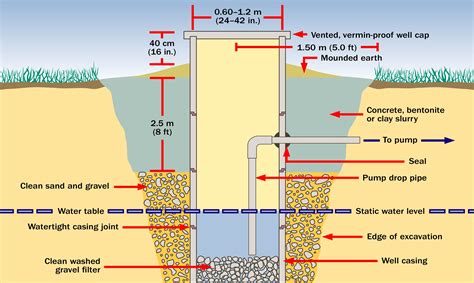

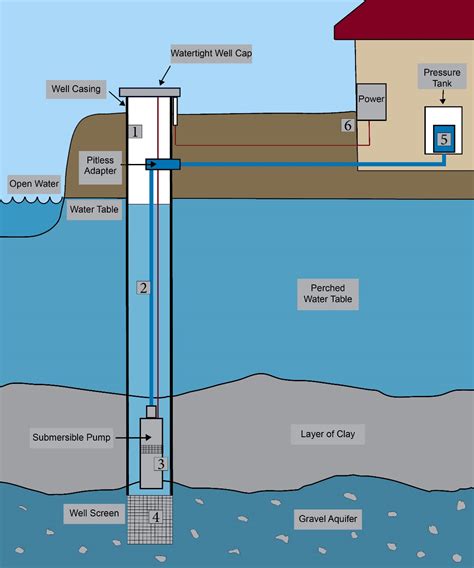

Components of a Well

Understanding how do wells work requires knowledge of their key components. The main parts of a well include:

Casing: A pipe that lines the well to prevent contamination and collapse. It is typically made of steel or PVC.
Screen: A filter at the bottom of the well that allows water to enter while keeping out sediment and debris.

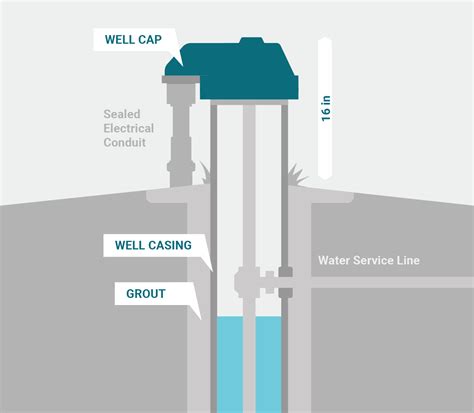

Grout: A sealant used to fill the space between the casing and the well bore to prevent surface water from entering the well.
Pump: A device used to bring water to the surface. Pumps can be submersible, jet, or centrifugal, depending on the well's depth and water table.
Well Cap: A seal at the top of the well to prevent contaminants from entering.

How Do Wells Work: The Construction Process

The construction of a well involves several steps, each crucial for ensuring the well's functionality and safety. Here is a detailed overview of the process:

Site Selection and Permitting

The first step in constructing a well is selecting an appropriate site. Factors to consider include the depth of the water table, the type of soil and rock, and the presence of potential contaminants. Once a site is chosen, permits must be obtained from local authorities to ensure compliance with regulations.

Drilling the Well

Drilling is the process of creating the well bore. This is typically done using a drilling rig that rotates a drill bit into the ground. The drilling process continues until the desired depth is reached, and water is encountered. The type of drilling method used can vary depending on the geological conditions and the depth of the well.

Installing the Casing

Once the well bore is drilled, a casing is installed to line the well. The casing prevents the well from collapsing and keeps out contaminants. It is typically made of steel or PVC and is cemented in place with grout.

Installing the Screen

The screen is installed at the bottom of the well to filter out sediment and debris. It allows water to enter the well while keeping out unwanted particles. The screen is designed to match the specific conditions of the aquifer.

Grouting the Well

Grouting involves filling the space between the casing and the well bore with a sealant. This prevents surface water and contaminants from entering the well. The grout is typically a mixture of cement, bentonite, and water.

Installing the Pump

The pump is the component that brings water to the surface. The type of pump used depends on the depth of the well and the water table. Submersible pumps are commonly used in deep wells, while jet pumps are suitable for shallower wells.

Testing the Well

After the well is constructed, it is tested to ensure it is functioning properly. This involves pumping water from the well and measuring the flow rate and water quality. Any issues identified during testing are addressed before the well is put into use.

📝 Note: Regular testing and maintenance are essential to ensure the well continues to provide safe and reliable water.

Maintaining a Well

Maintaining a well is crucial for ensuring its longevity and the safety of the water it provides. Regular maintenance tasks include:

Annual Inspections: Regular inspections by a professional can identify potential issues before they become major problems.
Water Testing: Testing the water quality annually can detect contaminants and ensure the water is safe to drink.
Pump Maintenance: Regular maintenance of the pump can prevent breakdowns and ensure efficient operation.
Well Cap Replacement: The well cap should be inspected and replaced if it becomes damaged or worn.
Bacteria Testing: Testing for bacteria, such as coliform and E. coli, is essential to ensure the water is safe for consumption.

By following these maintenance tasks, well owners can ensure their well continues to provide safe and reliable water for years to come.

📝 Note: Always consult with a professional well driller or water quality expert for specific maintenance needs and recommendations.

Common Issues with Wells

Despite regular maintenance, wells can encounter various issues. Some common problems include:

Low Water Pressure: This can be caused by a clogged screen, a malfunctioning pump, or a drop in the water table.
Contamination: Contaminants can enter the well through cracks in the casing, improper grouting, or surface water runoff.
Dry Wells: A well can go dry if the water table drops below the well's depth. This can be due to drought, overuse, or changes in the aquifer.
Sediment in Water: Excessive sediment in the water can indicate a problem with the screen or the aquifer.

Addressing these issues promptly is essential to prevent further damage and ensure the well continues to provide safe water.

📝 Note: If you notice any changes in water quality or pressure, contact a professional well driller immediately.

Environmental Impact of Wells

Wells can have both positive and negative environmental impacts. Understanding these impacts is crucial for sustainable water management. Some key points to consider include:

Positive Impacts:
- Provide a reliable source of water for drinking, irrigation, and other uses.
- Can be a sustainable water source if managed properly.
- Reduce the need for surface water sources, which can be more susceptible to contamination and depletion.
Negative Impacts:
- Overuse can lead to depletion of aquifers, causing wells to go dry.
- Contamination from improper well construction or maintenance can affect groundwater quality.
- Drilling and construction can disturb local ecosystems and habitats.

To mitigate these impacts, it is essential to follow best practices for well construction, maintenance, and water management. This includes regular testing, proper disposal of waste, and sustainable water use practices.

Well Construction Regulations

Well construction is regulated to ensure the safety and sustainability of groundwater resources. Regulations vary by region but generally include guidelines for:

Site Selection: Ensuring the well is located away from potential sources of contamination.
Drilling Methods: Specifying the types of drilling equipment and methods that can be used.
Casing and Grouting: Requiring the use of approved materials and techniques for casing and grouting.
Water Testing: Mandating regular water quality testing to ensure the water is safe for consumption.
Permitting: Requiring permits for well construction and maintenance to ensure compliance with regulations.

Adhering to these regulations is crucial for ensuring the well's safety and the protection of groundwater resources.

📝 Note: Always consult local regulations and guidelines before constructing or maintaining a well.

Well Water Treatment

Well water may require treatment to ensure it is safe for consumption. Common treatment methods include:

Filtration: Removing sediment, bacteria, and other contaminants using filters.
Disinfection: Killing bacteria and other microorganisms using chlorine, UV light, or other disinfectants.
Softening: Reducing the hardness of water by removing minerals like calcium and magnesium.
pH Adjustment: Balancing the pH level of the water to prevent corrosion and improve taste.

The specific treatment methods used will depend on the water quality and the contaminants present. Regular water testing can help determine the appropriate treatment methods.

📝 Note: Always consult with a water quality expert to determine the best treatment methods for your well water.

Well Water Quality

Ensuring the quality of well water is essential for health and safety. Factors that can affect well water quality include:

Geological Conditions: The type of rock and soil can influence the water's mineral content and pH level.
Surface Contaminants: Runoff from agricultural activities, industrial sites, and septic systems can introduce contaminants into the well.
Well Construction: Improper construction can allow contaminants to enter the well.
Maintenance: Regular maintenance is crucial for preventing contamination and ensuring water quality.

Regular water testing can help identify potential issues and ensure the water is safe for consumption. Common contaminants to test for include:

Contaminant	Source	Health Effects
Bacteria (Coliform, E. coli)	Fecal matter, septic systems	Gastrointestinal illness
Nitrates	Agricultural runoff, septic systems	Blue baby syndrome, metabolic disorders
Arsenic	Natural geological deposits	Cancer, skin lesions, neurological problems
Lead	Old plumbing, industrial sites	Neurological problems, developmental delays
Pesticides	Agricultural runoff	Cancer, neurological problems, reproductive issues

Addressing these contaminants promptly is essential to ensure the safety of the water.

📝 Note: Always consult with a water quality expert to determine the best testing and treatment methods for your well water.

Understanding how do wells work involves a comprehensive knowledge of their components, construction processes, and maintenance requirements. By following best practices and adhering to regulations, well owners can ensure their wells provide safe and reliable water for years to come. Regular testing, maintenance, and treatment are essential for maintaining water quality and preventing contamination. Whether for drinking, irrigation, or other uses, wells are a vital resource that requires careful management and understanding.
