How Cvt Works

Understanding how a Continuously Variable Transmission (CVT) works can be fascinating for anyone interested in automotive technology. Unlike traditional automatic transmissions, which use a fixed set of gears, a CVT uses a system of belts and pulleys to provide an infinite number of gear ratios. This design allows for smoother acceleration and improved fuel efficiency, making it a popular choice in modern vehicles.

Table of Contents

What is a Continuously Variable Transmission (CVT)?

A Continuously Variable Transmission (CVT) is a type of automatic transmission that can seamlessly change through an infinite number of effective gear ratios, covering a wide range of vehicle speeds. This is achieved through a system of belts and pulleys, which adjust the gear ratio continuously based on the driving conditions. The primary advantage of a CVT is its ability to keep the engine running at its most efficient RPM, leading to better fuel economy and smoother acceleration.

How CVT Works: The Basics

To understand how a CVT works, it’s essential to grasp the fundamental components and their functions. The key parts of a CVT include:

The drive pulley
The driven pulley
The belt or chain
The hydraulic system

The drive pulley is connected to the engine, while the driven pulley is connected to the wheels. The belt or chain transfers power between the two pulleys. The hydraulic system controls the width of the pulleys, adjusting the effective gear ratio.

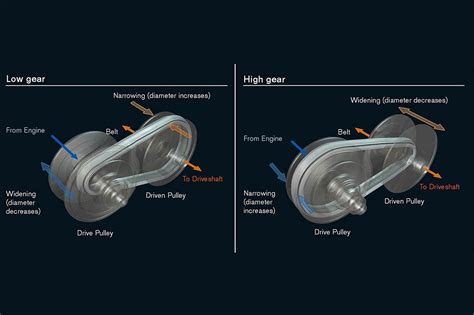

The Role of Pulleys and Belts

The pulleys in a CVT are designed to change their effective diameter, allowing for a continuous range of gear ratios. The drive pulley is connected to the engine and can adjust its width to change the diameter of the belt’s contact point. Similarly, the driven pulley, connected to the wheels, can also adjust its width. The belt or chain runs between these two pulleys, transferring power from the engine to the wheels.

When the vehicle is accelerating, the drive pulley narrows, increasing the effective diameter and allowing the engine to run at a higher RPM. Simultaneously, the driven pulley widens, decreasing its effective diameter. This combination allows the vehicle to accelerate smoothly while keeping the engine in its optimal RPM range. Conversely, when cruising at a constant speed, the pulleys adjust to maintain a lower, more fuel-efficient RPM.

Hydraulic System and Control

The hydraulic system in a CVT plays a crucial role in controlling the pulleys. It uses fluid pressure to adjust the width of the pulleys, which in turn changes the effective gear ratio. The system is controlled by an electronic control unit (ECU), which receives input from various sensors, including the throttle position, vehicle speed, and engine RPM. Based on this data, the ECU adjusts the hydraulic pressure to optimize performance and fuel efficiency.

Modern CVTs often include additional features such as a launch gear or a low-range mode to improve acceleration from a standstill. These features help overcome one of the traditional drawbacks of CVTs, which is their tendency to "bounce" or "rubber band" during hard acceleration. By providing a fixed gear ratio for initial acceleration, these features enhance the driving experience.

Advantages of CVT

CVTs offer several advantages over traditional automatic transmissions:

Improved Fuel Efficiency: By keeping the engine running at its most efficient RPM, CVTs can significantly improve fuel economy.
Smoother Acceleration: The continuous range of gear ratios allows for smoother and more responsive acceleration.
Reduced Wear and Tear: The lack of fixed gears means fewer moving parts, which can reduce wear and tear over time.
Compact Design: CVTs are generally more compact than traditional automatic transmissions, making them easier to fit into smaller vehicles.

Disadvantages of CVT

Despite their advantages, CVTs also have some drawbacks:

Limited Towing Capacity: CVTs may not be suitable for vehicles that require high towing capacity due to their design limitations.
Durability Concerns: While modern CVTs have improved significantly, they can still be less durable than traditional transmissions, especially under heavy use.
Driving Feel: Some drivers find the driving feel of a CVT less engaging compared to traditional transmissions, as it can feel more like a “rubber band” effect during acceleration.

Maintenance and Longevity

Maintaining a CVT involves regular checks and fluid changes. The transmission fluid in a CVT is crucial for its operation, as it lubricates the moving parts and helps transfer power. Regular fluid changes can extend the life of the CVT and ensure optimal performance. It’s also important to follow the manufacturer’s recommendations for maintenance intervals and to address any issues promptly.

While CVTs have improved significantly over the years, they can still be more prone to wear and tear compared to traditional transmissions. Proper maintenance and careful driving can help extend the lifespan of a CVT. Avoiding aggressive driving, especially in hilly or mountainous terrain, can also help reduce stress on the transmission.

🔧 Note: Always use the recommended transmission fluid specified by the vehicle manufacturer to ensure proper lubrication and performance.

Future of CVT Technology

The future of CVT technology looks promising, with ongoing advancements aimed at improving durability, efficiency, and driving feel. Manufacturers are continually refining the design and materials used in CVTs to address common issues and enhance performance. Additionally, the integration of advanced electronics and control systems is helping to optimize CVT operation and provide a more engaging driving experience.

As electric vehicles (EVs) become more prevalent, CVTs may also play a role in their powertrains. The smooth and efficient power delivery of a CVT can be beneficial for EVs, which often require precise control over motor speed and torque. However, the unique characteristics of electric motors may also lead to the development of new transmission technologies tailored specifically for EVs.

In summary, understanding how a CVT works involves grasping the interplay between pulleys, belts, and hydraulic systems. This technology offers significant advantages in terms of fuel efficiency and smooth acceleration, making it a popular choice for modern vehicles. While there are some drawbacks, ongoing advancements in CVT technology are addressing these issues and paving the way for even more efficient and durable transmissions in the future.

CVTs are a testament to the innovation and evolution in automotive technology. By providing a seamless and efficient power delivery system, they contribute to better fuel economy and a more enjoyable driving experience. As technology continues to advance, we can expect even more improvements in CVT design and performance, making them an integral part of the automotive landscape for years to come.
