When it comes to plumbing and automotive repairs, having the right hose clamp size is crucial for ensuring a secure and leak-free connection. A Hose Clamp Size Chart is an invaluable tool that helps you determine the correct size of hose clamps for various applications. This guide will walk you through the importance of using a hose clamp size chart, how to read it, and tips for selecting the right hose clamp for your needs.
Understanding Hose Clamps
Hose clamps are essential components in plumbing, automotive, and industrial applications. They are used to secure hoses onto fittings, ensuring a tight seal that prevents leaks. There are different types of hose clamps, including worm gear clamps, spring clamps, and T-bolt clamps, each suited for specific applications.
Why Use a Hose Clamp Size Chart?
A Hose Clamp Size Chart is a reference tool that provides the dimensions and specifications of various hose clamps. Using a size chart ensures that you select the correct clamp size for your hose and fitting, which is essential for several reasons:
- Prevents Leaks: The right size clamp ensures a tight seal, preventing fluid or gas leaks.
- Enhances Durability: Properly sized clamps distribute pressure evenly, reducing the risk of hose damage.
- Improves Performance: Correctly sized clamps maintain optimal flow rates and pressure within the system.
How to Read a Hose Clamp Size Chart
A typical Hose Clamp Size Chart includes columns for clamp size, hose inside diameter (ID), hose outside diameter (OD), and sometimes the band width. Here’s a breakdown of how to read and use the chart:
- Clamp Size: This refers to the size of the clamp, usually measured in inches or millimeters.
- Hose Inside Diameter (ID): The internal diameter of the hose, which is the space through which fluid or gas flows.
- Hose Outside Diameter (OD): The external diameter of the hose, which is crucial for selecting the correct clamp size.
- Band Width: The width of the clamp band, which affects the clamping force and distribution.

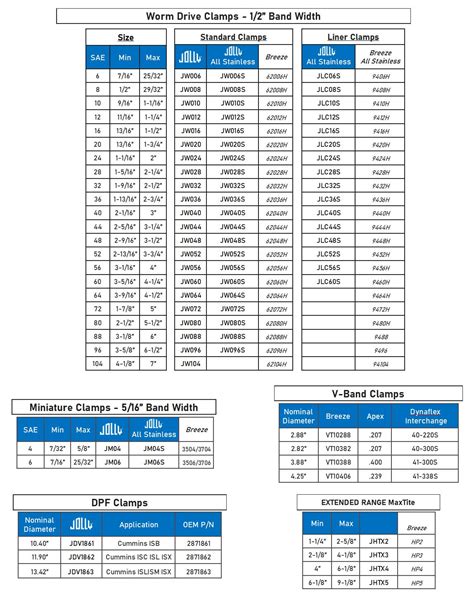

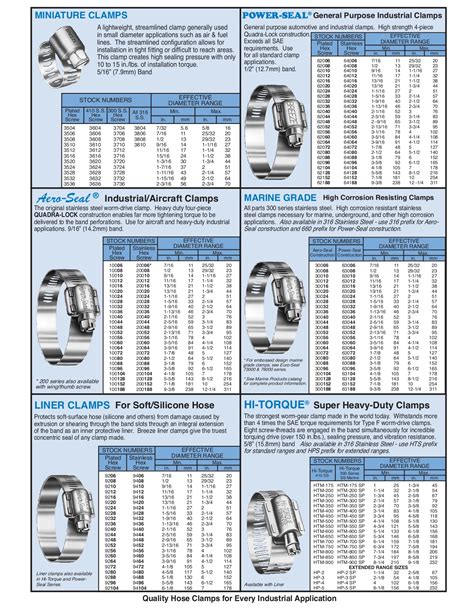

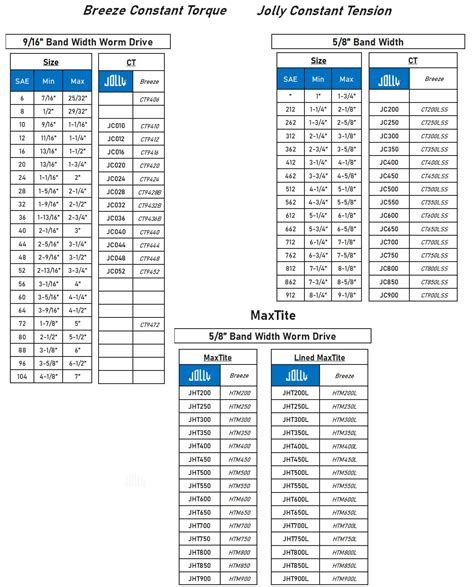

Here is an example of what a Hose Clamp Size Chart might look like:
| Clamp Size | Hose ID (inches) | Hose OD (inches) | Band Width (inches) |
|---|---|---|---|
| 1/4" | 0.25 | 0.375 | 0.25 |
| 3/8" | 0.375 | 0.500 | 0.375 |
| 1/2" | 0.500 | 0.625 | 0.500 |
| 5/8" | 0.625 | 0.750 | 0.625 |
| 3/4" | 0.750 | 0.875 | 0.750 |
To use the chart, measure the outside diameter of your hose and match it to the corresponding clamp size. Ensure that the clamp band width is also suitable for your application.
🔍 Note: Always double-check your measurements to ensure accuracy. A slight error can lead to an improper fit and potential leaks.
Types of Hose Clamps
Different types of hose clamps are designed for various applications. Understanding the differences can help you choose the right clamp for your needs:
Worm Gear Clamps
Worm gear clamps are the most common type, featuring a screw mechanism that tightens the clamp around the hose. They are easy to install and adjust, making them suitable for a wide range of applications.
Spring Clamps
Spring clamps use a spring-loaded mechanism to secure the hose. They are quick to install and provide a consistent clamping force, making them ideal for applications where frequent adjustments are not required.
T-Bolt Clamps
T-bolt clamps feature a T-shaped bolt that provides a strong and secure hold. They are often used in high-pressure applications where a robust seal is essential.
Constant Tension Clamps
Constant tension clamps maintain a consistent clamping force regardless of temperature changes. They are suitable for applications where temperature fluctuations are common.
Selecting the Right Hose Clamp
Choosing the right hose clamp involves considering several factors, including the type of hose, the application, and the environmental conditions. Here are some tips to help you select the appropriate clamp:
- Measure the Hose: Accurately measure the outside diameter of the hose to determine the correct clamp size.
- Consider the Application: Different applications require different types of clamps. For example, automotive applications may need worm gear clamps, while industrial applications might require T-bolt clamps.
- Check the Material: Ensure the clamp material is compatible with the fluid or gas being transported. Some materials may react with certain chemicals, leading to corrosion or degradation.
- Environmental Conditions: Consider the operating temperature and pressure of the system. Some clamps are designed to withstand extreme temperatures or high pressures.
By following these guidelines and using a Hose Clamp Size Chart, you can select the right hose clamp for your specific needs, ensuring a secure and leak-free connection.
🛠️ Note: Always refer to the manufacturer's guidelines for specific recommendations on hose clamp selection and installation.
In summary, a Hose Clamp Size Chart is an essential tool for anyone working with hoses and fittings. By understanding how to read the chart and selecting the right clamp for your application, you can ensure a secure and reliable connection. Whether you’re working on a plumbing project, automotive repair, or industrial application, using the correct hose clamp size is crucial for preventing leaks and maintaining system performance.
