The world of automotive engineering is filled with innovative designs, each with its unique advantages and applications. Among these, the horizontally opposed engine, also known as a boxer or flat engine, stands out due to its distinctive layout and performance characteristics. This engine configuration has been a staple in various high-performance vehicles, particularly those from Subaru and Porsche. Understanding the intricacies of the horizontally opposed engine provides valuable insights into its advantages, applications, and the reasons behind its enduring popularity.
What is a Horizontally Opposed Engine?
A horizontally opposed engine is characterized by its cylinder arrangement, where the cylinders are laid out in a flat, horizontal plane on either side of the crankshaft. This design contrasts with the more common inline and V-type engines, where cylinders are stacked vertically or arranged in a V-shape. The horizontally opposed configuration places the pistons in a boxer-like motion, hence the nickname "boxer engine."
Advantages of a Horizontally Opposed Engine
The horizontally opposed engine offers several advantages that make it a preferred choice for certain applications:
- Lower Center of Gravity: The flat layout of the cylinders results in a lower center of gravity, which enhances the vehicle's handling and stability. This is particularly beneficial in high-performance and rally cars.
- Reduced Vibration: The opposing pistons move in a balanced manner, which minimizes vibration and noise. This leads to a smoother and quieter operation compared to other engine types.
- Compact Design: The horizontally opposed engine is more compact in height, making it easier to fit into low-profile vehicles. This design is ideal for sports cars and convertibles where space is at a premium.
- Improved Cooling: The flat layout allows for better air circulation around the cylinders, which can improve cooling efficiency. This is crucial for maintaining optimal engine performance and longevity.
Applications of Horizontally Opposed Engines
The horizontally opposed engine has found its niche in various automotive applications, particularly in high-performance and luxury vehicles. Some notable examples include:
- Subaru: Subaru is renowned for its use of horizontally opposed engines, particularly in models like the Impreza, WRX, and Forester. These engines provide excellent traction and handling, making Subaru vehicles popular in rally racing and all-wheel-drive systems.
- Porsche: Porsche has long been associated with the horizontally opposed engine, using it in iconic models such as the 911. The flat-six engine in the 911 offers a unique driving experience with its smooth power delivery and distinctive sound.
- Volkswagen: Volkswagen has also utilized horizontally opposed engines in some of its models, including the Beetle and the Type 181. These engines are known for their reliability and efficiency.
Types of Horizontally Opposed Engines
Horizontally opposed engines come in various configurations, each with its own set of characteristics and applications. The most common types include:

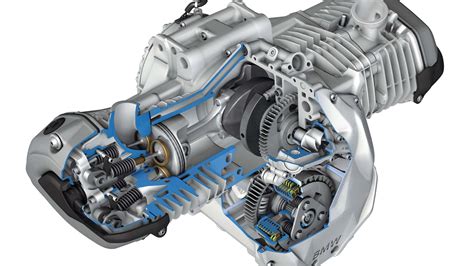

- Flat-Two Engine: This configuration features two cylinders arranged horizontally on either side of the crankshaft. It is often used in smaller vehicles and motorcycles due to its simplicity and compact size.
- Flat-Four Engine: The flat-four engine has four cylinders arranged in a flat layout. This configuration is popular in Subaru vehicles and offers a good balance between power and efficiency.
- Flat-Six Engine: The flat-six engine features six cylinders in a horizontally opposed layout. This configuration is renowned for its smooth operation and is commonly found in high-performance vehicles like the Porsche 911.
Here is a table summarizing the key features of different horizontally opposed engine types:
| Engine Type | Cylinder Count | Common Applications | Advantages |
|---|---|---|---|
| Flat-Two | 2 | Small cars, motorcycles | Compact size, simplicity |
| Flat-Four | 4 | Subaru vehicles | Balanced power, efficiency |
| Flat-Six | 6 | Porsche 911 | Smooth operation, high performance |
Challenges and Considerations
While the horizontally opposed engine offers numerous advantages, it also presents certain challenges and considerations:
- Complexity in Manufacturing: The horizontally opposed engine can be more complex and costly to manufacture due to its unique layout and the need for precise engineering.
- Maintenance and Repair: The flat layout can make access to certain engine components more difficult, potentially increasing maintenance and repair costs.
- Weight Distribution: Although the lower center of gravity is an advantage, the wider engine layout can affect weight distribution, requiring careful design considerations.
🔧 Note: Regular maintenance and proper care can mitigate many of the challenges associated with horizontally opposed engines, ensuring their longevity and performance.
Future of Horizontally Opposed Engines
The future of the horizontally opposed engine looks promising, with ongoing advancements in technology and engineering. As automotive manufacturers continue to innovate, we can expect to see more efficient and powerful horizontally opposed engines in a variety of vehicles. The focus on electric and hybrid technologies may also influence the design and application of these engines, leading to new and exciting developments.
In conclusion, the horizontally opposed engine is a remarkable innovation in automotive engineering, offering a unique blend of performance, efficiency, and reliability. Its distinctive layout and advantages make it a preferred choice for high-performance and luxury vehicles. As technology continues to evolve, the horizontally opposed engine will likely remain a key player in the automotive industry, driving innovation and excellence.
