In the realm of mechanical engineering and design, the hinge and pin mechanism stands as a fundamental component, enabling a wide range of applications from simple doors to complex machinery. This mechanism is crucial for allowing rotational movement between two parts, making it indispensable in various industries. Understanding the principles and applications of the hinge and pin mechanism can provide valuable insights into its versatility and importance.
Understanding the Hinge and Pin Mechanism

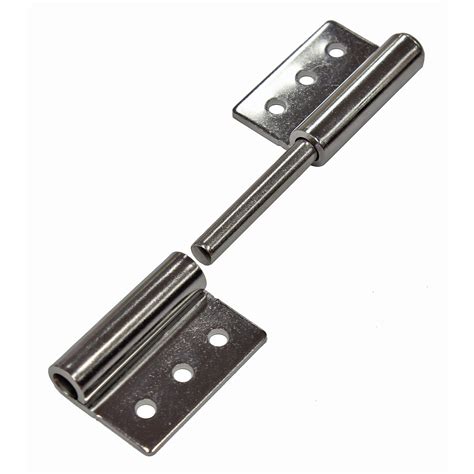

The hinge and pin mechanism is a basic yet essential component in mechanical systems. It consists of two main parts: the hinge and the pin. The hinge is a type of bearing that connects two solid objects, allowing one to swing relative to the other. The pin, on the other hand, is a cylindrical rod that fits into the hinge, providing the pivot point for rotational movement.
There are several types of hinges and pins, each designed for specific applications. Some common types include:

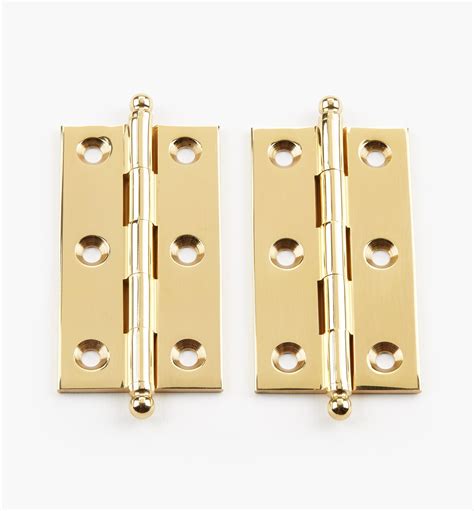

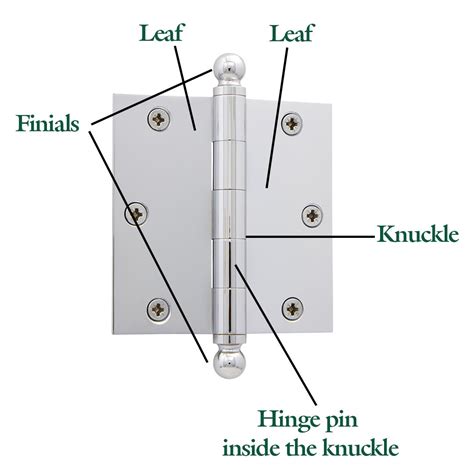

- Butt Hinges: These are the most common type, consisting of two leaves that are joined by a pin. They are often used in doors and cabinets.
- Piano Hinges: Also known as continuous hinges, these run the entire length of the door or lid, providing even support and smooth operation.
- Spring Hinges: These hinges have a built-in spring mechanism that helps to close the door or lid automatically.
- Concealed Hinges: These are hidden from view when the door is closed, providing a clean and seamless look.
The pin in a hinge and pin mechanism can also vary in design and material, depending on the application. Common materials for pins include steel, brass, and stainless steel, each offering different levels of durability and corrosion resistance.
Applications of the Hinge and Pin Mechanism
The hinge and pin mechanism is used in a wide variety of applications across different industries. Some of the most common applications include:
- Doors and Windows: Hinges are essential for the operation of doors and windows, allowing them to open and close smoothly.
- Cabinets and Furniture: Hinges are used in cabinets, drawers, and other furniture to provide smooth and quiet operation.
- Automotive Industry: Hinges are used in car doors, hoods, and trunks, as well as in the interior for seats and consoles.
- Aerospace Industry: Hinges are used in aircraft doors, landing gear, and control surfaces, where reliability and durability are critical.
- Medical Equipment: Hinges are used in medical devices and equipment, such as hospital beds, surgical tables, and diagnostic machines.
In addition to these common applications, the hinge and pin mechanism is also used in specialized equipment and machinery, such as:
- Robotics: Hinges are used in robotic arms and joints, allowing for precise and controlled movement.
- Construction Equipment: Hinges are used in excavators, cranes, and other heavy machinery to provide the necessary movement and support.
- Military Equipment: Hinges are used in tanks, armored vehicles, and other military equipment, where durability and reliability are essential.
Design Considerations for Hinge and Pin Mechanisms
When designing a hinge and pin mechanism, several factors must be considered to ensure optimal performance and durability. These factors include:
- Material Selection: The choice of material for the hinge and pin is crucial. Common materials include steel, brass, and stainless steel, each offering different levels of strength, durability, and corrosion resistance.
- Load Capacity: The hinge and pin must be able to withstand the expected load and stress. This includes both static and dynamic loads, as well as any potential impact or shock loads.
- Environmental Conditions: The hinge and pin must be able to operate in the expected environmental conditions, including temperature, humidity, and exposure to chemicals or corrosive substances.
- Maintenance Requirements: The design should consider the ease of maintenance and lubrication. Some hinges may require regular lubrication to ensure smooth operation and prevent wear.
- Safety Features: Depending on the application, the hinge and pin mechanism may need to include safety features, such as locking mechanisms or emergency release systems.
In addition to these factors, the design of the hinge and pin mechanism should also consider the specific requirements of the application, such as the desired range of motion, the need for precise alignment, and any space constraints.
Maintenance and Care of Hinge and Pin Mechanisms
Maintaining and caring for hinge and pin mechanisms is essential to ensure their longevity and reliable performance. Regular maintenance can prevent wear and tear, reduce the risk of failure, and extend the lifespan of the mechanism. Some key maintenance tasks include:
- Lubrication: Regular lubrication of the hinge and pin can help reduce friction and wear, ensuring smooth operation. The type and frequency of lubrication will depend on the specific application and environmental conditions.
- Cleaning: Regular cleaning of the hinge and pin can help remove dirt, debris, and corrosion, which can affect performance and longevity. Cleaning should be done using appropriate cleaning agents and tools.
- Inspection: Regular inspection of the hinge and pin can help identify any signs of wear, damage, or misalignment. Inspections should be conducted at regular intervals, depending on the application and usage.
- Adjustment: Over time, the hinge and pin may become misaligned or loose, affecting performance. Regular adjustment can help maintain proper alignment and tension, ensuring smooth operation.
It is important to follow the manufacturer's guidelines for maintenance and care, as well as any specific requirements for the application. Proper maintenance can help extend the lifespan of the hinge and pin mechanism and ensure reliable performance.
š§ Note: Always use the recommended lubricants and cleaning agents for your specific hinge and pin mechanism to avoid damage or reduced performance.
Common Issues and Troubleshooting
Despite proper maintenance, hinge and pin mechanisms can still encounter issues over time. Some common problems and their potential solutions include:
- Stiffness or Binding: If the hinge and pin become stiff or bind, it may be due to lack of lubrication, dirt, or corrosion. Regular lubrication and cleaning can help resolve this issue.
- Looseness or Play: If the hinge and pin become loose or have excessive play, it may be due to wear or misalignment. Adjusting the hinge or replacing worn parts can help resolve this issue.
- Noise: If the hinge and pin make noise during operation, it may be due to lack of lubrication, wear, or misalignment. Regular lubrication, adjustment, and inspection can help reduce noise.
- Corrosion: If the hinge and pin show signs of corrosion, it may be due to exposure to moisture or corrosive substances. Regular cleaning and the use of corrosion-resistant materials can help prevent corrosion.
If these common issues persist, it may be necessary to consult a professional or the manufacturer for further assistance. Proper troubleshooting and maintenance can help extend the lifespan of the hinge and pin mechanism and ensure reliable performance.
š ļø Note: Always consult the manufacturer's guidelines for troubleshooting and maintenance to avoid voiding warranties or causing further damage.
Innovations in Hinge and Pin Technology
The field of hinge and pin technology is continually evolving, with new innovations and advancements being developed to improve performance, durability, and efficiency. Some recent innovations include:
- Self-Lubricating Materials: New materials that incorporate self-lubricating properties can reduce the need for regular lubrication, making maintenance easier and more convenient.
- Advanced Coatings: Advanced coatings, such as ceramic or diamond-like carbon (DLC) coatings, can enhance the durability and corrosion resistance of hinges and pins.
- Smart Hinges: Smart hinges equipped with sensors and connectivity features can monitor performance, detect issues, and provide real-time data for maintenance and optimization.
- 3D Printing: 3D printing technology allows for the creation of custom hinges and pins with complex geometries, enabling more precise and efficient designs.
These innovations are driving the development of more advanced and reliable hinge and pin mechanisms, enhancing their performance and versatility in various applications.
Case Studies: Hinge and Pin Mechanisms in Action
To better understand the practical applications of hinge and pin mechanisms, let's explore a few case studies:
Automotive Industry
In the automotive industry, hinge and pin mechanisms are crucial for the operation of doors, hoods, and trunks. For example, a car door hinge must be able to withstand the weight of the door, provide smooth and quiet operation, and ensure proper alignment. The hinge and pin mechanism must also be durable enough to withstand the rigors of daily use and environmental conditions, such as temperature changes and exposure to moisture.
Aerospace Industry
In the aerospace industry, hinge and pin mechanisms are used in aircraft doors, landing gear, and control surfaces. These mechanisms must be highly reliable and durable, as failure can have catastrophic consequences. For example, the landing gear hinge must be able to withstand the impact of landing and the weight of the aircraft, while also providing smooth and controlled movement. Advanced materials and coatings are often used to enhance the durability and corrosion resistance of these mechanisms.
Medical Equipment
In the medical industry, hinge and pin mechanisms are used in a variety of equipment, such as hospital beds, surgical tables, and diagnostic machines. These mechanisms must be precise, reliable, and easy to clean. For example, a surgical table hinge must be able to provide precise and controlled movement, allowing surgeons to position the table accurately. The hinge and pin mechanism must also be easy to clean and disinfect to prevent the spread of infection.
Robotics
In robotics, hinge and pin mechanisms are used in robotic arms and joints, allowing for precise and controlled movement. For example, a robotic arm hinge must be able to provide smooth and accurate movement, enabling the robot to perform tasks with precision. The hinge and pin mechanism must also be durable and reliable, as failure can result in costly downtime and repairs.
Future Trends in Hinge and Pin Technology
The future of hinge and pin technology is promising, with several trends and developments on the horizon. Some of the key trends include:
- Advanced Materials: The development of new materials with enhanced properties, such as strength, durability, and corrosion resistance, will continue to drive innovation in hinge and pin technology.
- Smart Technology: The integration of smart technology, such as sensors and connectivity features, will enable real-time monitoring and optimization of hinge and pin mechanisms.
- Customization: The use of 3D printing and other advanced manufacturing techniques will allow for the creation of custom hinge and pin mechanisms tailored to specific applications.
- Sustainability: The focus on sustainability and environmental impact will drive the development of eco-friendly materials and manufacturing processes for hinge and pin mechanisms.
These trends will continue to shape the future of hinge and pin technology, enhancing their performance, durability, and versatility in various applications.
In conclusion, the hinge and pin mechanism is a fundamental component in mechanical engineering and design, enabling a wide range of applications from simple doors to complex machinery. Understanding the principles, applications, and design considerations of the hinge and pin mechanism can provide valuable insights into its versatility and importance. Proper maintenance and care, along with advancements in technology, will continue to enhance the performance and reliability of hinge and pin mechanisms, ensuring their continued use in various industries.
