Hall Effect Transducer

The world of industrial automation and control systems is vast and intricate, with numerous components working together to ensure smooth and efficient operations. Among these components, the Hall Effect Transducer stands out as a crucial element in various applications. This transducer leverages the Hall Effect, a phenomenon discovered by Edwin Hall in 1879, to measure magnetic fields and convert them into electrical signals. This capability makes it indispensable in industries ranging from automotive to aerospace, where precise measurement and control are paramount.

Understanding the Hall Effect

The Hall Effect is a fundamental principle in physics that describes the production of a voltage difference (Hall voltage) across an electrical conductor, transverse to an electric current in the conductor and a magnetic field perpendicular to the current. When a current-carrying conductor is placed in a magnetic field, the magnetic force deflects the moving charge carriers, creating a voltage difference across the conductor. This voltage is proportional to the strength of the magnetic field, making it a reliable method for measuring magnetic fields.

How a Hall Effect Transducer Works

A Hall Effect Transducer operates on the principle of the Hall Effect. It consists of a semiconductor material, typically a thin film or a Hall plate, through which an electric current is passed. When this current-carrying semiconductor is exposed to a magnetic field, a voltage difference (Hall voltage) is generated across the semiconductor. This voltage is then amplified and processed to provide a measurable output signal.

The basic components of a Hall Effect Transducer include:

A semiconductor material (Hall plate)
Electrical contacts to pass the current and measure the Hall voltage
An amplifier to boost the Hall voltage signal
A processing unit to convert the amplified signal into a usable output

The Hall voltage (VH) can be calculated using the formula:

📝 Note: The formula for Hall voltage is V_H = (I * B) / (n * e * t), where I is the current, B is the magnetic field, n is the charge carrier density, e is the elementary charge, and t is the thickness of the semiconductor.

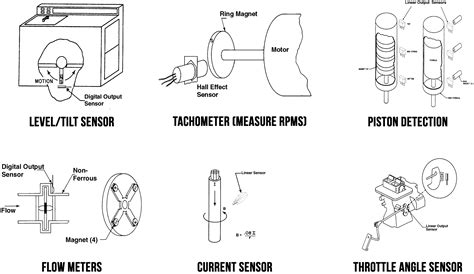

Applications of Hall Effect Transducers

The versatility of Hall Effect Transducers makes them suitable for a wide range of applications. Some of the key areas where these transducers are commonly used include:

Automotive Industry

In the automotive sector, Hall Effect Transducers are used in various systems such as:

Crankshaft and Camshaft Position Sensors: These sensors monitor the position and speed of the crankshaft and camshaft, ensuring precise engine timing and fuel injection.
Wheel Speed Sensors: Essential for anti-lock braking systems (ABS) and traction control systems, these sensors measure the rotational speed of the wheels.
Steering Angle Sensors: These sensors detect the angle of the steering wheel, aiding in stability control and advanced driver-assistance systems (ADAS).

Aerospace Industry

In aerospace, Hall Effect Transducers are used for critical applications such as:

Flight Control Systems: These systems rely on precise measurements of magnetic fields to control the aircraft’s flight surfaces and ensure stable flight.
Navigation Systems: Hall Effect Transducers are used in compasses and other navigation instruments to provide accurate directional information.
Engine Monitoring: These transducers help monitor the performance of aircraft engines by measuring magnetic fields generated by rotating components.

Industrial Automation

In industrial automation, Hall Effect Transducers are employed in various control systems, including:

Position and Proximity Sensors: These sensors detect the presence and position of objects, enabling precise control of machinery and automation processes.

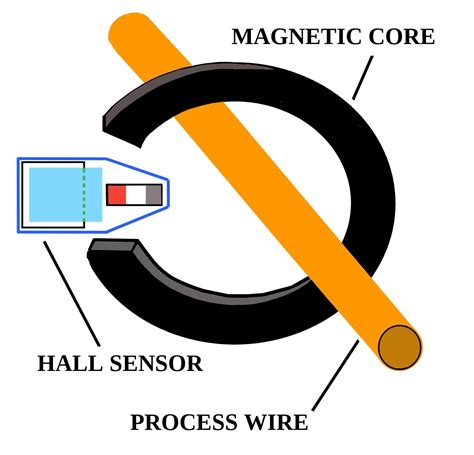

Current Sensors: Hall Effect Transducers are used to measure electrical currents in power systems, ensuring efficient and safe operation.
Speed and Direction Sensors: These sensors monitor the speed and direction of rotating machinery, aiding in process control and automation.

Consumer Electronics

In consumer electronics, Hall Effect Transducers are found in devices such as:

Smartphones and Tablets: These devices use Hall Effect sensors for features like automatic screen rotation and proximity detection.
Gaming Controllers: Hall Effect sensors are used to detect the position and movement of joysticks and other control elements.
Wearable Devices: These sensors are integrated into fitness trackers and smartwatches to monitor various parameters, including heart rate and movement.

Advantages of Hall Effect Transducers

Hall Effect Transducers offer several advantages that make them a preferred choice in many applications:

Non-Contact Measurement: Hall Effect Transducers can measure magnetic fields without physical contact, reducing wear and tear and increasing reliability.
High Sensitivity: These transducers are highly sensitive to magnetic fields, allowing for precise measurements even in weak fields.
Robustness: Hall Effect Transducers are robust and can operate in harsh environments, making them suitable for industrial and automotive applications.
Low Power Consumption: These transducers consume minimal power, making them ideal for battery-operated devices and portable electronics.
Fast Response Time: Hall Effect Transducers have a fast response time, enabling real-time monitoring and control.

Types of Hall Effect Transducers

Hall Effect Transducers come in various types, each designed for specific applications. Some of the common types include:

Linear Hall Effect Transducers

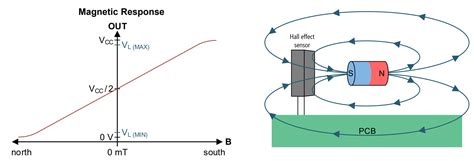

Linear Hall Effect Transducers provide an analog output proportional to the strength of the magnetic field. These transducers are used in applications where precise measurement of magnetic field strength is required, such as in current sensors and position sensors.

Digital Hall Effect Transducers

Digital Hall Effect Transducers provide a digital output, typically in the form of a switch signal, when the magnetic field strength exceeds a predefined threshold. These transducers are commonly used in proximity sensors and position detection applications.

Unipolar Hall Effect Transducers

Unipolar Hall Effect Transducers respond to magnetic fields in one direction only. They are used in applications where the magnetic field direction is known and consistent, such as in speed sensors and rotation detectors.

Bipolar Hall Effect Transducers

Bipolar Hall Effect Transducers respond to magnetic fields in both directions. These transducers are used in applications where the magnetic field direction can vary, such as in current sensors and position sensors.

Selection Criteria for Hall Effect Transducers

Choosing the right Hall Effect Transducer for a specific application involves considering several factors:

Magnetic Field Strength: The transducer should be capable of measuring the expected range of magnetic field strengths.
Response Time: The transducer’s response time should be suitable for the application’s requirements, especially in real-time monitoring and control systems.
Operating Temperature: The transducer should be able to operate reliably within the expected temperature range of the application.
Power Consumption: For battery-operated devices, low power consumption is crucial to ensure long battery life.
Output Type: The transducer’s output type (analog or digital) should match the requirements of the application.
Environmental Conditions: The transducer should be robust enough to withstand the environmental conditions of the application, such as vibration, shock, and humidity.

Here is a table summarizing the key selection criteria for Hall Effect Transducers:

Criteria	Description
Magnetic Field Strength	The range of magnetic field strengths the transducer can measure.
Response Time	The time it takes for the transducer to respond to changes in the magnetic field.
Operating Temperature	The temperature range within which the transducer can operate reliably.
Power Consumption	The amount of power the transducer consumes during operation.
Output Type	The type of output signal (analog or digital) provided by the transducer.
Environmental Conditions	The environmental factors the transducer can withstand, such as vibration, shock, and humidity.

Calibration and Maintenance of Hall Effect Transducers

To ensure accurate and reliable performance, Hall Effect Transducers require proper calibration and regular maintenance. Calibration involves adjusting the transducer's output to match a known reference value, ensuring that the measurements are accurate. Regular maintenance includes cleaning the transducer, checking for any physical damage, and verifying the electrical connections.

Calibration steps typically include:

Connecting the transducer to a calibration device that provides a known magnetic field.
Adjusting the transducer's output to match the reference value provided by the calibration device.
Verifying the calibration by comparing the transducer's output to the reference value at different magnetic field strengths.

Regular maintenance steps include:

Inspecting the transducer for any physical damage or wear.
Cleaning the transducer to remove any dirt or debris that could affect its performance.
Checking the electrical connections to ensure they are secure and free of corrosion.
Testing the transducer's output to verify that it is within the expected range.

📝 Note: Proper calibration and maintenance are essential for ensuring the accuracy and reliability of Hall Effect Transducers. Regular checks and adjustments can help prevent measurement errors and extend the lifespan of the transducer.

Future Trends in Hall Effect Transducer Technology

The field of Hall Effect Transducer technology is continually evolving, driven by advancements in materials science, electronics, and manufacturing processes. Some of the future trends in this technology include:

Miniaturization

As electronic devices become smaller and more compact, there is a growing demand for miniaturized Hall Effect Transducers. Advances in semiconductor technology and microfabrication techniques are enabling the development of smaller, more efficient transducers that can be integrated into compact devices.

Integration with IoT

The Internet of Things (IoT) is transforming various industries by enabling real-time monitoring and control of devices and systems. Hall Effect Transducers are being integrated into IoT devices to provide precise measurements of magnetic fields, enabling enhanced functionality and improved performance.

Enhanced Sensitivity

Researchers are continually working on improving the sensitivity of Hall Effect Transducers, allowing them to detect even weaker magnetic fields. This enhanced sensitivity opens up new applications in fields such as medical imaging, environmental monitoring, and scientific research.

Advanced Materials

The development of new materials, such as graphene and other two-dimensional materials, is paving the way for more efficient and sensitive Hall Effect Transducers. These materials offer unique properties that can enhance the performance of transducers, making them more reliable and accurate.

Smart Sensors

Smart sensors that integrate Hall Effect Transducers with advanced processing capabilities are becoming increasingly popular. These sensors can perform complex data analysis and provide real-time insights, enabling more intelligent and responsive control systems.

In conclusion, the Hall Effect Transducer is a versatile and essential component in various industries, offering precise measurement and control capabilities. Its applications range from automotive and aerospace to industrial automation and consumer electronics, making it a crucial element in modern technology. As the technology continues to evolve, we can expect to see even more innovative uses and advancements in Hall Effect Transducer technology, driving progress in numerous fields.
