Guitar Truss Rod Adjustment

Maintaining the playability and tone of your guitar involves more than just changing strings and tuning. One crucial aspect that often goes overlooked is the Guitar Truss Rod Adjustment. The truss rod is a metal rod that runs along the length of the guitar's neck, providing essential support and stability. Over time, changes in humidity, temperature, and string tension can cause the neck to warp, leading to issues like fret buzz, high action, or even a bowed neck. Adjusting the truss rod can help counteract these problems and restore your guitar to optimal playing condition.

Table of Contents

Understanding the Truss Rod

The truss rod is a critical component of your guitar’s neck. It is designed to counteract the tension exerted by the strings, which pull the neck forward. The truss rod works in conjunction with the strings to keep the neck straight and stable. There are two main types of truss rods:

Single-action truss rods: These rods can only adjust the relief (bow) in one direction, typically to counteract a backward bow.
Double-action truss rods: These rods can adjust the relief in both directions, allowing for more precise control over the neck’s curvature.

When to Adjust the Truss Rod

Knowing when to perform a Guitar Truss Rod Adjustment is essential. Here are some signs that indicate it’s time to adjust the truss rod:

Fret buzz: If you experience fret buzz when playing, it could be due to a bowed neck.
High action: If the strings are too high off the fretboard, making it difficult to play, the neck might be too straight.
Visible bowing: Inspect the neck from the headstock end. If you see a noticeable bow, it’s time for an adjustment.
String tension changes: If you’ve recently changed string gauges or added a tremolo system, the neck might need adjustment.

Tools Needed for Truss Rod Adjustment

Before you begin, gather the necessary tools:

A truss rod wrench (specific to your guitar model)
A feeler gauge or business card
A capo
A guitar tuner

Steps for Guitar Truss Rod Adjustment

Adjusting the truss rod requires careful attention to detail. Follow these steps to ensure a successful adjustment:

1. Relieve String Tension

Loosen the strings significantly to relieve tension on the neck. This makes it easier to adjust the truss rod and prevents any potential damage to the neck.

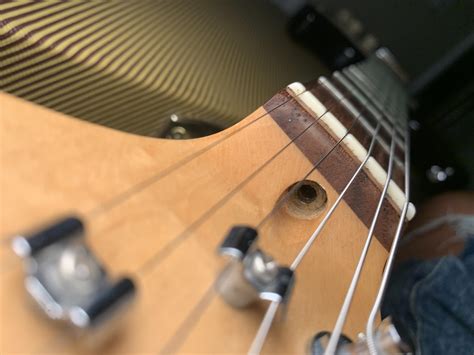

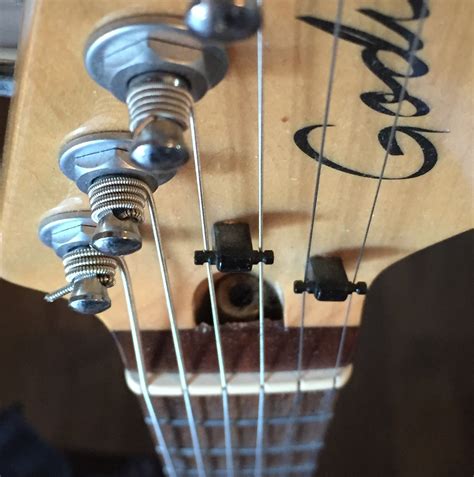

2. Locate the Truss Rod Adjustment Nut

The truss rod adjustment nut is usually located at the headstock end of the neck. It may be covered by a plastic or metal cap. Remove the cap to access the adjustment nut.

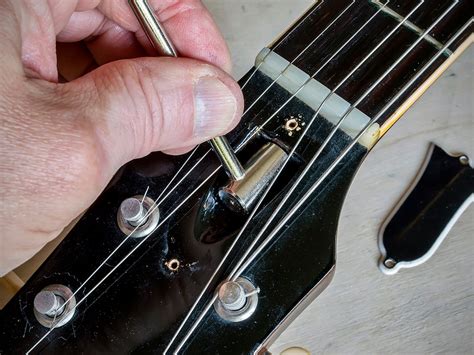

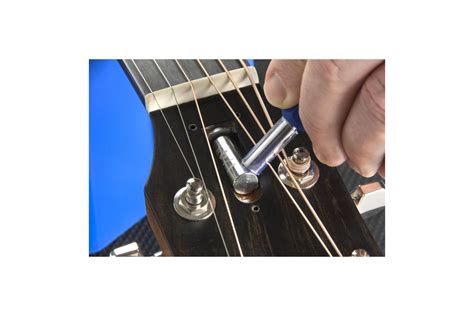

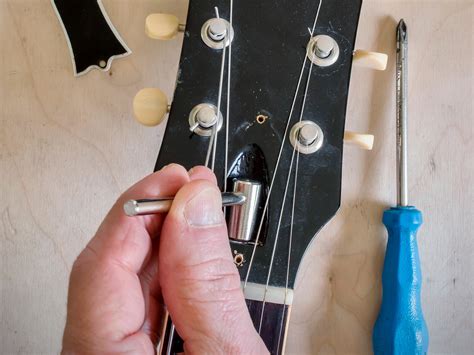

3. Insert the Truss Rod Wrench

Insert the truss rod wrench into the adjustment nut. Ensure it fits snugly to avoid stripping the nut.

4. Assess the Neck Relief

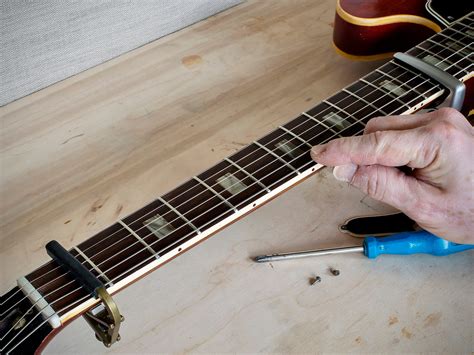

Place a capo on the first fret and press down on the low E string at the last fret. Use a feeler gauge or business card to measure the gap between the string and the fretboard at the 7th or 8th fret. The ideal relief is usually around 0.010” to 0.012” (0.25mm to 0.30mm).

5. Adjust the Truss Rod

If the neck has too much relief (back bow), turn the truss rod wrench clockwise to tighten the truss rod. If the neck is too straight or has a forward bow, turn the wrench counterclockwise to loosen the truss rod. Make small adjustments (¹⁄₄ to ¹⁄₂ turn) and recheck the relief after each adjustment.

6. Retune and Recheck

After making adjustments, retune the guitar and recheck the relief. It may take several iterations to achieve the desired neck relief.

7. Final Tune and Setup

Once the neck relief is correct, retune the guitar to standard pitch and perform a complete setup, including adjusting the bridge height, intonation, and string action.

🛠️ Note: Always make small adjustments and recheck the relief frequently. Over-tightening or over-loosening the truss rod can cause permanent damage to the neck.

🛠️ Note: If you are unsure about performing the adjustment yourself, consult a professional guitar technician.

Adjusting the truss rod is a crucial part of guitar maintenance that can significantly improve playability and tone. By understanding the truss rod's function and following the proper steps for adjustment, you can ensure your guitar stays in optimal condition. Regularly checking and adjusting the truss rod as needed will help maintain the neck's stability and prevent potential issues.

Remember, the key to successful Guitar Truss Rod Adjustment is patience and precision. Take your time, make small adjustments, and always recheck the relief to achieve the best results. With practice, you’ll become more comfortable with the process and be able to keep your guitar playing great for years to come.
