Understanding the intricacies of a Graphics Card Power Pinout is crucial for anyone looking to upgrade or build a high-performance PC. Whether you're a seasoned PC enthusiast or a novice, knowing how to properly connect and manage the power supply to your graphics card can significantly impact your system's stability and performance. This guide will walk you through the essentials of Graphics Card Power Pinout, including the types of connectors, how to identify them, and best practices for ensuring a secure and efficient power connection.
Understanding Graphics Card Power Requirements
Modern graphics cards, especially those designed for high-end gaming and professional applications, require substantial power to operate efficiently. The power requirements can vary widely depending on the model and manufacturer. Understanding these requirements is the first step in ensuring your system can support your graphics card.
Graphics cards typically come with a power rating specified in watts (W). This rating indicates the amount of power the card needs to function properly. For example, a high-end graphics card might require 300W or more, while a mid-range card might need around 150W. It's essential to ensure that your power supply unit (PSU) can provide enough power to meet these requirements, along with the power needs of other components in your system.
Types of Power Connectors
Graphics cards use specific power connectors to draw power from the PSU. The most common types of power connectors for graphics cards are the 6-pin and 8-pin PCIe power connectors. Understanding these connectors is crucial for ensuring a proper connection.
6-Pin PCIe Power Connector
The 6-pin PCIe power connector is a standard connector used in many graphics cards. It provides 75 watts of power, which is sufficient for mid-range graphics cards. This connector has two rows of three pins each, with a unique shape that prevents incorrect insertion.
8-Pin PCIe Power Connector
The 8-pin PCIe power connector is more robust and provides 150 watts of power. It is commonly used in high-end graphics cards that require more power. This connector has two rows of four pins each, similar to the 6-pin connector but with an additional row of pins.
6+2-Pin PCIe Power Connector
Some graphics cards come with a 6+2-pin PCIe power connector, which is a hybrid connector. It can be used as either a 6-pin or an 8-pin connector by detaching the two-pin segment. This design offers flexibility, allowing the card to be used with different power supplies.
Identifying the Correct Power Connector
Identifying the correct power connector for your graphics card is straightforward. Most graphics cards come with a label or sticker indicating the type and number of power connectors required. Additionally, the user manual or specifications sheet provided by the manufacturer will list the power requirements and the type of connectors needed.
If you're unsure about the power requirements of your graphics card, you can usually find this information on the manufacturer's website or by searching for the model number online. It's essential to double-check this information to ensure compatibility with your PSU.

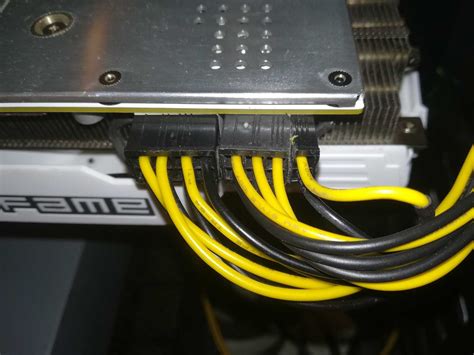

Connecting the Power Connectors
Connecting the power connectors to your graphics card is a simple process, but it requires careful attention to detail. Here are the steps to ensure a secure and proper connection:
- Turn off and unplug your PC: Before handling any internal components, make sure your PC is turned off and unplugged from the power source to prevent any electrical hazards.
- Open the PC case: Remove the side panel of your PC case to access the internal components.
- Locate the graphics card: Identify the PCIe slot where your graphics card is installed.
- Identify the power connectors: Locate the power connectors on your PSU that match the requirements of your graphics card.
- Connect the power connectors: Align the power connectors with the corresponding ports on your graphics card and firmly press them into place. Ensure that the connectors are fully seated and secure.
- Close the PC case: Once the power connectors are securely attached, close the side panel of your PC case.
- Plug in and power on your PC: Reconnect your PC to the power source and turn it on. Your graphics card should now be receiving the necessary power.
🔧 Note: Always ensure that the power connectors are fully seated and secure. A loose connection can cause instability or even damage to your graphics card.
Best Practices for Graphics Card Power Management
Proper power management is essential for maintaining the health and performance of your graphics card. Here are some best practices to follow:
- Use a high-quality PSU: Investing in a high-quality PSU with sufficient wattage and efficient power delivery is crucial. A reliable PSU ensures stable power supply to your graphics card and other components.
- Check power cable lengths: Ensure that the power cables from your PSU are long enough to reach the graphics card without strain. Short cables can cause tension and potentially damage the connectors.
- Avoid overloading the PSU: Ensure that your PSU has enough capacity to handle the power requirements of all your components. Overloading the PSU can lead to instability and potential damage.
- Monitor temperatures: Keep an eye on the temperatures of your graphics card and PSU. High temperatures can indicate power issues or inadequate cooling, which can affect performance and longevity.
- Regularly update drivers: Keeping your graphics card drivers up to date ensures optimal performance and compatibility with the latest software and games.
Troubleshooting Common Issues
Even with careful installation and management, issues can arise with Graphics Card Power Pinout. Here are some common problems and their solutions:
Graphics Card Not Powering On
If your graphics card is not powering on, check the following:
- Power connectors: Ensure that all power connectors are securely attached to the graphics card and the PSU.
- PSU power: Verify that the PSU is providing power to the system. Check the power switch on the PSU and ensure it is turned on.
- Cable connections: Inspect all cable connections to ensure they are properly seated and secure.
System Instability
If your system is experiencing instability, such as random reboots or crashes, it could be due to power issues. Check the following:
- PSU capacity: Ensure that your PSU has enough wattage to support all components, including the graphics card.
- Power connectors: Verify that all power connectors are securely attached and not loose.
- Cable quality: Use high-quality power cables to ensure stable power delivery.
Overheating
Overheating can be a sign of power issues or inadequate cooling. Check the following:
- Cooling system: Ensure that your cooling system is functioning properly and that there is adequate airflow in your PC case.
- Thermal paste: Apply fresh thermal paste between the graphics card and its cooler to improve heat transfer.
- Power management: Monitor the power consumption of your graphics card and ensure it is within safe limits.
🔧 Note: If you continue to experience issues, consider consulting a professional or seeking advice from the manufacturer's support team.
Conclusion
Understanding the Graphics Card Power Pinout is essential for ensuring the stability and performance of your PC. By knowing the types of power connectors, identifying the correct ones, and following best practices for power management, you can avoid common issues and enjoy a smooth computing experience. Regular maintenance and troubleshooting can help address any problems that arise, ensuring that your graphics card operates efficiently and reliably.
