Understanding the differences between GFI vs GFCI is crucial for anyone involved in electrical work, whether you're a professional electrician or a DIY enthusiast. Both Ground Fault Circuit Interrupters (GFCI) and Ground Fault Interrupters (GFI) play vital roles in electrical safety, but they serve different purposes and have distinct functionalities. This guide will delve into the specifics of each, helping you make informed decisions about when and where to use them.
Understanding Ground Fault Circuit Interrupters (GFCI)
A Ground Fault Circuit Interrupter, commonly known as a GFCI, is a safety device designed to protect people from electrical shocks. It works by monitoring the electrical current flowing through a circuit. If it detects a ground fault, which occurs when electricity escapes the intended path and flows through a person or a conductive material, the GFCI quickly interrupts the circuit, preventing potential harm.
GFCIs are particularly important in areas where water is present, such as kitchens, bathrooms, and outdoor spaces. They are required by electrical codes in these locations to ensure safety. There are several types of GFCIs, including:

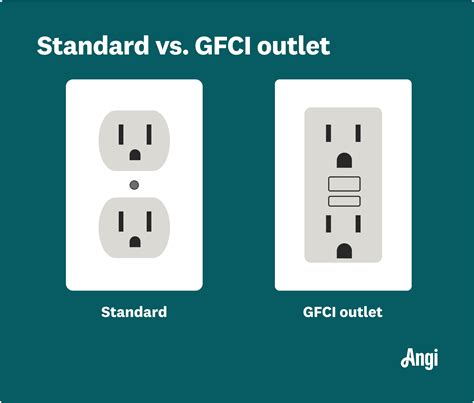

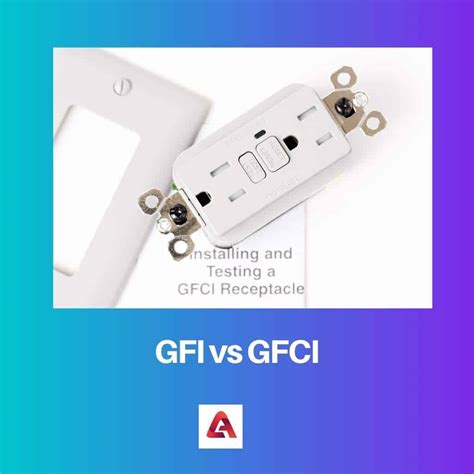

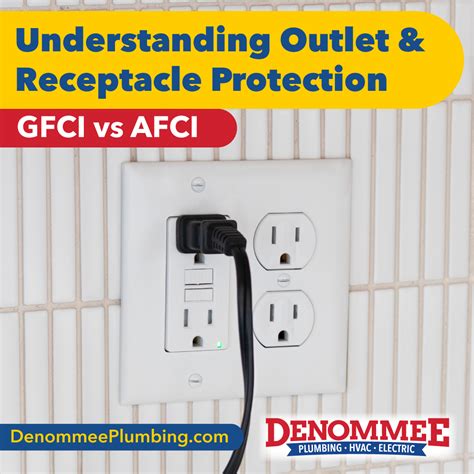

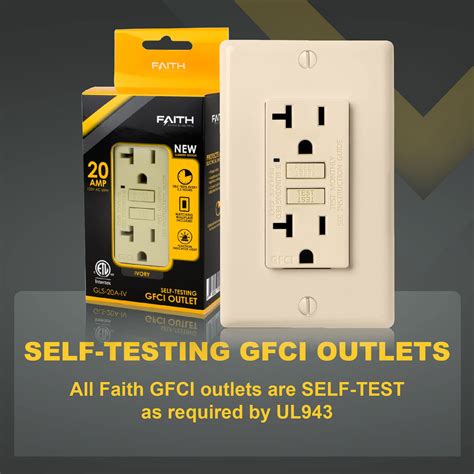

- Receptacle GFCIs: These are installed in place of standard outlets and provide protection for the outlet itself and any downstream outlets on the same circuit.

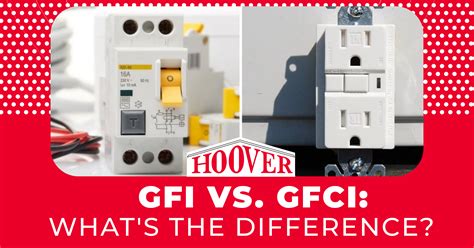

- Circuit Breaker GFCIs: These are installed in the main electrical panel and protect the entire circuit, including all outlets and fixtures on that circuit.
- Portable GFCIs: These are plug-in devices that can be used to protect any outlet temporarily.
📝 Note: Always ensure that GFCIs are tested regularly to confirm they are functioning correctly. Most GFCIs have a built-in test button that should be pressed monthly to verify their operation.
Understanding Ground Fault Interrupters (GFI)
A Ground Fault Interrupter, often abbreviated as GFI, is a more general term that can refer to any device designed to interrupt a ground fault. While the term is sometimes used interchangeably with GFCI, it is important to note that not all GFIs are GFCIs. The primary function of a GFI is to detect and interrupt ground faults, but the specific mechanisms and applications can vary.
GFIs can be found in various forms, including:
- Equipment GFIs: These are designed to protect specific pieces of equipment, such as power tools or machinery, from ground faults.
- Isolation Transformers: These devices use a transformer to isolate the electrical circuit, providing an additional layer of protection against ground faults.
- Ground Fault Protection for Equipment (GFPE): These are used in industrial settings to protect equipment from ground faults, which can cause damage or fires.
📝 Note: When selecting a GFI, it is essential to choose the right type for your specific application. For example, an equipment GFI is not suitable for protecting outlets in a bathroom, where a GFCI would be more appropriate.
Key Differences Between GFCI and GFI
While both GFCI and GFI serve to protect against ground faults, there are several key differences between the two. Understanding these differences is crucial for selecting the right device for your needs.
Here is a table that summarizes the key differences between GFCI and GFI:
| Feature | GFCI | GFI |
|---|---|---|
| Primary Use | Protects people from electrical shocks in wet or damp locations | Protects equipment from ground faults |
| Types | Receptacle, Circuit Breaker, Portable | Equipment, Isolation Transformers, GFPE |
| Application | Kitchens, Bathrooms, Outdoor Spaces | Industrial Equipment, Power Tools, Machinery |
| Protection Mechanism | Monitors electrical current and interrupts the circuit if a ground fault is detected | Various mechanisms depending on the type of GFI |
When to Use GFCI vs GFI
Choosing between a GFCI and a GFI depends on the specific application and the level of protection required. Here are some guidelines to help you decide:
- Use a GFCI when you need to protect people from electrical shocks in areas where water is present. This includes kitchens, bathrooms, laundry rooms, and outdoor spaces. GFCIs are also required by electrical codes in these locations.
- Use a GFI when you need to protect equipment from ground faults. This includes industrial settings, power tools, and machinery. GFIs are designed to prevent damage to equipment and reduce the risk of fires.
📝 Note: Always consult local electrical codes and regulations to ensure compliance when installing GFCIs or GFIs. Improper installation can lead to safety hazards and legal issues.
Installation and Maintenance
Proper installation and maintenance are essential for ensuring the effectiveness of GFCIs and GFIs. Here are some tips for installation and maintenance:
- Installation: Follow the manufacturer's instructions carefully when installing GFCIs or GFIs. Ensure that the device is properly grounded and that all connections are secure. For GFCIs, it is important to test the device after installation to confirm it is functioning correctly.
- Maintenance: Regularly test GFCIs and GFIs to ensure they are working properly. For GFCIs, press the test button monthly and reset the device to confirm it is functioning. For GFIs, follow the manufacturer's recommendations for testing and maintenance.
- Replacement: Replace any GFCI or GFI that fails a test or shows signs of damage. Do not attempt to repair a faulty device; always replace it with a new one.
📝 Note: If you are not comfortable with electrical work, it is best to hire a licensed electrician to install and maintain GFCIs and GFIs. Electrical work can be dangerous and should only be performed by qualified professionals.
Common Misconceptions About GFCI and GFI
There are several misconceptions about GFCIs and GFIs that can lead to confusion and improper use. Here are some common myths debunked:
- Myth 1: GFCIs and GFIs are the same thing. While the terms are sometimes used interchangeably, they are not the same. GFCIs are a specific type of GFI designed to protect people from electrical shocks.
- Myth 2: GFCIs are only needed in new construction. GFCIs are required by electrical codes in both new and existing construction in areas where water is present. It is important to update older homes with GFCIs to ensure safety.
- Myth 3: GFIs are only for industrial use. While GFIs are commonly used in industrial settings, they can also be used in residential and commercial applications to protect equipment from ground faults.
📝 Note: Always rely on accurate information when making decisions about electrical safety. Consult reputable sources and professionals to ensure you are using the right devices for your needs.
Understanding the differences between GFCI and GFI is essential for ensuring electrical safety in various settings. GFCIs are designed to protect people from electrical shocks in wet or damp locations, while GFIs are used to protect equipment from ground faults. By choosing the right device for your specific application and following proper installation and maintenance practices, you can enhance safety and prevent potential hazards. Whether you are a professional electrician or a DIY enthusiast, knowing the distinctions between GFCI and GFI will help you make informed decisions and ensure the safety of your electrical systems.
