Gfci Outlet Wiring

Electrical safety is paramount in any home or workplace, and one of the most critical components in ensuring this safety is the Ground Fault Circuit Interrupter (GFCI) outlet. GFCI outlets are designed to protect against electrical shocks by monitoring the flow of electricity and shutting off power when an imbalance is detected. Understanding GFCI outlet wiring is essential for anyone looking to install or maintain these safety devices. This guide will walk you through the process of wiring a GFCI outlet, highlighting key steps and important considerations.

Table of Contents

Understanding GFCI Outlets

Before diving into the wiring process, it’s important to understand what a GFCI outlet is and why it’s crucial. A GFCI outlet is a type of electrical outlet that includes a built-in circuit breaker. This breaker trips and shuts off the power when it detects a ground fault, which is an imbalance between the hot and neutral wires. This imbalance can occur when electricity flows through an unintended path, such as through a person, which can result in a severe shock.

Tools and Materials Needed

To wire a GFCI outlet, you will need the following tools and materials:

GFCI outlet
Screwdriver (flathead and Phillips)
Wire stripper
Wire nuts
Electrical tape
Non-contact voltage tester

Safety Precautions

Before beginning any electrical work, it’s crucial to follow these safety precautions:

Turn off the power to the circuit you will be working on at the main electrical panel.
Use a non-contact voltage tester to ensure the power is off.
Wear appropriate safety gear, including insulated gloves and safety glasses.
Avoid working in damp or wet conditions.

Step-by-Step Guide to GFCI Outlet Wiring

Wiring a GFCI outlet involves several steps. Follow this guide carefully to ensure a safe and proper installation.

Step 1: Turn Off the Power

Before you begin, turn off the power to the circuit at the main electrical panel. Use a non-contact voltage tester to confirm that the power is off.

Step 2: Remove the Old Outlet

Remove the faceplate and unscrew the old outlet from the electrical box. Pull the outlet out of the box and disconnect the wires. Note the wire colors and their connections for reference.

Step 3: Prepare the Wires

Strip about ½ inch of insulation from the ends of the wires using a wire stripper. Ensure the wires are clean and free of any damage.

Step 4: Connect the Wires to the GFCI Outlet

Connect the wires to the GFCI outlet according to the manufacturer’s instructions. Typically, the connections will be as follows:

Black wire (hot) to the brass screw or black terminal.
White wire (neutral) to the silver screw or white terminal.
Green or bare wire (ground) to the green screw or ground terminal.

If you are wiring multiple outlets in a series, you will also need to connect the load wires to the appropriate terminals on the GFCI outlet.

Step 5: Secure the GFCI Outlet

Once the wires are connected, carefully push the GFCI outlet back into the electrical box. Secure it with screws and attach the faceplate.

Step 6: Test the GFCI Outlet

Turn the power back on at the main electrical panel. Use a GFCI tester to ensure the outlet is functioning correctly. The tester will indicate if the GFCI outlet is properly protecting against ground faults.

🔧 Note: Always double-check your connections and ensure the wires are securely fastened to the terminals. Loose connections can cause overheating and potential fires.

Troubleshooting Common Issues

Even with careful installation, you may encounter issues with your GFCI outlet. Here are some common problems and their solutions:

Outlet Does Not Power On

If the GFCI outlet does not power on, check the following:

Ensure the power is turned on at the main electrical panel.
Verify that the wires are properly connected to the GFCI outlet.
Check for any tripped breakers or GFCI outlets upstream.

Outlet Trips Frequently

If the GFCI outlet trips frequently, it may be due to:

A faulty appliance or device plugged into the outlet.
Moisture or water near the outlet.
A wiring issue, such as a short circuit or ground fault.

Outlet Does Not Protect Against Ground Faults

If the GFCI outlet does not protect against ground faults, it may be due to:

Incorrect wiring.
A faulty GFCI outlet.
An issue with the electrical circuit.

🛠️ Note: If you are unsure about any aspect of the installation or troubleshooting process, consult a licensed electrician. Electrical work can be dangerous and should only be performed by qualified individuals.

Advanced GFCI Outlet Wiring

For more complex electrical systems, you may need to wire multiple GFCI outlets in a series or use a GFCI breaker. Here are some advanced wiring techniques:

Wiring Multiple GFCI Outlets

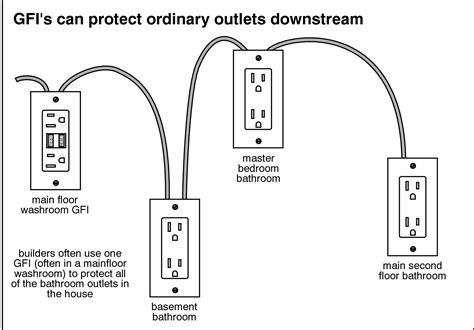

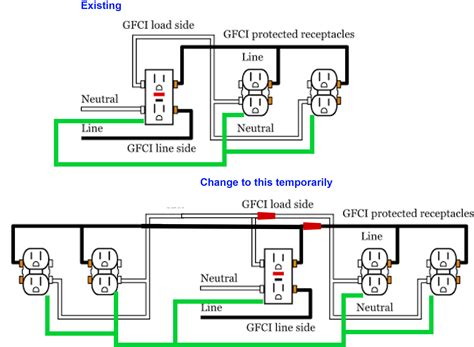

If you need to protect multiple outlets with a single GFCI outlet, you can wire them in a series. This involves connecting the load wires from the first GFCI outlet to the line wires of the subsequent outlets. Ensure that each outlet is properly labeled and that the GFCI protection is clearly indicated.

Using a GFCI Breaker

A GFCI breaker provides protection for an entire circuit rather than a single outlet. This can be a more convenient option for protecting multiple outlets and appliances. To install a GFCI breaker, follow these steps:

Turn off the power to the main electrical panel.
Remove the existing breaker and install the GFCI breaker in its place.
Connect the wires to the GFCI breaker according to the manufacturer’s instructions.
Turn the power back on and test the GFCI breaker to ensure it is functioning correctly.

Maintaining Your GFCI Outlets

Regular maintenance is essential to ensure the continued safety and functionality of your GFCI outlets. Here are some tips for maintaining your GFCI outlets:

Regular Testing

Test your GFCI outlets monthly to ensure they are functioning correctly. Use a GFCI tester or press the test button on the outlet to verify that it trips and shuts off the power.

Inspect for Damage

Inspect your GFCI outlets regularly for any signs of damage, such as cracks, burns, or loose connections. Replace any damaged outlets immediately.

Keep Outlets Dry

Ensure that your GFCI outlets are not exposed to moisture or water. Install outlets in dry locations and use weather-resistant covers for outdoor outlets.

🔧 Note: Always follow the manufacturer's instructions for testing and maintaining your GFCI outlets. Proper maintenance can extend the lifespan of your outlets and ensure they continue to provide reliable protection.

Common Mistakes to Avoid

When performing GFCI outlet wiring, it’s important to avoid common mistakes that can compromise safety and functionality. Here are some mistakes to avoid:

Incorrect Wire Connections

Ensure that the wires are connected to the correct terminals on the GFCI outlet. Incorrect connections can cause the outlet to malfunction or fail to provide protection.

Overloading the Circuit

Avoid overloading the circuit by plugging in too many devices or appliances. Overloading can cause the GFCI outlet to trip frequently or even damage the outlet.

Ignoring Safety Precautions

Always follow safety precautions when working with electrical components. Failure to do so can result in electrical shocks, fires, or other hazards.

Using Damaged Outlets

Do not use damaged or faulty GFCI outlets. Replace any outlets that show signs of wear or damage to ensure continued safety and functionality.

🛠️ Note: If you are unsure about any aspect of GFCI outlet wiring or maintenance, consult a licensed electrician. Electrical work can be dangerous and should only be performed by qualified individuals.

Conclusion

Gfci outlet wiring is a crucial aspect of electrical safety in any home or workplace. By understanding the basics of GFCI outlets and following proper wiring techniques, you can ensure that your electrical system is safe and reliable. Regular testing and maintenance are essential to keep your GFCI outlets functioning correctly and providing the protection you need. Whether you are installing a single GFCI outlet or wiring multiple outlets in a series, following these guidelines will help you achieve a safe and effective installation.
