Geneva Gear Mechanism

The Geneva Gear Mechanism, also known as the Geneva drive or Maltese cross mechanism, is a fascinating mechanical device that converts continuous rotational motion into intermittent rotational motion. This mechanism is widely used in various applications, from watches and clocks to automated machinery and film projectors. Its unique design and functionality make it a subject of interest for engineers, hobbyists, and enthusiasts alike.

Table of Contents

Understanding the Geneva Gear Mechanism

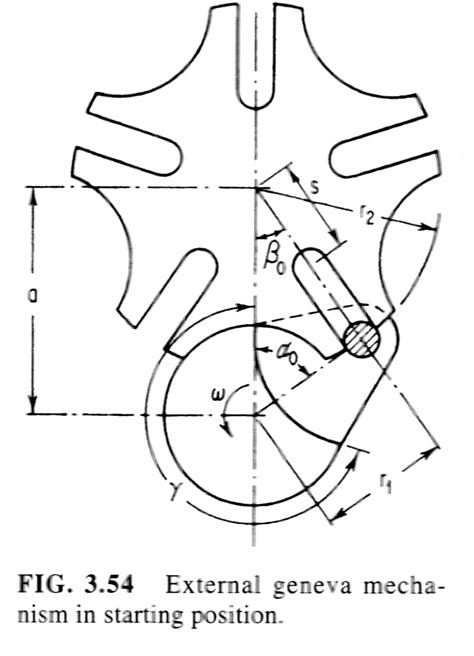

The Geneva Gear Mechanism consists of two main components: the driver and the driven wheel. The driver is typically a rotating disk with a pin or a set of pins that engage with slots on the driven wheel. The driven wheel, often shaped like a Maltese cross, has slots that correspond to the pins on the driver. As the driver rotates, the pins engage with the slots, causing the driven wheel to rotate in a stepwise manner.

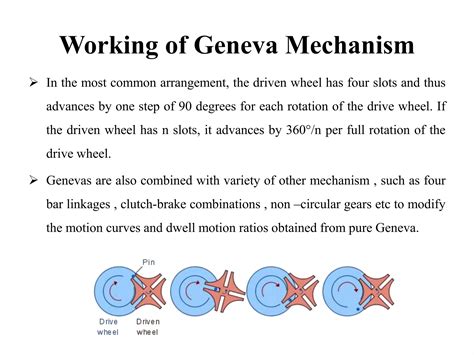

The mechanism operates in a cyclic manner, with each cycle consisting of four phases:

Engagement: The pin on the driver enters a slot on the driven wheel, causing it to rotate.
Dwell: The driven wheel remains stationary while the driver continues to rotate.
Disengagement: The pin exits the slot, allowing the driven wheel to stop.
Return: The driven wheel returns to its starting position, ready for the next cycle.

Components of the Geneva Gear Mechanism

The Geneva Gear Mechanism is composed of several key components, each playing a crucial role in its operation:

Driver: This is the rotating component that drives the mechanism. It typically has one or more pins that engage with the slots on the driven wheel.
Driven Wheel: This is the component that rotates intermittently. It has slots that correspond to the pins on the driver and is often shaped like a Maltese cross.
Pins: These are the protrusions on the driver that engage with the slots on the driven wheel. They can be fixed or adjustable.
Slots: These are the recesses on the driven wheel that receive the pins from the driver. The number and spacing of the slots determine the intermittent motion of the driven wheel.

Applications of the Geneva Gear Mechanism

The Geneva Gear Mechanism finds applications in a wide range of fields due to its ability to convert continuous motion into intermittent motion. Some of the most common applications include:

Watches and Clocks: The mechanism is used in mechanical watches and clocks to control the movement of the hands.
Automated Machinery: It is employed in various automated systems to control the movement of parts in a stepwise manner.
Film Projectors: The mechanism is used to advance the film frame by frame, ensuring smooth and continuous projection.
Toys and Games: It is often used in mechanical toys and games to create interesting and engaging movements.
Robotics: The mechanism can be used in robotic systems to control the movement of robotic arms and other components.

Design Considerations for the Geneva Gear Mechanism

When designing a Geneva Gear Mechanism, several factors need to be considered to ensure optimal performance and reliability. These include:

Material Selection: The choice of materials for the driver and driven wheel is crucial. Common materials include metals like steel and brass, as well as plastics for lighter applications.
Pin and Slot Design: The design of the pins and slots must be precise to ensure smooth engagement and disengagement. The number of pins and slots will determine the number of steps in the intermittent motion.
Tolerance and Clearance: Proper tolerances and clearances are essential to prevent binding and ensure smooth operation. Tight tolerances can lead to increased wear and tear, while loose tolerances can result in sloppy movement.
Lubrication: Adequate lubrication is necessary to reduce friction and wear. The type of lubricant used will depend on the materials and operating conditions.

Advantages and Disadvantages of the Geneva Gear Mechanism

The Geneva Gear Mechanism offers several advantages, but it also has some limitations. Understanding these can help in deciding whether it is the right choice for a particular application.

Advantages

Precise Intermittent Motion: The mechanism provides precise and repeatable intermittent motion, making it ideal for applications requiring exact timing.
Simple Design: The design is relatively simple, consisting of just a few components, which makes it easy to manufacture and maintain.
Reliability: The mechanism is robust and reliable, capable of withstanding high loads and continuous operation.
Versatility: It can be used in a wide range of applications, from small mechanical devices to large industrial machinery.

Disadvantages

Limited Speed: The mechanism is not suitable for high-speed applications due to the intermittent nature of its motion.
Wear and Tear: The pins and slots are subject to wear and tear, which can reduce the lifespan of the mechanism over time.
Complexity in Design: While the basic design is simple, achieving precise and reliable operation can be complex, requiring careful consideration of tolerances and clearances.

Maintenance and Troubleshooting

Maintaining a Geneva Gear Mechanism involves regular inspection and lubrication to ensure smooth operation. Here are some key maintenance tips and troubleshooting steps:

Regular Inspection: Inspect the mechanism regularly for signs of wear and tear, such as worn pins or slots.
Lubrication: Apply lubricant to the pins and slots to reduce friction and wear. Choose a lubricant suitable for the materials and operating conditions.
Adjustment: If the mechanism is not operating smoothly, check the tolerances and clearances and make adjustments as necessary.
Replacement: Replace worn components promptly to prevent further damage and ensure reliable operation.

🛠️ Note: Always follow the manufacturer's guidelines for maintenance and troubleshooting to ensure the longevity and reliability of the Geneva Gear Mechanism.

Examples of Geneva Gear Mechanism in Action

To better understand the Geneva Gear Mechanism, let's look at a few examples of how it is used in real-world applications.

Mechanical Watches

In mechanical watches, the Geneva Gear Mechanism is used to control the movement of the hands. The mechanism ensures that the hands move in precise, intermittent steps, providing accurate timekeeping. The driver is typically connected to the watch's main spring, while the driven wheel is connected to the hands.

Automated Machinery

In automated machinery, the Geneva Gear Mechanism is used to control the movement of parts in a stepwise manner. For example, in a packaging machine, the mechanism can be used to advance the packaging material in precise increments, ensuring that each package is filled and sealed correctly.

Film Projectors

In film projectors, the Geneva Gear Mechanism is used to advance the film frame by frame. The driver is connected to the projector's motor, while the driven wheel is connected to the film spool. As the driver rotates, the pins engage with the slots on the driven wheel, causing it to rotate and advance the film one frame at a time.

Conclusion

The Geneva Gear Mechanism is a versatile and reliable device that converts continuous rotational motion into intermittent rotational motion. Its unique design and functionality make it suitable for a wide range of applications, from watches and clocks to automated machinery and film projectors. Understanding the components, design considerations, advantages, and disadvantages of the Geneva Gear Mechanism can help in deciding whether it is the right choice for a particular application. Regular maintenance and troubleshooting are essential to ensure the longevity and reliability of the mechanism. By following the guidelines and tips outlined in this post, you can effectively utilize the Geneva Gear Mechanism in your projects and applications.
