Gene Expression Programming

Gene Expression Programming (GEP) is a powerful evolutionary algorithm inspired by biological processes, particularly the way genes express themselves to form proteins. Developed by Candida Ferreira, GEP is designed to evolve computer programs in a manner similar to how natural selection shapes biological organisms. This algorithm has gained significant attention in various fields, including bioinformatics, engineering, and data science, due to its ability to solve complex problems efficiently.

Table of Contents

Understanding Gene Expression Programming

Gene Expression Programming is a type of genetic algorithm that evolves computer programs. Unlike traditional genetic algorithms, which evolve populations of fixed-length strings, GEP evolves populations of variable-length strings called chromosomes. These chromosomes are composed of genes, which are further divided into heads and tails. The head contains both function and terminal symbols, while the tail contains only terminal symbols. This structure allows for a high level of flexibility and expressiveness in the evolved programs.

One of the key features of GEP is its ability to handle both symbolic regression and classification problems. Symbolic regression involves finding a mathematical expression that best fits a given set of data points, while classification involves assigning data points to predefined categories. GEP's unique representation and evolutionary mechanisms make it well-suited for these tasks.

Components of Gene Expression Programming

To understand how GEP works, it's essential to familiarize yourself with its core components:

Chromosomes: These are the fundamental units of GEP, representing potential solutions to the problem at hand. Each chromosome is a string of symbols that can be interpreted as a computer program.
Genes: Chromosomes are composed of one or more genes, each containing a head and a tail. The head can include both functions (e.g., +, -, *, /) and terminals (e.g., variables, constants), while the tail contains only terminals.

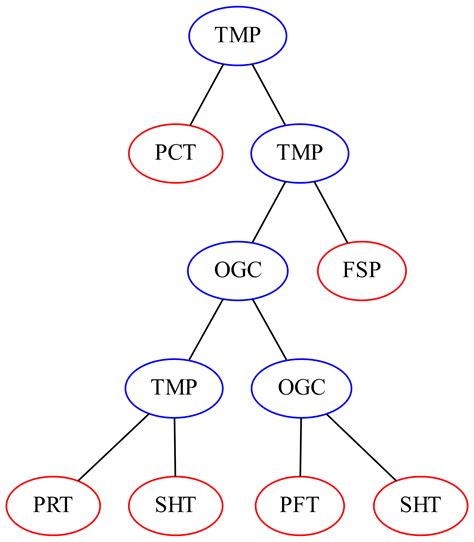

Expression Trees: Genes are expressed as expression trees, which are hierarchical structures representing mathematical expressions. These trees are derived from the chromosomes through a process called decoding.
Fitness Function: This function evaluates the performance of each chromosome in the population. It guides the evolutionary process by selecting chromosomes with higher fitness for reproduction.
Genetic Operators: These include selection, crossover, and mutation. Selection chooses chromosomes for reproduction based on their fitness. Crossover combines parts of two parent chromosomes to create offspring. Mutation introduces random changes to chromosomes to maintain genetic diversity.

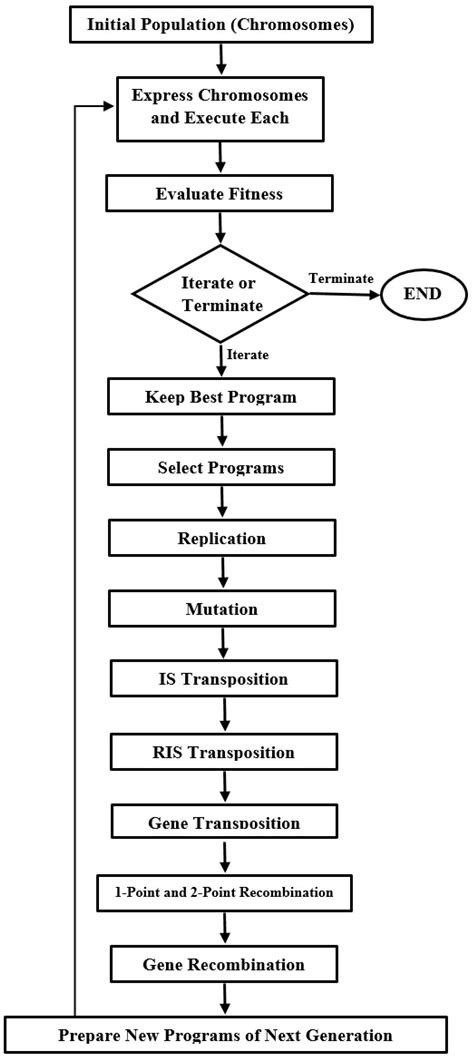

The Evolutionary Process in Gene Expression Programming

The evolutionary process in GEP involves several steps, each playing a crucial role in the development of optimal solutions. Here's a breakdown of the process:

Initialization: The process begins with the creation of an initial population of chromosomes. These chromosomes are generated randomly, ensuring a diverse set of potential solutions.
Expression: Each chromosome in the population is expressed as an expression tree. This involves decoding the chromosome into a hierarchical structure that represents a mathematical expression.
Fitness Evaluation: The fitness of each chromosome is evaluated using a predefined fitness function. This function measures how well the chromosome's expression tree solves the problem at hand.
Selection: Chromosomes are selected for reproduction based on their fitness. Those with higher fitness have a greater chance of being chosen.
Genetic Operators: Selected chromosomes undergo genetic operators such as crossover and mutation to create a new population. Crossover combines parts of two parent chromosomes, while mutation introduces random changes.
Replacement: The new population replaces the old one, and the process repeats until a stopping criterion is met. This criterion could be a maximum number of generations or a desired level of fitness.

🔍 Note: The stopping criterion is crucial as it determines when the evolutionary process should halt. Common criteria include reaching a maximum number of generations or achieving a specific fitness level.

Applications of Gene Expression Programming

Gene Expression Programming has found applications in various fields due to its versatility and effectiveness. Some of the key areas where GEP is used include:

Bioinformatics: GEP is used to analyze biological data, such as gene expression profiles and protein structures. It helps in identifying patterns and relationships within complex biological systems.
Engineering: In engineering, GEP is applied to optimize designs and processes. It can be used to find optimal control strategies, improve system performance, and solve complex engineering problems.
Data Science: GEP is employed in data science for tasks such as symbolic regression and classification. It can discover mathematical models that describe data trends and make accurate predictions.
Finance: In the financial sector, GEP is used for predictive modeling and risk assessment. It helps in developing models that can forecast market trends and evaluate investment risks.

Advantages of Gene Expression Programming

Gene Expression Programming offers several advantages over traditional evolutionary algorithms and other machine learning techniques. Some of the key benefits include:

Flexibility: GEP's variable-length chromosomes allow for a high degree of flexibility in representing solutions. This makes it suitable for a wide range of problems.
Efficiency: GEP's evolutionary process is efficient, enabling it to find optimal solutions quickly. Its unique representation and genetic operators contribute to its effectiveness.
Expressiveness: The expression trees derived from GEP chromosomes are highly expressive, capable of representing complex mathematical expressions and logical structures.
Robustness: GEP is robust and can handle noisy data and uncertain environments. Its ability to evolve solutions that generalize well to new data makes it a reliable choice for many applications.

Challenges and Limitations

Despite its advantages, Gene Expression Programming also faces several challenges and limitations. Understanding these is essential for effectively applying GEP to real-world problems:

Complexity: The complexity of GEP's representation and evolutionary process can make it difficult to implement and understand. Users need a good grasp of genetic algorithms and evolutionary computation.
Computational Resources: GEP can be computationally intensive, especially for large-scale problems. It requires significant processing power and memory to evolve populations of chromosomes efficiently.
Parameter Tuning: The performance of GEP is highly dependent on its parameters, such as population size, mutation rate, and crossover rate. Finding the optimal parameter settings can be challenging and time-consuming.
Overfitting: Like other machine learning techniques, GEP can suffer from overfitting, where the evolved models perform well on training data but poorly on new data. Careful selection of the fitness function and regularization techniques can help mitigate this issue.

🔍 Note: Overfitting is a common problem in machine learning. To address it in GEP, consider using techniques such as cross-validation and regularization to ensure that the evolved models generalize well to new data.

Case Studies and Examples

To illustrate the practical applications of Gene Expression Programming, let's explore a few case studies and examples:

Symbolic Regression

Symbolic regression is a common application of GEP, where the goal is to find a mathematical expression that best fits a given set of data points. For example, consider a dataset of temperature readings over time. GEP can be used to evolve a mathematical model that describes the temperature trends accurately. The evolved model can then be used for prediction and analysis.

Classification

In classification problems, GEP can be used to develop models that assign data points to predefined categories. For instance, in medical diagnosis, GEP can help classify patients into different disease categories based on their symptoms and test results. The evolved classification model can assist healthcare professionals in making accurate diagnoses and treatment decisions.

Optimization

GEP is also effective in optimization problems, where the goal is to find the best solution from a set of possible solutions. For example, in engineering design, GEP can optimize the parameters of a system to achieve the best performance. This could involve finding the optimal dimensions of a structure to maximize its strength or minimizing the cost of a manufacturing process.

Future Directions

As Gene Expression Programming continues to evolve, several future directions and research areas are emerging:

Hybrid Approaches: Combining GEP with other machine learning techniques, such as neural networks and support vector machines, can enhance its performance and applicability.
Parallel and Distributed Computing: Leveraging parallel and distributed computing resources can significantly improve the efficiency of GEP, making it feasible for large-scale problems.
Automated Parameter Tuning: Developing automated methods for tuning GEP parameters can simplify its use and improve its performance. This could involve using meta-heuristic algorithms or machine learning techniques to find optimal parameter settings.
Real-Time Applications: Extending GEP to real-time applications, such as online learning and adaptive control, can expand its use in dynamic and changing environments.

Gene Expression Programming is a versatile and powerful evolutionary algorithm with wide-ranging applications. Its ability to evolve complex mathematical expressions and logical structures makes it a valuable tool for solving a variety of problems in bioinformatics, engineering, data science, and finance. By understanding its components, evolutionary process, advantages, and challenges, researchers and practitioners can effectively apply GEP to real-world problems and contribute to its ongoing development.

As the field of evolutionary computation continues to advance, GEP will likely play an increasingly important role in solving complex problems and driving innovation. Future research and development in hybrid approaches, parallel computing, automated parameter tuning, and real-time applications will further enhance GEP’s capabilities and expand its use in various domains.
