Gel electrophoresis is a fundamental technique in molecular biology used to separate and analyze DNA, RNA, and proteins based on their size and charge. At the heart of this process is the Gel Electrophoresis Machine, a crucial piece of laboratory equipment that facilitates the separation of biomolecules. This post delves into the intricacies of gel electrophoresis, the role of the Gel Electrophoresis Machine, and the steps involved in performing this essential laboratory procedure.
Understanding Gel Electrophoresis
Gel electrophoresis is a method that uses an electric field to move charged molecules through a gel matrix. The gel acts as a sieve, allowing smaller molecules to move faster than larger ones. This separation is based on the principle that smaller molecules can pass through the pores of the gel more easily than larger molecules.
There are several types of gel electrophoresis, each suited to different types of biomolecules:
- Agarose Gel Electrophoresis: Commonly used for separating DNA and RNA fragments.
- Polyacrylamide Gel Electrophoresis (PAGE): Used for separating proteins and smaller DNA fragments.
- SDS-PAGE (Sodium Dodecyl Sulfate-Polyacrylamide Gel Electrophoresis): Used for separating proteins based on their molecular weight.
The Role of the Gel Electrophoresis Machine

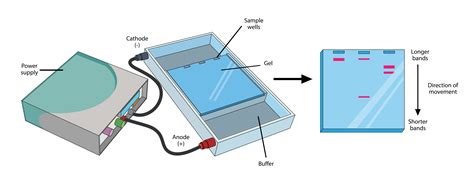

The Gel Electrophoresis Machine is the backbone of the gel electrophoresis process. It provides the electric field necessary to drive the migration of biomolecules through the gel. The machine typically consists of a power supply, electrodes, and a gel tray. The power supply generates the electric current, while the electrodes conduct this current through the gel, facilitating the movement of the biomolecules.
Key components of a Gel Electrophoresis Machine include:
- Power Supply: Provides the electrical current necessary for the separation process.
- Electrodes: Conduct the electric current through the gel.
- Gel Tray: Holds the gel in place during the electrophoresis process.
- Buffer Reservoirs: Contain the buffer solution that helps maintain a stable pH and conductivity.
Setting Up the Gel Electrophoresis Machine
Setting up the Gel Electrophoresis Machine involves several steps to ensure accurate and reliable results. Here is a step-by-step guide to setting up the machine:
Preparing the Gel
1. Prepare the Gel Solution: Mix the appropriate amount of agarose or polyacrylamide with a buffer solution. For agarose gels, heat the mixture until the agarose is completely dissolved. For polyacrylamide gels, mix the components and initiate polymerization with a catalyst.
2. Cast the Gel: Pour the gel solution into the gel tray and insert a comb to create wells for loading the samples. Allow the gel to solidify.
Assembling the Gel Electrophoresis Machine
1. Place the Gel Tray: Position the gel tray with the solidified gel into the electrophoresis chamber.
2. Add Buffer: Fill the buffer reservoirs with the appropriate buffer solution. Ensure that the gel is completely submerged in the buffer.
3. Connect the Electrodes: Place the electrodes in the buffer reservoirs and connect them to the power supply.
Loading the Samples
1. Prepare the Samples: Mix your DNA, RNA, or protein samples with a loading dye. The loading dye helps visualize the samples and ensures they sink to the bottom of the wells.
2. Load the Samples: Carefully pipette the samples into the wells of the gel. Be sure not to overfill the wells to avoid mixing samples.
Running the Gel
1. Apply the Electric Field: Connect the power supply to the electrodes and turn it on. Set the voltage and current according to the manufacturer’s instructions or experimental requirements.
2. Monitor the Process: Keep an eye on the gel as the biomolecules migrate through it. The progress can be monitored by observing the movement of the loading dye.
🔍 Note: The time required for the electrophoresis process depends on the size of the biomolecules and the voltage applied. Typically, it takes 30 minutes to 2 hours.
Analyzing the Results
Once the electrophoresis is complete, the next step is to analyze the results. This involves staining the gel to visualize the separated biomolecules and interpreting the band patterns.
Staining the Gel
1. Stain the Gel: For DNA and RNA, use a fluorescent dye such as ethidium bromide or SYBR Green. For proteins, use a protein stain like Coomassie Blue or silver stain.
2. Destain the Gel: If necessary, destain the gel to remove excess dye and enhance the visibility of the bands.
Interpreting the Results
1. Visualize the Bands: Use a UV transilluminator or a gel documentation system to visualize the bands. The position and intensity of the bands provide information about the size and quantity of the biomolecules.
2. Compare with Standards: Run a DNA ladder or protein marker alongside your samples to estimate the size of the separated biomolecules.
📏 Note: Always include a molecular weight marker in your gel to accurately determine the size of your samples.
Applications of Gel Electrophoresis
Gel electrophoresis has a wide range of applications in molecular biology and biochemistry. Some of the key applications include:
- DNA Fingerprinting: Used in forensic science to identify individuals based on their unique DNA profiles.
- Gene Cloning: Helps in the identification and isolation of specific DNA fragments for cloning purposes.
- Protein Analysis: Used to study protein structure, function, and interactions.
- Mutation Detection: Identifies mutations in DNA or RNA sequences.
Troubleshooting Common Issues
Despite careful preparation, issues can arise during gel electrophoresis. Here are some common problems and their solutions:
| Problem | Solution |
|---|---|
| Smiling Bands | Ensure the gel is evenly cast and the buffer level is consistent across the gel. |
| Poor Resolution | Adjust the voltage and run time. Use a higher percentage gel for better resolution of smaller fragments. |
| Sample Leakage | Ensure the wells are properly sealed and the gel is not overloaded. |
| Uneven Band Intensity | Check the loading volume and concentration of the samples. Ensure consistent staining and destaining. |
⚠️ Note: Always wear appropriate personal protective equipment (PPE) when handling gels and staining solutions, as some dyes are carcinogenic.
Gel electrophoresis is a versatile and powerful technique that plays a crucial role in modern molecular biology. The Gel Electrophoresis Machine is an indispensable tool that enables researchers to separate and analyze biomolecules with precision and accuracy. By understanding the principles and steps involved in gel electrophoresis, scientists can unlock valuable insights into the molecular world, driving advancements in various fields of research and medicine.
