Understanding the intricacies of engine performance is crucial for any automotive enthusiast or professional mechanic. One of the key aspects of engine tuning is monitoring the Gauges Air Fuel ratio, which plays a pivotal role in ensuring optimal engine performance and efficiency. This blog post delves into the importance of Gauges Air Fuel ratio, how to measure it, and the tools required for accurate readings.
Understanding the Air Fuel Ratio
The Gauges Air Fuel ratio, often abbreviated as AFR, is the ratio of air to fuel present in the combustion chamber of an engine. This ratio is critical because it directly affects the engine's power output, fuel efficiency, and emissions. The ideal AFR for most gasoline engines is around 14.7:1, which means 14.7 parts of air to 1 part of fuel. This ratio ensures complete combustion, maximizing fuel efficiency and minimizing harmful emissions.
However, different driving conditions and engine modifications may require adjustments to the AFR. For example, during acceleration, a richer mixture (lower AFR) may be needed to provide more power. Conversely, during cruising, a leaner mixture (higher AFR) can improve fuel efficiency.
Importance of Monitoring Air Fuel Ratio
Monitoring the Gauges Air Fuel ratio is essential for several reasons:
- Engine Performance: An optimal AFR ensures that the engine runs smoothly and efficiently, providing the best possible performance.
- Fuel Efficiency: Maintaining the correct AFR can significantly improve fuel economy, reducing the cost of operation.
- Emissions Control: Proper AFR management helps in reducing harmful emissions, making the vehicle more environmentally friendly.
- Engine Longevity: Running the engine with the correct AFR can prevent excessive wear and tear, extending the engine's lifespan.
Tools for Measuring Air Fuel Ratio
To accurately measure the Gauges Air Fuel ratio, several tools are available. The most common and reliable tools include:
Wideband Oxygen Sensors
Wideband oxygen sensors are the gold standard for measuring AFR. Unlike narrowband sensors, which provide a binary reading (rich or lean), wideband sensors offer a continuous reading of the AFR. This allows for precise tuning and monitoring of the engine's performance.
Wideband sensors work by measuring the voltage difference between two electrodes exposed to the exhaust gases. This voltage difference is then converted into an AFR reading, providing real-time data on the engine's combustion process.

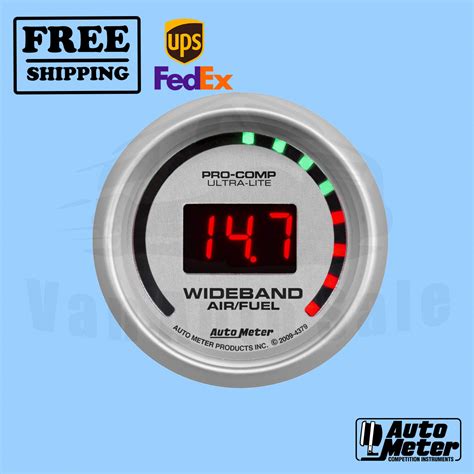

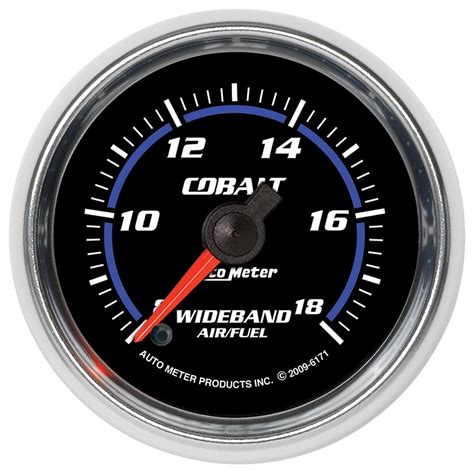

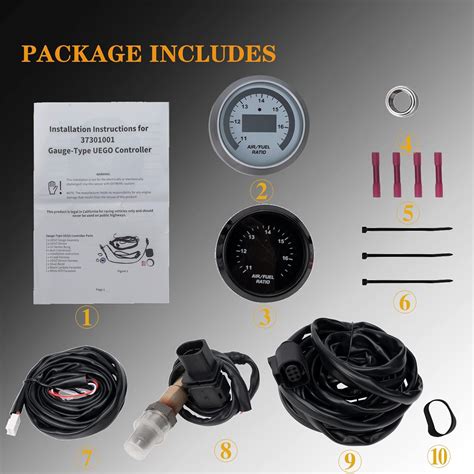

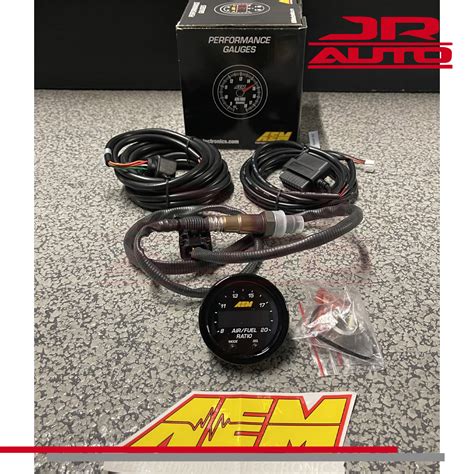

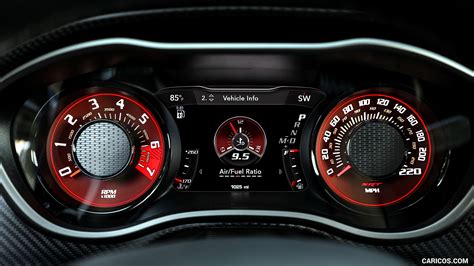

Air Fuel Ratio Gauges
Air Fuel Ratio Gauges are essential tools for monitoring the AFR in real-time. These gauges display the AFR reading on a digital or analog display, allowing the user to make immediate adjustments as needed. Some advanced gauges also offer data logging capabilities, enabling users to analyze AFR trends over time.
When selecting an AFR gauge, it is important to consider the following factors:
- Accuracy: Ensure the gauge provides accurate readings within a wide range of AFR values.
- Response Time: A fast response time is crucial for real-time monitoring and adjustments.
- Compatibility: Check that the gauge is compatible with your vehicle's make and model, as well as any existing engine management systems.
- Display Options: Choose a gauge with a clear and easy-to-read display, preferably with customizable settings.
OBD-II Scanners
OBD-II scanners are versatile tools that can provide a wealth of information about your vehicle's performance, including the Gauges Air Fuel ratio. These scanners connect to the vehicle's onboard diagnostics port and can display real-time data from various sensors, including the oxygen sensor.
While OBD-II scanners are convenient and affordable, they may not offer the same level of accuracy and precision as dedicated AFR gauges or wideband oxygen sensors. However, they are a good starting point for basic diagnostics and monitoring.
Interpreting Air Fuel Ratio Readings
Interpreting Gauges Air Fuel ratio readings requires an understanding of the ideal AFR for your specific engine and driving conditions. Here are some general guidelines for interpreting AFR readings:
| AFR Range | Interpretation |
|---|---|
| 8.0 - 12.0 | Very Rich |
| 12.0 - 14.0 | Rich |
| 14.0 - 15.0 | Stoichiometric (Ideal for most engines) |
| 15.0 - 17.0 | Lean |
| 17.0 - 20.0 | Very Lean |
It is important to note that the ideal AFR can vary depending on the engine's design, fuel type, and driving conditions. For example, high-performance engines may require a richer mixture for optimal power output, while fuel-efficient engines may benefit from a leaner mixture.
🔧 Note: Always refer to your vehicle's manufacturer specifications for the recommended AFR range.
Adjusting the Air Fuel Ratio
Adjusting the Gauges Air Fuel ratio involves fine-tuning the engine's fuel delivery system. This can be done through various methods, depending on the vehicle's make and model. Some common methods include:
- Fuel Injector Adjustment: Adjusting the fuel injector pulse width can change the amount of fuel delivered to the engine. This can be done using a fuel injector adjustment tool or by reprogramming the engine control unit (ECU).
- Air Intake Modifications: Modifying the air intake system can alter the amount of air entering the engine, affecting the AFR. This can be achieved through cold air intakes, air filters, or other intake modifications.
- Exhaust System Modifications: Upgrading the exhaust system can improve airflow and reduce backpressure, allowing the engine to breathe more efficiently and achieve a better AFR.
- ECU Tuning: Reprogramming the ECU can provide precise control over the fuel delivery and ignition timing, allowing for optimal AFR adjustments. This is often done using specialized tuning software and tools.
When adjusting the AFR, it is important to make small, incremental changes and monitor the engine's performance closely. Large adjustments can lead to poor performance, reduced fuel efficiency, and potential engine damage.
🔧 Note: Always consult a professional mechanic or tuner before making significant adjustments to the engine's fuel delivery system.
Common Issues with Air Fuel Ratio
Several issues can affect the Gauges Air Fuel ratio, leading to poor engine performance and efficiency. Some common problems include:
- Faulty Oxygen Sensors: A malfunctioning oxygen sensor can provide inaccurate AFR readings, leading to improper fuel delivery and engine performance issues.
- Clogged Air Filters: A dirty or clogged air filter can restrict airflow, causing a rich AFR and reducing engine performance.
- Fuel Injector Problems: Faulty or clogged fuel injectors can affect fuel delivery, leading to an incorrect AFR and poor engine performance.
- Exhaust Leaks: Leaks in the exhaust system can allow unburned fuel to escape, affecting the AFR and increasing emissions.
Regular maintenance and inspections can help prevent these issues and ensure optimal engine performance. If you suspect any problems with the AFR, it is important to address them promptly to avoid further damage to the engine.
🔧 Note: Regularly check and replace air filters, fuel filters, and oxygen sensors as part of your vehicle's maintenance routine.
Conclusion
Monitoring and adjusting the Gauges Air Fuel ratio is a critical aspect of engine tuning and maintenance. By understanding the importance of AFR, using the right tools for measurement, and making informed adjustments, you can ensure optimal engine performance, fuel efficiency, and longevity. Regular maintenance and prompt attention to any issues can help keep your engine running smoothly and efficiently, providing a better driving experience and reducing environmental impact.
