Garage Footings And Foundations

Building a garage is a significant investment that requires careful planning and execution. One of the most critical aspects of this process is ensuring that your garage footings and foundations are solid and durable. A well-constructed foundation will support the weight of the garage and protect it from environmental factors such as moisture and soil movement. This guide will walk you through the essential steps and considerations for building garage footings and foundations, ensuring a stable and long-lasting structure.

Table of Contents

Understanding Garage Footings and Foundations

Garage footings and foundations serve as the base upon which the entire structure rests. They distribute the weight of the garage evenly across the soil, preventing settling and ensuring stability. Properly designed footings and foundations also protect against water damage and other environmental hazards.

Types of Garage Foundations

There are several types of garage foundations, each with its own advantages and suitable applications. The choice of foundation depends on factors such as soil conditions, climate, and local building codes.

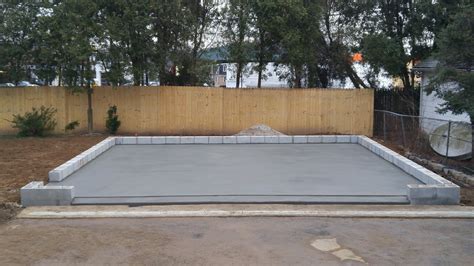

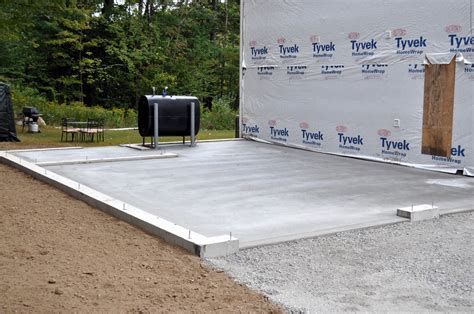

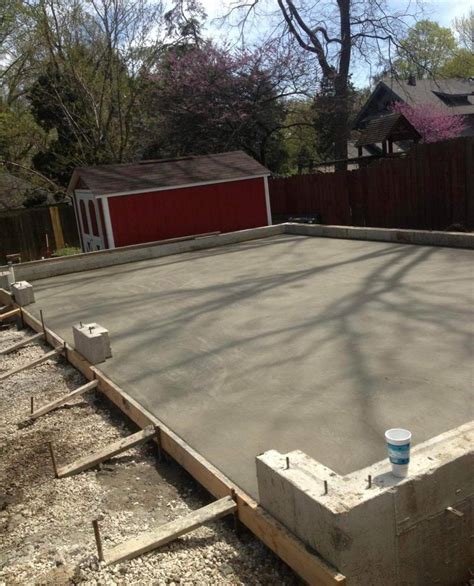

Concrete Slab Foundation

A concrete slab foundation is a popular choice for garages due to its simplicity and cost-effectiveness. This type of foundation consists of a single layer of concrete poured over a prepared base. It is suitable for areas with stable soil conditions and minimal frost heave.

Crawl Space Foundation

A crawl space foundation elevates the garage floor above the ground, creating a small space underneath. This design allows for better ventilation and easier access to plumbing and electrical systems. It is ideal for areas with high water tables or unstable soil conditions.

Basement Foundation

A basement foundation provides additional living or storage space beneath the garage. It involves excavating a deeper hole and constructing walls to support the weight of the garage. This type of foundation is more complex and expensive but offers significant benefits in terms of extra space.

Designing Garage Footings and Foundations

Designing garage footings and foundations requires careful consideration of several factors, including soil conditions, load requirements, and local building codes. Here are the key steps involved in the design process:

Soil Testing

Before beginning any construction, it is essential to conduct a soil test to determine the soil’s bearing capacity and stability. This information will help in designing footings that can adequately support the garage’s weight.

Load Calculations

Calculate the total load that the foundation will need to support, including the weight of the garage structure, any additional storage, and potential snow loads. This information is crucial for determining the size and depth of the footings.

Local Building Codes

Familiarize yourself with local building codes and regulations regarding garage footings and foundations. These codes often specify minimum requirements for footing depth, width, and reinforcement.

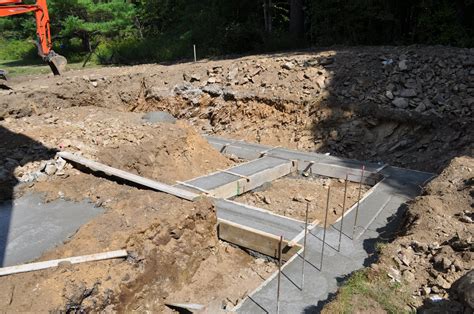

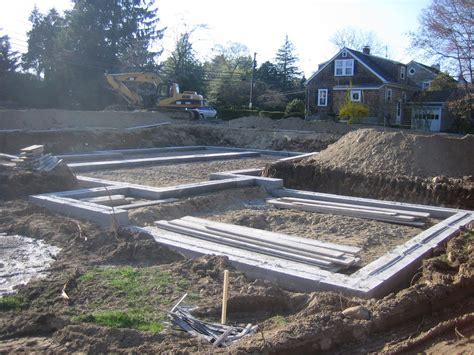

Building Garage Footings

Garage footings are the base upon which the foundation walls rest. They distribute the weight of the garage evenly across the soil, preventing settling and ensuring stability. Here are the steps to build garage footings:

Excavation

Excavate the area where the footings will be placed, ensuring that the depth and width comply with local building codes and soil test results. The excavation should be level and free of debris.

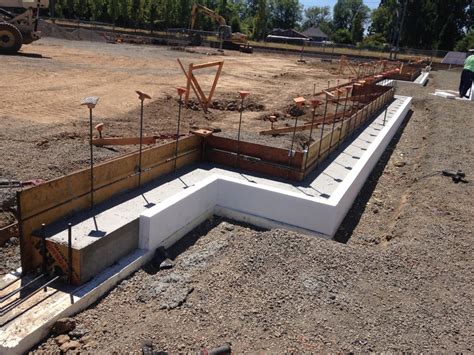

Forming the Footings

Construct forms using plywood or other suitable materials to define the shape and size of the footings. Ensure that the forms are level and securely fastened to prevent movement during concrete pouring.

Reinforcement

Place reinforcement bars (rebar) within the forms to strengthen the footings. The rebar should be positioned according to the design specifications and secured in place with wire ties.

Pouring Concrete

Pour concrete into the forms, ensuring that it fills the entire space and surrounds the rebar. Use a vibrator to remove any air pockets and ensure a smooth, even surface. Allow the concrete to cure according to the manufacturer’s instructions.

🛠️ Note: Proper curing is essential for the strength and durability of the concrete. Follow the recommended curing time and conditions to ensure optimal results.

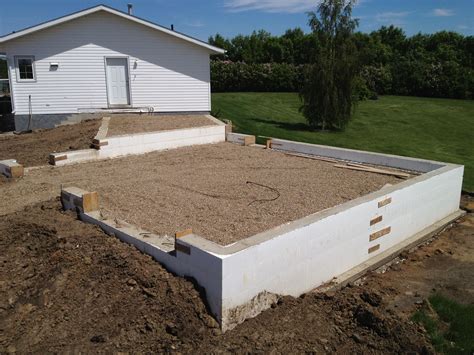

Constructing Garage Foundation Walls

Once the footings are cured, the next step is to construct the foundation walls. These walls will support the weight of the garage and provide a stable base for the structure. Here are the steps to build garage foundation walls:

Forming the Walls

Construct forms for the foundation walls using plywood or other suitable materials. Ensure that the forms are level, plumb, and securely fastened to prevent movement during concrete pouring.

Reinforcement

Place reinforcement bars (rebar) within the forms to strengthen the walls. The rebar should be positioned according to the design specifications and secured in place with wire ties.

Pouring Concrete

🛠️ Note: Ensure that the foundation walls are properly aligned with the footings to maintain structural integrity.

Waterproofing and Drainage

Proper waterproofing and drainage are crucial for protecting the garage foundation from moisture damage. Here are the steps to ensure effective waterproofing and drainage:

Waterproofing Membrane

Apply a waterproofing membrane to the exterior of the foundation walls. This membrane will prevent water from seeping into the foundation and causing damage.

Drainage System

Install a drainage system around the perimeter of the foundation to direct water away from the garage. This system typically includes a perforated drain pipe surrounded by gravel and covered with a filter fabric.

Backfilling

Backfill the area around the foundation with compacted soil or gravel. Ensure that the backfill is properly compacted to prevent settling and maintain the stability of the foundation.

🛠️ Note: Proper grading around the garage is essential to direct water away from the foundation and prevent water damage.

Inspecting Garage Footings and Foundations

Regular inspection of garage footings and foundations is essential to ensure their longevity and structural integrity. Here are some key areas to inspect:

Cracks and Settling

Check for any cracks or signs of settling in the foundation walls and footings. Small cracks can often be repaired, but larger cracks may indicate more significant issues that require professional attention.

Water Damage

Inspect the foundation for signs of water damage, such as mold, mildew, or efflorescence. Address any water issues promptly to prevent further damage.

Structural Integrity

Ensure that the foundation walls and footings are structurally sound and free from any signs of deterioration. Regular maintenance and repairs can help extend the lifespan of the foundation.

🛠️ Note: If you notice any significant issues with your garage footings and foundations, it is advisable to consult a professional engineer or contractor for a thorough inspection and repair.

Common Issues with Garage Footings and Foundations

Despite careful planning and construction, garage footings and foundations can encounter various issues over time. Here are some common problems and their potential causes:

Cracking

Cracks in the foundation walls or footings can occur due to settling, soil movement, or improper construction. Small cracks can often be repaired, but larger cracks may indicate more significant structural issues.

Water Intrusion

Water intrusion can cause damage to the foundation, leading to mold, mildew, and structural deterioration. Proper waterproofing and drainage are essential to prevent water intrusion.

Settling

Settling occurs when the soil beneath the foundation shifts or compacts, causing the foundation to sink. This can result in cracks, uneven floors, and other structural issues. Proper soil preparation and compaction can help prevent settling.

Frost Heave

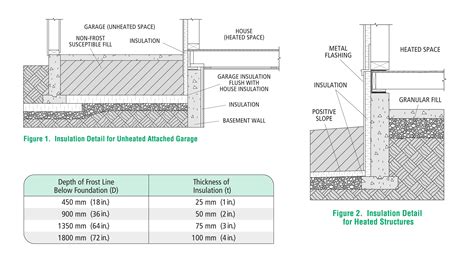

Frost heave occurs when water in the soil freezes and expands, pushing the foundation upward. This can cause cracks and other damage to the foundation. Proper footing depth and insulation can help prevent frost heave.

Maintaining Garage Footings and Foundations

Maintaining garage footings and foundations is essential to ensure their longevity and structural integrity. Here are some tips for maintaining your garage foundation:

Regular Inspections

Conduct regular inspections of your garage footings and foundations to check for any signs of damage or deterioration. Address any issues promptly to prevent further damage.

Proper Drainage

Ensure that the drainage system around your garage is functioning properly to direct water away from the foundation. Clear any debris from the drainage system and repair any damage promptly.

Waterproofing

Apply a waterproofing membrane to the exterior of the foundation walls to prevent water intrusion. Regularly inspect the waterproofing membrane for any signs of damage and repair as needed.

Soil Management

Manage the soil around your garage to prevent settling and soil movement. Ensure that the soil is properly compacted and graded to direct water away from the foundation.

🛠️ Note: Regular maintenance and inspections can help extend the lifespan of your garage footings and foundations, ensuring a stable and durable structure.

Conclusion

Building garage footings and foundations is a critical aspect of constructing a stable and durable garage. By understanding the different types of foundations, designing them properly, and ensuring effective waterproofing and drainage, you can create a solid base for your garage. Regular inspections and maintenance are essential to address any issues promptly and extend the lifespan of your foundation. With careful planning and execution, your garage footings and foundations will provide a strong and reliable base for years to come.
