Ftc Robotics Legal Servos

In the world of competitive robotics, the FTC Robotics community stands out as a vibrant and innovative space where young minds come together to design, build, and program robots. One of the critical components that often make or break a robot's performance is the choice of servos. FTC Robotics Legal Servos are essential for precise control and reliable operation, making them a cornerstone of successful robot designs. This post delves into the intricacies of servos in FTC robotics, their importance, and how to choose the right ones for your team's needs.

Understanding Servos in FTC Robotics

Servos are small, self-contained electrical devices that rotate parts of a robot to specific angles. They are controlled by sending electrical pulses to the servo, which then moves to the desired position. In FTC robotics, servos are used for a variety of tasks, including:

• Controlling the movement of robotic arms and grippers.
• Actuating mechanisms for scoring points.
• Manipulating game elements with precision.

Servos come in different sizes and types, each suited for specific applications. The most common types used in FTC robotics are:

• Standard servos: These are general-purpose servos suitable for a wide range of applications.
• Continuous rotation servos: These servos can rotate continuously in either direction, making them ideal for driving wheels or other continuous motion tasks.
• High-torque servos: These servos provide more power and are used for tasks that require significant force.

Importance of FTC Robotics Legal Servos

Choosing FTC Robotics Legal Servos is crucial for several reasons:

• Compliance with Rules: FTC has specific rules regarding the types of servos that can be used. Ensuring your servos are legal avoids disqualification and penalties.
• Reliability: Legal servos are tested and approved for use in FTC competitions, ensuring they can withstand the rigors of competition.
• Performance: Legal servos are designed to meet the performance requirements of FTC robotics, providing the precision and power needed to excel.

To ensure your servos are legal, refer to the official FTC rules and guidelines. The rules specify the types of servos allowed, their power requirements, and any modifications that are permitted.

Choosing the Right Servos for Your Robot

Selecting the right servos for your FTC robot involves considering several factors:

• Torque: The amount of force a servo can exert. Higher torque servos are needed for tasks that require significant power.
• Speed: The speed at which a servo can move. Faster servos are useful for quick movements, while slower servos provide more control.
• Size and Weight: The physical dimensions and weight of the servo. Smaller, lighter servos are easier to integrate into the robot's design.
• Voltage and Current: The electrical requirements of the servo. Ensure your robot's power system can support the servos you choose.

Here is a table to help you compare different types of servos:

When selecting servos, consider the specific tasks your robot needs to perform. For example, if your robot needs to lift heavy objects, a high-torque servo is essential. If precision and speed are critical, a standard or continuous rotation servo might be more suitable.

🔍 Note: Always test your servos in a controlled environment before integrating them into your final robot design. This helps identify any potential issues and ensures the servos meet your performance requirements.

Integrating Servos into Your Robot Design

Once you have chosen the right servos, the next step is to integrate them into your robot's design. This involves:

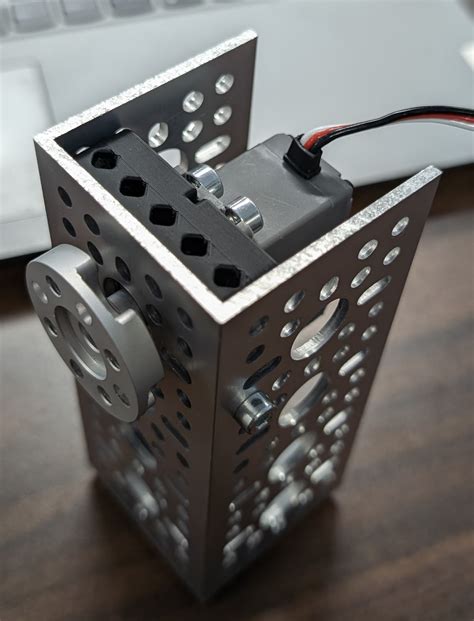

• Mounting: Securely mounting the servos to the robot's chassis or other components.
• Wiring: Connecting the servos to the robot's power and control systems.
• Programming: Writing code to control the servos and ensure they perform the desired tasks.

When mounting servos, ensure they are securely fastened to prevent movement during operation. Use appropriate mounting hardware and consider the servo's orientation to optimize performance.

Wiring servos involves connecting them to the robot's power supply and control board. Ensure the wiring is neat and organized to avoid tangles and potential shorts. Use appropriate connectors and ensure all connections are secure.

Programming servos requires writing code to control their movement. Most FTC robots use programming languages like Java or Python. The code should send the correct electrical pulses to the servos to achieve the desired movements. Here is an example of how to control a servo using Java:

import com.qualcomm.robotcore.hardware.Servo;

public class ServoControl {
    private Servo servo;

    public ServoControl(Servo servo) {
        this.servo = servo;
    }

    public void setPosition(double position) {
        servo.setPosition(position);
    }
}

In this example, the ServoControl class controls a servo by setting its position. The setPosition method takes a double value between 0 and 1, representing the servo's position.

🛠️ Note: Always test your wiring and programming in a controlled environment to ensure everything works correctly before integrating it into your final robot design.

Maintaining and Troubleshooting Servos

Maintaining your servos is crucial for ensuring they perform reliably during competitions. Regular maintenance includes:

• Cleaning: Keeping the servos free of dust and debris.
• Lubrication: Applying lubricant to moving parts to reduce friction and wear.
• Inspection: Regularly checking for signs of wear or damage.

If you encounter issues with your servos, troubleshooting steps include:

• Checking Connections: Ensuring all wiring is secure and properly connected.
• Testing Power Supply: Verifying that the power supply is providing the correct voltage and current.
• Inspecting Code: Reviewing the programming code to ensure it is sending the correct commands to the servos.

By following these maintenance and troubleshooting steps, you can ensure your servos remain in optimal condition and perform reliably during competitions.

⚠️ Note: Always follow safety guidelines when working with electrical components. Ensure the power is turned off before handling any wiring or servos.

Advanced Techniques for Servo Control

For teams looking to take their servo control to the next level, advanced techniques can provide enhanced performance and precision. Some advanced techniques include:

• PID Control: Using Proportional-Integral-Derivative (PID) control algorithms to achieve precise and stable servo movements.
• Feedback Systems: Implementing feedback systems to monitor and adjust servo performance in real-time.
• Custom Firmware: Developing custom firmware for servos to optimize their performance for specific tasks.

PID control is a powerful technique that uses feedback to adjust the servo's movement. The PID algorithm calculates the error between the desired position and the actual position, then adjusts the servo's control signals to minimize this error. This results in smoother and more precise movements.

Feedback systems provide real-time data on the servo's performance, allowing for dynamic adjustments. For example, a feedback system can monitor the servo's current and adjust the power supply to maintain optimal performance.

Custom firmware allows teams to tailor the servo's operation to their specific needs. By developing custom firmware, teams can optimize the servo's performance for tasks that require unique control algorithms or specialized movements.

💡 Note: Advanced techniques require a deeper understanding of robotics and programming. Teams should ensure they have the necessary skills and resources before attempting these techniques.

Incorporating advanced servo control techniques can give your team a competitive edge, but it also requires careful planning and execution. Teams should thoroughly test these techniques in a controlled environment before integrating them into their final robot design.

In conclusion, FTC Robotics Legal Servos are a critical component of successful robot designs. Choosing the right servos, integrating them properly, and maintaining them ensures your robot performs reliably and effectively during competitions. By understanding the importance of servos and following best practices for their use, your team can achieve outstanding results and excel in the world of FTC robotics.
