Building or renovating a home involves numerous critical decisions, one of which is selecting the appropriate floor joist size and span. The Floor Joist Span Chart is an essential tool that helps builders and DIY enthusiasts determine the correct joist size based on the span and load requirements. This chart ensures structural integrity and safety, making it a vital resource for any construction project.
Understanding Floor Joists
Floor joists are horizontal structural members that support the floor and transfer the load to the foundation or bearing walls. They are typically made of wood, but can also be made of steel or concrete. The size and spacing of floor joists are crucial for maintaining the floor’s strength and stability.
Importance of the Floor Joist Span Chart
The Floor Joist Span Chart provides guidelines for selecting the appropriate joist size based on the span and load. This chart is essential for several reasons:
- Structural Integrity: Ensures that the floor can support the intended load without sagging or failing.
- Safety: Prevents structural failures that could lead to injuries or property damage.
- Cost-Effectiveness: Helps in selecting the most economical joist size without compromising on strength.
- Compliance: Ensures that the construction meets building codes and standards.
Factors Affecting Floor Joist Selection
Several factors influence the selection of floor joists, including:
- Span: The distance between supports, such as walls or beams.
- Load: The weight the floor needs to support, including live loads (people, furniture) and dead loads (the weight of the floor itself).
- Spacing: The distance between individual joists, typically 12, 16, or 24 inches on center.
- Joist Material: The type of wood or other material used for the joists.
- Grade of Wood: The quality and strength of the wood, which can affect its load-bearing capacity.
Reading the Floor Joist Span Chart

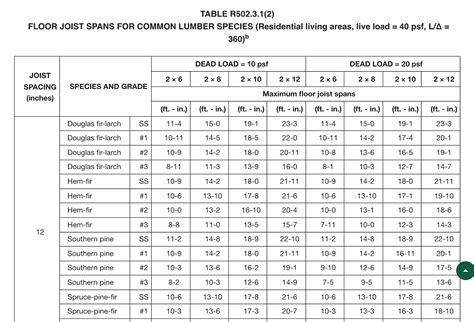

The Floor Joist Span Chart is typically organized in a table format, with columns for different joist sizes and rows for various spans and loads. Here’s a simplified example of what a Floor Joist Span Chart might look like:
| Joist Size (inches) | Span (feet) | Live Load (psf) | Dead Load (psf) |
|---|---|---|---|
| 2x8 | 10 | 30 | 10 |
| 2x10 | 12 | 30 | 10 |
| 2x12 | 14 | 30 | 10 |
To use the chart, follow these steps:
- Determine the span of your floor joists.
- Estimate the live and dead loads the floor will need to support.
- Select a joist size from the chart that matches or exceeds your span and load requirements.
📝 Note: Always consult local building codes and standards, as they may have specific requirements that differ from general guidelines.
Common Floor Joist Sizes
Floor joists come in various sizes, with the most common being:
- 2x8: Suitable for shorter spans and lighter loads.
- 2x10: A versatile size that can handle moderate spans and loads.
- 2x12: Ideal for longer spans and heavier loads.
Other sizes, such as 2x6 and 2x14, are also available but are less commonly used for floor joists.
Engineered Wood Products
In addition to traditional wood joists, engineered wood products are increasingly popular due to their consistency and strength. These products include:
- Laminated Veneer Lumber (LVL): Made from multiple layers of wood veneer bonded together, LVL offers high strength and dimensional stability.
- I-Joists: Shaped like an “I,” these joists have a web of oriented strand board (OSB) or plywood with flanges of solid sawn lumber or LVL. They provide excellent strength and are resistant to warping.
- Glue-Laminated Timber (Glulam): Made from layers of dimensioned lumber bonded together with adhesives, glulam beams can span longer distances and support heavier loads.
Engineered wood products often have their own span charts, which should be consulted for specific applications.
Installation Tips for Floor Joists
Proper installation is crucial for the performance and longevity of floor joists. Here are some tips:
- Level and Square: Ensure the foundation or supporting structure is level and square before installing joists.
- Spacing: Maintain consistent spacing between joists, typically 12, 16, or 24 inches on center.
- Bracing: Use bridging or blocking to brace joists and prevent them from twisting or moving.
- Fasteners: Use appropriate nails or screws to secure joists to supports. Follow manufacturer recommendations for fastener type and spacing.
- Sistering: If reinforcing existing joists, sister them by attaching new joists alongside the old ones using nails or screws.
🛠️ Note: Always follow local building codes and manufacturer guidelines for joist installation.
Maintenance and Inspection
Regular maintenance and inspection of floor joists are essential to ensure their continued performance. Here are some key points to consider:
- Visual Inspection: Regularly check for signs of damage, such as cracks, rot, or insect infestation.
- Moisture Control: Ensure proper ventilation and moisture control to prevent rot and mold growth.
- Load Management: Avoid overloading the floor with excessive weight or concentrated loads.
- Professional Inspection: Periodically have a professional inspect the joists, especially if there are signs of structural issues.
By following these maintenance tips, you can extend the life of your floor joists and ensure the safety of your structure.
In conclusion, the Floor Joist Span Chart is an invaluable tool for anyone involved in construction or renovation. It provides essential guidelines for selecting the appropriate joist size based on span and load requirements, ensuring structural integrity and safety. By understanding the factors that affect joist selection, reading the span chart correctly, and following proper installation and maintenance practices, you can build a strong and durable floor that meets all your needs.
