In the realm of electrical engineering and automation, the Flasher Led Relay stands out as a versatile and essential component. This device combines the functionality of a relay with visual indicators, making it a crucial tool for various applications. Whether you're working on a simple DIY project or a complex industrial system, understanding the Flasher Led Relay can significantly enhance your control and monitoring capabilities.
Understanding the Basics of a Flasher Led Relay
A Flasher Led Relay is an electromechanical device that uses an LED to indicate its status. The relay itself is a switch that opens and closes circuits electromagnetically, while the LED provides a visual cue of the relay's operation. This combination is particularly useful in scenarios where visual feedback is necessary to ensure the system is functioning correctly.
The primary components of a Flasher Led Relay include:
- The relay coil, which generates a magnetic field when energized.
- The contacts, which open or close based on the magnetic field.
- The LED, which lights up to indicate the relay's status.
- The circuit board, which houses the electronic components and ensures proper functioning.
Applications of Flasher Led Relay
The Flasher Led Relay finds applications in a wide range of fields due to its reliability and ease of use. Some of the most common applications include:
- Automotive Industry: Used in dashboard indicators, turn signals, and other visual alerts.
- Industrial Automation: Employed in control panels, machinery, and process automation to monitor and control various operations.
- Home Automation: Integrated into smart home systems for controlling lights, appliances, and security systems.
- Electronics and DIY Projects: Utilized in hobbyist projects, prototyping, and educational kits to teach basic electronics and automation concepts.
How a Flasher Led Relay Works
The operation of a Flasher Led Relay can be broken down into a few simple steps:
- Power Supply: The relay is connected to a power source, which energizes the coil.
- Magnetic Field Generation: When the coil is energized, it generates a magnetic field.
- Contact Operation: The magnetic field causes the contacts to either open or close, depending on the relay's design.
- LED Indication: Simultaneously, the LED lights up to indicate that the relay is active.
This process is reversible; when the power supply is cut off, the magnetic field dissipates, and the contacts return to their original position, while the LED turns off.
Types of Flasher Led Relay
There are several types of Flasher Led Relay available, each designed for specific applications. Some of the most common types include:
- Normally Open (NO) Relay: The contacts are open when the relay is not energized and close when energized.
- Normally Closed (NC) Relay: The contacts are closed when the relay is not energized and open when energized.
- Changeover (CO) Relay: The relay has both NO and NC contacts, allowing for more complex switching operations.
- Latching Relay: This type of relay remains in its last state even after the power is removed, requiring a pulse to change states.
Each type of relay has its own advantages and is chosen based on the specific requirements of the application.
Selecting the Right Flasher Led Relay
Choosing the right Flasher Led Relay involves considering several factors to ensure it meets your project's needs. Here are some key considerations:
- Voltage and Current Ratings: Ensure the relay can handle the voltage and current requirements of your application.
- Contact Configuration: Determine whether you need NO, NC, or CO contacts based on your switching requirements.
- LED Color: Choose an LED color that is easily visible and appropriate for your application.
- Environmental Conditions: Consider the operating temperature, humidity, and other environmental factors that the relay will be exposed to.
- Mounting Options: Ensure the relay can be easily mounted in your system, whether it's through-hole, surface-mount, or panel-mount.
By carefully evaluating these factors, you can select a Flasher Led Relay that will perform reliably in your application.
Wiring a Flasher Led Relay
Wiring a Flasher Led Relay is a straightforward process, but it requires attention to detail to ensure proper functioning. Here is a step-by-step guide to wiring a typical Flasher Led Relay:
- Identify the Connections: Refer to the relay's datasheet to identify the coil connections, contact connections, and LED connections.
- Connect the Power Supply: Connect the power supply to the coil terminals. Ensure the polarity is correct if the relay is polarized.
- Connect the Load: Connect the load (e.g., a motor, light, or other device) to the contact terminals. Ensure the load is compatible with the relay's current and voltage ratings.
- Connect the LED: Connect the LED to the appropriate terminals to indicate the relay's status. Ensure the LED is connected in the correct polarity.
- Test the Relay: Power up the system and test the relay to ensure it operates correctly and the LED indicates the relay's status.

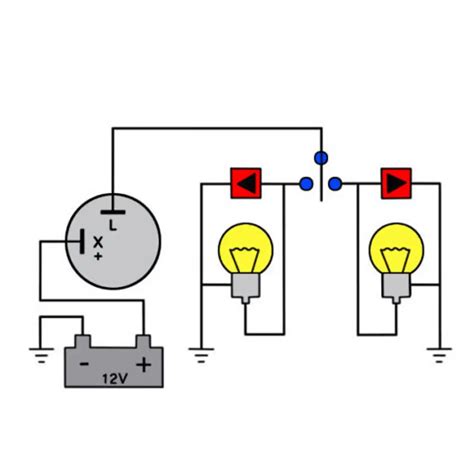

Here is a simple wiring diagram for a Flasher Led Relay:
| Terminal | Connection |
|---|---|
| Coil 1 | Power Supply (+) |
| Coil 2 | Power Supply (-) |
| Contact 1 (NO) | Load (+) |
| Contact 2 (Common) | Power Supply (+) |
| LED (+) | Power Supply (+) |
| LED (-) | Ground |
🔧 Note: Always double-check the wiring diagram and ensure all connections are secure before powering up the system.
Troubleshooting Common Issues
Even with careful wiring, issues can arise with a Flasher Led Relay. Here are some common problems and their solutions:
- Relay Not Activating: Check the power supply and ensure it is connected correctly. Verify the coil resistance and ensure there are no short circuits.
- LED Not Lighting: Check the LED connections and ensure the polarity is correct. Verify the power supply to the LED.
- Contacts Not Switching: Inspect the contacts for any debris or corrosion. Ensure the coil is energized and the magnetic field is strong enough to operate the contacts.
- Overheating: Check the current and voltage ratings of the relay. Ensure the load is within the relay's specifications and consider using a heat sink if necessary.
By systematically checking these components, you can identify and resolve most issues with a Flasher Led Relay.
Safety Precautions
Working with electrical components, including a Flasher Led Relay, requires adherence to safety precautions to prevent accidents and ensure proper functioning. Here are some key safety tips:
- Disconnect Power: Always disconnect the power supply before working on the relay or any electrical circuit.
- Use Insulated Tools: Use insulated tools to handle electrical components and avoid short circuits.
- Wear Protective Gear: Wear appropriate protective gear, including safety glasses and gloves, to protect against electrical hazards.
- Follow Manufacturer Guidelines: Always follow the manufacturer's guidelines and specifications for wiring and operation.
- Avoid Overloading: Ensure the relay and its components are not overloaded beyond their rated capacity.
By following these safety precautions, you can work with a Flasher Led Relay safely and effectively.
In conclusion, the Flasher Led Relay is a versatile and essential component in electrical engineering and automation. Its ability to provide visual feedback through an LED makes it invaluable in various applications, from automotive and industrial automation to home automation and DIY projects. By understanding its operation, selecting the right type, and following proper wiring and safety precautions, you can effectively integrate a Flasher Led Relay into your projects. Whether you’re a professional engineer or a hobbyist, mastering the Flasher Led Relay can enhance your control and monitoring capabilities, ensuring reliable and efficient operation of your systems.
