Understanding the principles of heat transfer is crucial in various fields, from engineering to materials science. One of the fundamental concepts in this area is Fick's Second Law, which describes how diffusion causes the concentration of a substance to change with time. This law is particularly important in scenarios involving mass transfer, such as the diffusion of gases, liquids, or solids through a medium.
What is Fick's Second Law?

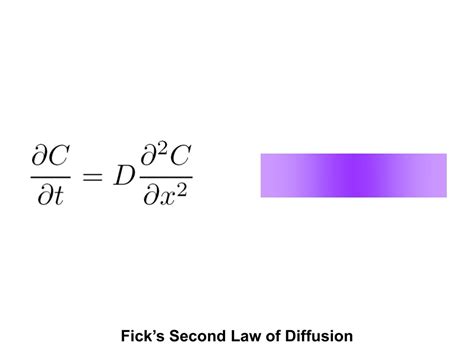

Fick's Second Law is a partial differential equation that describes how diffusion causes the concentration of a substance to change with time. It is named after Adolf Fick, a German physiologist who formulated the law in 1855. The law states that the rate of change of concentration is proportional to the second spatial derivative of the concentration. Mathematically, it is expressed as:
∂C/∂t = D * ∇²C
Where:
- C is the concentration of the diffusing substance.
- t is time.
- D is the diffusion coefficient.
- ∇² is the Laplacian operator, which represents the second spatial derivative.
Applications of Fick's Second Law
Fick's Second Law has wide-ranging applications in various scientific and engineering disciplines. Some of the key areas where this law is applied include:
- Materials Science: Understanding the diffusion of impurities in materials is crucial for developing new alloys and semiconductors.
- Chemical Engineering: Diffusion processes are essential in chemical reactors, where reactants need to diffuse to the catalyst surface.
- Biomedical Engineering: The diffusion of drugs through biological tissues is a critical factor in drug delivery systems.
- Environmental Science: The spread of pollutants in air, water, and soil can be modeled using diffusion equations.

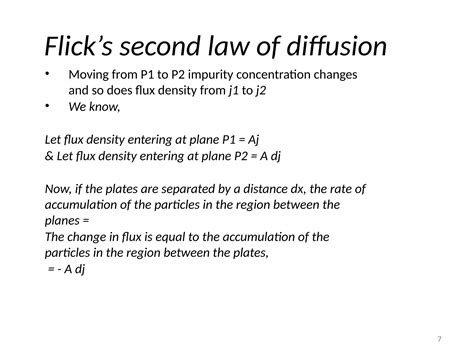

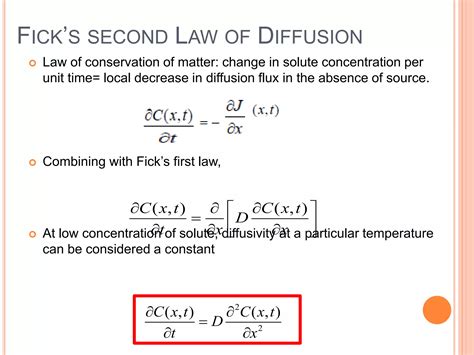

Derivation of Fick's Second Law
The derivation of Fick's Second Law involves understanding the flux of a diffusing substance and how it changes over time. The flux, J, is defined as the amount of substance passing through a unit area per unit time. According to Fick's First Law, the flux is proportional to the concentration gradient:
J = -D * ∇C
To derive the second law, we consider the conservation of mass. The change in concentration over time in a small volume element is equal to the net flux into that element. Mathematically, this can be expressed as:
∂C/∂t = -∇ · J
Substituting Fick's First Law into this equation gives:
∂C/∂t = -∇ · (-D * ∇C)
Assuming the diffusion coefficient D is constant, this simplifies to:
∂C/∂t = D * ∇²C
This is the familiar form of Fick's Second Law.
Solving Fick's Second Law
Solving Fick's Second Law involves finding the concentration profile C(x, t) that satisfies the differential equation. This can be done using various methods, including analytical solutions, numerical methods, and computational simulations. Some common techniques include:
- Separation of Variables: This method is useful for solving the equation in simple geometries like slabs, cylinders, and spheres.
- Fourier Transform: This technique is effective for solving problems in infinite or semi-infinite domains.
- Finite Difference Methods: These numerical methods are used for solving the equation in complex geometries or with non-linear diffusion coefficients.
For example, consider the diffusion of a substance in a one-dimensional slab of thickness L with initial concentration C0 and boundary conditions C(0, t) = C(L, t) = 0. The solution to Fick's Second Law in this case is:
C(x, t) = ∑[n=1 to ∞] (4C0/L) * sin(nπx/L) * exp(-Dn²π²t/L²)
This solution represents the concentration profile as a function of position x and time t.
📝 Note: The solution to Fick's Second Law can be complex and may require numerical methods for accurate results, especially in multi-dimensional or non-linear problems.
Boundary Conditions and Initial Conditions
To solve Fick's Second Law, it is essential to specify the boundary conditions and initial conditions. Boundary conditions describe the concentration at the boundaries of the domain, while initial conditions describe the concentration distribution at the start of the diffusion process. Common boundary conditions include:
- Dirichlet Boundary Conditions: The concentration is specified at the boundaries.
- Neumann Boundary Conditions: The flux is specified at the boundaries.
- Robin Boundary Conditions: A linear combination of the concentration and flux is specified at the boundaries.
For example, consider a one-dimensional diffusion problem with the following boundary and initial conditions:
| Boundary Condition | Initial Condition |
|---|---|
| C(0, t) = 0 | C(x, 0) = C0 |
| C(L, t) = 0 |
These conditions specify that the concentration is zero at the boundaries and initially uniform throughout the domain.
Examples of Fick's Second Law in Action
To illustrate the application of Fick's Second Law, let's consider a few examples:
Diffusion in a Semi-Infinite Medium
Consider the diffusion of a substance from a constant concentration source into a semi-infinite medium. The boundary condition at the source is C(0, t) = C0, and the initial condition is C(x, 0) = 0 for x > 0. The solution to Fick's Second Law in this case is:
C(x, t) = C0 * erfc(x/2√Dt)
Where erfc is the complementary error function. This solution describes how the concentration decreases with distance from the source and increases with time.
Diffusion in a Finite Slab
Consider the diffusion of a substance in a finite slab of thickness L with initial concentration C0 and boundary conditions C(0, t) = C(L, t) = 0. The solution to Fick's Second Law in this case is:
C(x, t) = ∑[n=1 to ∞] (4C0/L) * sin(nπx/L) * exp(-Dn²π²t/L²)
This solution represents the concentration profile as a function of position x and time t, showing how the concentration decreases over time due to diffusion.
Diffusion in a Cylinder
Consider the diffusion of a substance in a cylindrical geometry with radius R and initial concentration C0. The boundary condition at the surface is C(R, t) = 0. The solution to Fick's Second Law in this case is:
C(r, t) = ∑[n=1 to ∞] (2C0/J1(αn)) * J0(αnr/R) * exp(-Dαn²t/R²)
Where J0 and J1 are Bessel functions of the first kind, and αn are the roots of J0. This solution describes the concentration profile in the radial direction as a function of time.
📝 Note: The solutions to Fick's Second Law in different geometries can be complex and may require numerical methods for accurate results.
Advanced Topics in Fick's Second Law
While the basic form of Fick's Second Law is straightforward, there are several advanced topics that extend its applicability and complexity. Some of these topics include:
- Non-Linear Diffusion: In some cases, the diffusion coefficient D may depend on the concentration, leading to non-linear diffusion equations.
- Anisotropic Diffusion: The diffusion coefficient may vary with direction, leading to anisotropic diffusion equations.
- Reaction-Diffusion Systems: These systems involve both diffusion and chemical reactions, leading to more complex equations.
- Multicomponent Diffusion: When multiple substances diffuse simultaneously, the equations become coupled and more complex.
These advanced topics require more sophisticated mathematical techniques and numerical methods to solve.
Conclusion
Fick’s Second Law is a fundamental principle in the study of diffusion processes. It provides a mathematical framework for understanding how the concentration of a substance changes over time due to diffusion. The law has wide-ranging applications in various fields, from materials science to environmental engineering. By solving Fick’s Second Law with appropriate boundary and initial conditions, we can gain insights into diffusion processes in different geometries and scenarios. Understanding this law is crucial for developing new materials, optimizing chemical processes, and modeling environmental phenomena.
