In the realm of heating, ventilation, and air conditioning (HVAC) systems, the Fan Coil Unit (FCU) stands out as a versatile and efficient solution for maintaining optimal indoor climate conditions. These units are widely used in both residential and commercial settings due to their ability to provide precise temperature control and efficient air distribution. This blog post delves into the intricacies of Fan Coil Units, exploring their types, components, benefits, installation processes, and maintenance tips.
Understanding Fan Coil Units
A Fan Coil Unit is a device that consists of a coil and a fan. The coil is used to either heat or cool the air, while the fan circulates the air through the coil and into the room. FCUs are typically used in conjunction with a central heating or cooling system, such as a boiler or a chiller, to provide localized temperature control. They are particularly useful in buildings where individual room temperature control is required, such as hotels, offices, and hospitals.
Types of Fan Coil Units
Fan Coil Units come in various types, each designed to meet specific needs and installation requirements. The main types include:

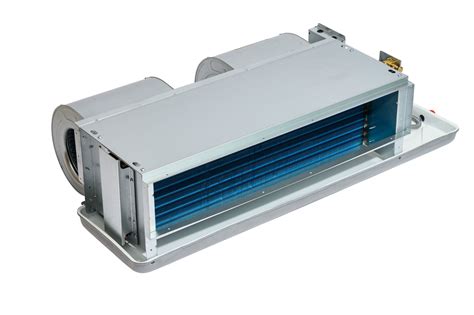

- Horizontal Fan Coil Units: These units are installed horizontally, often in ceiling voids or above suspended ceilings. They are ideal for spaces with limited floor area.

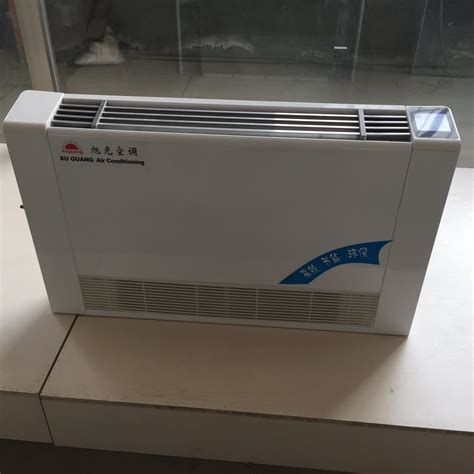

- Vertical Fan Coil Units: These units are installed vertically, typically in walls or floor-mounted configurations. They are suitable for spaces where ceiling installation is not feasible.

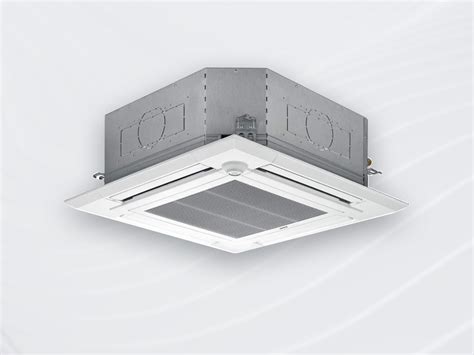

- Cassette Fan Coil Units: These units are designed to be installed in the ceiling, providing a discreet and aesthetically pleasing solution. They are often used in commercial settings where appearance is a priority.
- Ducted Fan Coil Units: These units are connected to a duct system, allowing for air distribution to multiple rooms or zones. They are commonly used in larger buildings with complex HVAC requirements.
Components of a Fan Coil Unit
A typical Fan Coil Unit consists of several key components that work together to provide efficient heating and cooling. These components include:
- Coil: The coil is the heart of the FCU, responsible for heating or cooling the air. It can be either a heating coil or a cooling coil, depending on the application.
- Fan: The fan circulates air through the coil and into the room. It is typically a centrifugal or axial fan, depending on the unit's design.
- Filter: The filter removes dust and other particles from the air, ensuring clean and healthy indoor air quality.
- Drain Pan: The drain pan collects condensation from the cooling coil, preventing water damage to the unit and the surrounding area.
- Control System: The control system regulates the operation of the FCU, allowing for precise temperature control and energy efficiency.
Benefits of Fan Coil Units
Fan Coil Units offer numerous benefits, making them a popular choice for both residential and commercial applications. Some of the key benefits include:
- Energy Efficiency: FCUs are highly energy-efficient, as they only heat or cool the air in specific zones, reducing overall energy consumption.
- Precise Temperature Control: FCUs provide precise temperature control, allowing users to maintain comfortable indoor conditions.
- Flexibility: FCUs can be used in a variety of settings, from residential homes to large commercial buildings, making them a versatile solution.
- Quiet Operation: FCUs operate quietly, ensuring a peaceful indoor environment.
- Easy Installation: FCUs are relatively easy to install, making them a cost-effective solution for new construction and retrofitting projects.
Installation of Fan Coil Units
The installation of a Fan Coil Unit involves several steps, from planning to final setup. Here is a detailed guide to help you understand the process:
Planning and Preparation
Before installing a FCU, it is essential to plan the layout and determine the appropriate location for the unit. Consider factors such as:
- The size of the room or space
- The desired temperature control
- The availability of ductwork or piping
- The aesthetic requirements
Once the planning is complete, gather the necessary tools and materials, including:
- FCU unit
- Ductwork or piping
- Mounting brackets
- Screws and bolts
- Drill and screwdriver
- Level
- Tape measure
Installation Steps
Follow these steps to install a Fan Coil Unit:
- Choose the Location: Select a suitable location for the FCU, ensuring it is easily accessible for maintenance and does not obstruct airflow.
- Mount the Unit: Use mounting brackets to secure the FCU to the wall, ceiling, or floor, depending on the type of unit. Ensure the unit is level and properly aligned.
- Connect the Ductwork or Piping: Connect the FCU to the ductwork or piping system, ensuring a tight seal to prevent air leaks.
- Install the Control System: Connect the control system to the FCU, following the manufacturer's instructions. This may include wiring the thermostat and other control components.
- Test the Unit: Turn on the FCU and test its operation, ensuring it heats or cools the air as expected. Adjust the settings as needed to achieve the desired temperature.
🔧 Note: Always follow the manufacturer's instructions for specific installation guidelines and safety precautions.
Maintenance of Fan Coil Units
Regular maintenance is crucial for ensuring the longevity and efficiency of a Fan Coil Unit. Here are some essential maintenance tips:
- Clean the Filter: Regularly clean or replace the filter to maintain good indoor air quality and prevent dust buildup.
- Check the Coil: Inspect the coil for any signs of dirt or corrosion, and clean it as needed to ensure efficient operation.
- Inspect the Drain Pan: Check the drain pan for any leaks or blockages, and clean it to prevent water damage.
- Lubricate Moving Parts: Lubricate the fan and other moving parts to reduce wear and tear and ensure smooth operation.
- Test the Control System: Regularly test the control system to ensure it is functioning correctly and providing accurate temperature control.
By following these maintenance tips, you can extend the lifespan of your FCU and ensure it operates efficiently.
Troubleshooting Common Issues
Even with regular maintenance, Fan Coil Units can encounter issues. Here are some common problems and their solutions:
| Issue | Solution |
|---|---|
| Unit Not Turning On | Check the power supply and ensure the unit is properly connected. Inspect the control system for any faults. |
| Insufficient Heating or Cooling | Clean the filter and coil. Check the ductwork or piping for any leaks or blockages. |
| Excessive Noise | Lubricate the fan and other moving parts. Check for any loose components or debris in the unit. |
| Water Leaks | Inspect the drain pan for leaks or blockages. Clean the drain pan and ensure proper drainage. |
If these solutions do not resolve the issue, it may be necessary to consult a professional HVAC technician for further assistance.
In conclusion, Fan Coil Units are a versatile and efficient solution for maintaining optimal indoor climate conditions. They offer numerous benefits, including energy efficiency, precise temperature control, and flexibility in installation. By understanding the types, components, installation processes, and maintenance requirements of FCUs, you can ensure they operate efficiently and provide a comfortable indoor environment. Regular maintenance and troubleshooting common issues will help extend the lifespan of your FCU and ensure it continues to perform effectively.
